Nvis 6034 Laboratory for Current Carrying Coil Setup (electromagnetism concepts)

Reference: Nvis6034 - Manufacturer: NVIS TECHNOLOGIES

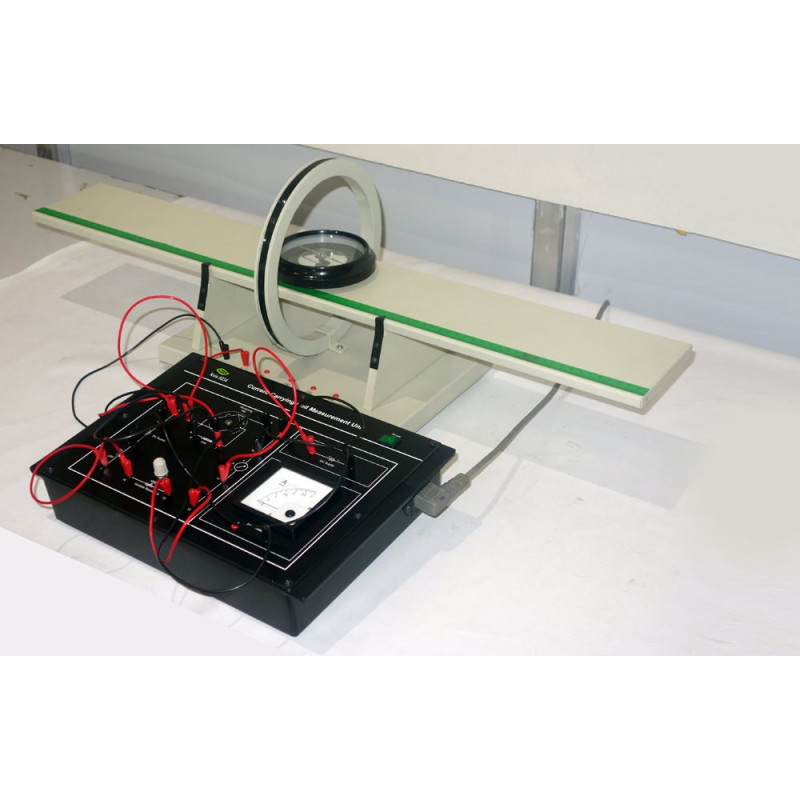

Nvis 6034 Laboratory for Current Carrying Coil Setup is designed to explain the concept of Electromagnetism. This product is also known as Stewart and Gee's apparatus.

Nvis 6034 Laboratory for Current Carrying Coil Setup is an ideal platform to enhance education, training, skills & development amongs our young minds.

This setup is helpful for the study of magnetic field around a current carrying coil. It illustrates how magnetic field is generated by applying electric current in any current carrying conductor. For this purpose Tangent Galvanometer is used, which is based on Tangent law of magnetism.

- A complete setup with all accessories
- Precise Tangent Galvanometer
- Sliding Magnetometer
- Provided with DC Power Supply
- Compact Design
- Online product tutorial

- Determination of the radius of a current carrying coil

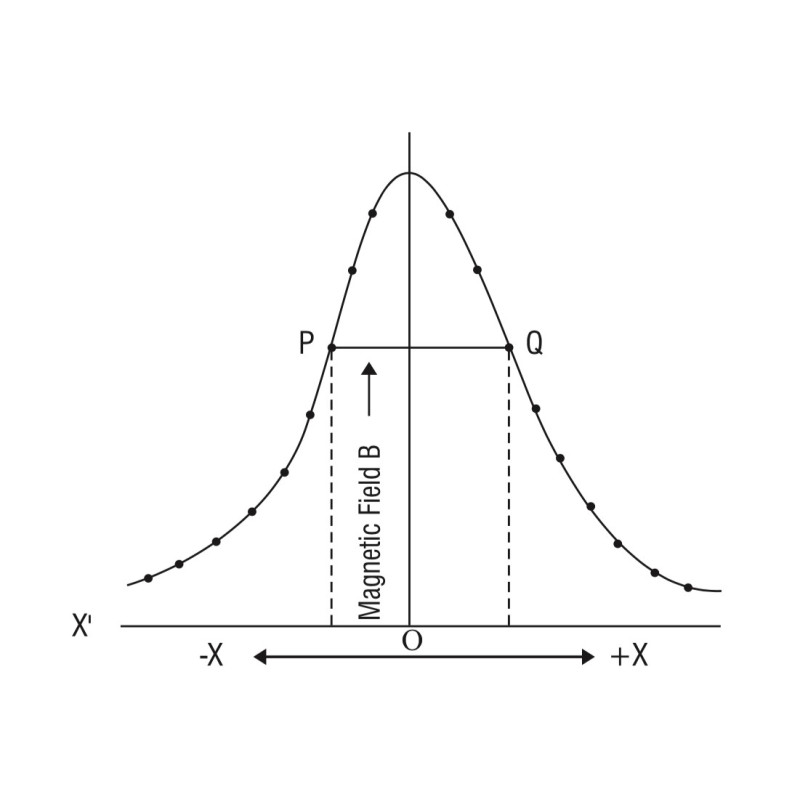

- Determination of the magnetic field with the variation of distance along the axis of current carrying coil

Category: Laboratories

Download (3.02MB)
