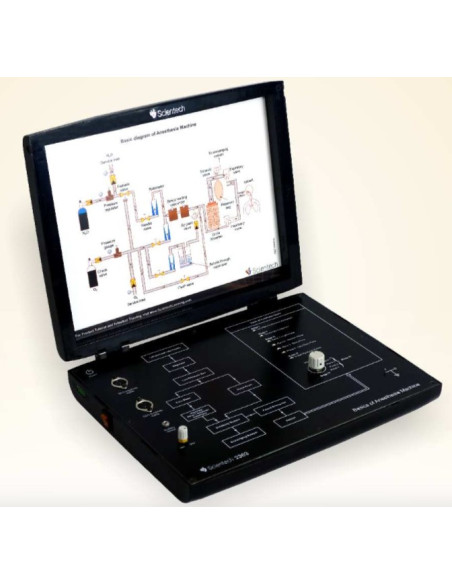

Scientech2363 TechBook for Basics of Anesthesia Machine

Scientech TechBooks are compact and user friendly learning platforms to provide a modern, portable, comprehensive and practical way to learn Technology. Each TechBook is provided with detailed Multimedia learning material which covers basic theory, step by step procedure to conduct the experiment and other useful information.

Anesthesia, or Anaesthesia from Greek an-"without" and aesthesis- "sensation") has traditionally meant the condition of having sensation (including the feeling of pain) blocked or temporarily taken away. This allows patients to undergo surgery and other procedures without the distress and pain they would otherwise experience.

Another definition is a "reversible lack of awareness", whether this is a total lack of awareness (general Anesthesic) or a lack of awareness of a part of the body such as a spinal anesthetic. Anesthesia differs from analgesia in blocking all sensation, not only pain.

Generally we can say that Anesthesia is used to ensure that patient does not feel pain during surgery and also provides the surgeon with favorable condition for the work.

Scientech2363 TechBook for Basics of Anesthesia Machine is an ideal platform to enhance education, training, skills & development amongs our young minds.

• Features:

- Two separate non interchangeable color coded cylinders for oxygen (O2) and nitrous oxide(N2O)
- Two separate regulators with pressure gauge indicators (150Kg/Cm2 )
- Pin index type yoke oxygen and Nitrous Oxide indication cylinder
- Two gases rotameter (Bobbin type)
- Circle absorber system
- Humidifier system (without soda lime)
- Dextrose (5%) provided for emergency glucose supply to the patient
- Quick flush valve
- Scavenging system (without Charcoal)
- Patient Breathing circuit (Bain circuit)
- Patient connectors (Oxygen mask)
- Goldman Halothene and Ether Vaporizers (not in function, because it is harmful for students at educational level)
- Resuscitator (Ambu Bag)
- Human Dummy
- Basics of Anesthesia Machine with software for full understanding of Depth of Anesthesia (DoA)

+ Anesthesia Machine:
- Gas Cylinders (O2, N2O): 60 X 10 cm with maximum capacity of 150 Kg/cm2
- Yoke cylinder: 30 X 10 cm with pin index system (international)
- Regulators: For controlling high pressure gases
- Rotameter: With 12 and 10 liters / min respectively for N2O and O2
- Breathing circuit: Bain circuit (1.5 meters)
- Dimensions (cm): W 60 x D 60 x H 155
- Body type: MS Body
- Top base tray: Chrome plated top base
- Movability: In all directions by Plastic wheels
- Drawer size (cm): W 60 x D 60 x H 20 (For keeping accessories)
- Weight: 15 Kg approximately

+ TechBook:
- Indication: Visual indications by SMD LED's (Red)
- Rotary switch: For selection of stages of Anesthesia
- DIN Connectors: For EEG and ECG lead Connections
- EP Socket: For 70 DB Tone sensory stimuli
- Gain control: For variation of intensity
- USB connector: For PC Interface
- Power Supply: 110-220 V, ±10%, 50/60Hz
- Dimensions (mm): W 326 x D 252 x H 52
- Weight: 1 Kg approximately

+ Included Accessories:
- USB Cable (Male to Male):  1 no. A-Type
- Disposable ECG Electrodes: 1 Pack
- Ambu Bag: 1 no
- Headphone: 1 no
- Power Supply: 1 no

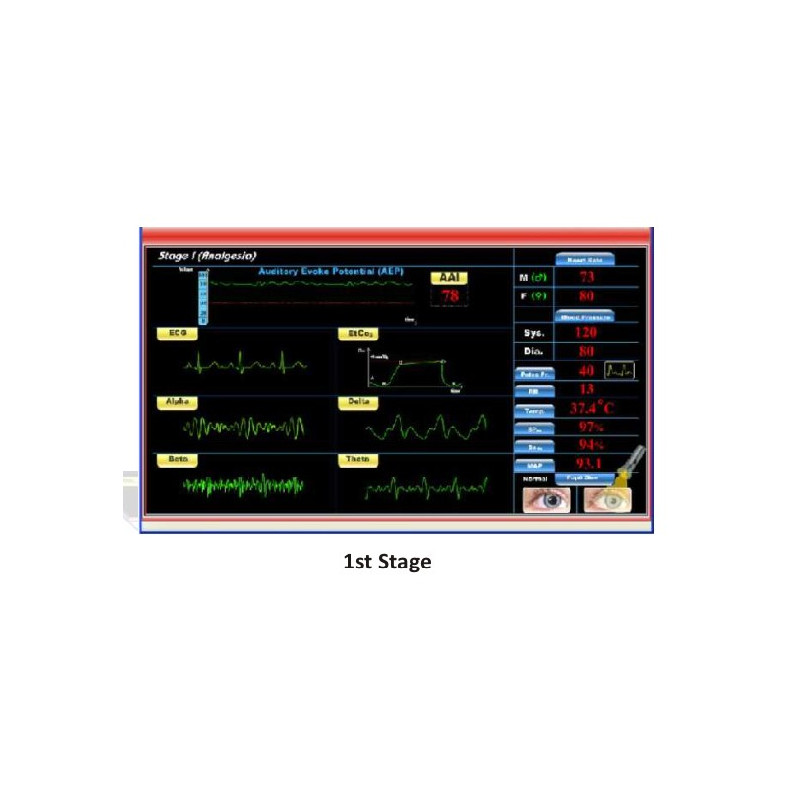

- Study of patient physiological parameters in stage one of Anesthesia (Analgesia)
- Study of patient physiological parameters in stage two of Anesthesia (Voluntary excitement)

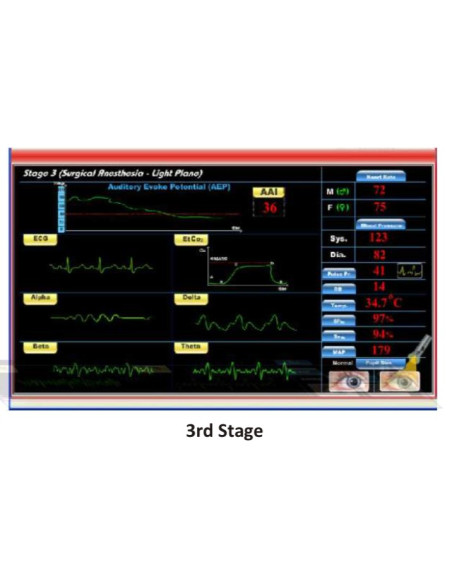

- Study of patient physiological parameters in stage three (Plane one – light plane) of Anesthesia (Surgical Anesthesia)
- Study of patient physiological parameters in stage three (Plane two – Medium plane) of Anesthesia (Surgical Anesthesia)
- Study of patient physiological parameters in stage three (Plane three – Deep plane) of Anesthesia (Surgical Anesthesia)
- Study of patient physiological parameters in stage three (Plane four – very deep plane) of Anesthesia (Surgical Anesthesia)
- Study of patient physiological parameters in stage four (Bulbar paralysis) of Anesthesia (Respiratory arrest and cardiac failure, coma).
