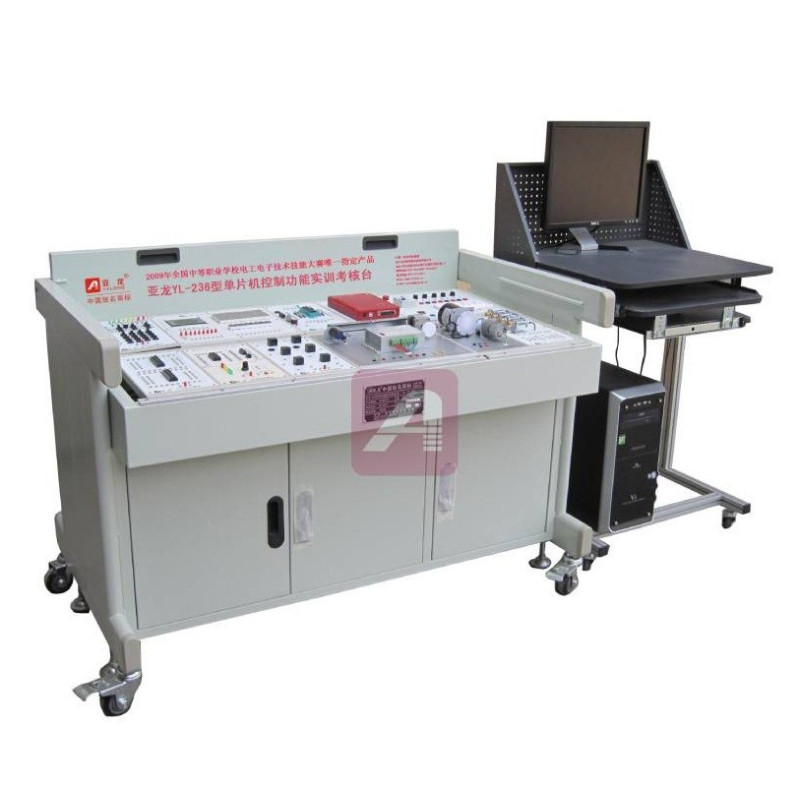

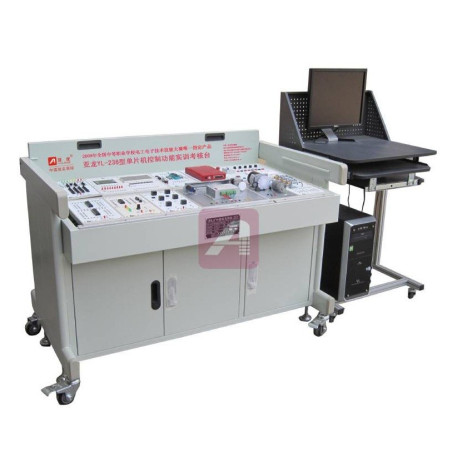

YL-236 Single-chip Microcomputer Control Training Device

● Input power: Single-phase AC 220V ± 10% (50Hz);

● Output power: DC ±12V ± 5%/0.5A
DC ±5V ± 5%/3.5A
DC 24V ± 5%/6A

● Temperature: -10-40°C; Ambient humidity: 90% or less (25°C);

● Dimensions: Approx. 1225mm × 690mm × 820mm (length × width × height);

● Total consumption: 0.5kW or less;

● Safety protection methods: With grounding protection, electric leakage protection function, safety meets national standards.

● Three-axis linear transfer robot mechanism;

● Smart storage mechanism support; RFID;

● 9 pieces of material labeled with electronic tags;

● Material connection and supply mechanism;

● Touch panel;

● Material transfer belt and guide rail;
