Nvis 3305 RoboLeg

Reference: Nvis3305 - Manufacturer: NVIS TECHNOLOGIES

Nvis 3305, RoboLeg is an ideal platform to enhance education, training, skills & development amongs our young minds.

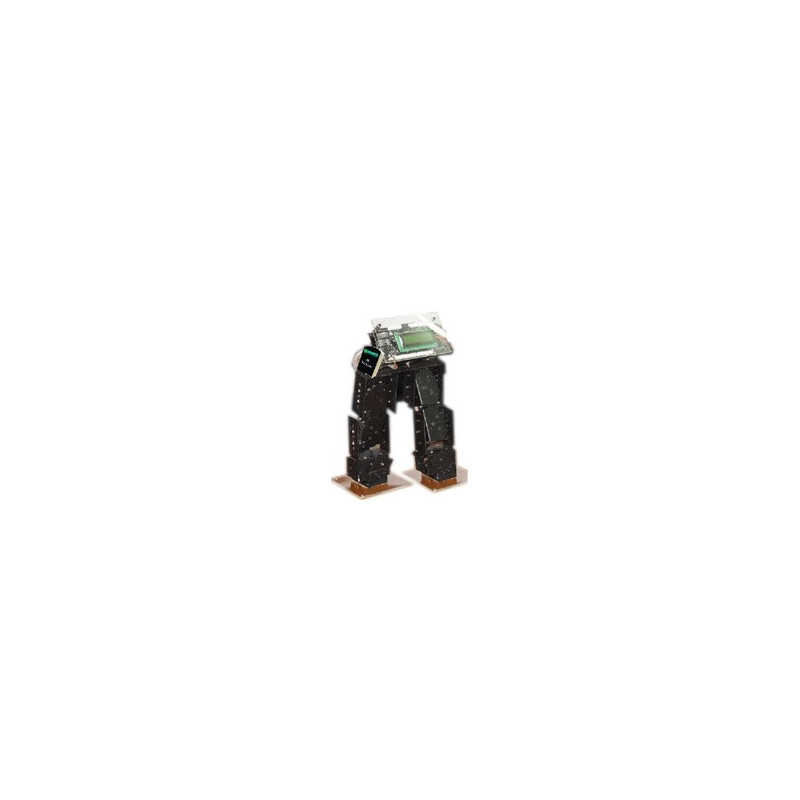

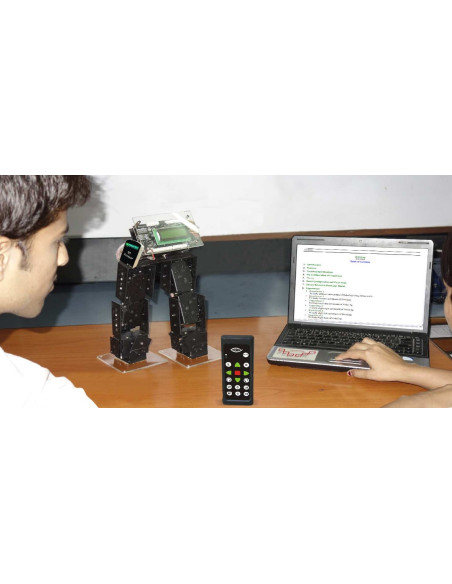

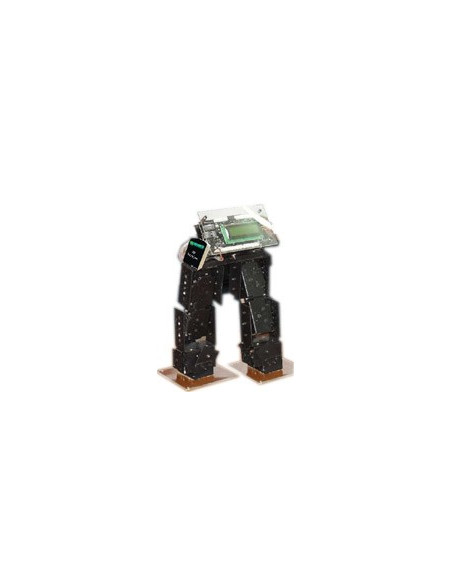

Nvis 3305 RoboLeg is a next generation legged robot platform with marvelous design and capabilities. It has 6 degrees of freedom which gives it stable walking steps using 6 servo motors. The main board of the RoboLeg can drive up to 6 servo motors in parallel. There are various ports, I2C, SPI and USART connectors for variety of applications like sensor interfacing.
RoboLeg can perform various effective movements like Right Kick, Left Kick, Stretching, Forward walk and Reverse Walk. It is very easy to drive all these movements using menu switches and LCD provided on the main board. It can be controlled using wireless device, or using PC interface and software.

6 DOF moving capability
Main board featuring various ports and connectors for range of applications
Wireless RF controlled
High torque metal geared Servo motor
Online Product Tutorial

Learn to interface Servo motor
Gaining knowledge about two legged walking principle
Gaining knowledge about advance level programming for forward/reverse 4 walking principle, right/left kick, stretching and many more
Learn wireless control over RoboLeg using RF module
Control using PC interface and software

Category: Robotics

Download (302.2KB)
