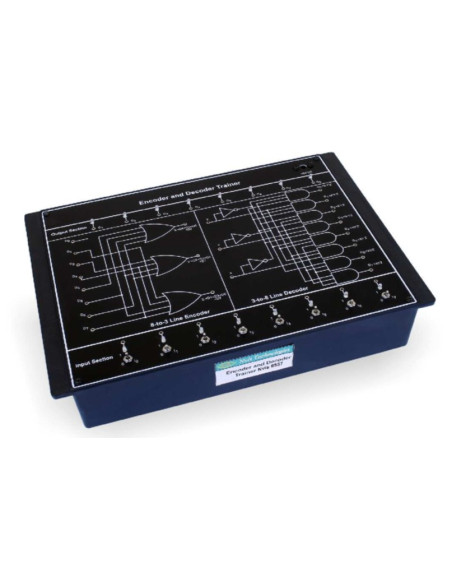

Nvis 6557 Laboratory for Encoder and Decoder Trainer

Reference Nvis6557

Condition: New

Nvis 6557 Laboratory for Encoder and Decoder Trainer has been designed specifically for the study of 8-to-3 Line Encoder and 3-to-8 Line Decoder. The Training board explains the phenomena which encodes 8 data lines to 3 lines and decodes 3 data lines to 8 lines. The board is absolutely self contained and requires no other apparatus.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overwiew
Specifications
List of Experiments
Data sheet
Download

Category	Laboratories

Nvis6557 Download (197.89k)

Nvis 6557 Laboratory for Encoder and Decoder Trainer is an ideal platform to enhance education, training, skills & development amongs our young minds.

Features:

- +5V SMPS Adaptor provided with the trainer for power supply
- Easy illustration of Encoder and Decoder
- LEDs for visual indication of inputs and outputs status
- SPDT switches for logic selection
- Good quality, reliable sockets are provided at appropriate places on board for connections
- Strongly supported by systematic operating instructions
- A low cost training system
