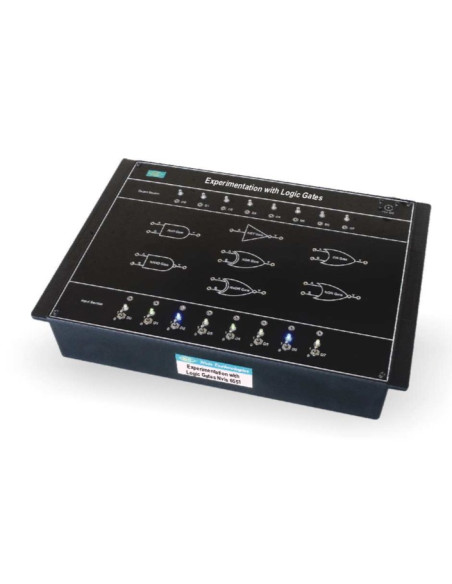

Nvis 6551 Laboratory for Experimentation with Logic Gates

Nvis 6551 Laboratory for Experimentation with Logic Gates is an ideal platform to enhance education, training, skills & development amongs our young minds.

The training system is designed in such a way that for performing any experiment students have to connect the links by patch cords, so it is very helpful for students to learn the inputs and outputs of different logic gates. Attractive input and output sections are provided on trainer in such a manner so that multiple experiments can be performed simultaneously.

• Features:

- Exclusive and compact design
- Straight forward representation of all logic gates
- +5V SMPS Adaptor provided with the trainer for power supply
- Designed by considering all the safety standards
- Online product tutorial
- Low cost product including illustration of all logic gates

- Study of AND gate and to verify its truth table
- Study of OR gate and to verify its truth table
- Study of NOT gate and to verify its truth table
- Study of NAND gate and to verify its truth table
- Study of NOR gate and to verify its truth table
- Study of XOR gate and to verify its truth table
- Study of XNOR gate and to verify its truth table
