MSAE01
New

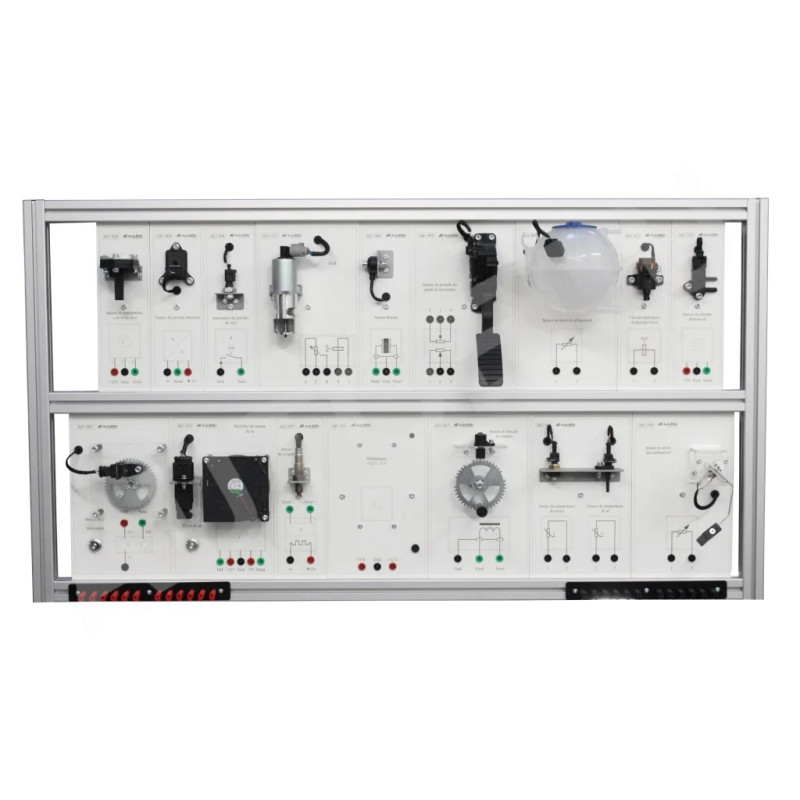

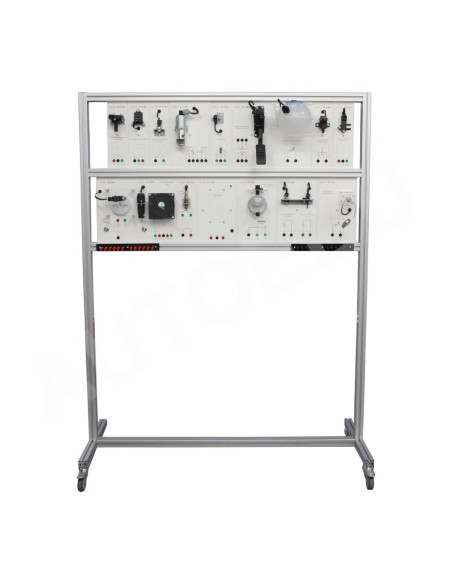

◆ Training stand designed for hands-on education in automotive electronic systems. It includes multiple removable modules, allowing students to individually test, measure, and analyze a wide range of automotive sensors and actuators.
This product is no longer in stock
Availability date:
► The course provides a controlled environment for learning about signal processing, sensor calibration, and electrical fault diagnosis.
► Value for Students
● It enables direct measurement and analysis of real automotive sensors, including ● Hall sensors, pressure sensors, temperature sensors, oxygen sensors, and more.
● It develops skills in interpreting sensor data, understanding signal variations, and diagnosing faults in electronic control systems.
● It provides hands-on experience with actuators such as EGR valves and solenoid control, reinforcing knowledge of engine management and emissions.
● It teaches how to test voltage, resistance, and frequency signals, preparing students for automotive diagnostics in real-world situations.
● It supports learning about electronic fuel injection, ignition timing adjustments, and interactions with the engine control unit (ECU).
► Value for Instructors
● It offers a structured platform for teaching automotive electronic components and their applications.
● It provides a modular approach to training, allowing instructors to focus on individual sensors and actuators.
● It allows for simple demonstration of operating principles through direct measurements and controlled fault simulations. Designed for step-by-step instruction, it is suitable for beginners and advanced students.
● It allows for group training with multiple removable modules, ensuring all students gain hands-on experience.
● It includes 16 different sensor and actuator modules, including a Hall sensor, knock sensor, mass air flow meter, and fuel level sensor.
● The modules can be disassembled for independent analysis and measurements.
● It allows real-time signal monitoring using diagnostic tools such as oscilloscopes and multimeters.
● It allows simulation of fault conditions for troubleshooting exercises.
● It supports analog and digital signal analysis, enabling the teaching of fundamental and advanced principles of electronic control.
● It is built on a rugged, mobile stand for easy integration into the classroom.
► Sensor Types:
● Hall Sensor
● Accelerator Pedal Position Sensor
● Absolute Pressure Sensor
● Knock Sensor
● Oxygen Sensor
● Oil Pressure Switch
● Fluid Level Sensor
● Differential Pressure Sensor
● Air Flow Meter
● EGR Actuator
● Limit Pressure Boost Solenoid Valve
● Oil Level and Temperature Sensor
● Air Mass Meter
● Engine Temperature Sensor / Air Temperature Sensor
● Rotation Direction Sensor
● Fuel Level Sensor
● Dimensions: Length 1360 mm (53.54 in); Width 500 mm (19.69 in); Height 1820 mm (71.65 in)
● Weight: Approx. ~60 kg (~132 lbs)
● Power: 12 V from 230 V 50 Hz household mains
● Measurement access points: Yes, via test leads
● Safety features: Protective housing for components, emergency shut-off
● Compatibility: Compatible with standard automotive diagnostic tools
● Product number: MSAE01
