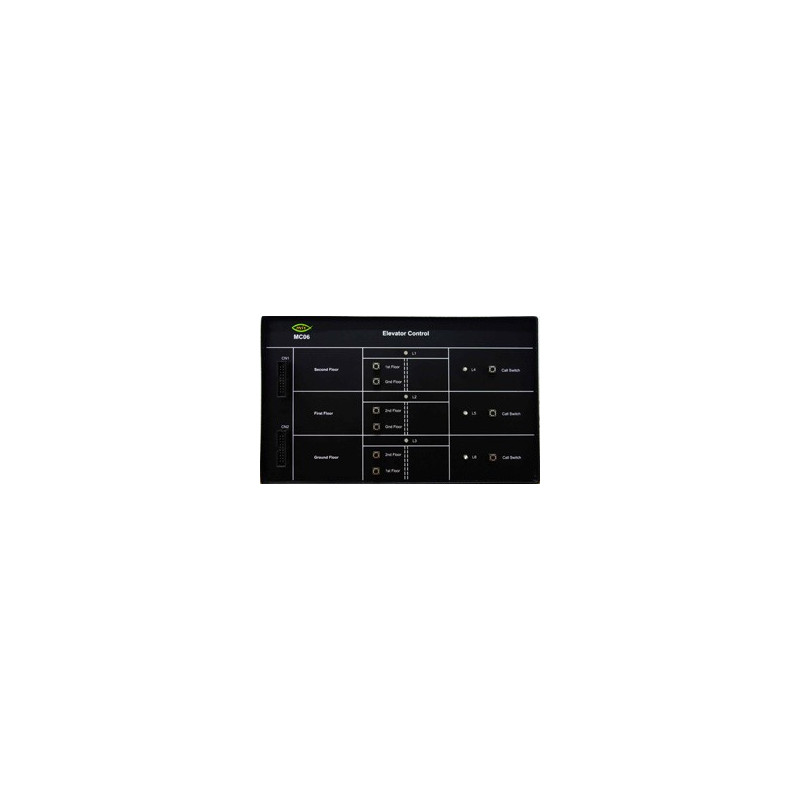

MC06 Elevator Control Module

Reference MC06

Condition: New

MC06 Elevator Control Module enables the students and practicing engineers to gain invaluable practical experience of the principles and application of Elevator and Microcontroller. The object is to connect and program an external controller to monitor and control the Elevator system. Elevator control module is shown with the help of switches and LEDs.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overwiew
Specifications
List of Experiments
Download

MC06 Download (196.09k)

MC06 Elevator Control Module is an ideal platform to enhance education, training, skills & development amongs our young minds.

MC06 is connected with Nvis Microcontroller development platforms. Three floors are shown on board. Switches are used to call and go to the desired floor. LEDs indicate the floor on which the elevator is present. The Elevator module is made in such a way that students can understand how elevators can be controlled by Microcontroller and also get familiar with inputs and outputs of a Microcontroller.

Features:

- Elevator interface
- PC based programming
- Expansion connectors for plug in with Microcontroller unit and prototyping area
- Every pin is marked in order to make the learning easier
- Input/Output & test points provided on board
- Exhaustive Learning Material
