Scientech2311 SensorLab

Reference Scientech2311

Condition: New

Scientech TechBooks are compact and easy-to-use learning platforms to provide a modern, portable, complete and practical way to learn Technology. Each TechBook is provided with detailed multimedia learning material that covers the basic theory, the step-by-step procedure for conducting the experiment and other useful information.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
SPECIFICATIONS
LIST OF EXPERIMENTS
Data sheet
Download

Category	Sensors

Scientech2311 Download (959.13k)

Scientech TechBooks are compact and user friendly learning platforms to provide a modern, portable, comprehensive and practical way to learn Technology. Each TechBook is provided with detailed Multimedia learning material which covers basic theory, step by step procedure to conduct the experiment and other useful information.

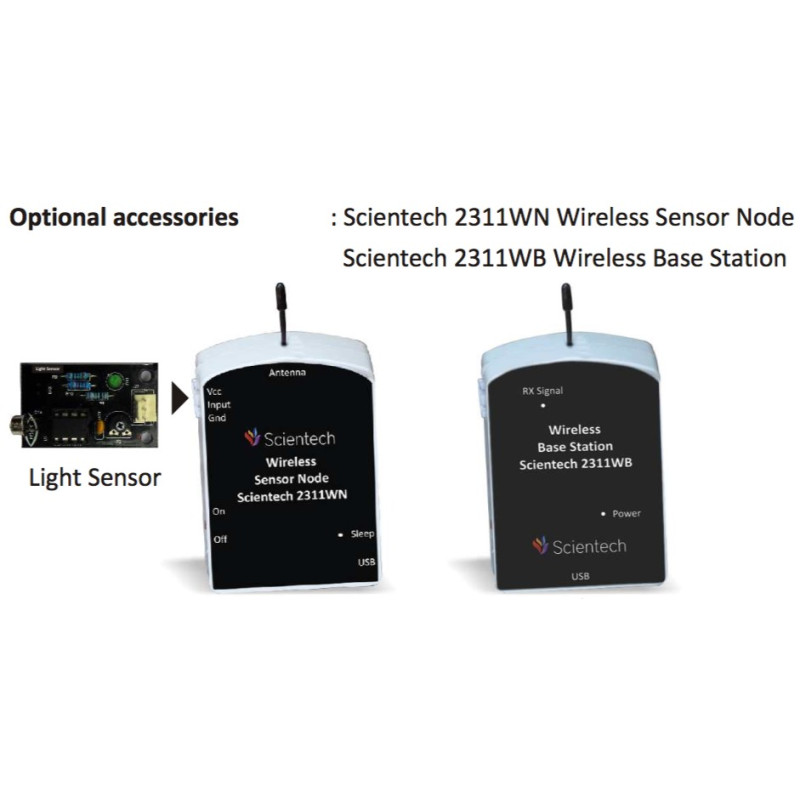

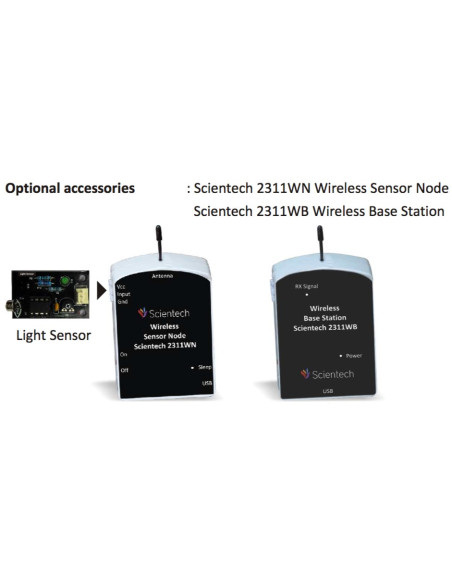

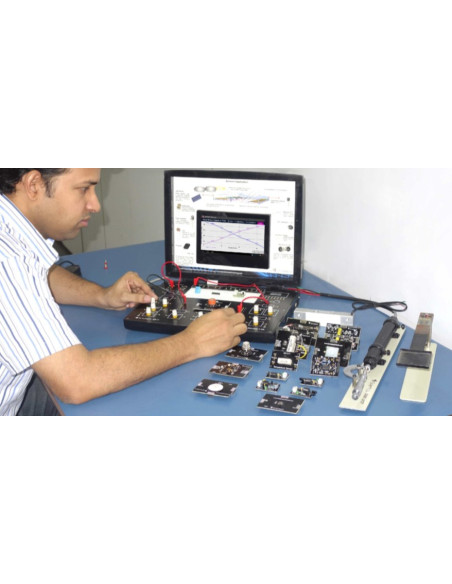

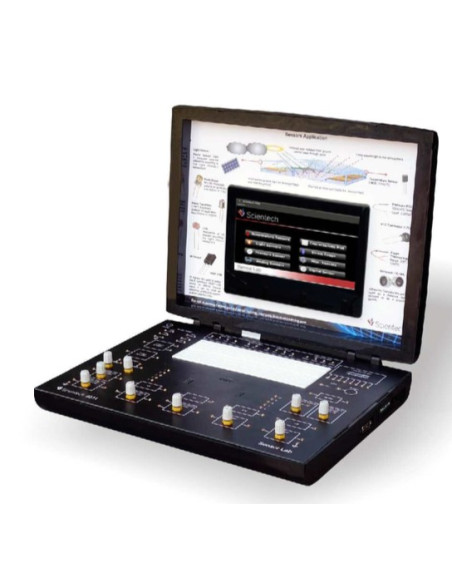

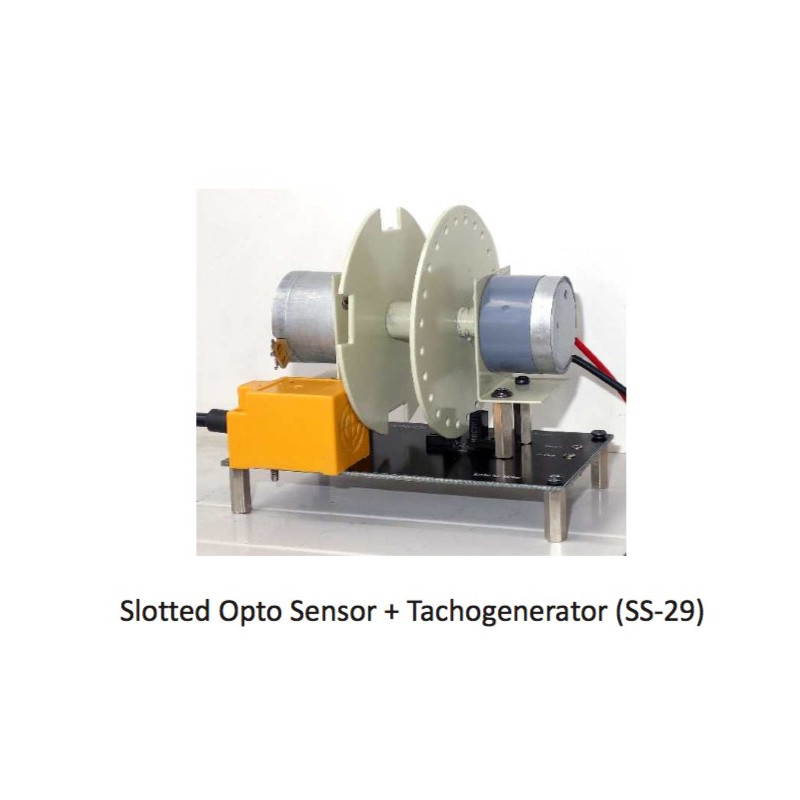

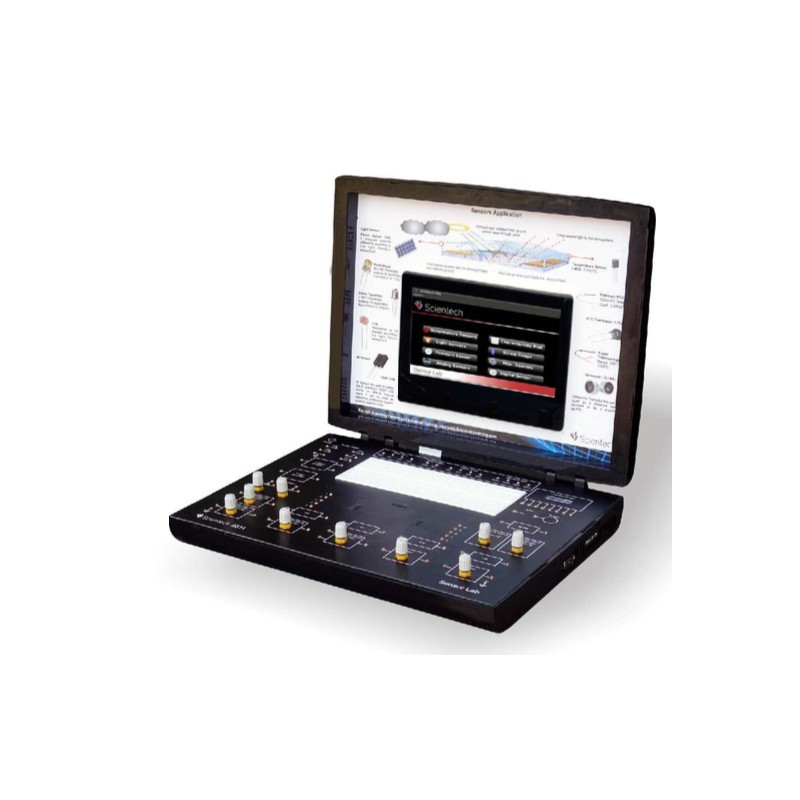

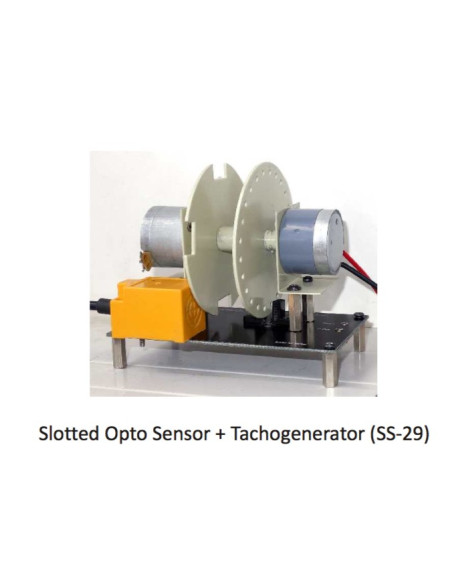

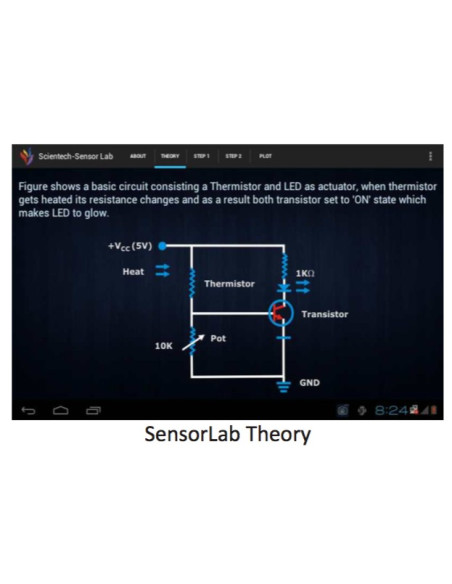

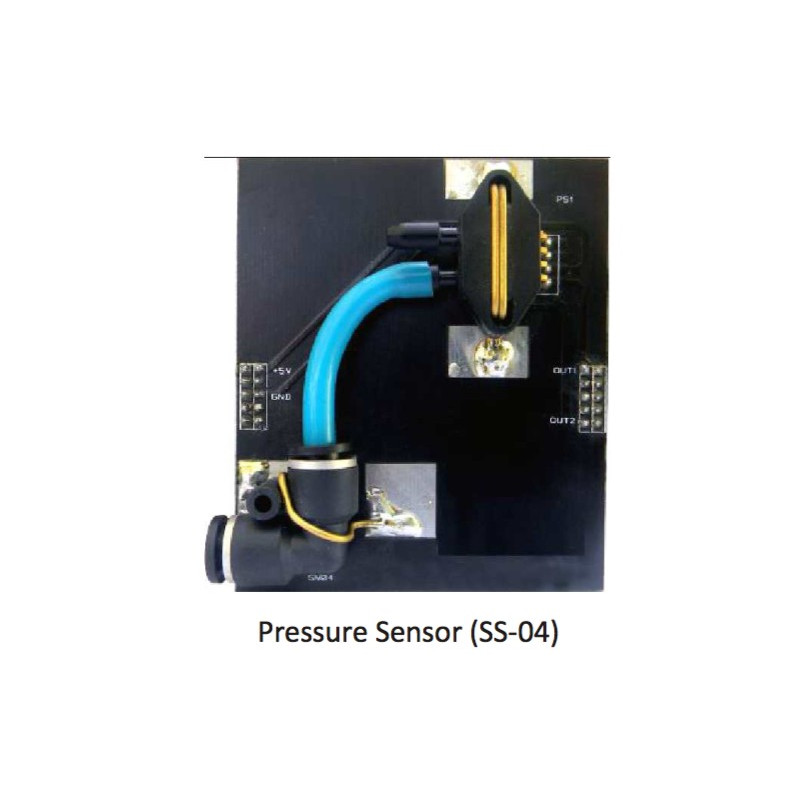

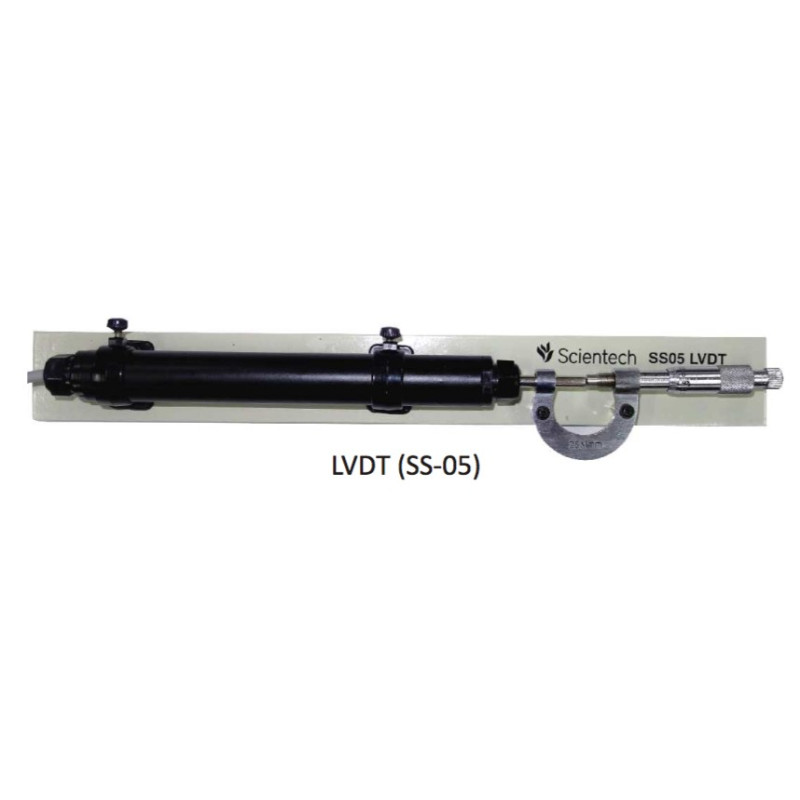

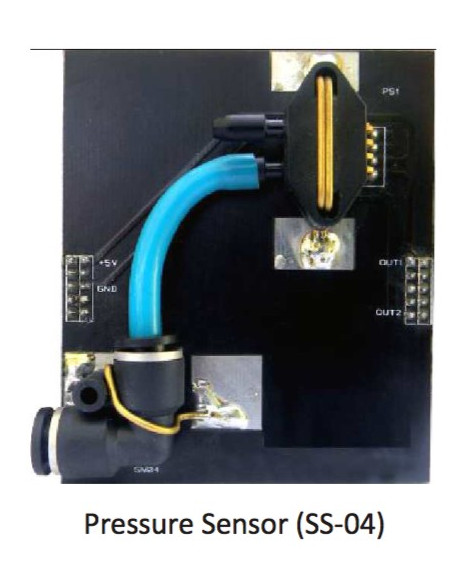

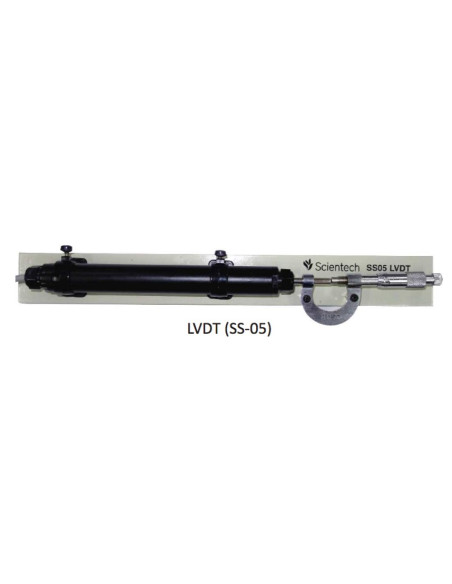

Scientech 2311 SensorLab comprises of Sensors and Transducers which provide the fundamental knowledge of sensing Light, Pressure, Temperature, IR and many more non electrical entities. Since, most of the sensors give signal which show small variation and are of low level output, these signals need to be converted into a form that is measurable and could be used efficiently. The lab consists of various signal conditioning blocks which perform amplification, filtration, signal conditioning and all the required operations which are acceptable to the input devices. 7" capacitive touch screen LCD is inbuilt for output device with easy to use instructions and graphical user interface, to display waveforms, to plot characteristics with the help of graphs, for reading operating manual and watching tutorials.

SensorLab is a stand alone TechBook. It does not require external Oscilloscope for measuring, or observing the output and characteristics of the Sensors interfaced.

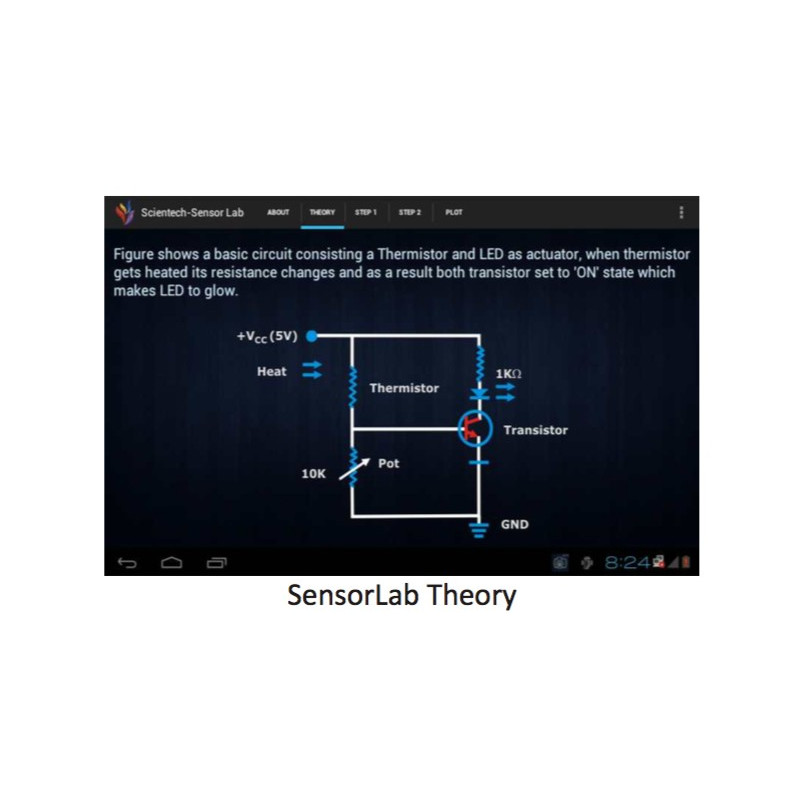

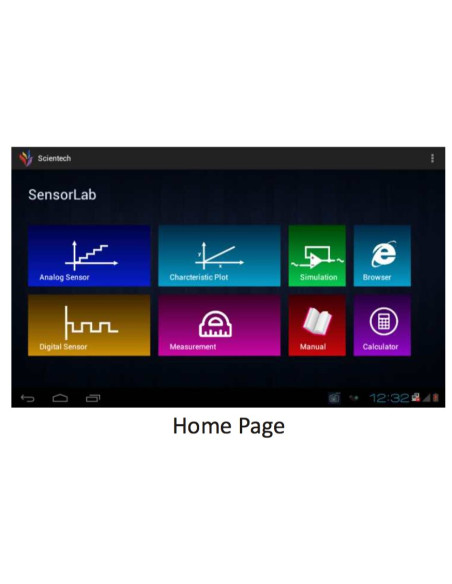

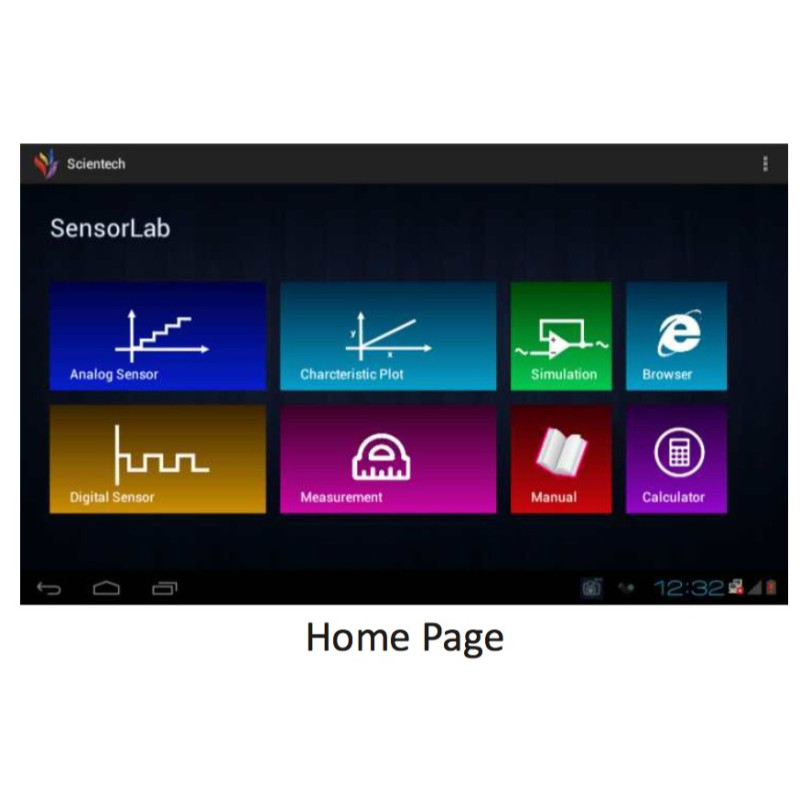

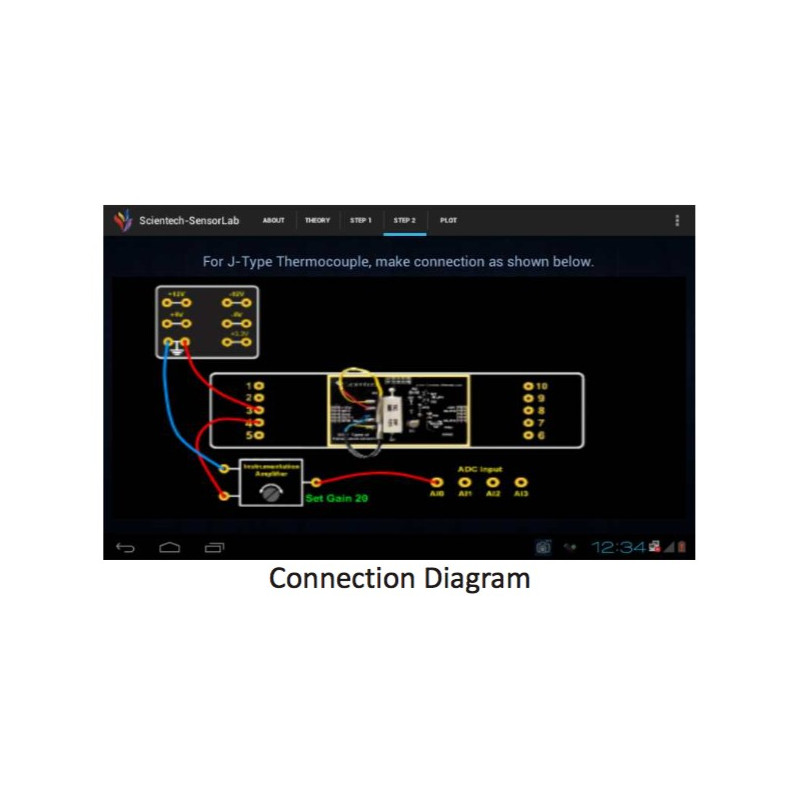

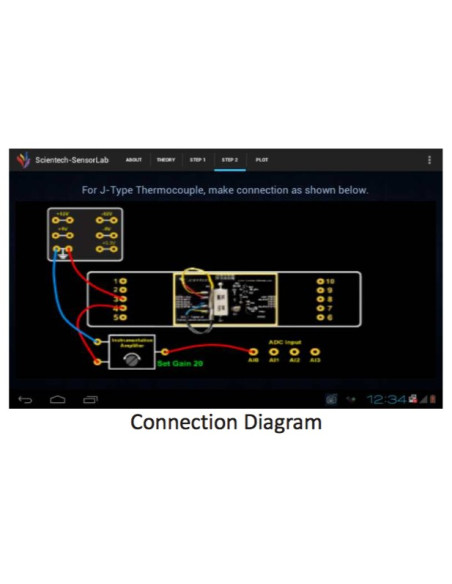

7" capacitive touch screen LCD with inbuilt processor for viewing the output waveforms, reading the operating manual, tutorial videos etc.
Inbuilt DAQ
User can design any circuit on bread board and test
Stand alone TechBook
USB Port for Keyboard and Pendrive interface
Ethernet Port to connect with real world

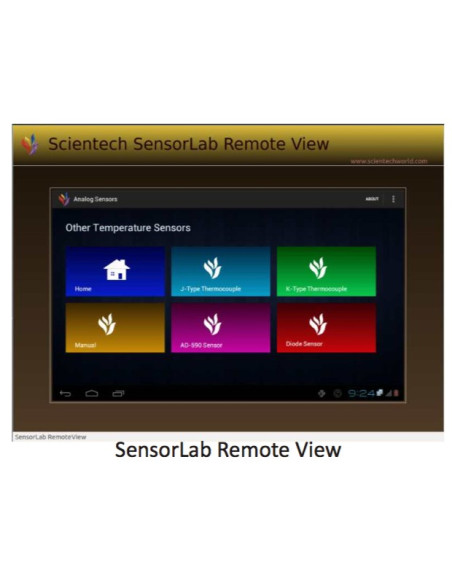

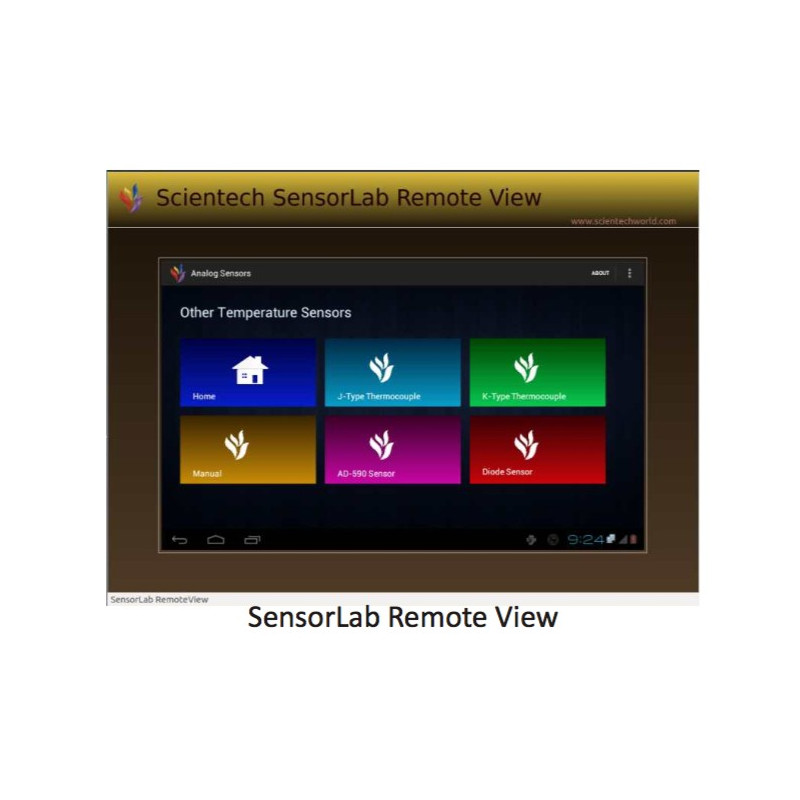

Ethernet connectivity for remote view application (supported operating system : windows / Linux)
Online update / USB update

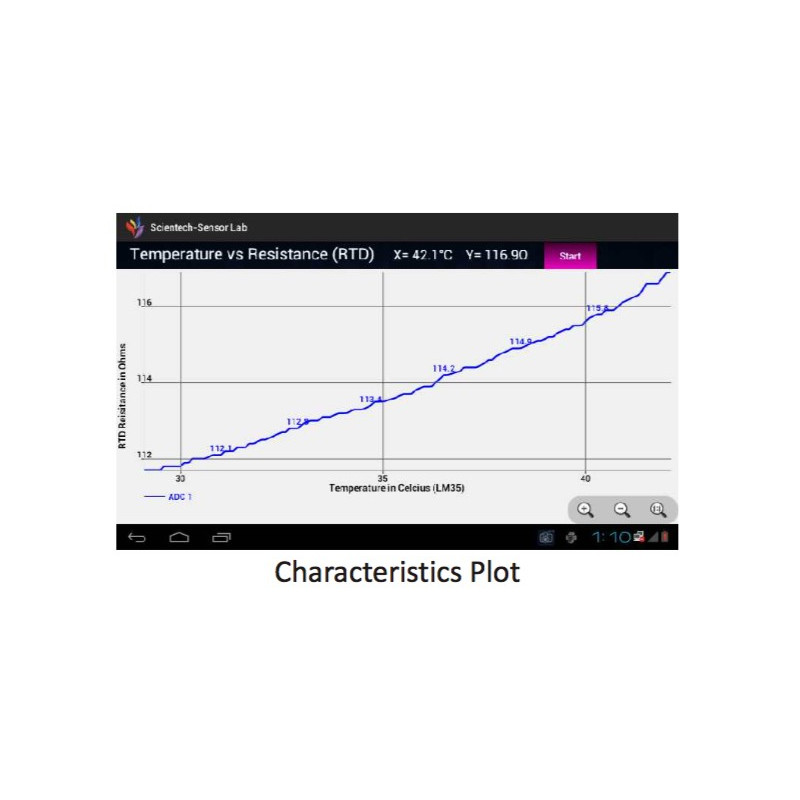

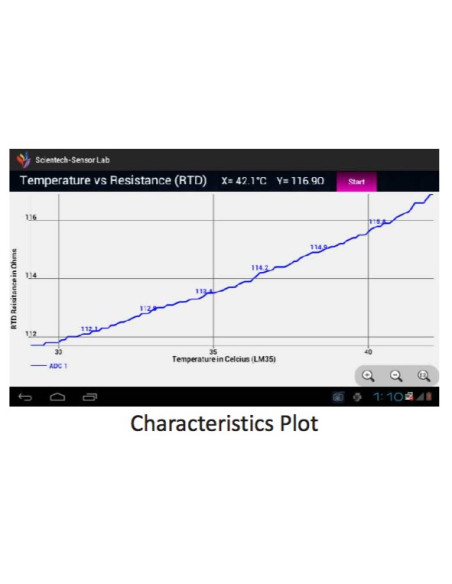

On board Graph capture and store
Office tools are inbuilt to view PDF and doc files
Inverting Amplifier
Non - Inverting Amplifier
Power Amplifier
Current Amplifier
Instrumentation Amplifier
Differential Amplifier
Frequency to Voltage and Voltage to Frequency Converter
Current to Voltage and Voltage to Current Converter
High Pass & Low Pass Filter
Unity Gain Buffer
LED, LED Bar Graph & Buzzer Interface
Scientific calculator
On Board Circuit Simulation

Scope of Learning:

Learn the detailed fundamentals of signal conditioning.
Learn in-depth study of sensors and it’s circuit diagram.
Learn how automation can implement using sensors and actuators.

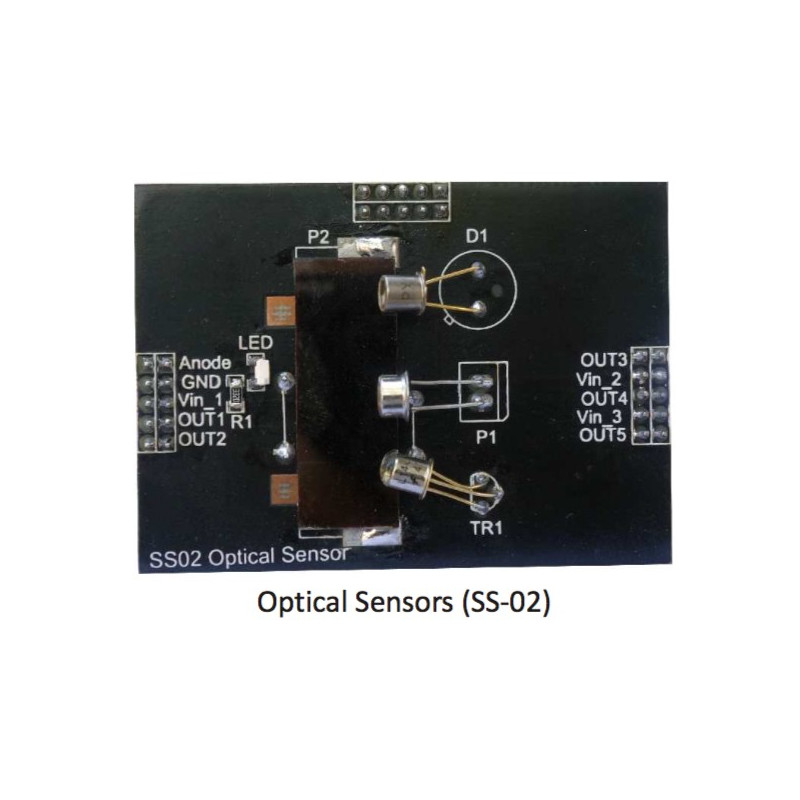

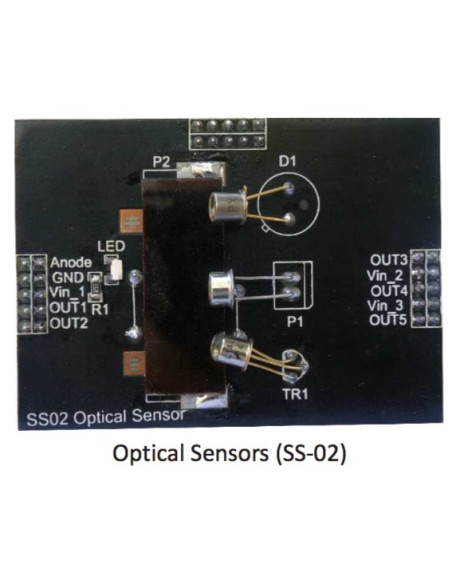

Characteristics of various Sensors for Light Intensity like PhotoDiode, Photo Transistor, Photo Voltaic Cell and LDR.

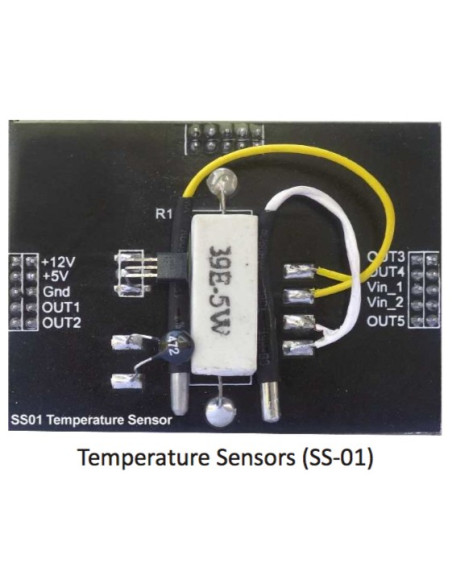

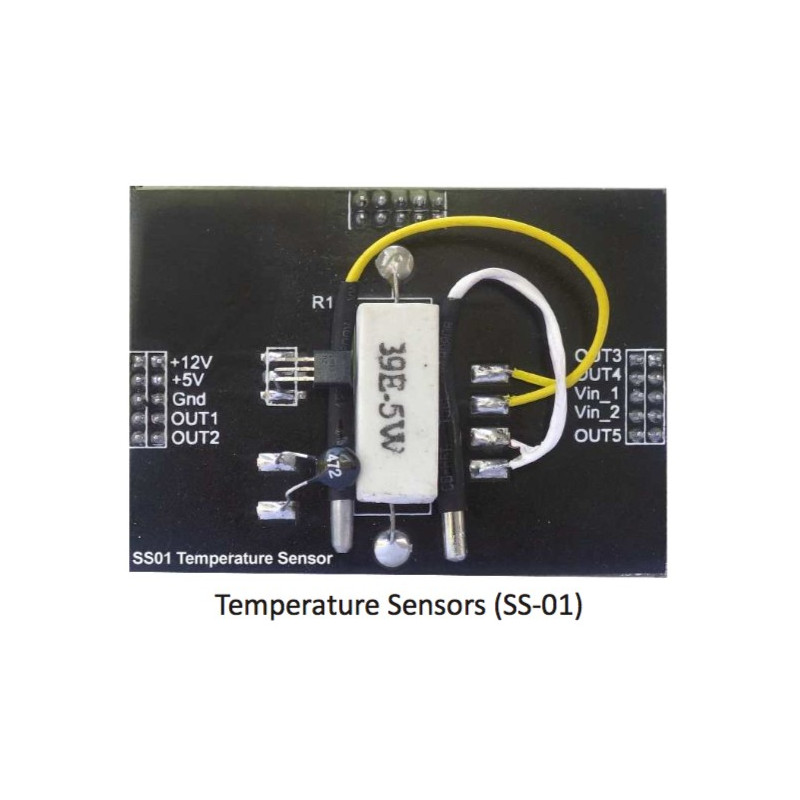

Characteristics of various Sensors for Temperature like NTC Thermistor, Platinum RTD, K type Thermocouple and LM35.

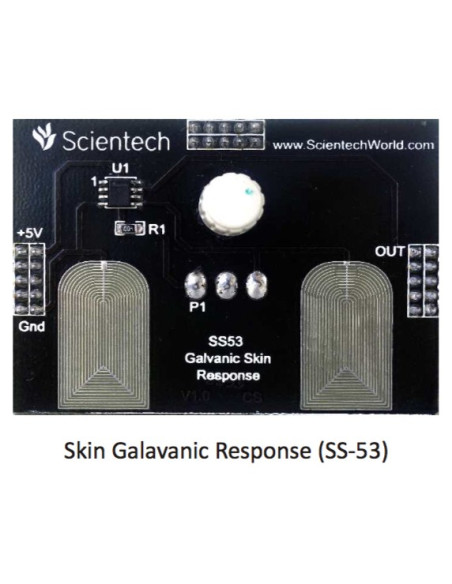

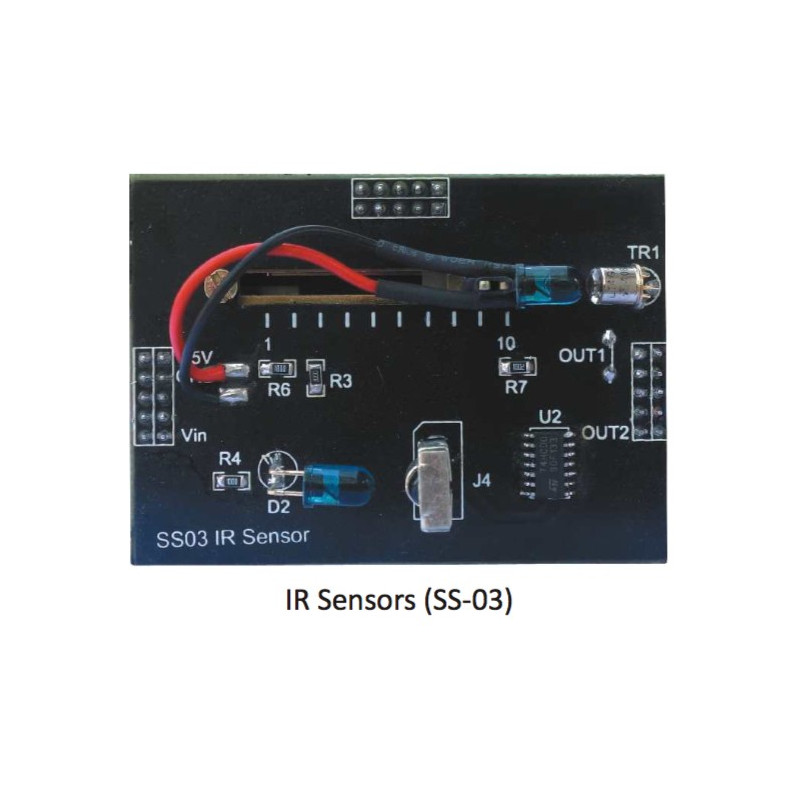

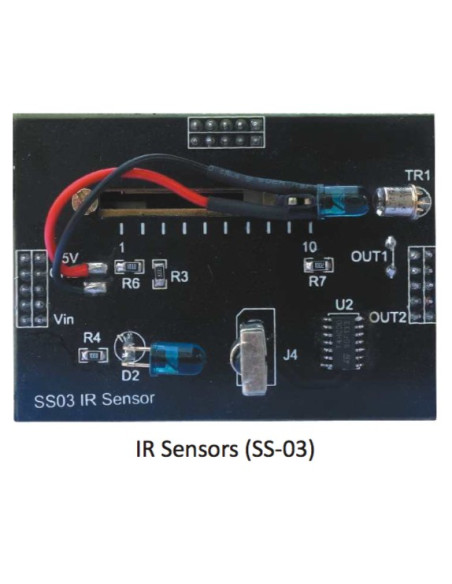

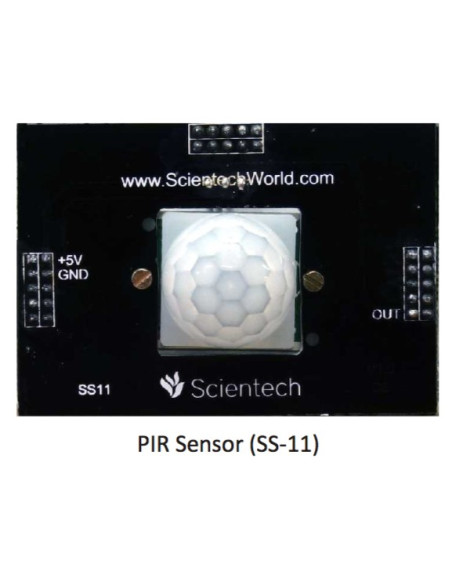

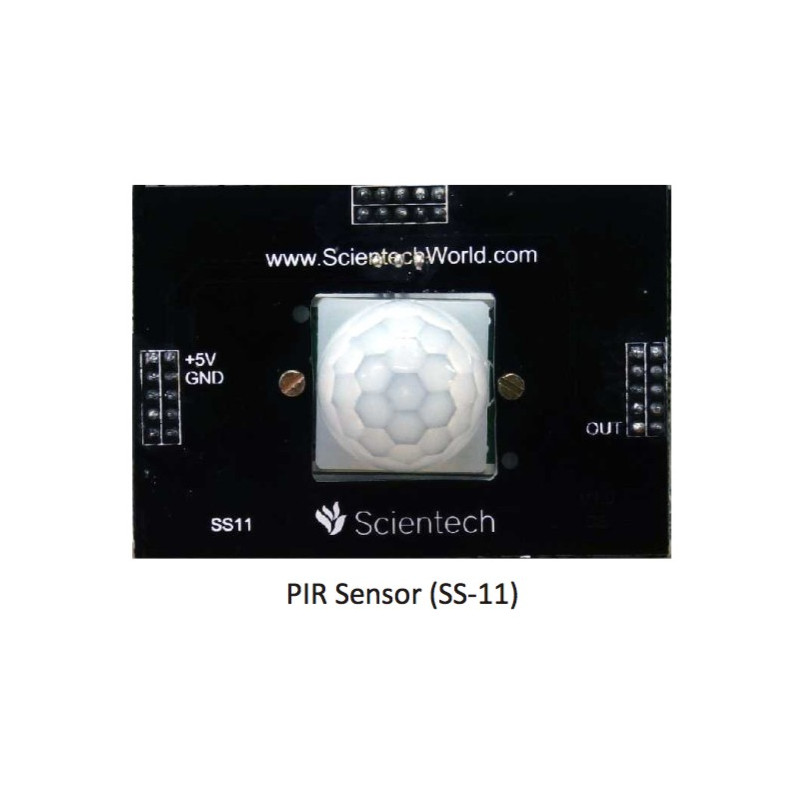

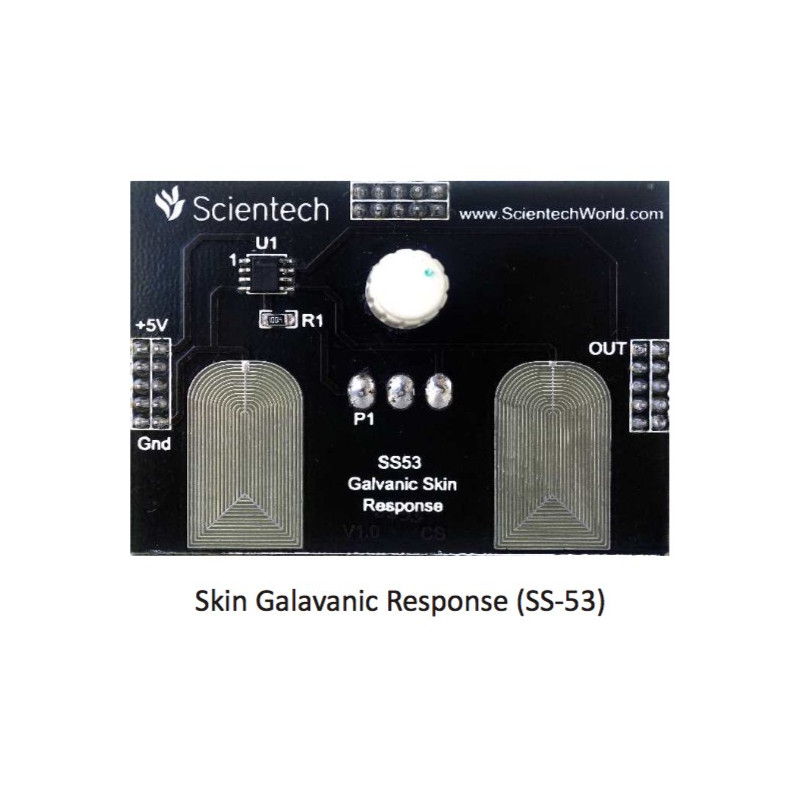

Characteristics of IR Sensor like L14G1 and TSOP1738. Characteristics of other Sensor modules.
Study of Signal conditioning blocks likes Amplifiers, Filters and Converters.
Study of output blocks like LED, Buzzer and LED bar graph.
Electronics Circuits Simulation
Industrial Application Design
