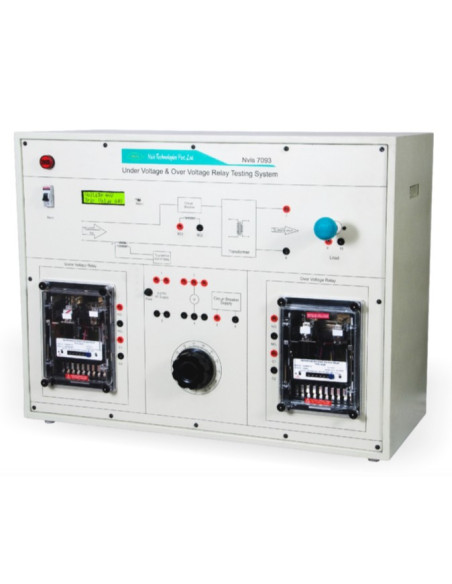

Nvis 7093 Laboratory for Under Voltage & Over Voltage Relay Testing System

Reference Nvis7093

Condition: New

Nvis 7093 provides theoretical and practical experience to students by controlling, monitoring and analyzing individual relay settings and tripping characteristics. This product provides detailed representation of power transmission system which helps the students to perform experiments with minimal supervision. It also includes built-in variable supply and fast response graphical LCD display which makes the measurement system very precise.

More details

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overwiew
Specifications
List of Experiments
More info
Data sheet
Download

Category	Laboratories

Nvis7093 Download (1.15M)

Nvis 7093 Laboratory for Under Voltage & Over Voltage Relay Testing System is intended for advanced practical training in protective devices regarding transmission lines, cables and network sections in power systems lab. A Relay is an electrically operated switch use an electromagnet to operate a switching mechanism mechanically.Relays protect the power distribution equipment against continuing voltage sags that are detrimental to motors, ballasts, etc.

Nvis 7093, Under Voltage & Over Voltage Relay Testing System is an ideal platform to enhance education, training, skills & development amongs our young minds.

Features:

- Alphanumeric 16 x 2 Big Font LCD for better visibility
- Electromechanical relay to understand internal mechanism and its working
- Inbuilt Single Phase Variac with isolation
- Tripping function settings
- Exclusive and attractive design
- Diagrammatic representation of relay connection in transmission line
- Designed by considering all the safety standards
- Learning material CD

- To study the operating performance of Over Voltage Relay with different plug settings
- To study the operating performance of Under Voltage Relay with different plug settings
