Reference: Scientech2110 - Manufacturer: SCIENTECH TECHNOLOGIES

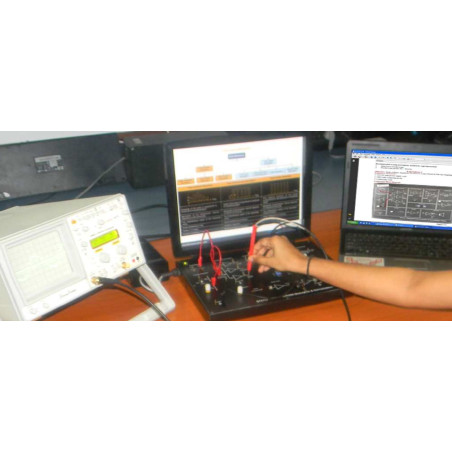

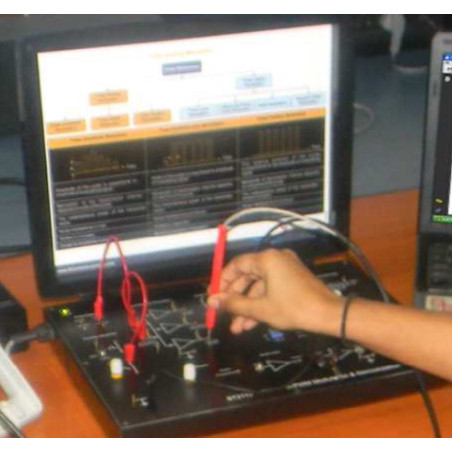

Scientech2110 TechBook for PAM / PPM / PWM Modulation - Demodulation Techniques are the basic Pulse Modulation Techniques. TechBook 2110 provides complete set up to the students for performing experiments on these techniques. They can study Sampling, Pulse Modulation, Demodulation & Signal reconstruction process. Separate circuits are provided for each technique. The learning material provides exhaustive technology details and experimental assistance.

Scientech TechBooks are compact and user friendly learning platforms to provide a modern, portable, comprehensive and practical way to learn Technology. Each TechBook is provided with detailed Multimedia learning material which covers basic theory, step by step procedure to conduct the experiment and other useful information.

Product Features:

PAM-PPM-PWM Modulation & Demodulation techniques, using Natural & Flat-top sampling

Analog Sample, Sample & Hold and Flat-top outputs

Selectable 4 different sampling pulse frequencies on board

Voice communication using dynamic microphone & speaker

On-board filter and AC amplifier

8 Switched faults

PAM using Natural & Flat Top sampling
Sample, Sample & Hold & Flat-top outputs in PAM
PPM using DC & AC modulating signals
Pulse Position Demodulation
Pulse Width Modulation & Demodulation

Download (210.1KB)
