MSAS02 AutoEDU lighting educational trainer
AutoEDU MSAS02 educational trainer for automotive lighting systems with VW/AUDI OEM components, OBD diagnostics and fault simulation.
MSAS02 lighting educational trainer

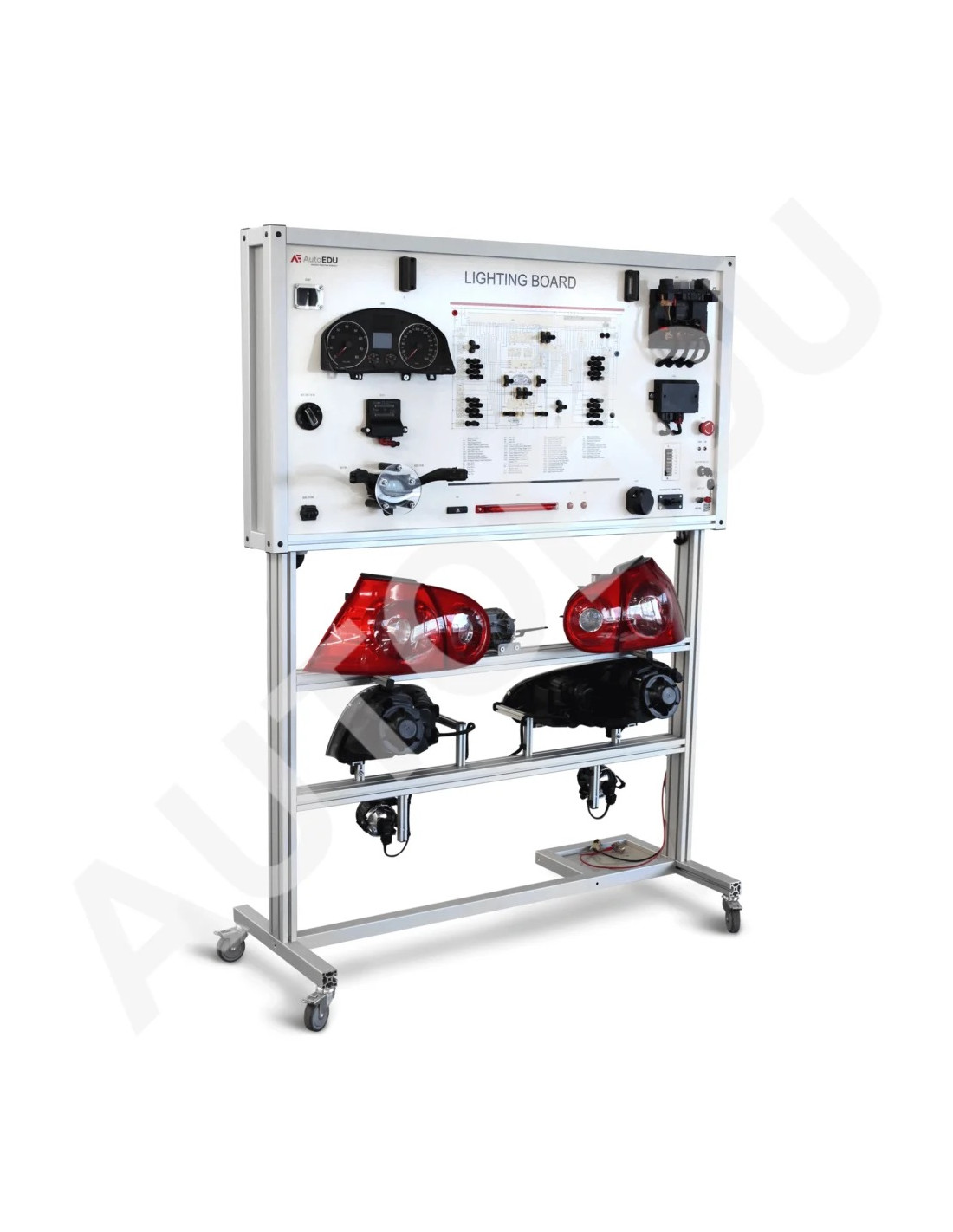

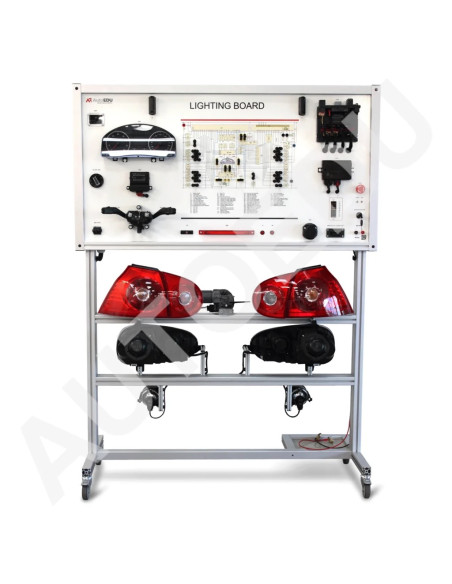

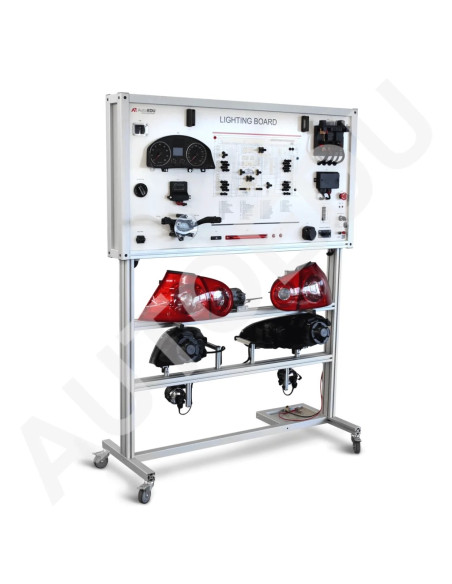

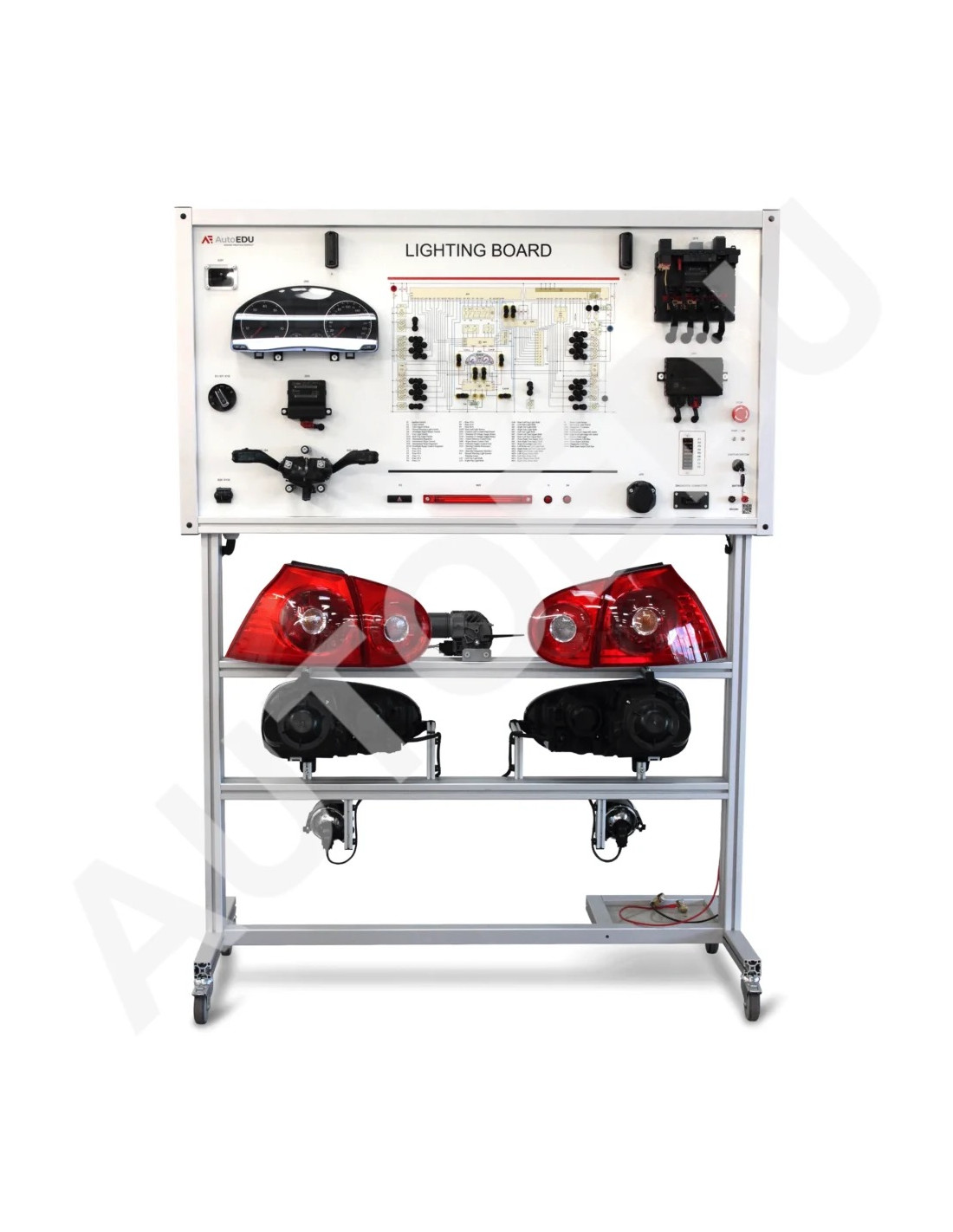

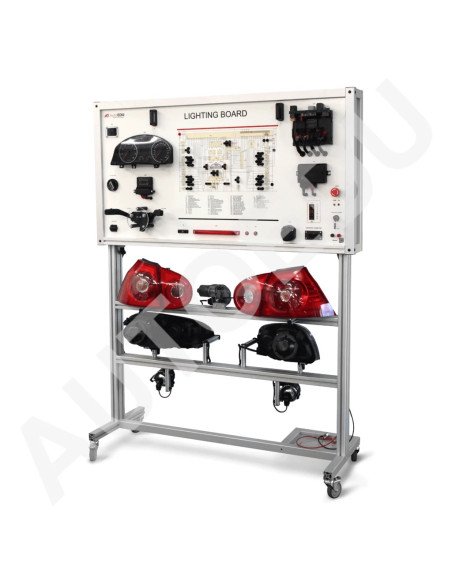

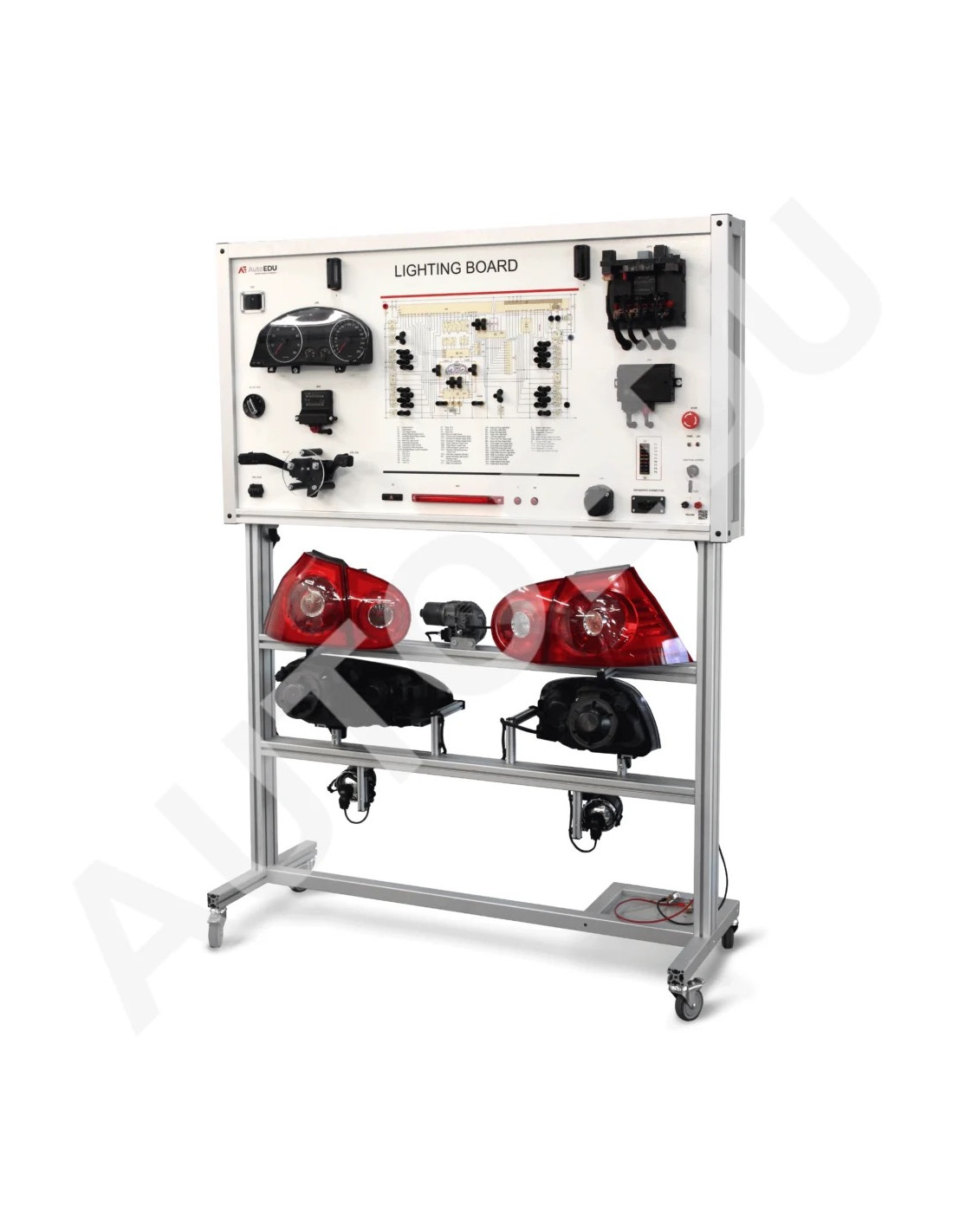

Lighting Educational Trainer MSAS02 by AutoEDU is a didactic system for studying, diagnosing and testing automotive lighting circuits in a safe training environment. The trainer uses VW/AUDI OEM components and reproduces the architecture of a real front and rear vehicle lighting system.
The trainer includes a 16-pin OBD connector for diagnostic functions, fault-code management, ECU identification and live data display. The integrated electrical diagram with banana jumpers and open contacts enables direct measurements, instrument connection and circuit-behaviour analysis during practical exercises.
It is intended for universities, vocational training centres and automotive laboratories that need practical work on headlights, beam-level adjustment, fog lights, high-level brake lights, relays, fuses, signalling, trailer detection and fault simulation. The mobile frame supports shared student use and fast lesson setup.
| Reference | MSAS02 |
| Type | Automotive lighting educational trainer. |
| Components | Based on VW/AUDI OEM components for realistic representation of vehicle lighting systems. |

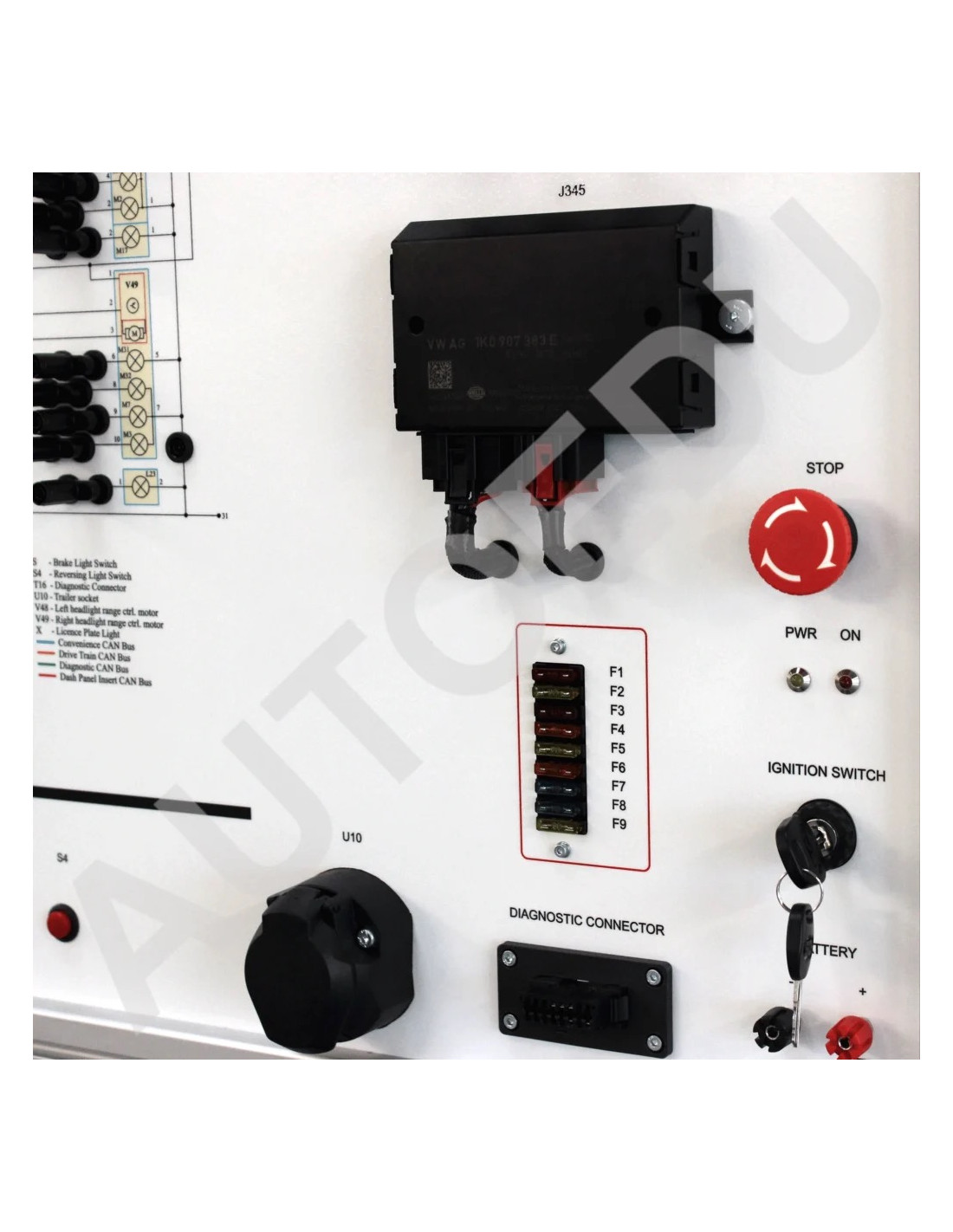

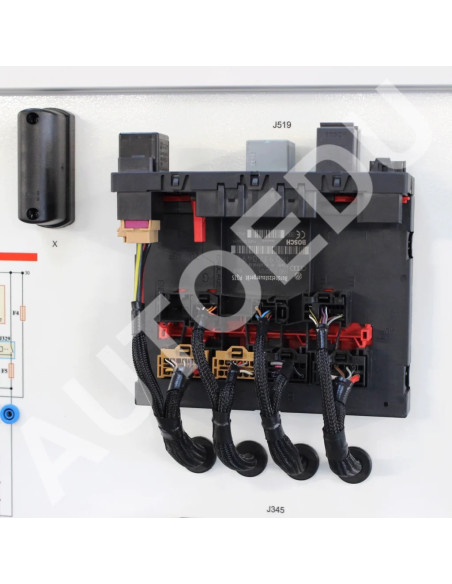

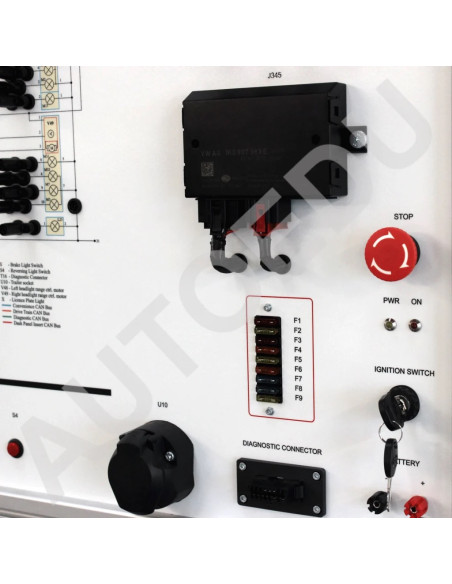

| Diagnostics | 16-pin OBD connector for fault-code management, ECU identification and live data display. |

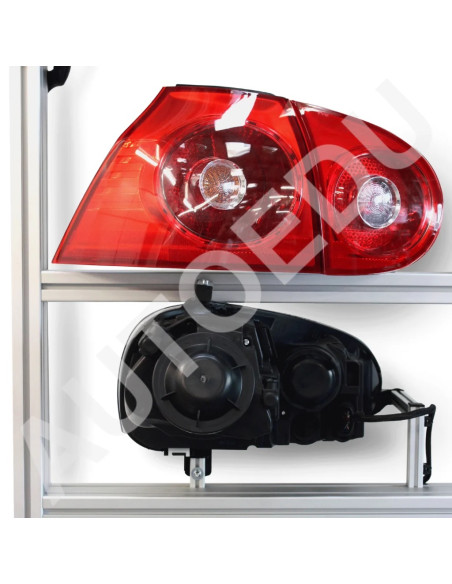

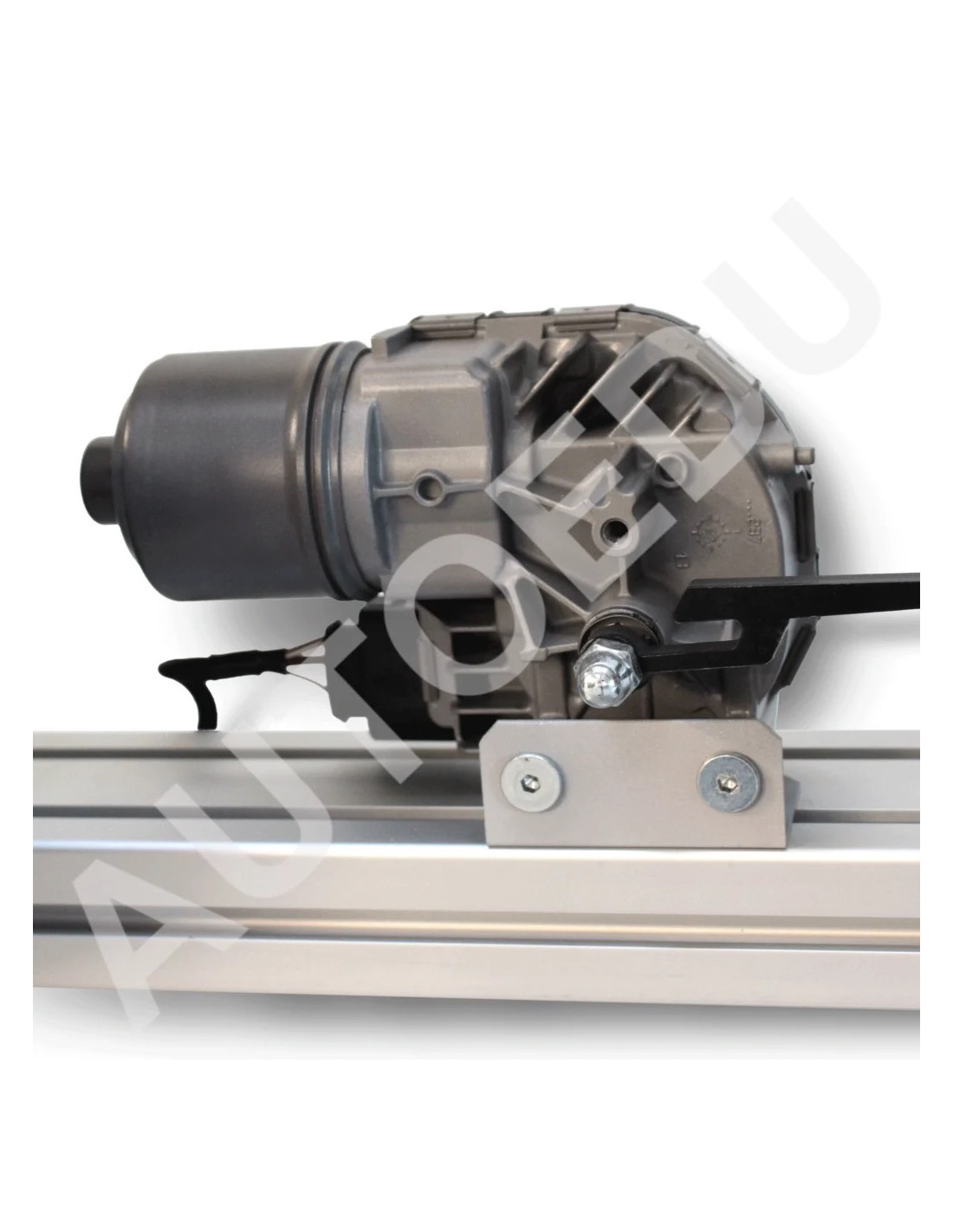

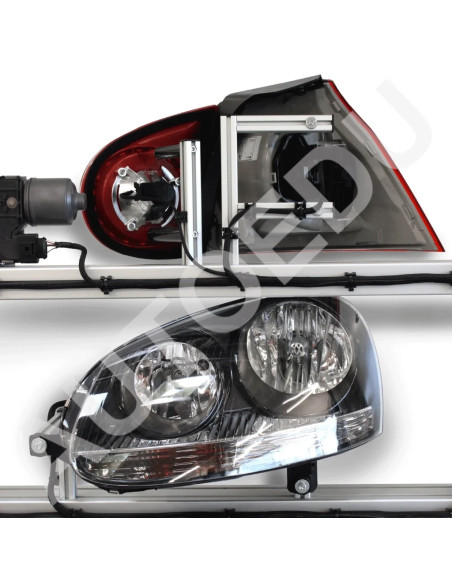

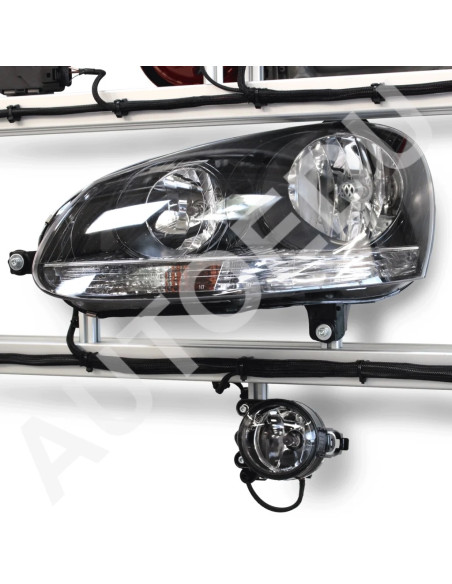

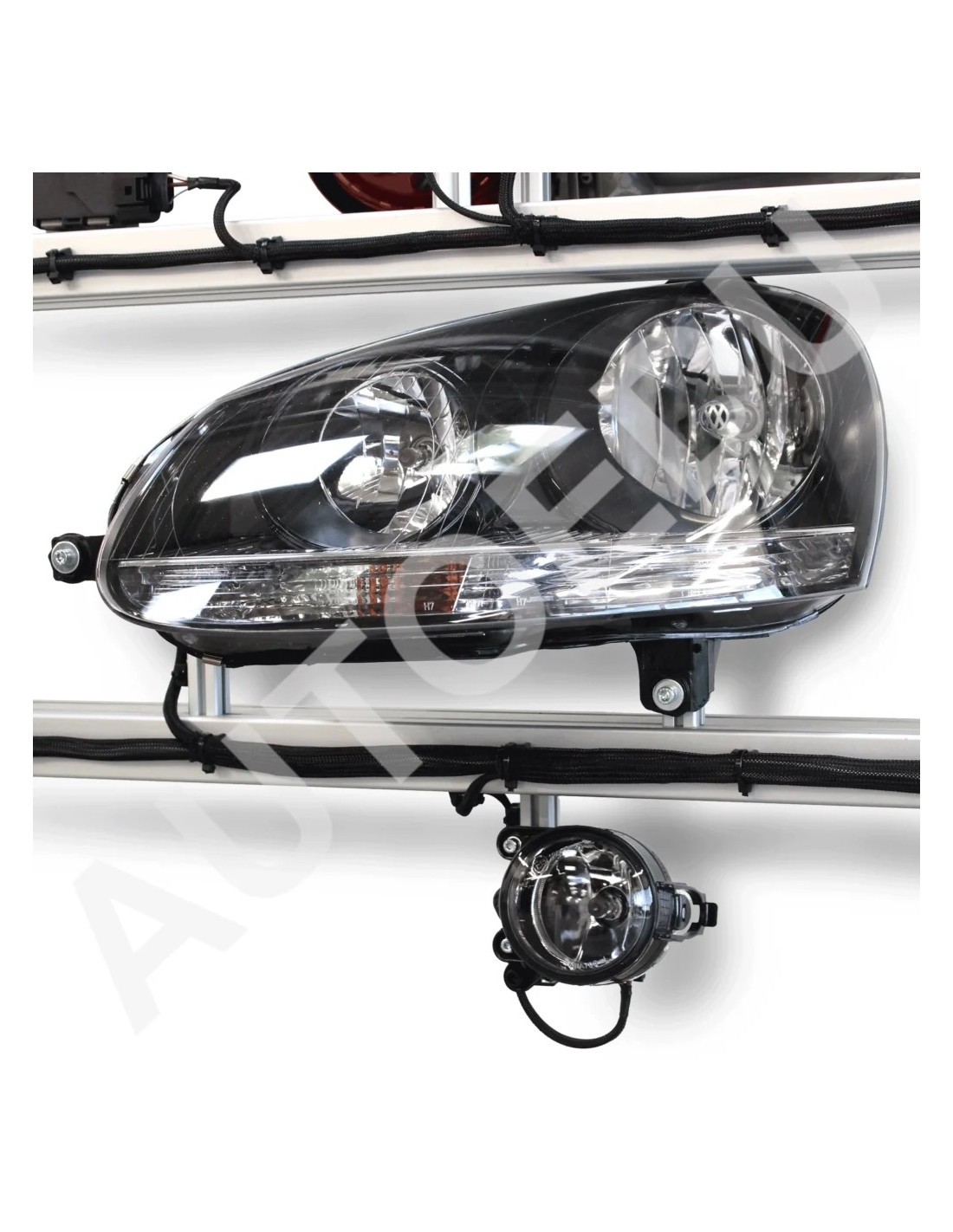

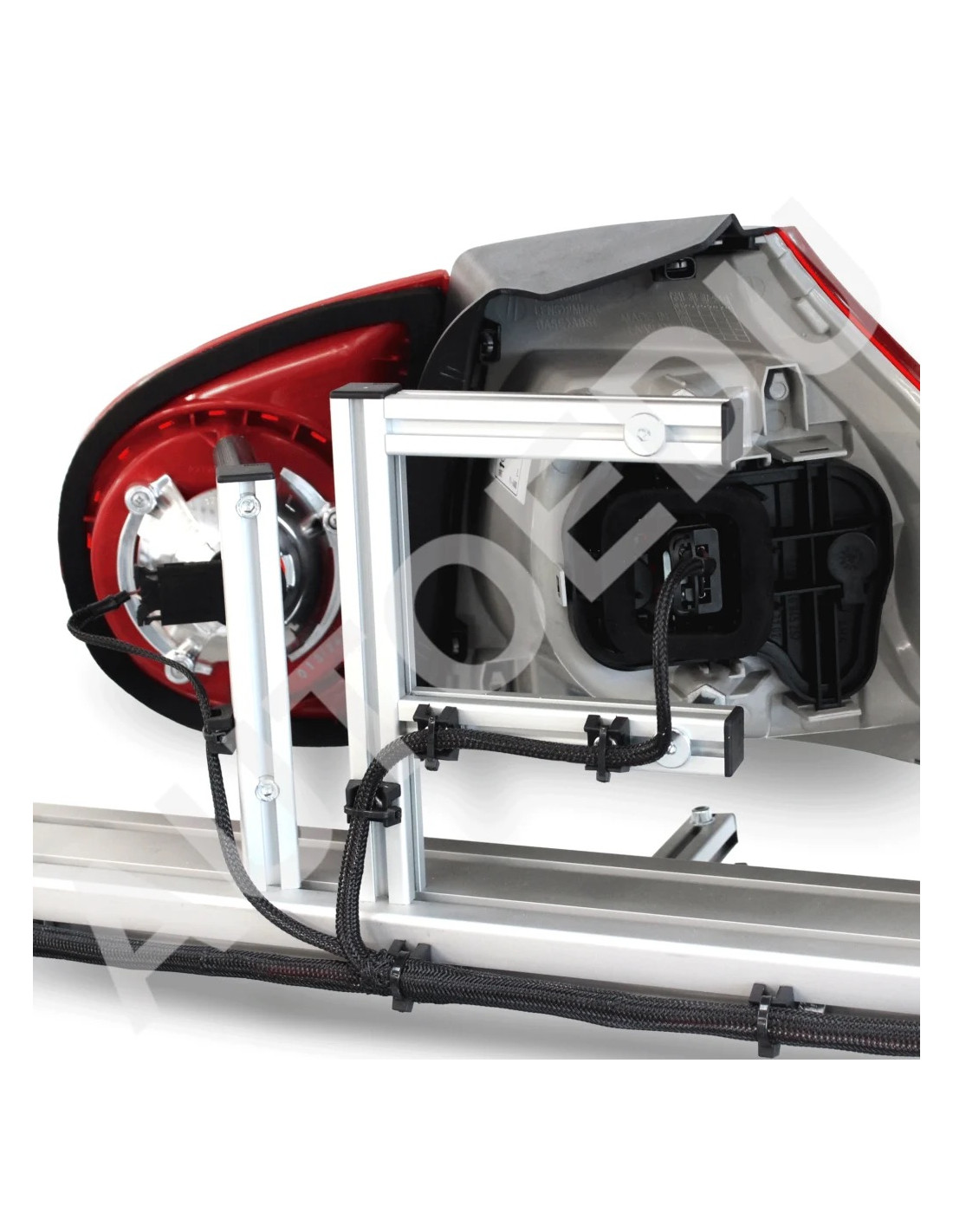

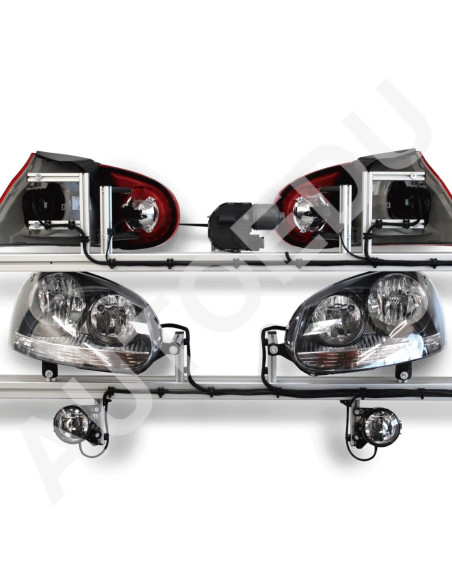

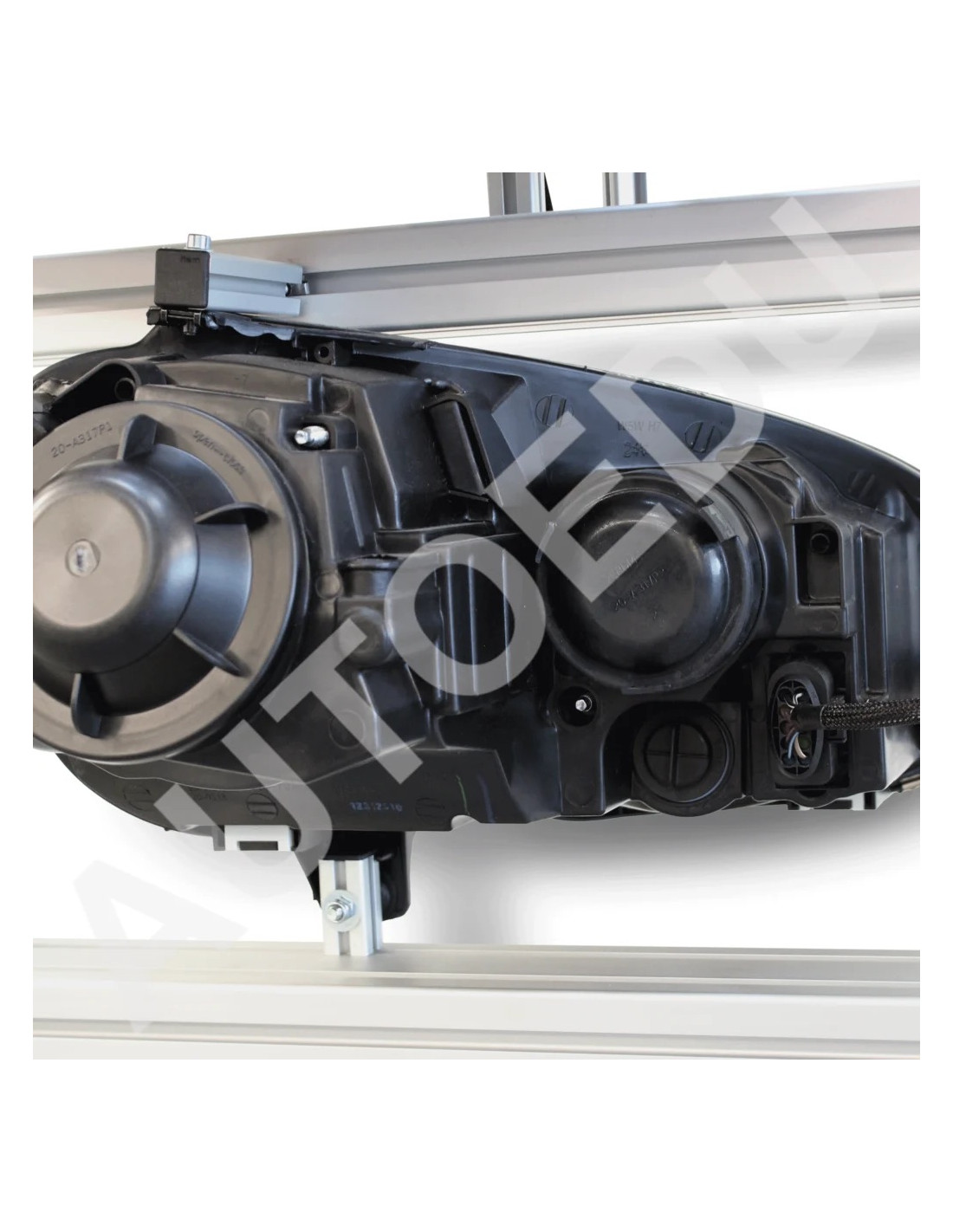

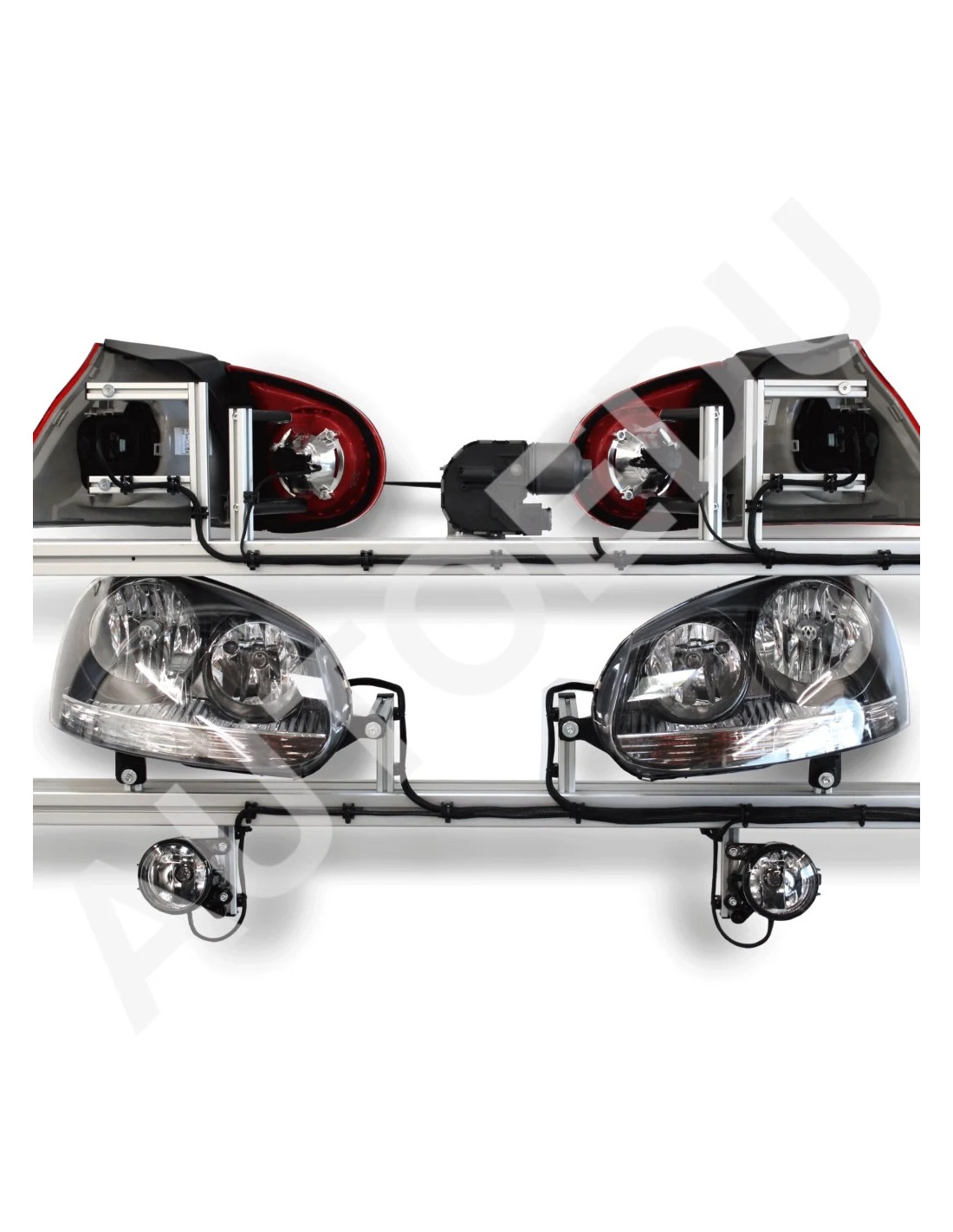

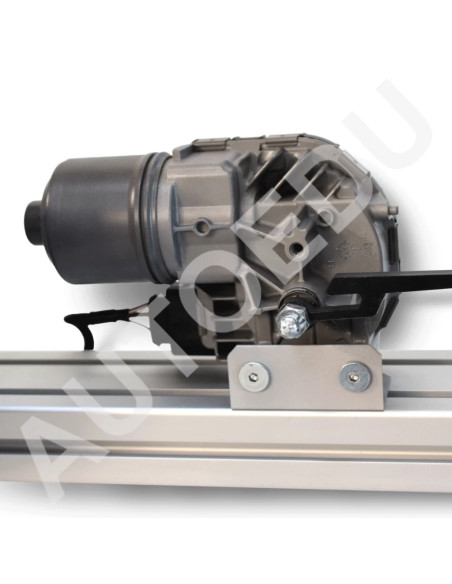

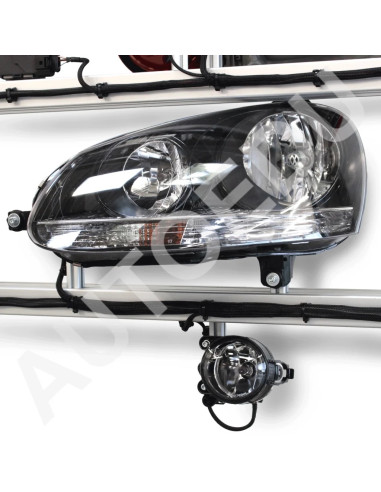

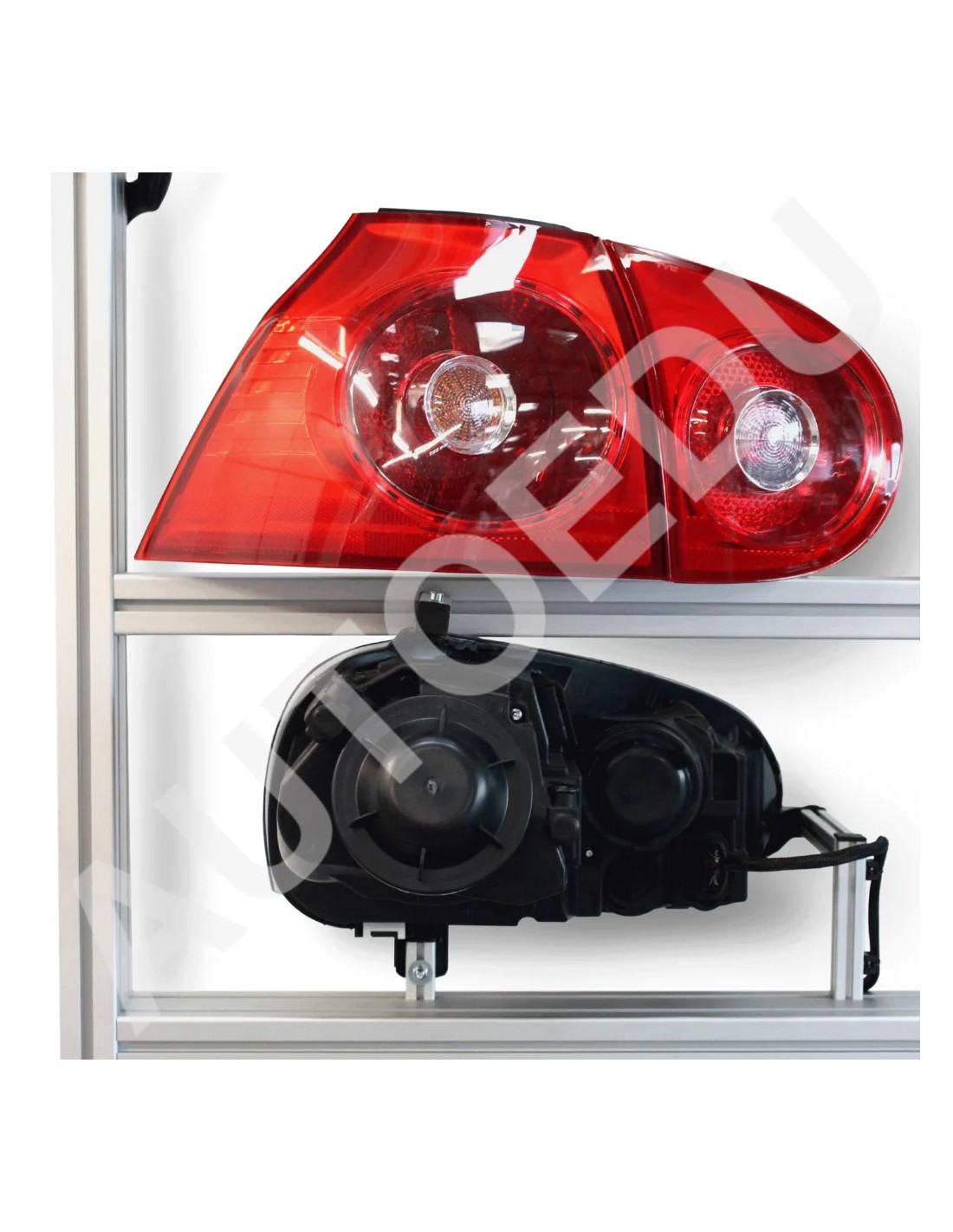

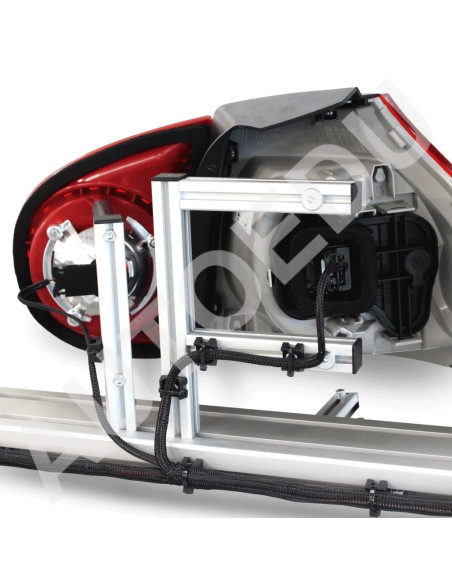

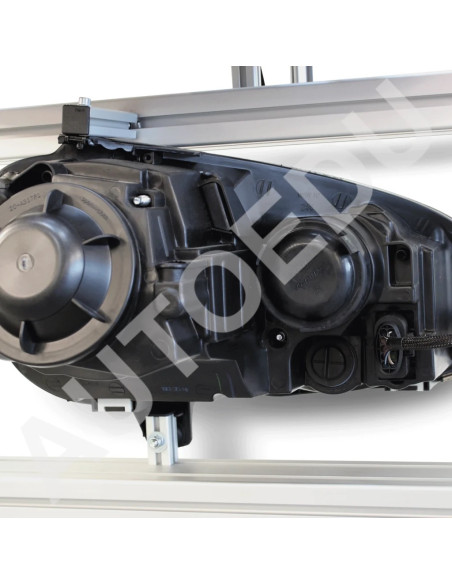

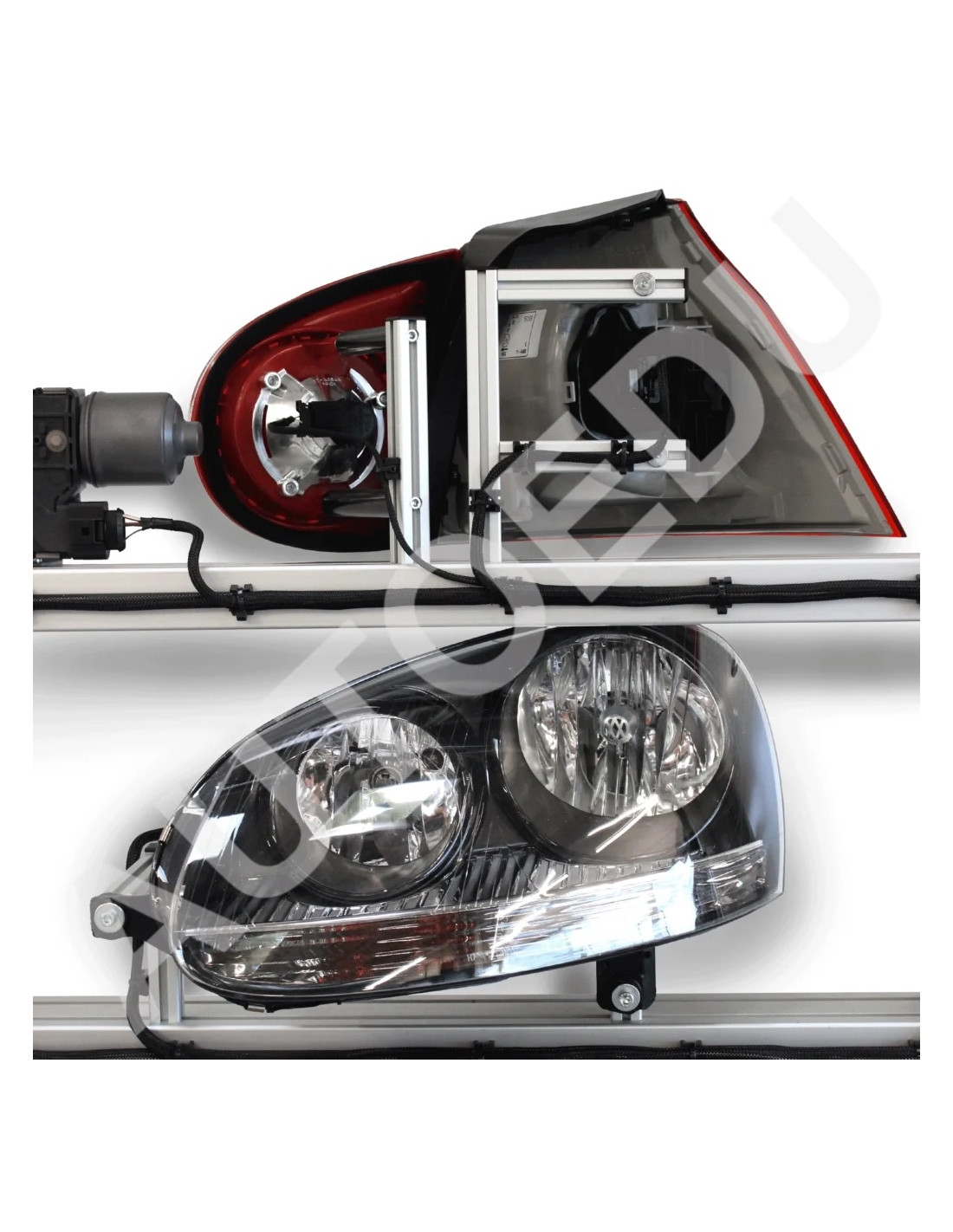

| Lighting | Front headlights with motors for precise beam adjustment; front and rear lighting assemblies, fog lights and high-level brake light. |

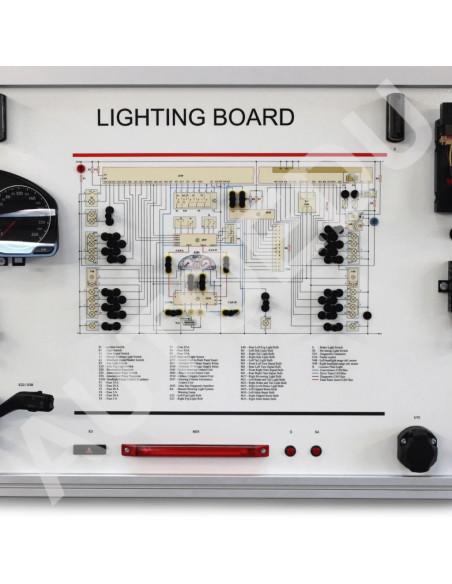

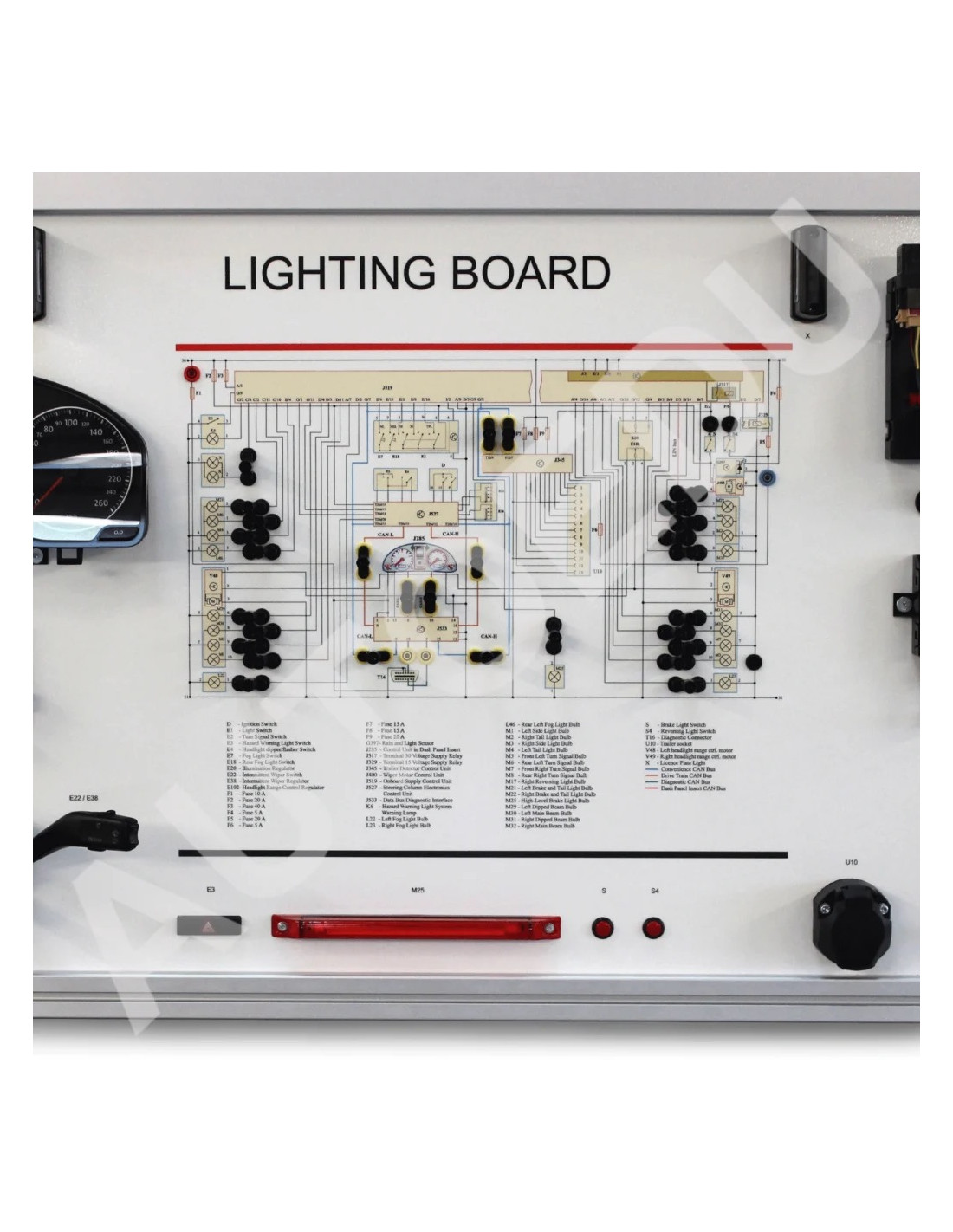

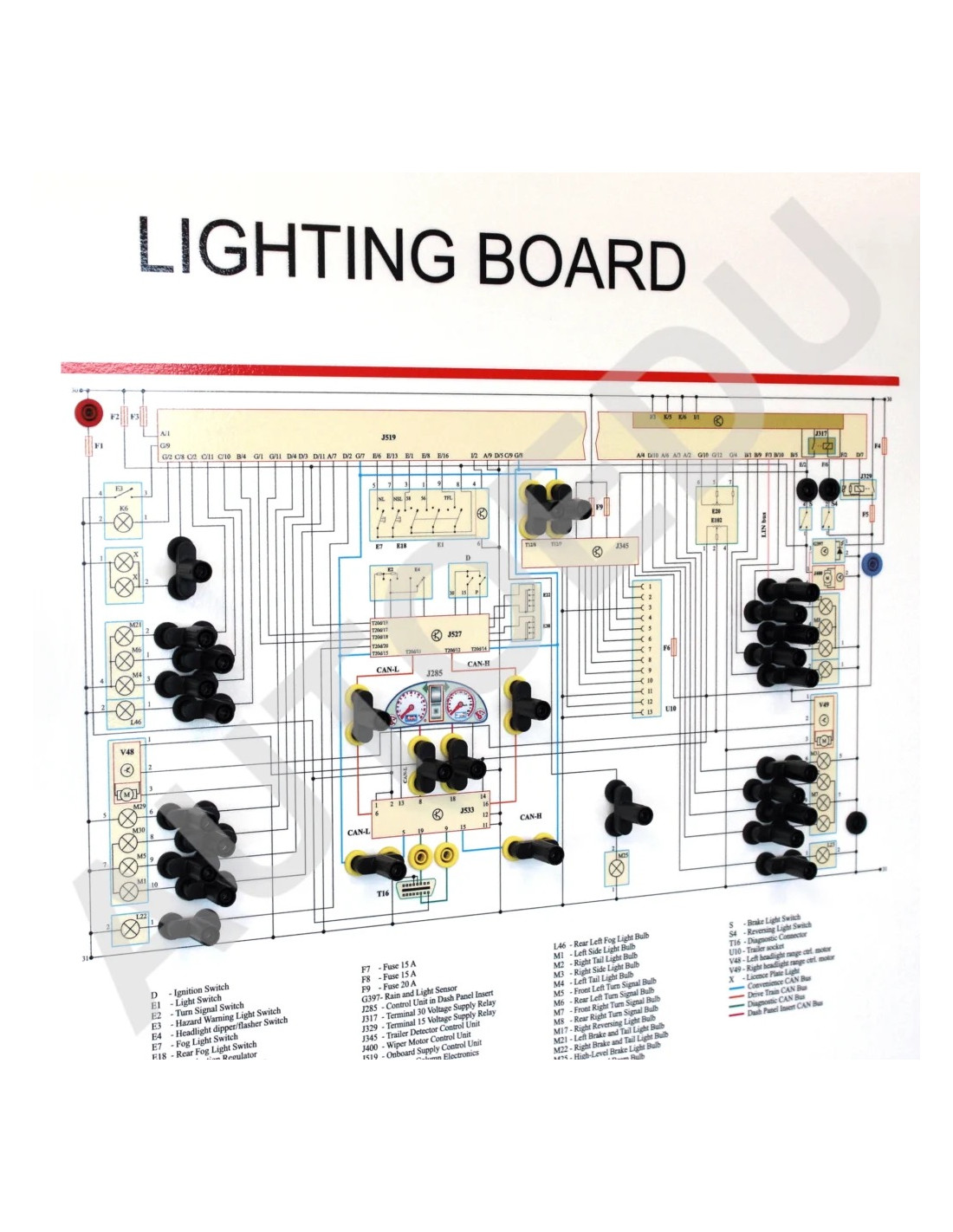

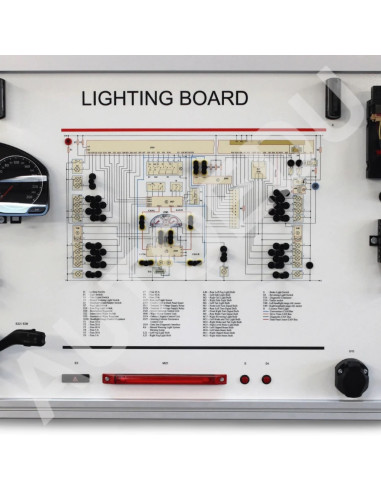

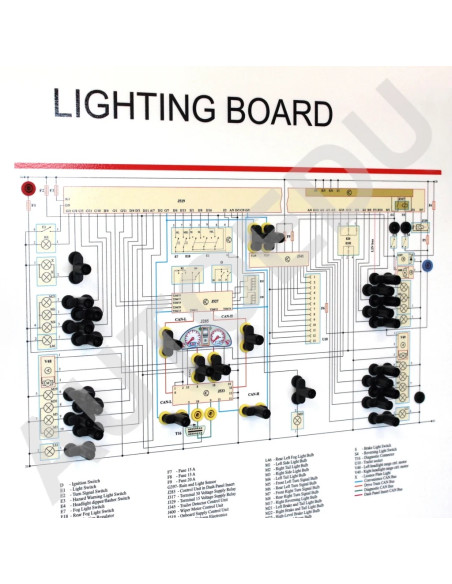

| Measurement | Electrical wiring diagram with banana-plug jumpers and open contacts for component measurement and circuit testing. |
| Instrumentation | Compatible with oscilloscopes, multimeters and optional headlight testers. |

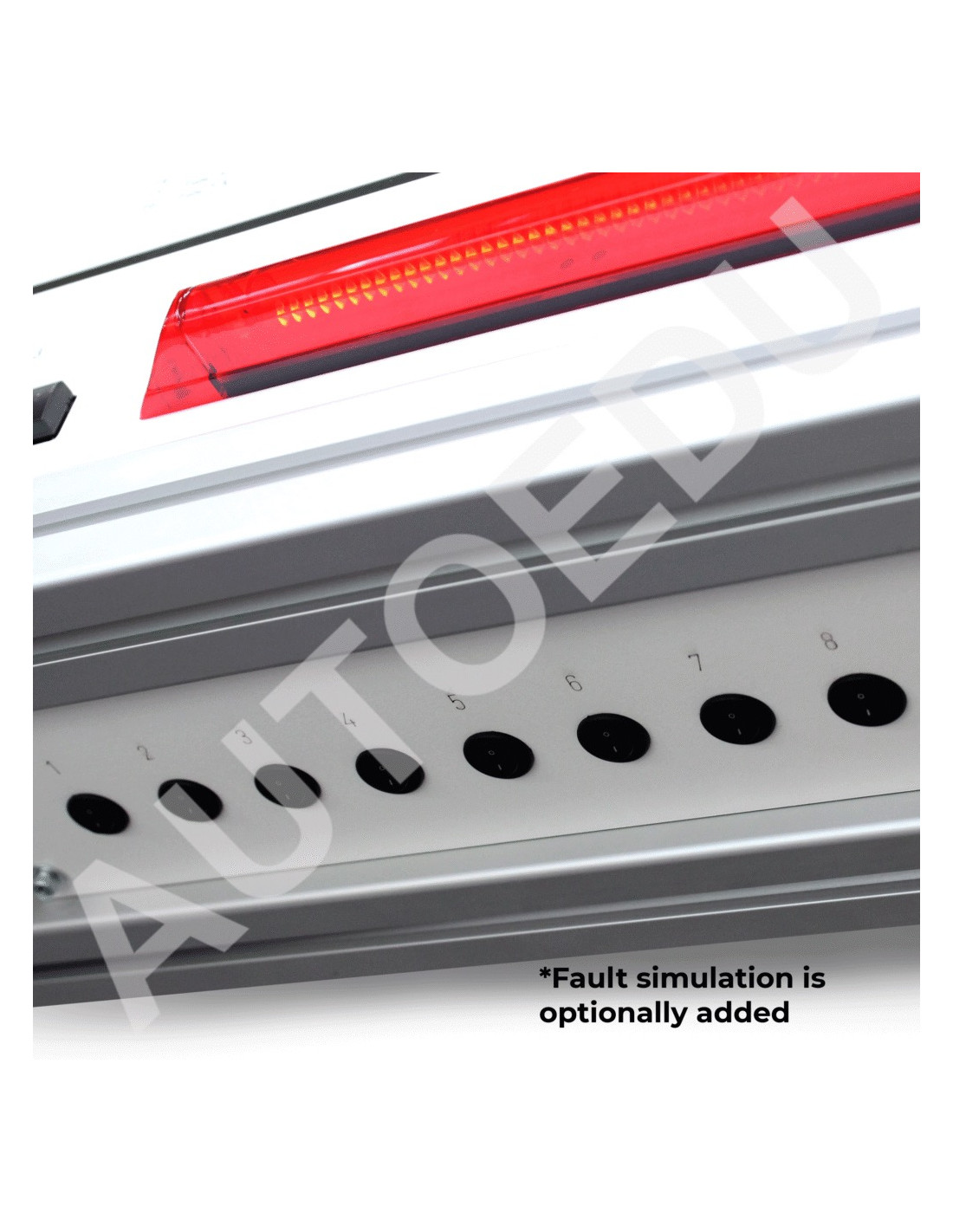

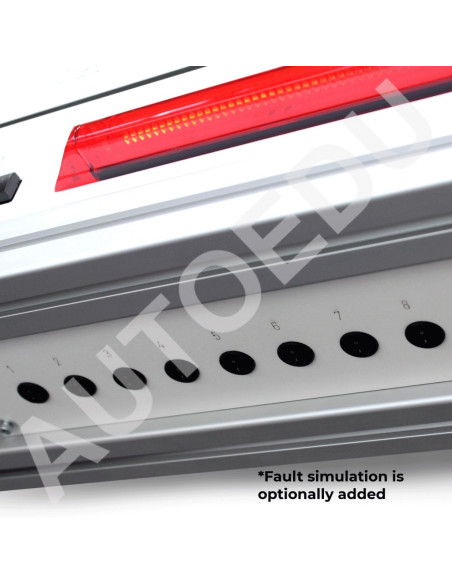

| Fault simulation | Faults can be simulated by disconnecting jumpers and observing system changes. |

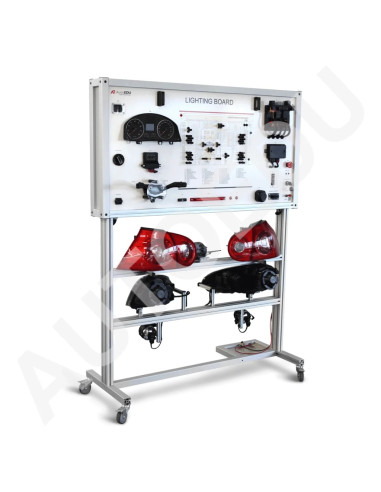

| Structure | Mobile aluminium frame on castors, durable and easy to move within educational settings. |
| Dimensions | 1820 x 1360 x 500 mm (71.65 x 53.54 x 19.69 in). |
| Weight | Approx. 60 kg (132 lb). |
| Power supply | Optional 12 V battery or 220 (110 V)/12 V power supply unit. |
| Documentation | Official AutoEDU MSAS02 technical data sheet. |
