Nvis 7001 Three Phase Lab

Nvis 7001 Three Phase Lab is an ideal platform to enhance education, training, skills & development amongs our young minds.

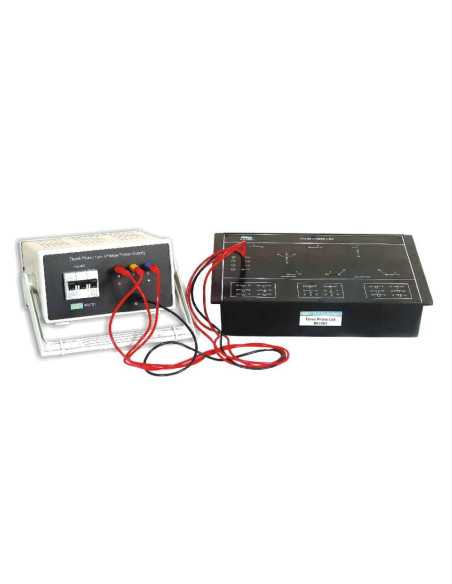

Nvis7001 is an elite training system for the electrical laboratories.

This system is valuable in understanding the basic concepts of Three phase circuits like star-delta connections, their phase and line voltages, currents etc. Being different from the present scenario, this system is designed in such a way that a student can himself make connections of three phase circuits because all the experiments are performed on low voltage. The product is designed with keeping in mind that R, L, C combination can be connected in series as well as in parallel in Three Phase circuits.

• Conceptual Study Boards (Optional) For NV7001 Three Phase Lab:

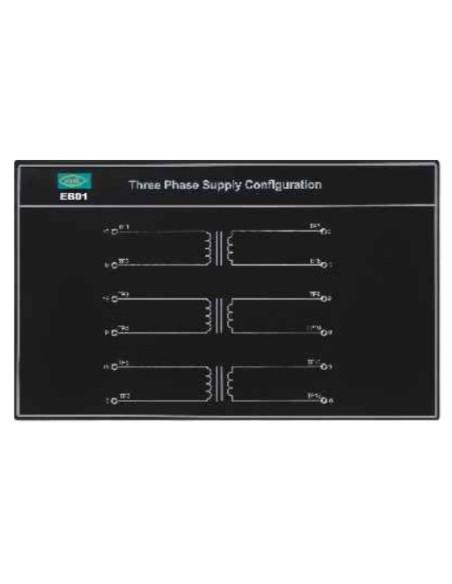

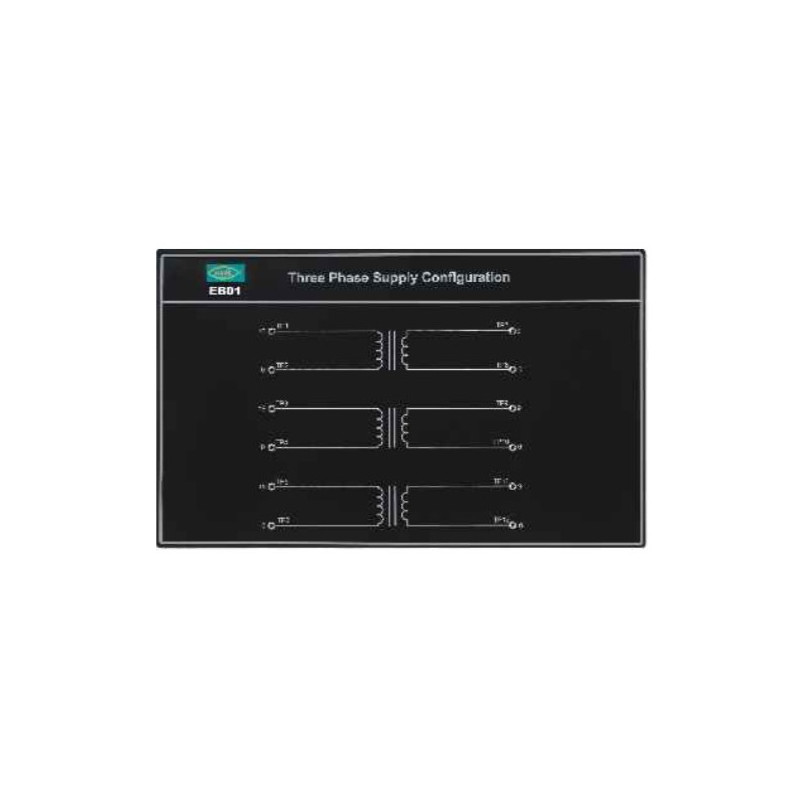

- EB01 Three Phase Supply Configuration Module

The Three Phase Supply Configuration module is useful in getting familiar with the Three phase supply configurations. It helps in understanding the working of three phase transformers and their different configurations in star and delta connections.

* Experiment that can be performed:
To understand Three phase power supply configurations

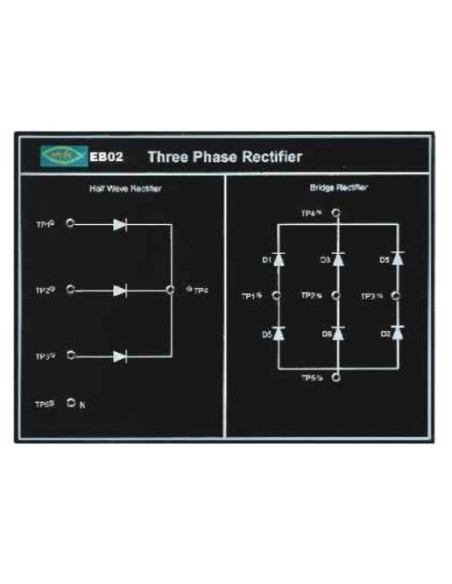

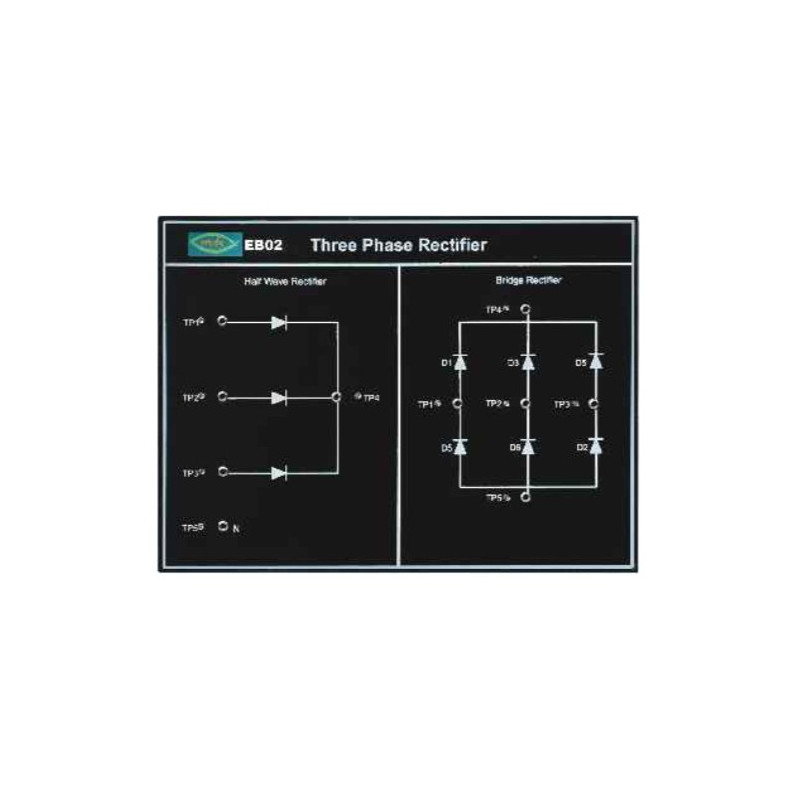

The Three Phase Rectifiers module is again a versatile module, helpful in understanding the concept of three phase rectifier operation. This module contains silicon diodes for the connections of Half wave and Full wave bridge rectifiers.

* Experiment that can be performed:
Study of three phase rectifiers

* Technical Specifications:
Input: 18 V each phase, 50 Hz ± 10%
Output: 18 V Rectified three phase
Dimensions (mm): W 175 × D 130 × H 30

• Features:

- Designed consider all the safety standards
- Hands on Practice
- Stand alone operation
- Test points are provided to measure line and phase parameters
- Provided with a detailed Operating manual
- Low cost training system

- Study of Three phase low voltage power supply Nvis7001
- Study of Three phase star connection
- Study of Three phase delta connection
- Study of Three phase circuits with balanced load
- Study of Three phase circuits with unbalanced load
- Three phase power measurement
