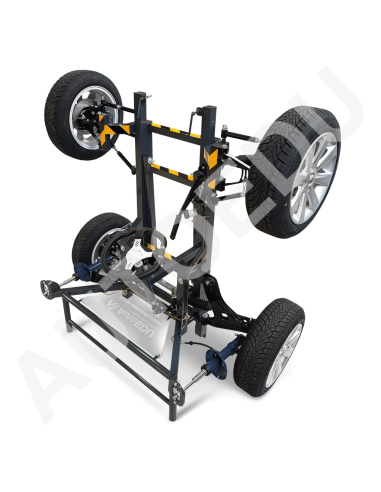

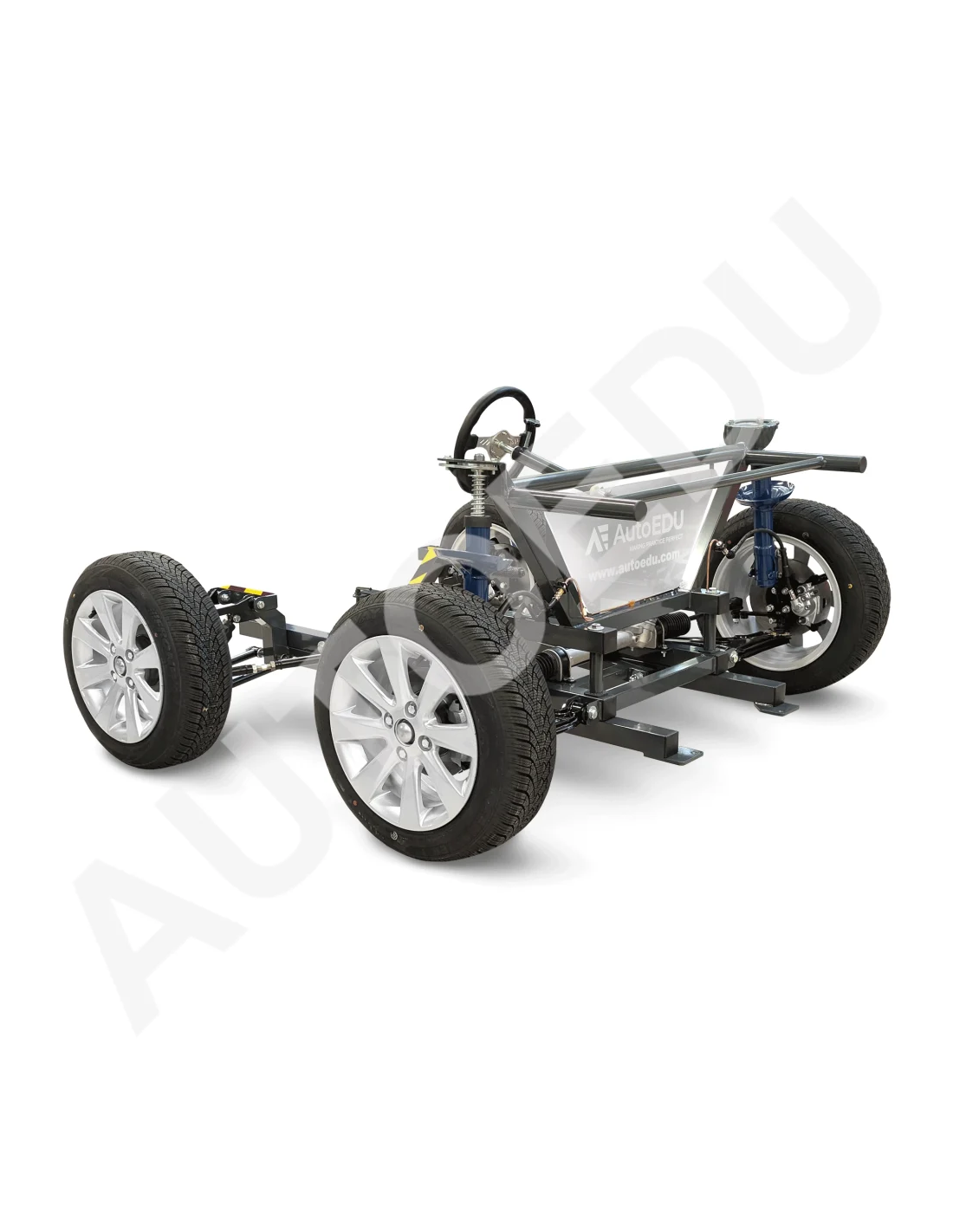

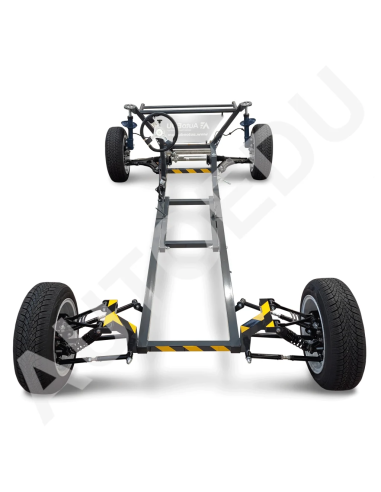

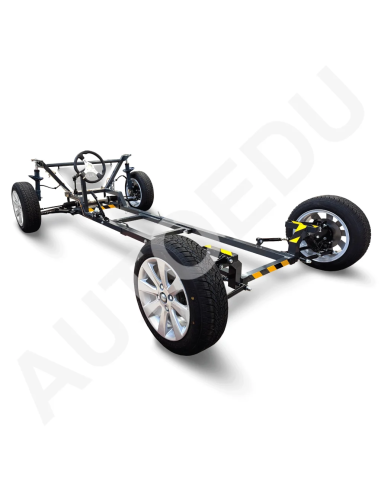

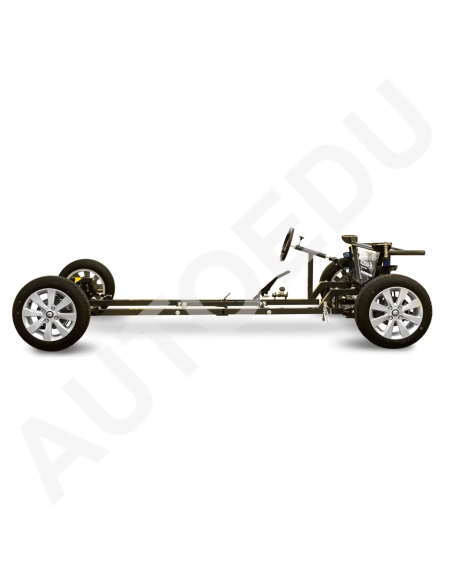

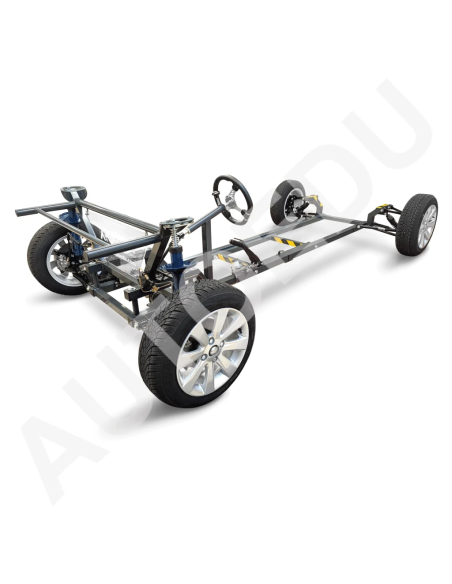

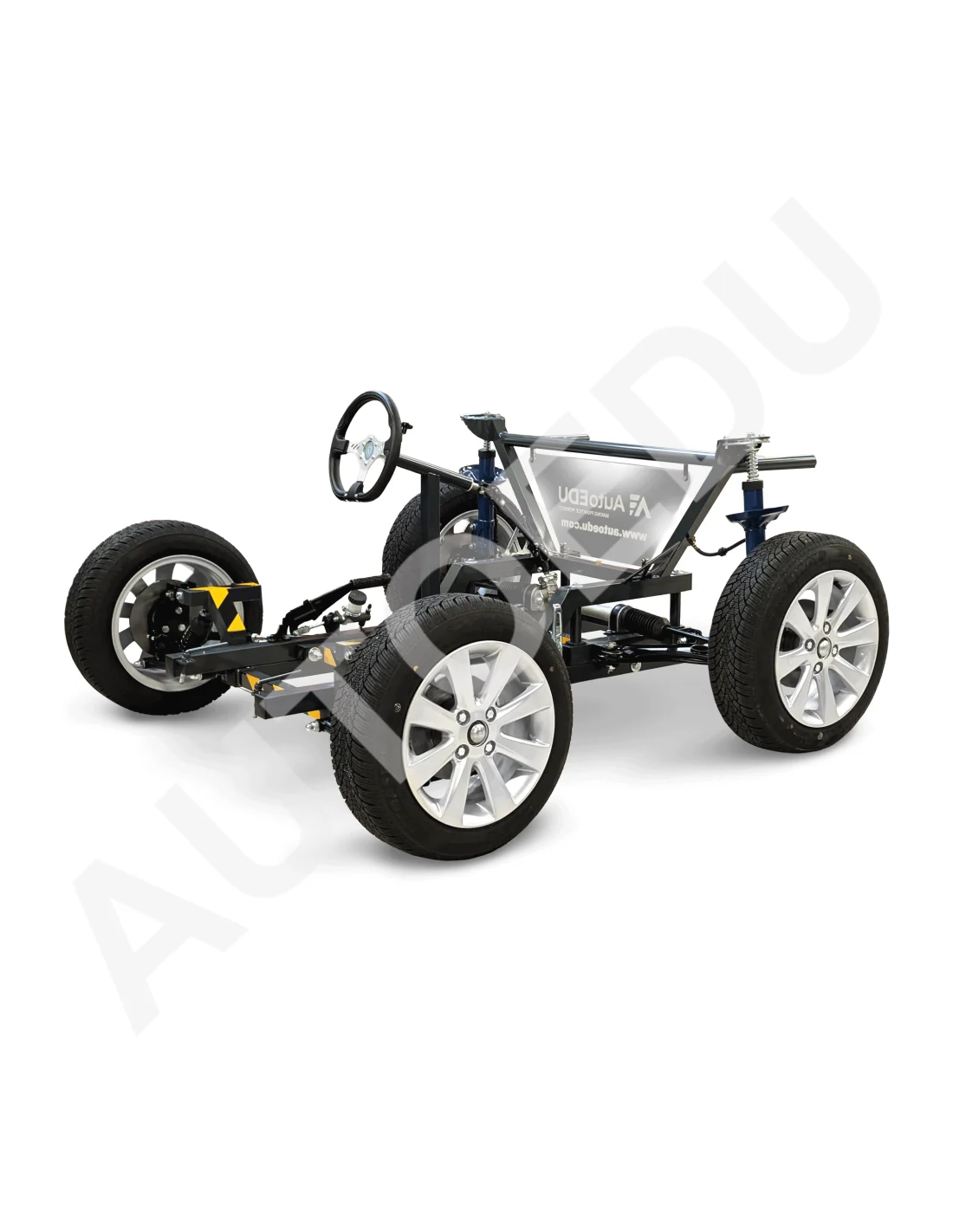

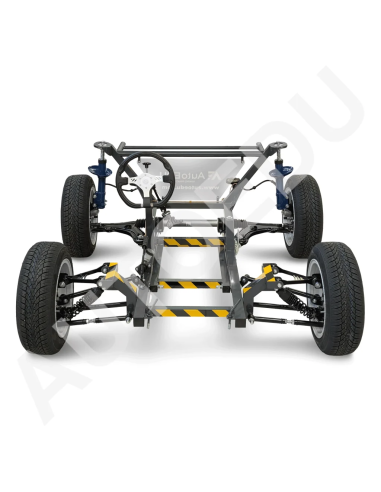

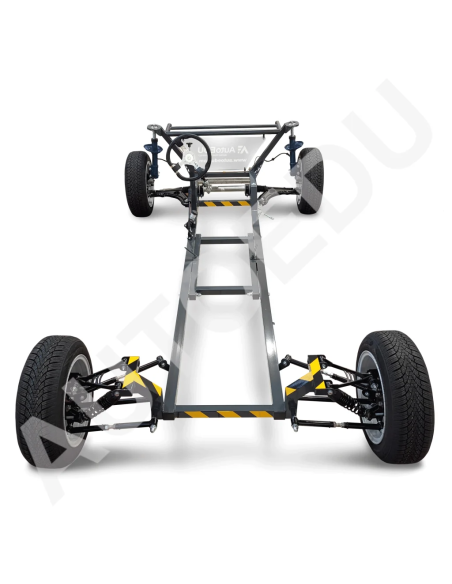

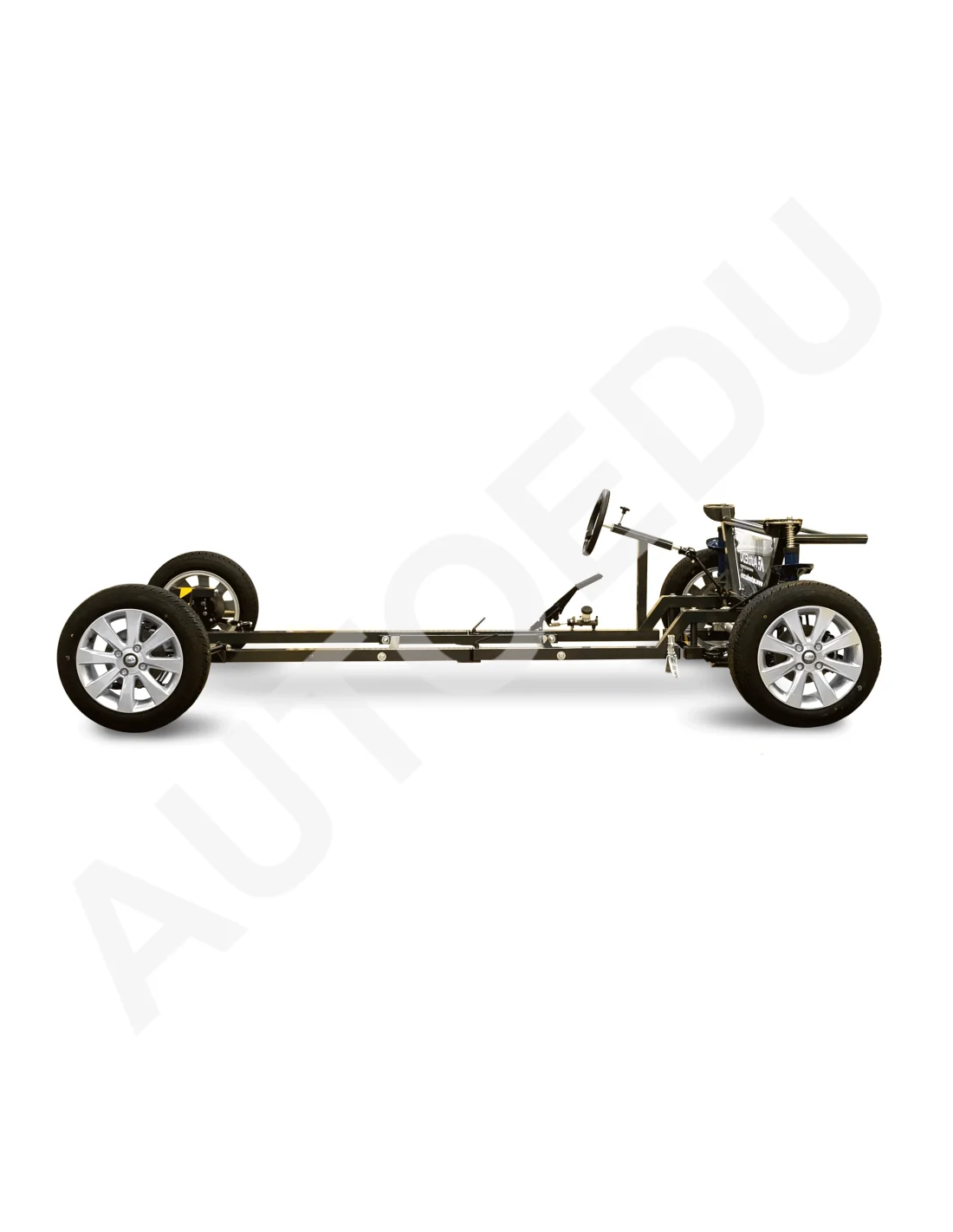

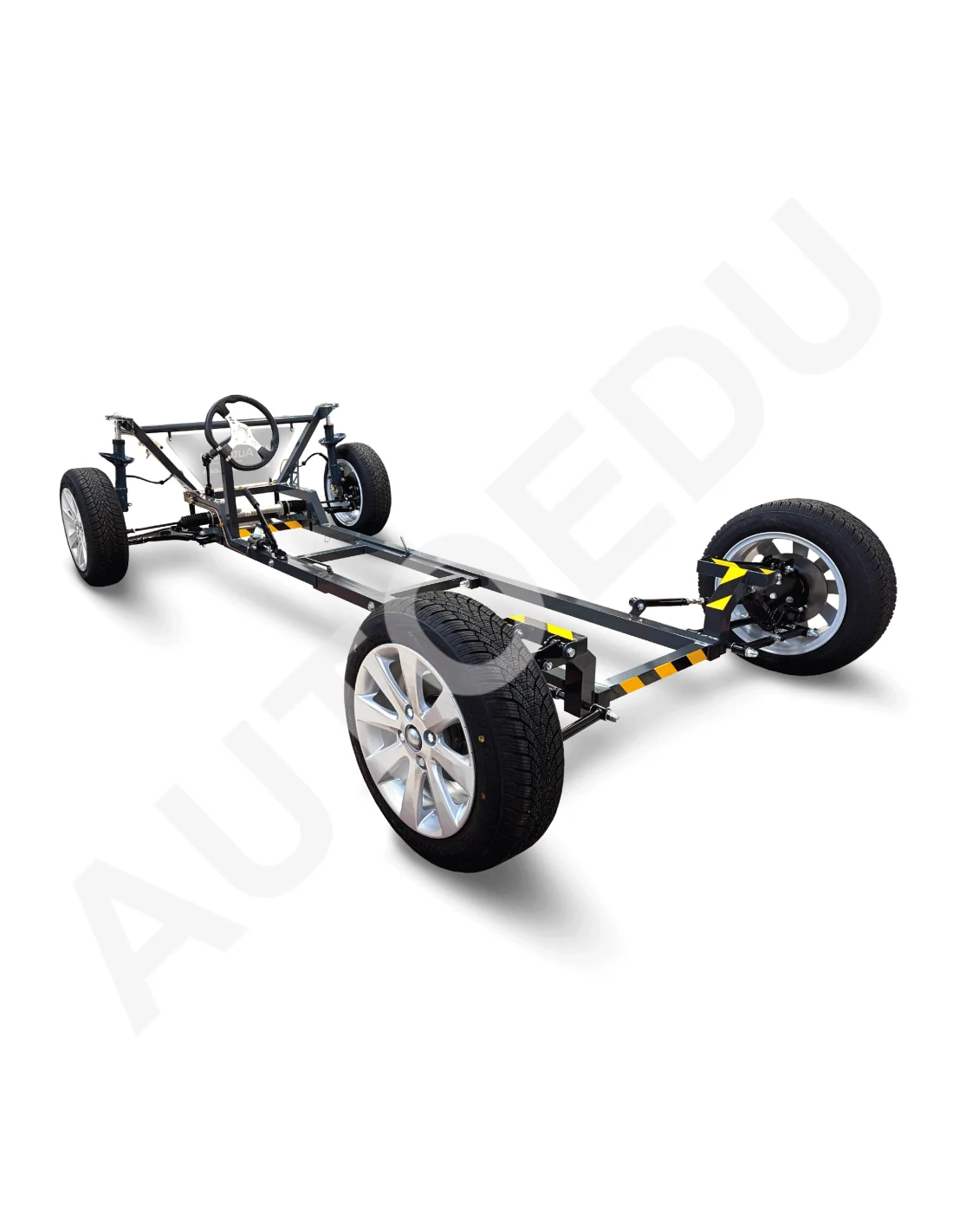

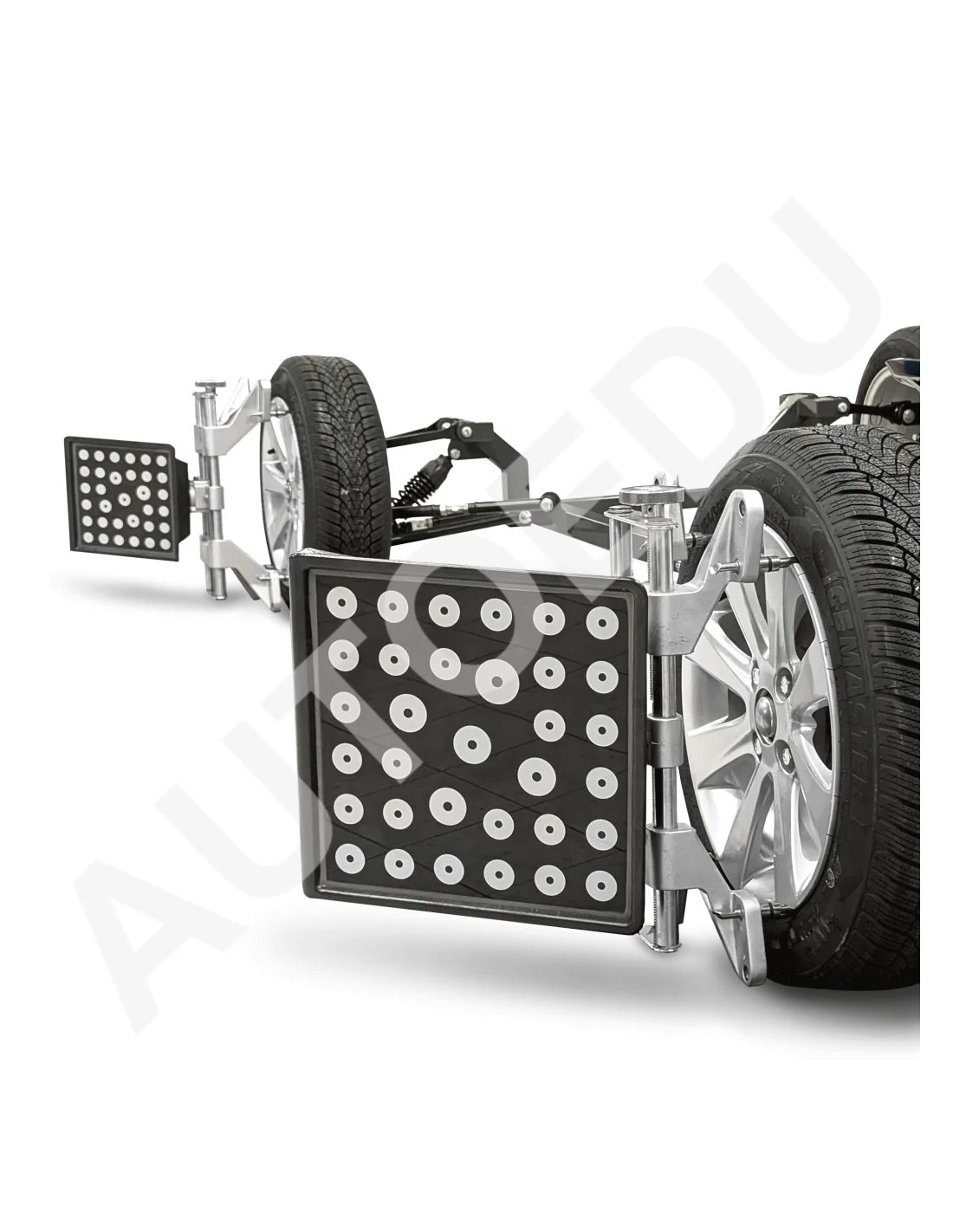

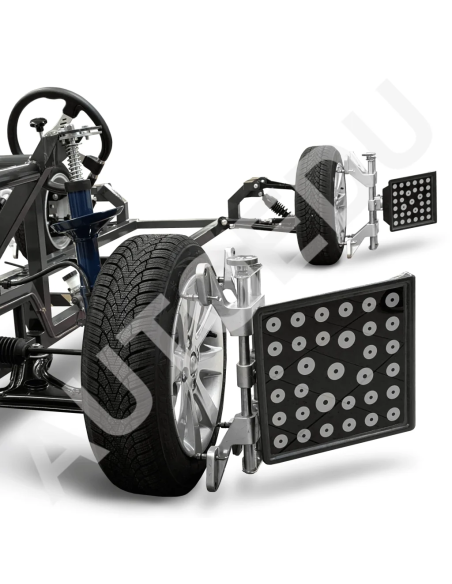

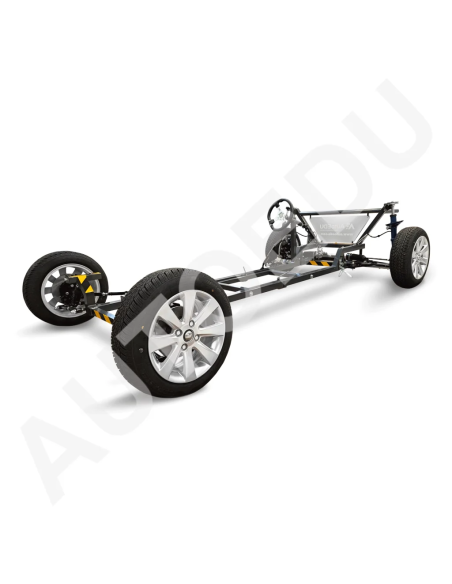

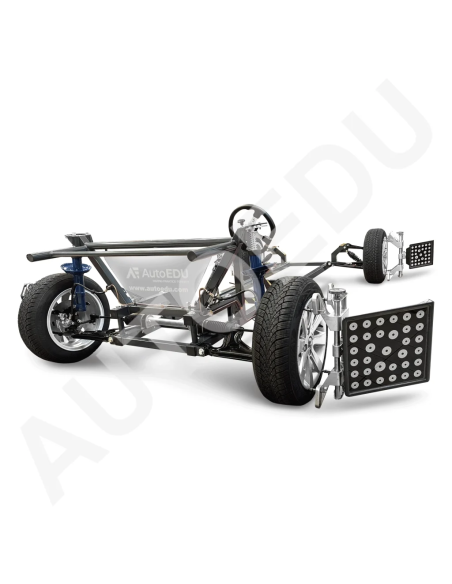

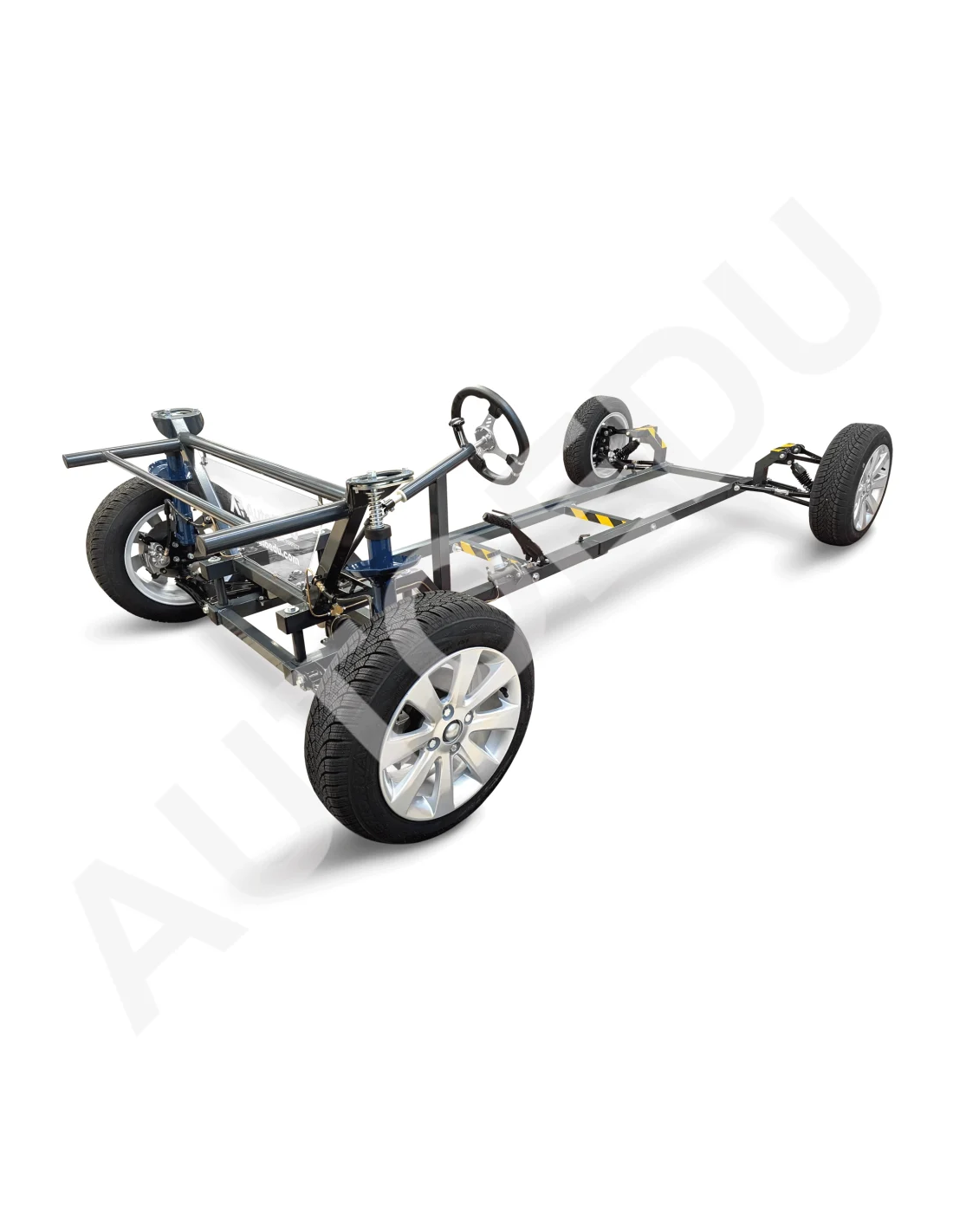

MSVAZ01 Wheel Alignment Training Educational Trainer

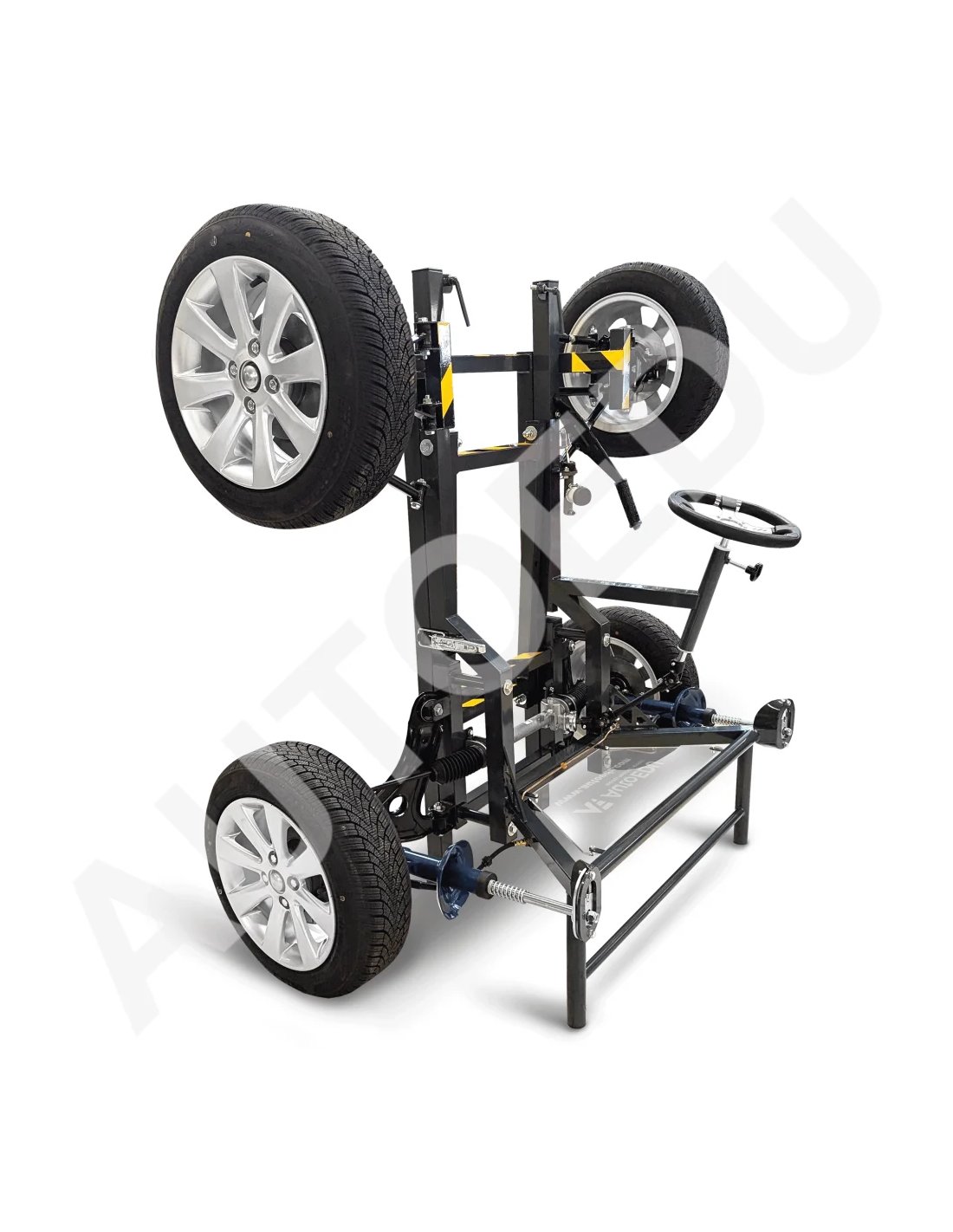

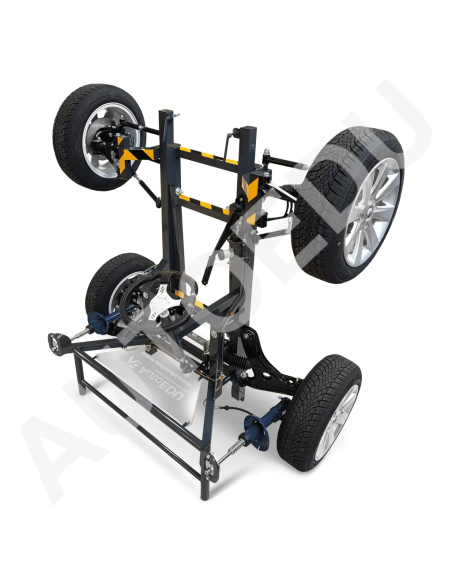

The trainer is compact, foldable, and mobile, ideal for classrooms where space, visibility, and repeatability are important.

Student Value:

• Learn how to measure and adjust camber, caster, toe, and SAI angles.

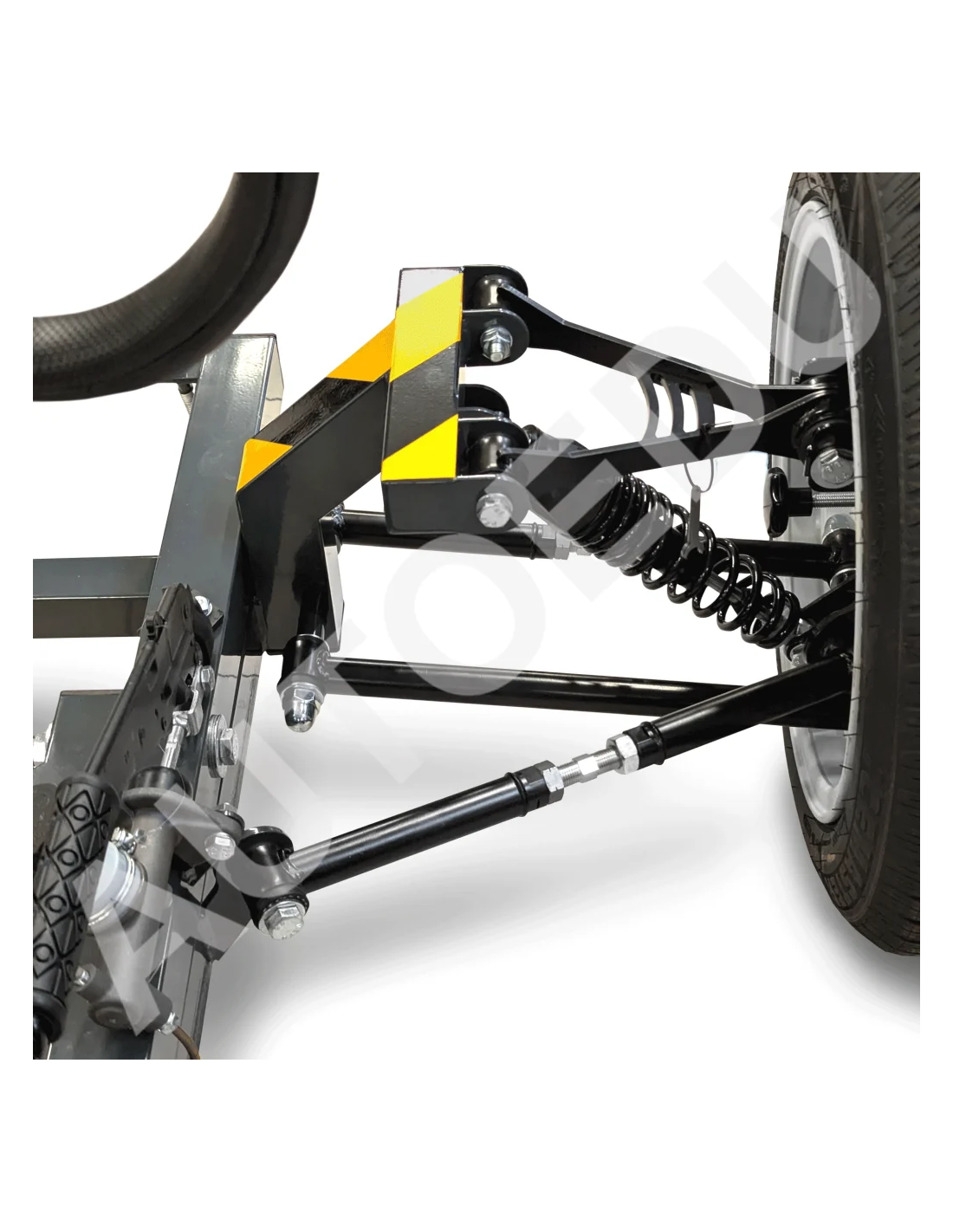

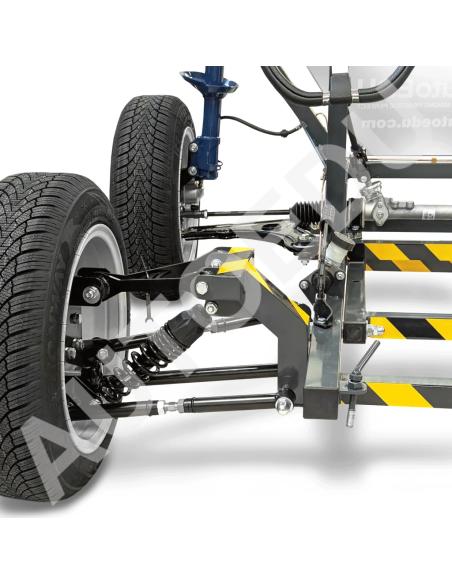

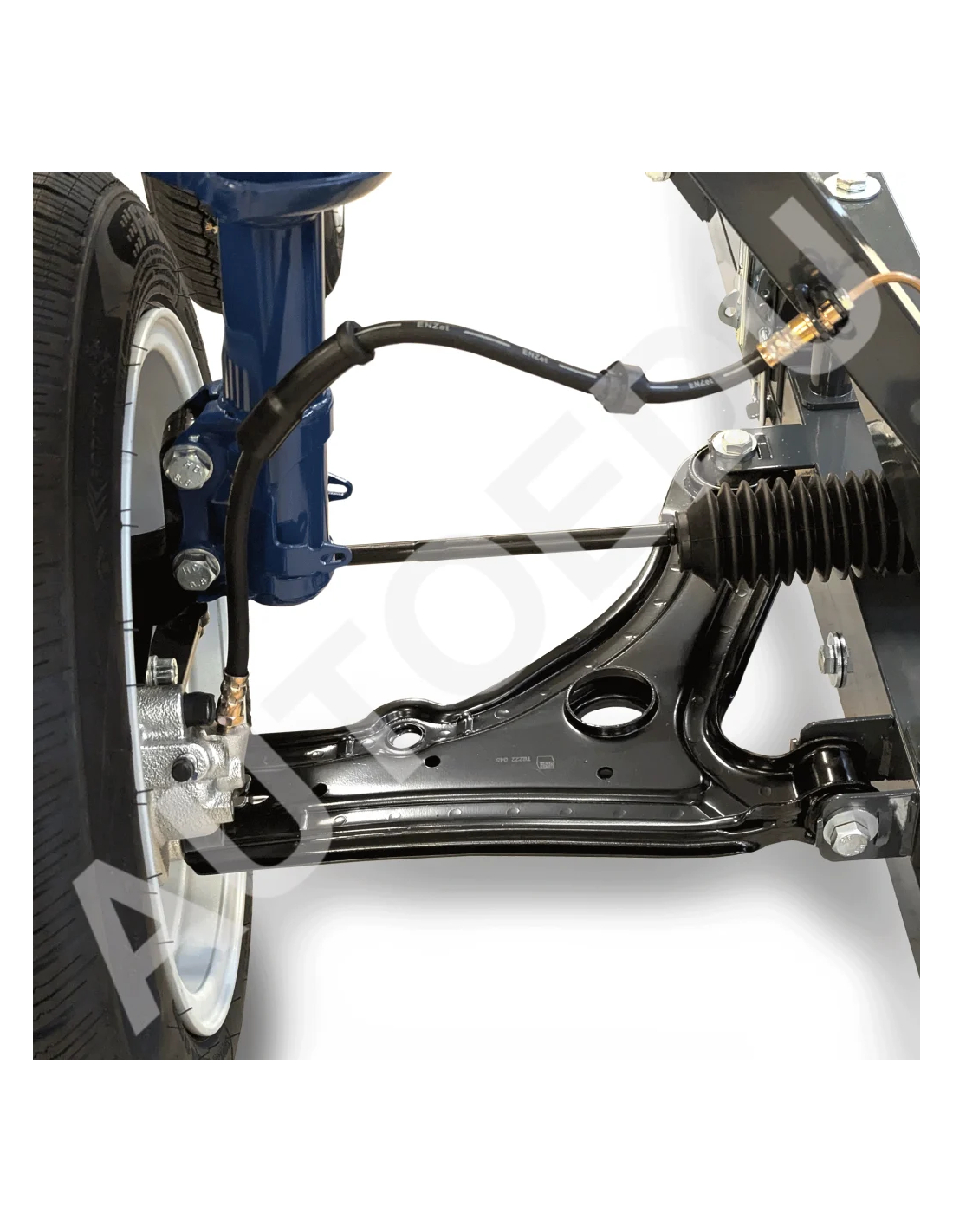

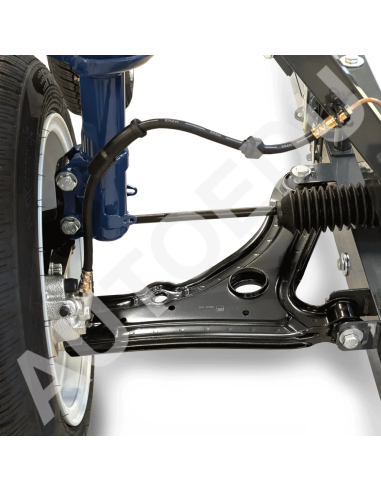

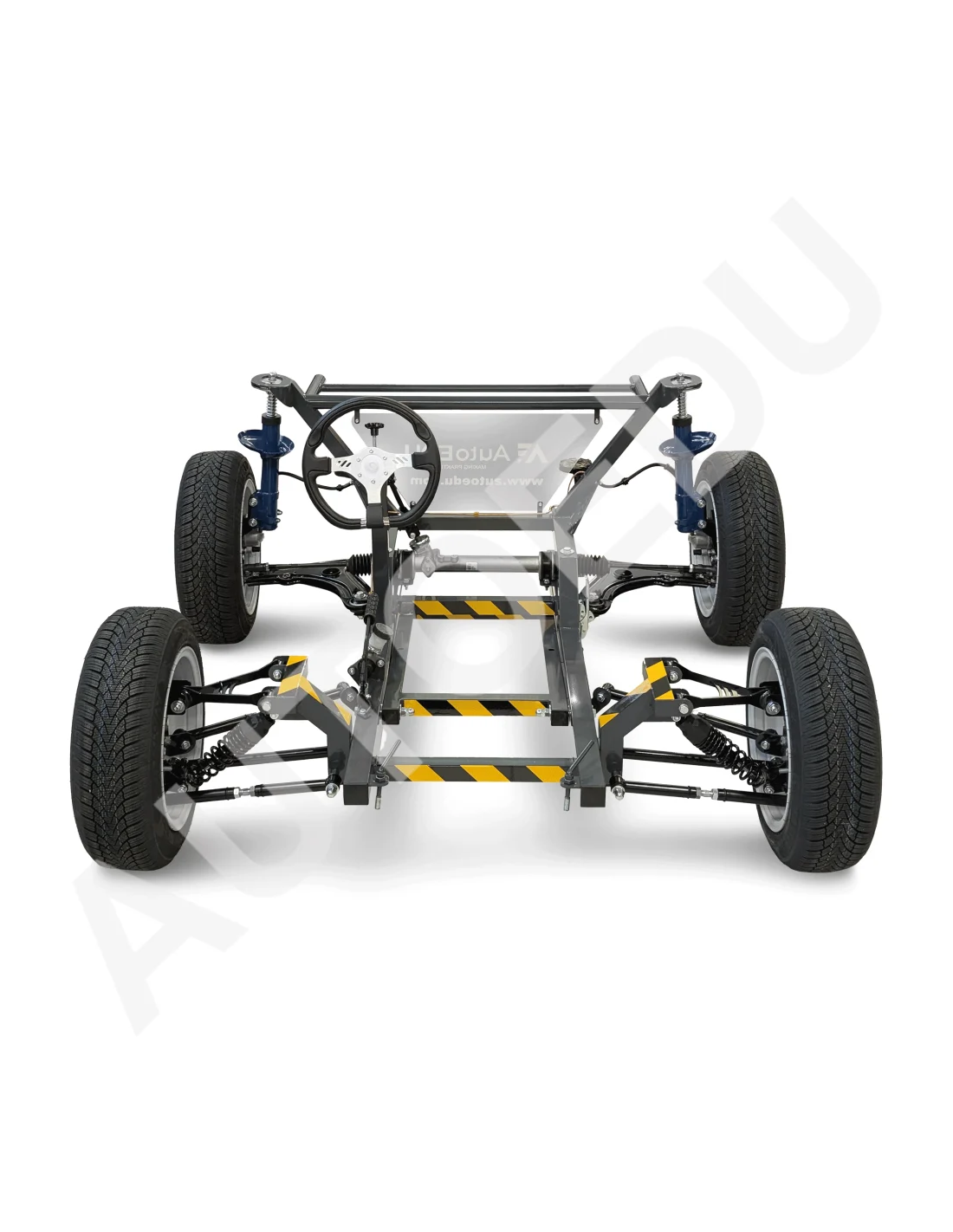

• Gain hands-on experience with McPherson strut and multi-link suspension designs.

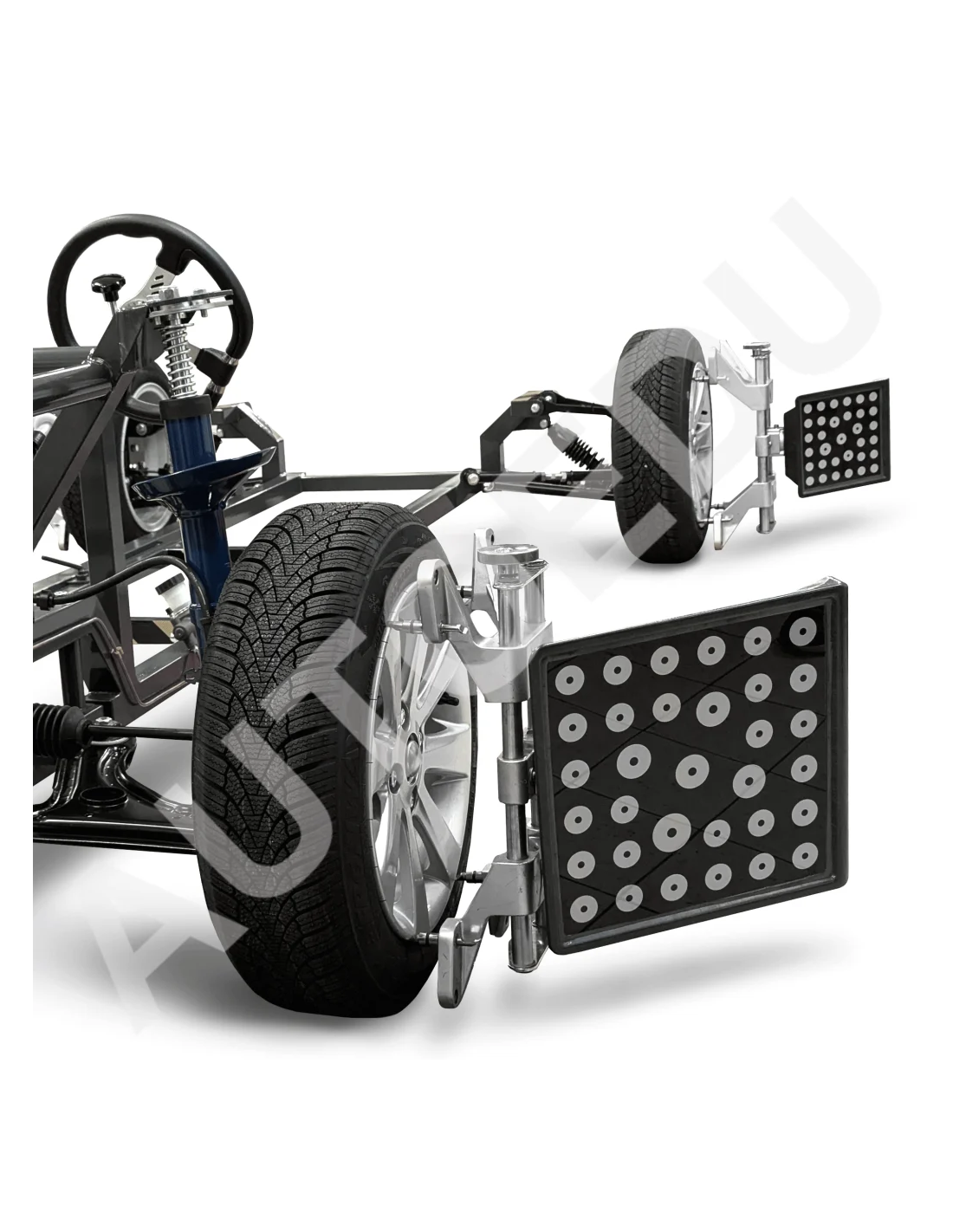

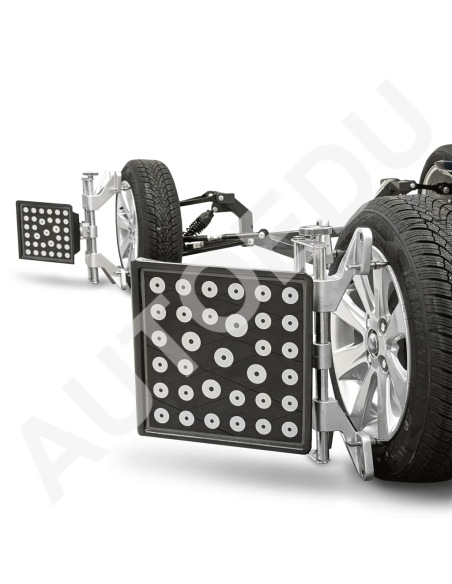

• Practice with various wheel alignment tools (3D, CCD, rulers, lasers).
• Understand the measurement of wheelbase, tread width, braking radius, caster, thrust angle, and turning radius.

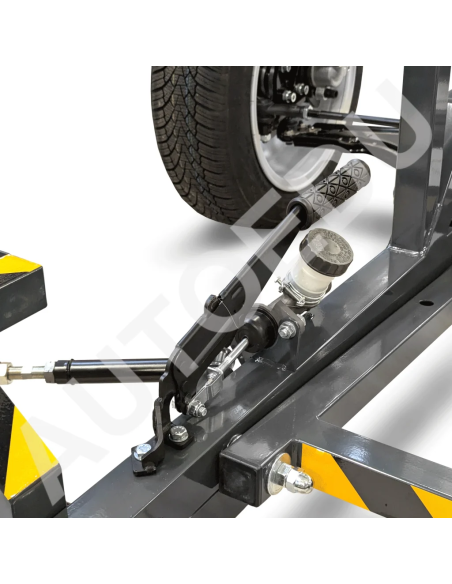

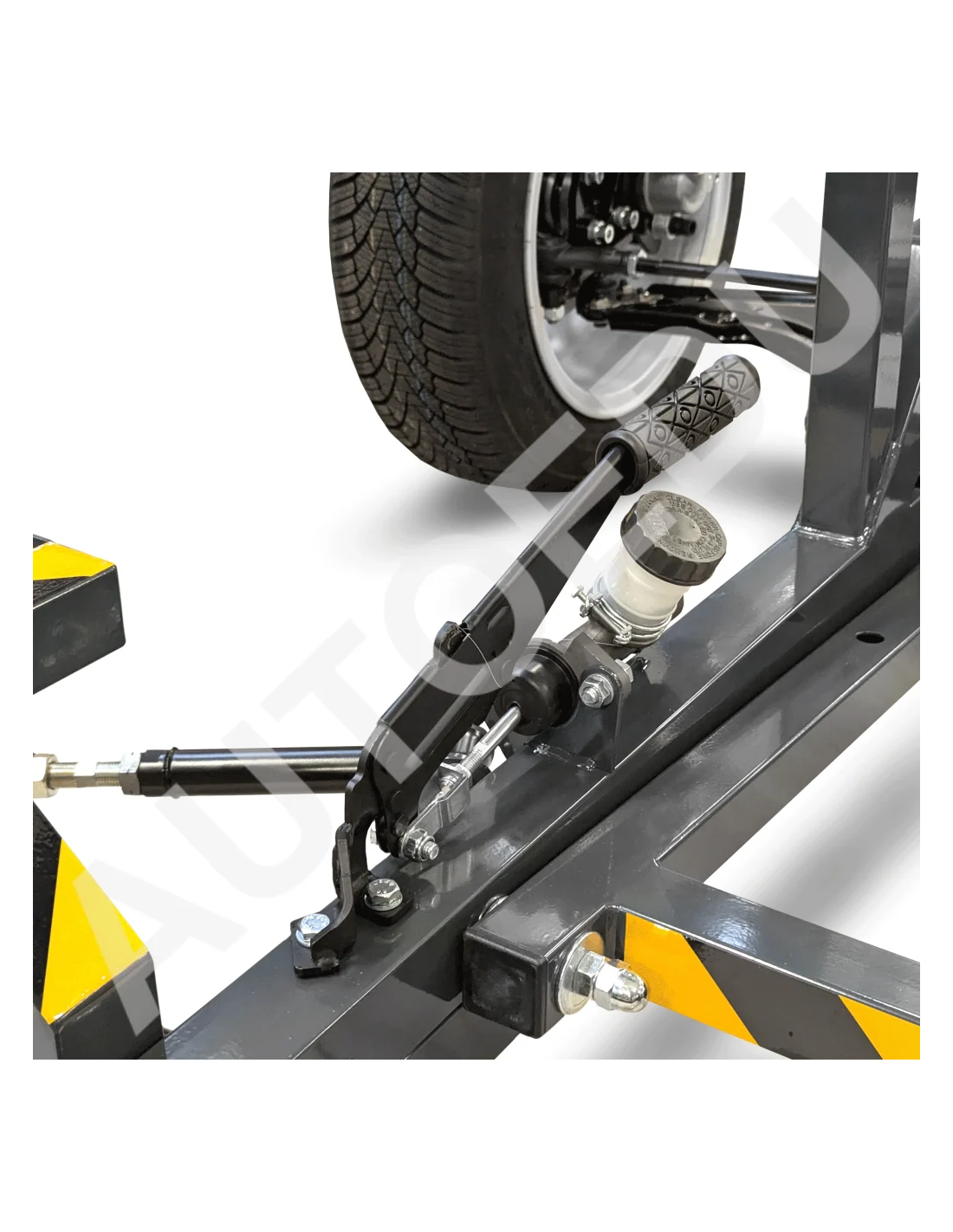

• Explore the interaction between the brake and suspension with the front hydraulic brake.
• Develop diagnostic skills with centerline, traction line, ride height, and toe difference angle checks.
• See in real time how small adjustments affect handling, stability, and tire wear.

Value for instructors:

• Offers clear, hands-on demonstrations with full component visibility.
• Uses OEM automotive parts for an authentic and realistic teaching experience.

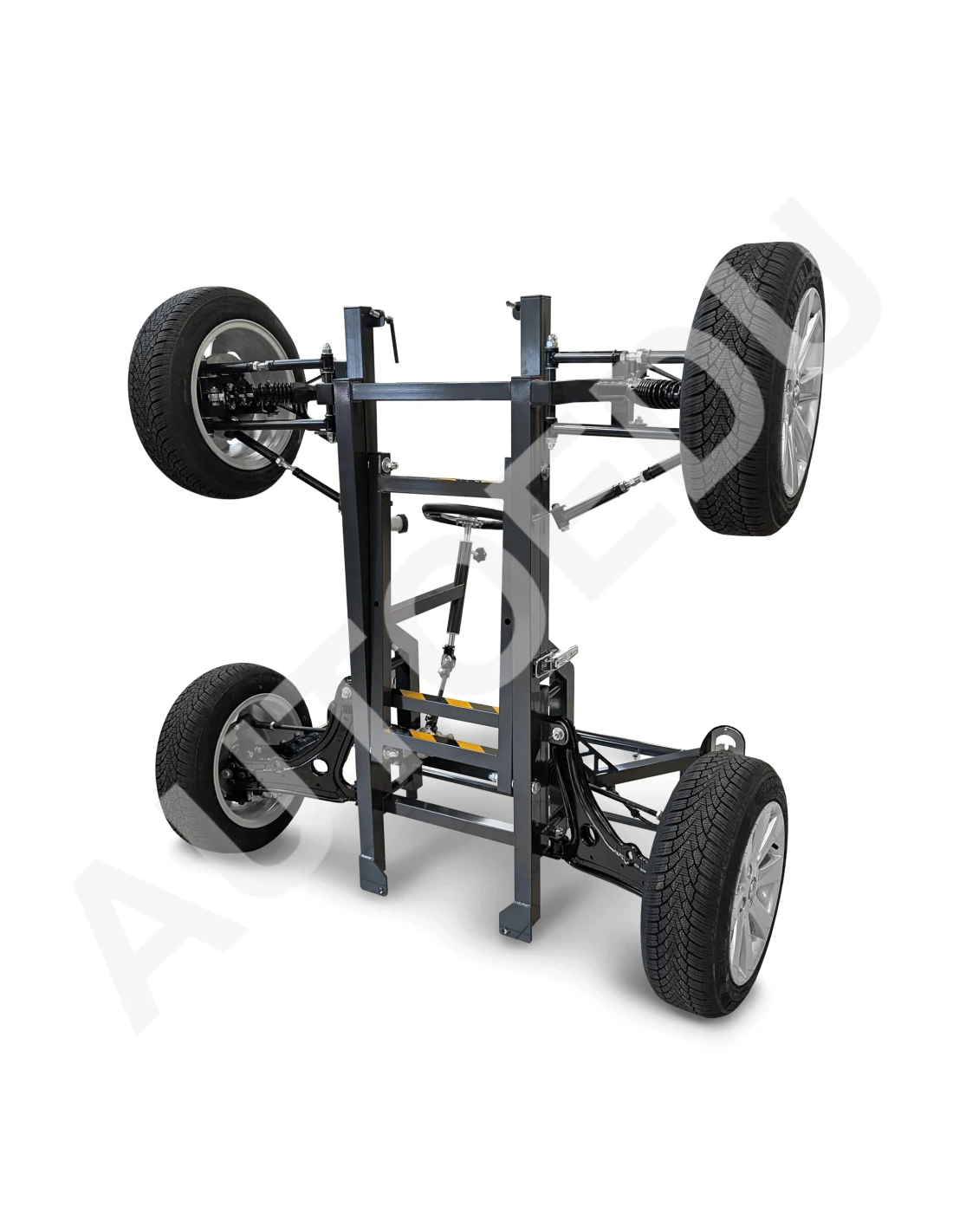

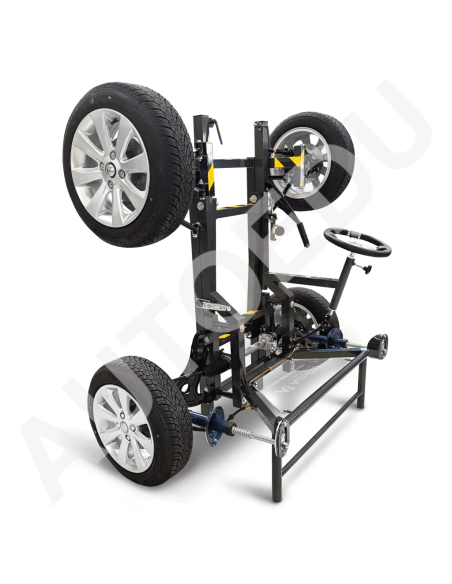

• Its compact, foldable design saves space and facilitates mobility between classrooms.
• Easy to set up, restart, and initiate classes with minimal downtime.
• Safe and convenient operation allows multiple students to work simultaneously.
• Ideal for collaborative and repeatable training sessions.
