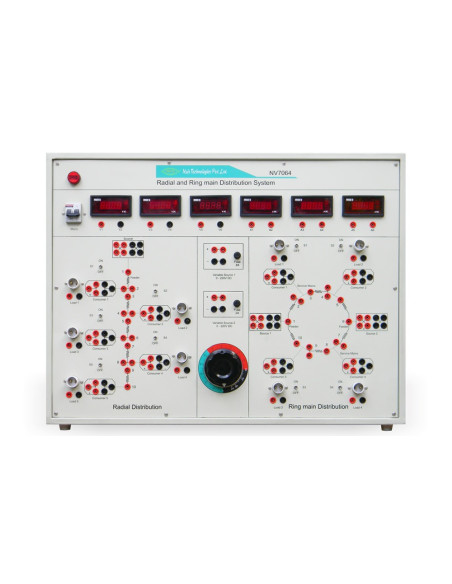

Nvis 7064 Radial and Ring Main Distribution System Lab

Reference Nvis7064

Condition: New

Nvis 7064 provides complete learning content to develop Ring and Radial Distribution System manually. The Voltage regulation is studied by performing experiments & comparison. It includes inbuilt DC Variable Supply with adequate protections, precise digital meters are used along with separate sections for Radial and Ring Main Distribution System so that students can understand the significance of these systems in a proper sequence.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overwiew
Specifications
List of Experiments
Data sheet
Download

Category	Laboratories

Nvis7064 Download (447.34k)

Nvis 7064 Radial and Ring Main Distribution System Lab is specially designed to illustrate the working phenomenon of Distribution System configured as Radial and Ring Main Distribution System. Distribution System is the part of electric power system which connects the high voltage transmission networks to the low voltage consumer service points. Distribution Systems should be designed in a way that Voltage variation at consumer terminals must be maintained with in ±5%

Nvis 7064 Radial and Ring Main Distribution System Lab is an ideal platform to enhance education, training, skills & development amongs our young minds.

Features:

- Digital 3 nos. DC Voltmeter & 3 nos. DC Ammeter for accurate measurement
- Separate connection for Radial & Ring Main System
- Inbuilt DC Variable Supply
- Isolation Transformer is provided for safe operation
- Exclusive and attractive designed panel
- Provided with inbuilt lamp load holders
- Diagrammatic representation for the ease of connections
- Learning material CD
