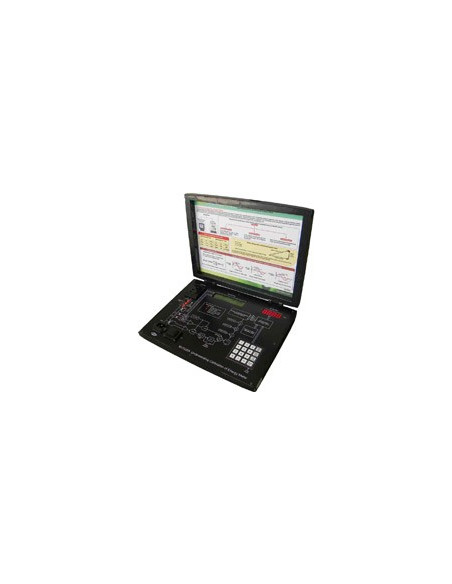

Nvis 7025A TechBook for Understanding Calibration of Energy Meter

Nvis7025A, Understanding Calibration of Energy meter is an ideal platform to enhance education, training, skills & development amongs our young minds.

Nvis7025A. energy meter calibration equipment is designed to deliver the practical knowledge of measurement of electricity consumption in a real world. Today electricity is a vital element for human society. The rapid growth in electric appliance usage has contributed to an explosive growth in electrification around the world. To use electricity better, it is required to have a deep knowledge of Electricity measurements.

The onboard LCD display works as Standard meter for calibration of Energy-meter and display value of Voltage, Current, and Watt. The display provides energy consumption details. The facility to connect external Wattmeter or Voltmeter and Ammeter is also provided.

• Features:

- Single phase kWh Energy meter
- Inbuilt Voltmeter, Ammeter, Wattmeter as Standard meter for calibration
- Big font LCD (16 x 2)
- Separate Seven Segment Display
- Digital Calibration/ Operation using Keypad
- Sockets are provided to Connect External Voltmeter, Ammeter and Wattmeter for Calibration
- Default and User Calibration modes are provided to avoid errors during Operation
- 5 LED Operation Indicators
- Learning material CD

- Study the connection of Voltmeter, Ammeter & Wattmeter for Power measurement of load in Transmission line
- Study the connection of Energy meter in Transmission line
- Measurement of Energy in kWh
- Calibration using inbuilt Wattmeter, Voltmeter & Ammeter, Analog Wattmeter, Analog Voltmeter & Ammeter
