Scientech2722 Step - Down Chopper

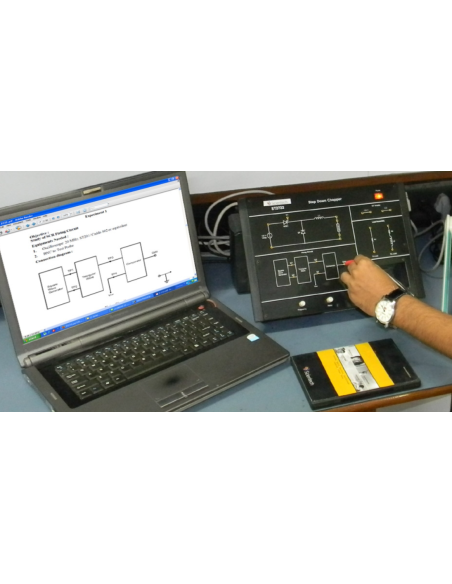

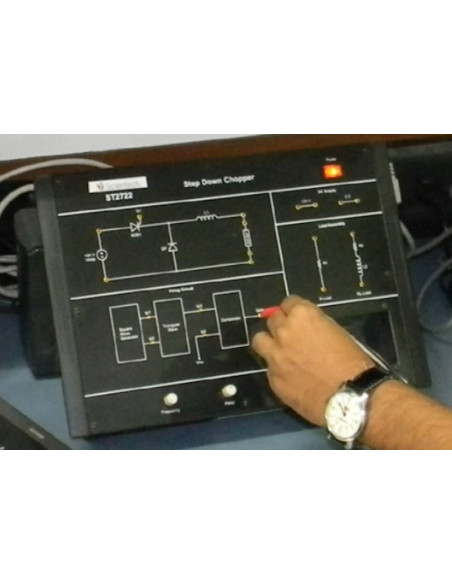

Scientech2722 is a learning platform which is very useful for Students to understand the concept of DC to DC chopper on various load configuration. Scientech2722 is provided with inbuilt power supply and exhaustive learning material CD.
- Built in power supply
- On board firing circuit
- Test points provided to check the outputs at different blocks
- DC motor 24V 500mA with 100 RPM as Load
- Easy to operate and understand
- Sockets provided to make different connections
- On board firing circuit: Triangular wave comparator scheme
- Frequency variation: 27 Hz to 5 KHz (approx.)
- PWM variation: 0 - 90%
- DC motor: 24 V / 0.5 A, 100 RPM
- Interconnections: 2 mm sockets
- SCR assembly: SCR 2P4M, 400V/2A
- Test points: 5 nos
- Mains Supply: 220/110V, 50 Hz / 60Hz
- Product Tutorial: Online on www.ScientechLearning.com
- Dimensions (mm): W 420 x D 255 x H 100
- Weight: 1 Kg. (approximately)
- Operating Conditions: 0-40oC, 85% RH
- Included Accessories: 2mm Patch cords (Red) 16"-1 no.
2mm Patch cords (Black) 16"-1 no.
2mm Patch cords (Blue) 16"-8 nos.
Mains cord-1 no.
- Optional:
Simtel Power Electronics Simulation Software
- Study SCR firing circuit.
- Study Step Down Chopper with resistive load.
- Study Step Down Chopper with resistive – inductive load.
- Study Step down Chopper with inductive (motor) load.
