Vehicle Lighting Educational Trainer | MSAS04
Reference:
MSAS04

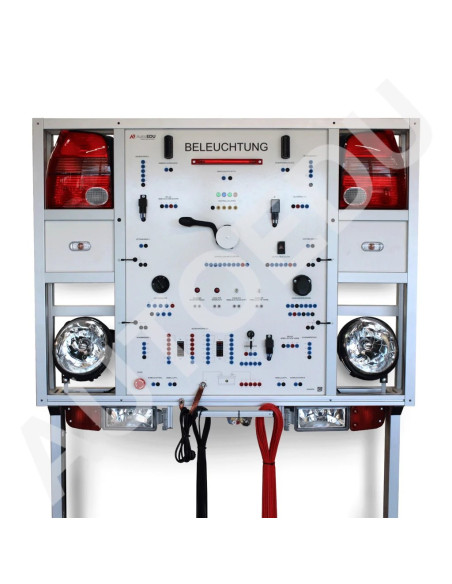

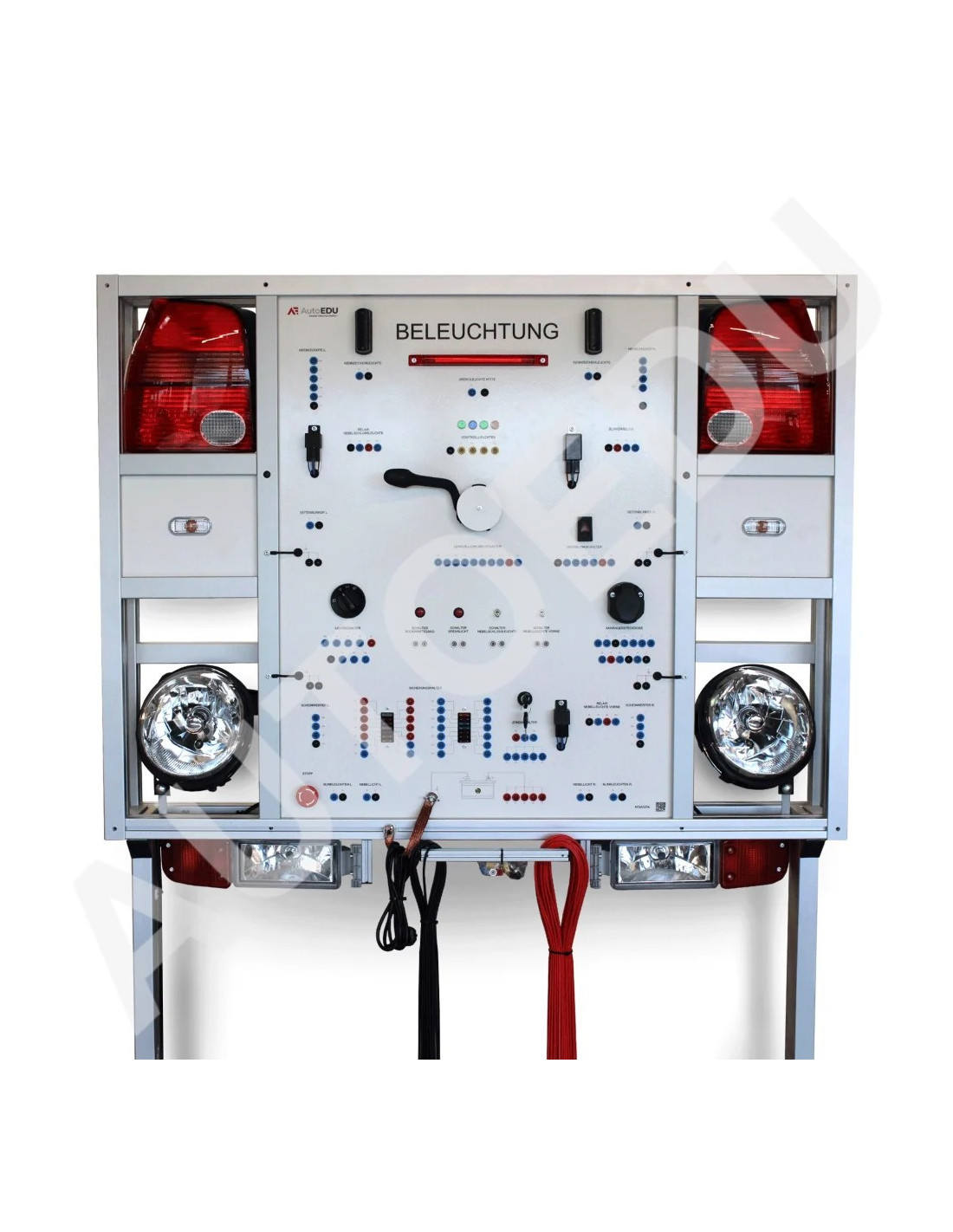

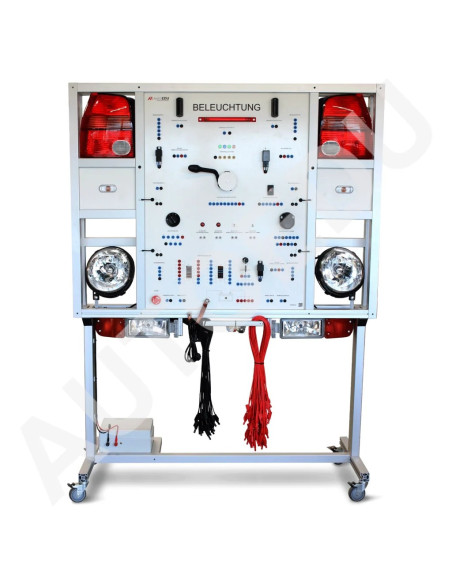

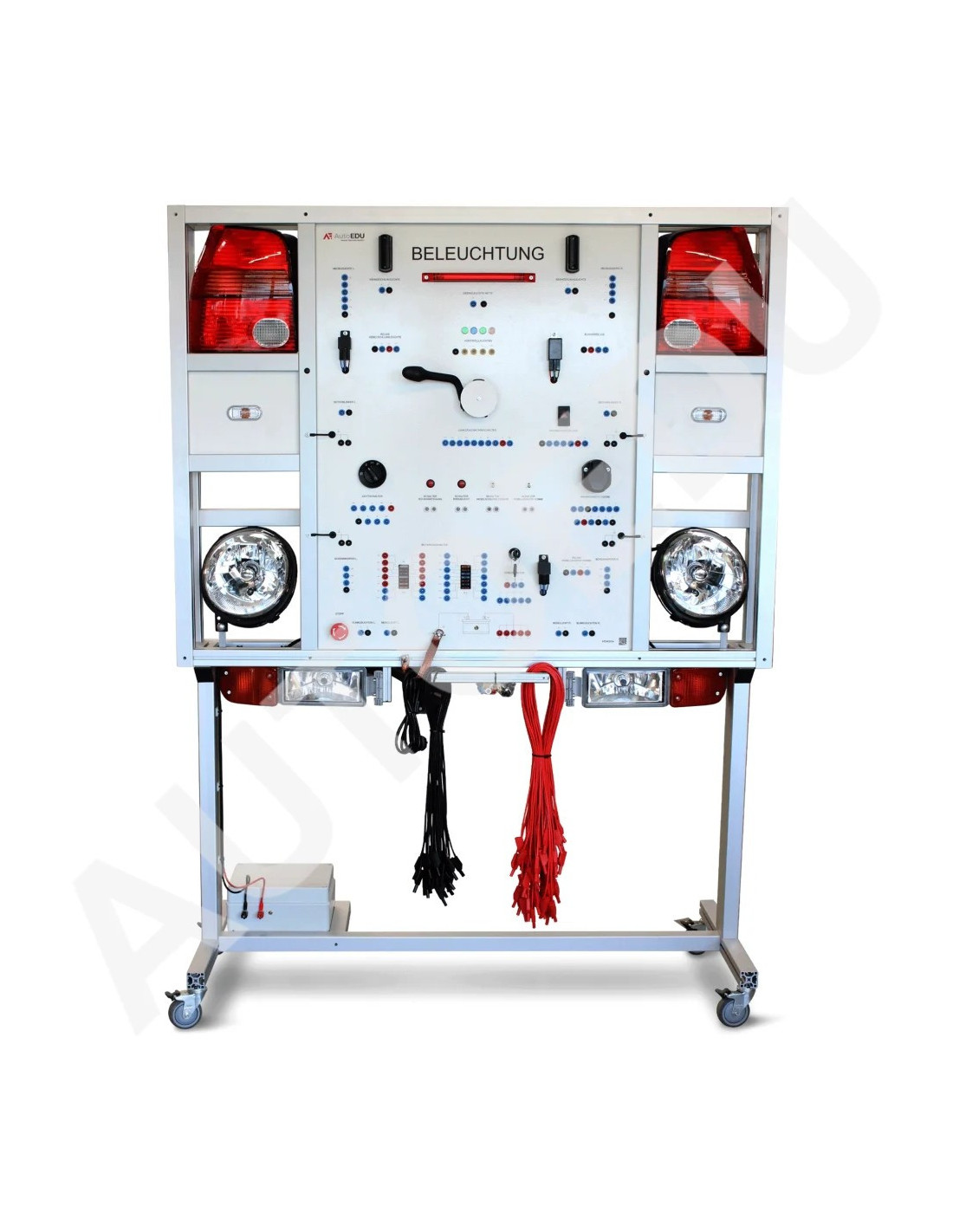

Practical educational trainer designed to demonstrate the full operation of an automotive lighting system.

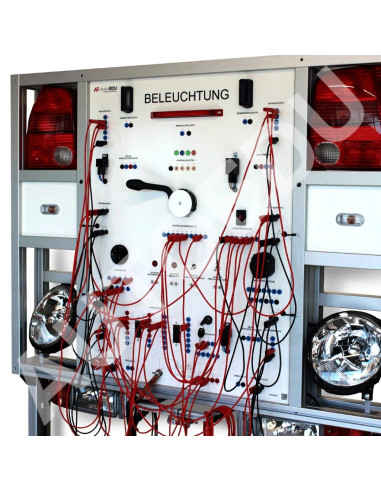

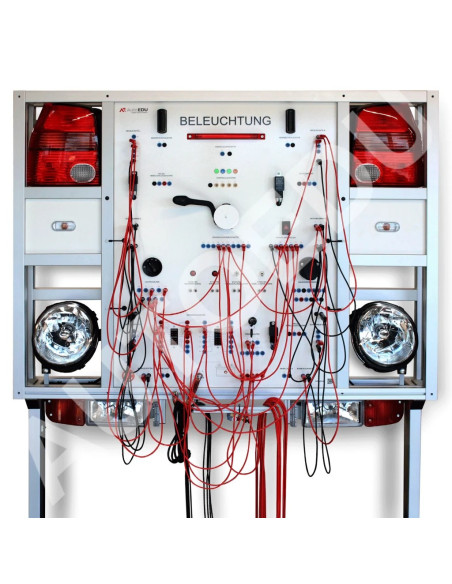

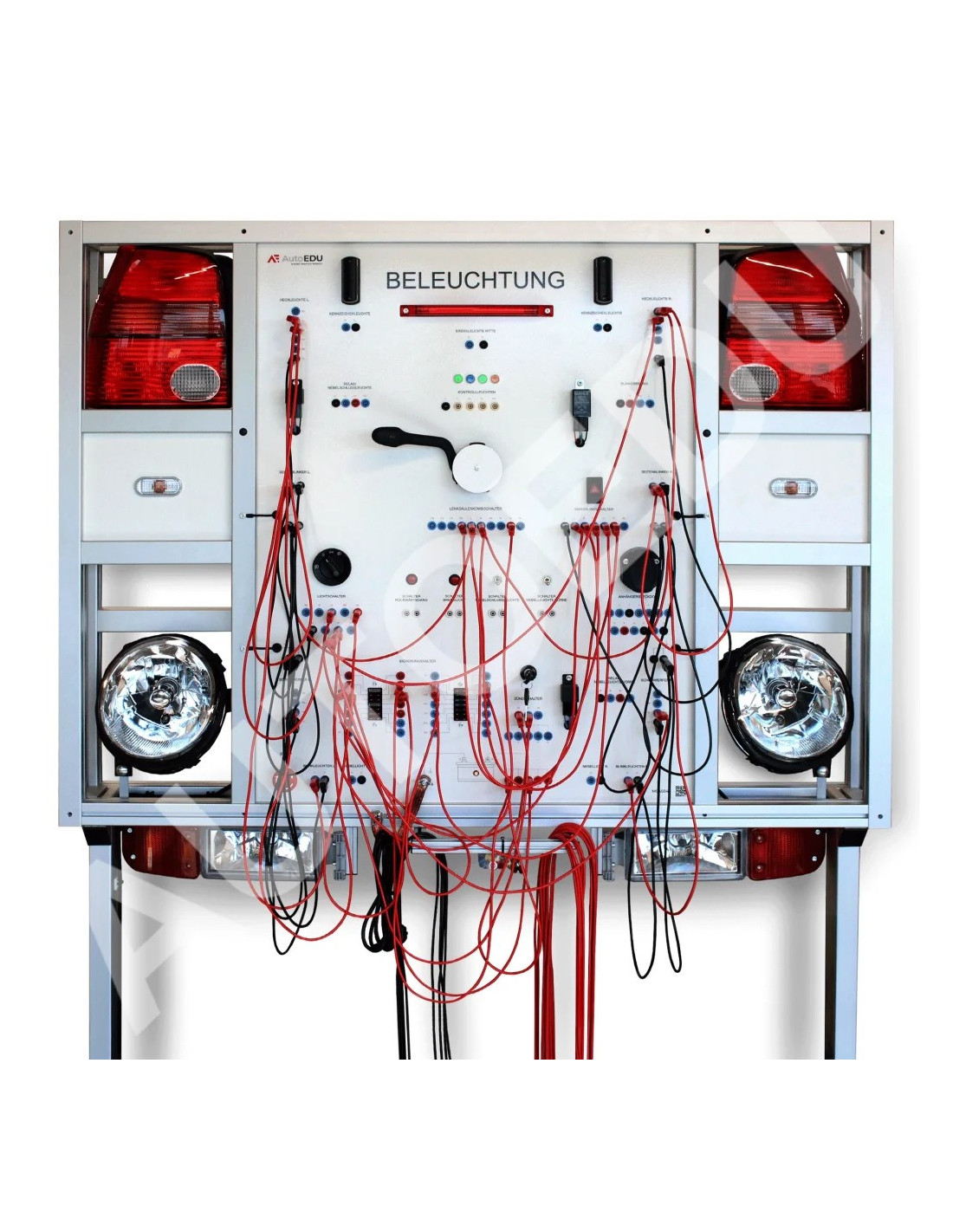

Built with OEM vehicle components, this trainer allows students to manually connect each circuit using external wires and follow wiring diagrams for system activation. It provides a complete, hands-on approach to understanding the function, layout, and interconnection of modern vehicle lighting systems.
Provides a practical and comprehensive approach to understanding the function, design, and interconnection of modern vehicle lighting systems.
Value for Students:
Learn to read and analyze complex automotive wiring diagrams.
Practice connecting complete vehicle lighting circuits using external wires.
Understand the function and interconnection of fuses, relays, and switches.
Gain hands-on experience with actual OEM vehicle components.
Develop diagnostic skills to identify wiring and connection problems.
Observe the actual operation of brake lights, turn signals, fog lights, and warning systems.
Value for Instructors:
Comprehensive training tool for teaching automotive wiring and lighting systems.
Easy reset to default settings by disconnecting external wires.
Supports individual and group learning activities.
Durable, portable, and compact design, ideal for any classroom or laboratory.
Enables guided step-by-step exercises or troubleshooting tasks.
The plug-and-play system minimizes setup time and maximizes teaching efficiency.
Components: Headlights, taillights, brake lights, turn signals, fog lights, license plate lights, trailer socket, fuses, relays, switches, and warning lights.
Power: 220 V AC (110 V available for the US).
Dimensions: 1820 × 1360 × 500 mm (71.65 × 53.54 × 19.69 in).
Weight: Approx. 60 kg (132 lb).

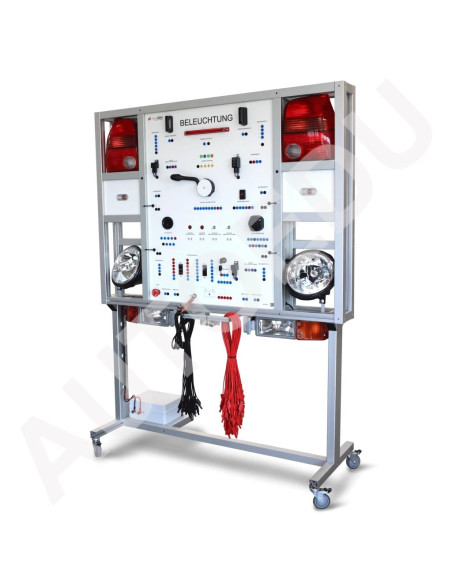

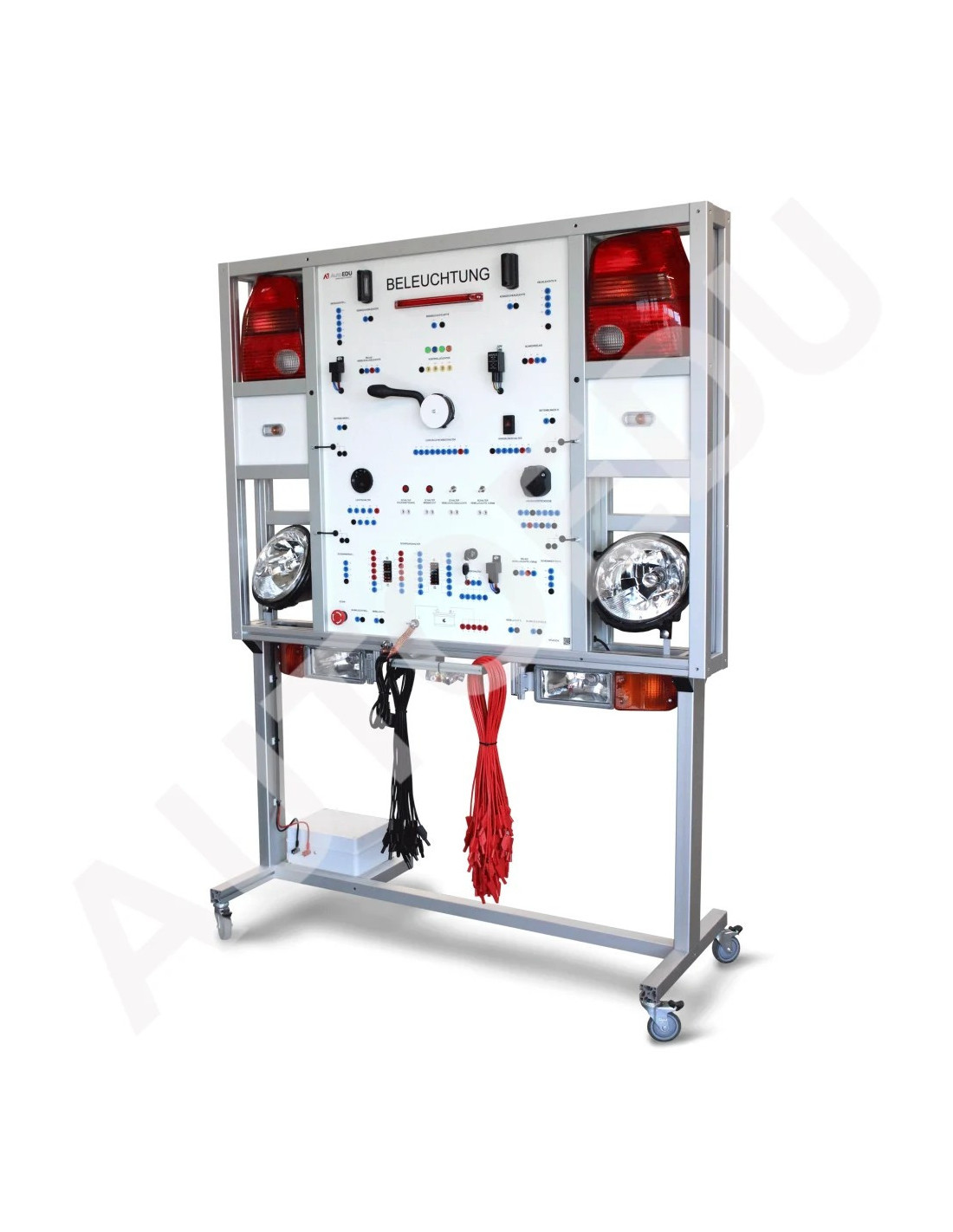

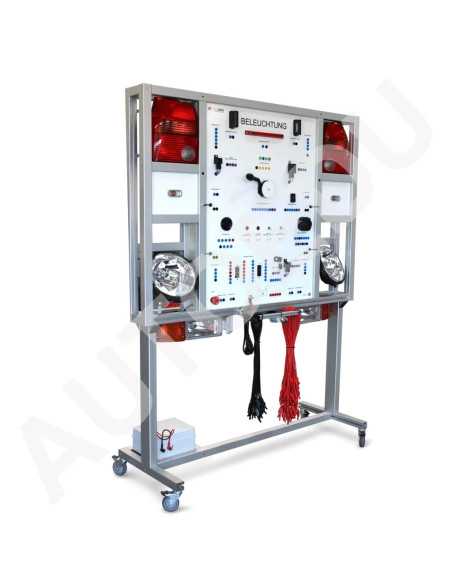

Structure: Steel/aluminum mobile stand with wheels.
Product number: MSAS04.
