GREEN-Wave Spectrometer

StellarNet GREEN-Wave miniature spectrometers are fiber-optically coupled instruments built as an affordable platform for teaching, educational laboratories and portable UV-VIS to near-NIR spectroscopy.

The series supports measurements across 350-1150 nm and offers 8 standard models with multiple wavelength ranges, gratings and slit-dependent resolutions. Updated electronics with a high-speed 16-bit digitizer provide fast acquisition and a typical 400:1 signal-to-noise ratio.

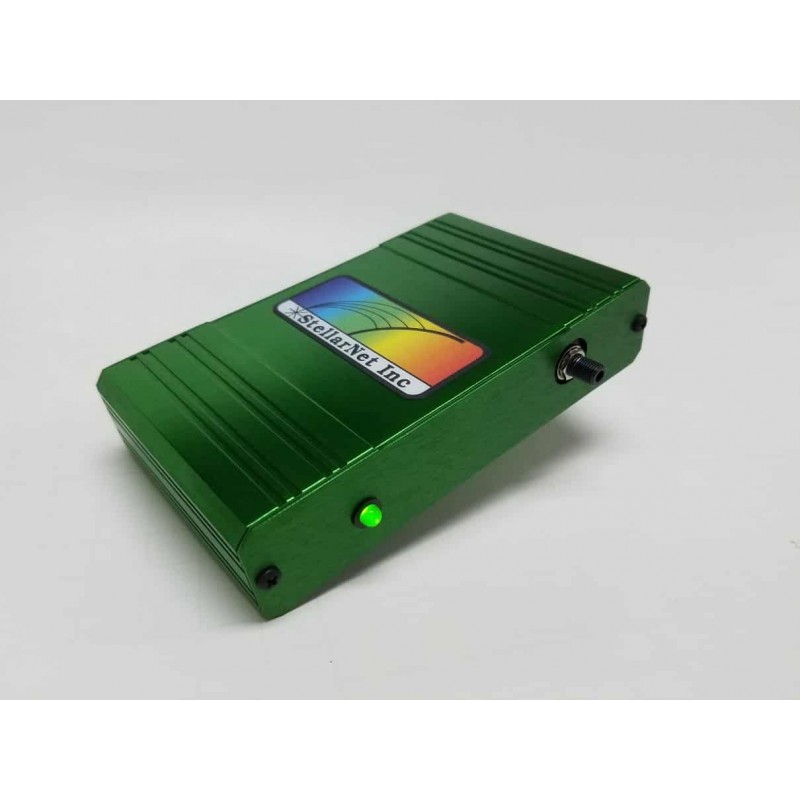

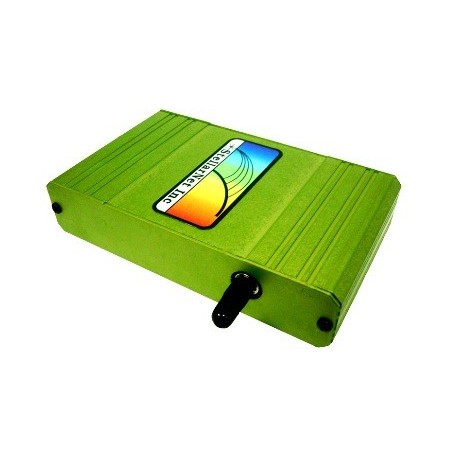

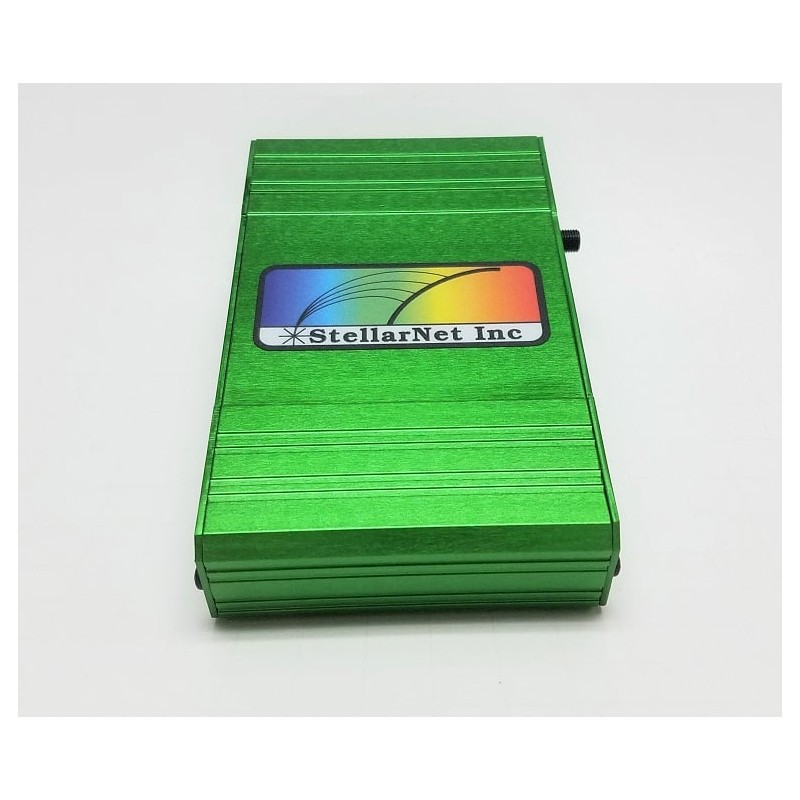

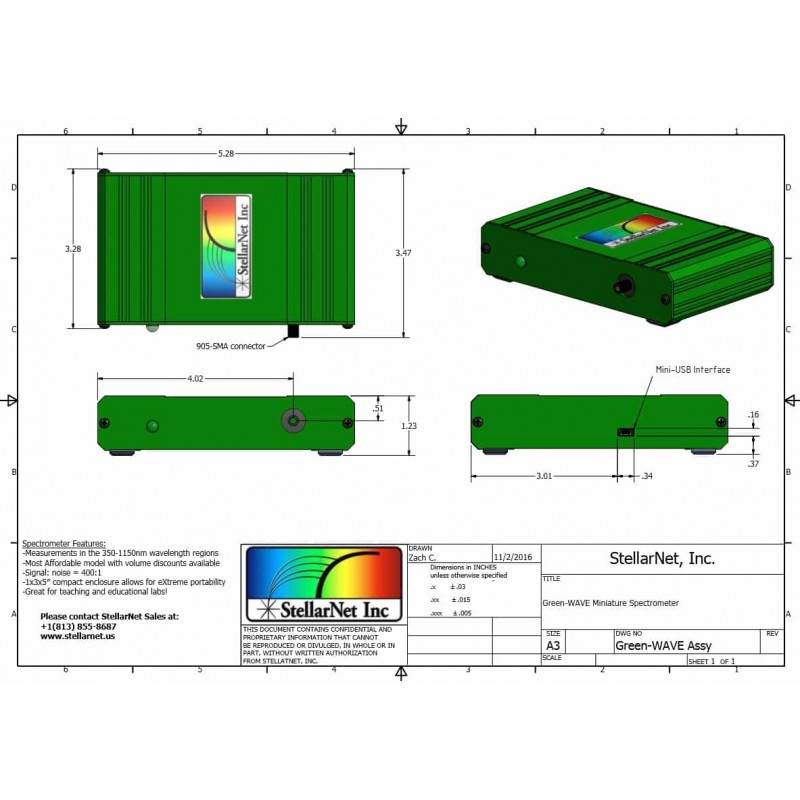

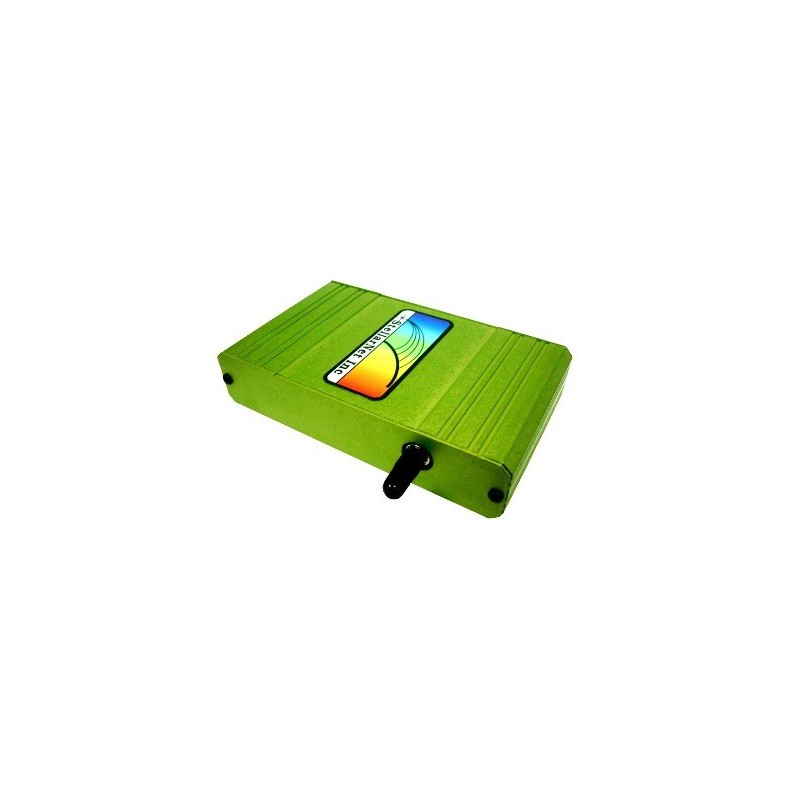

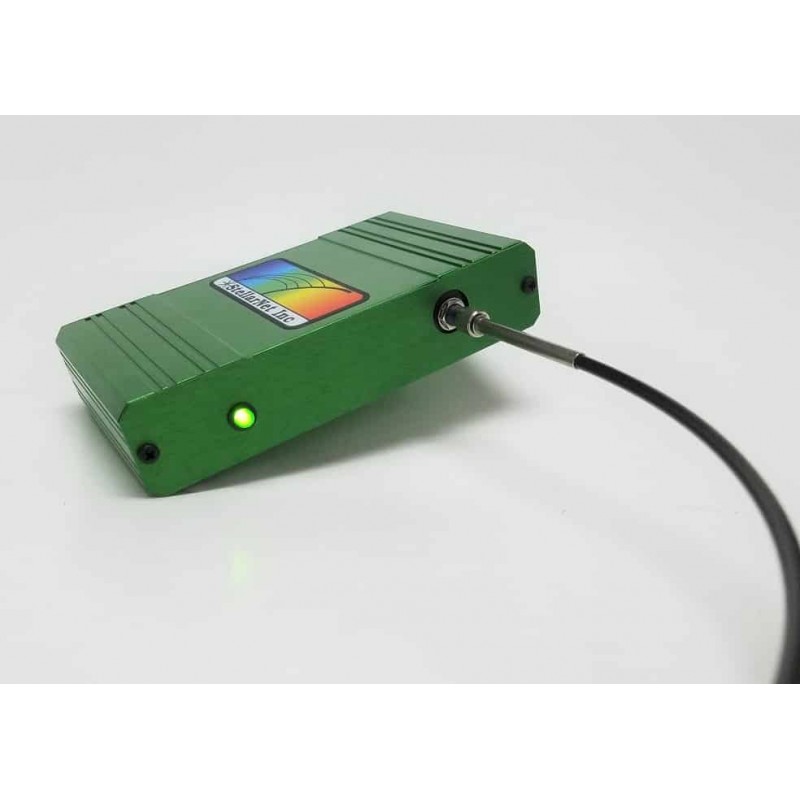

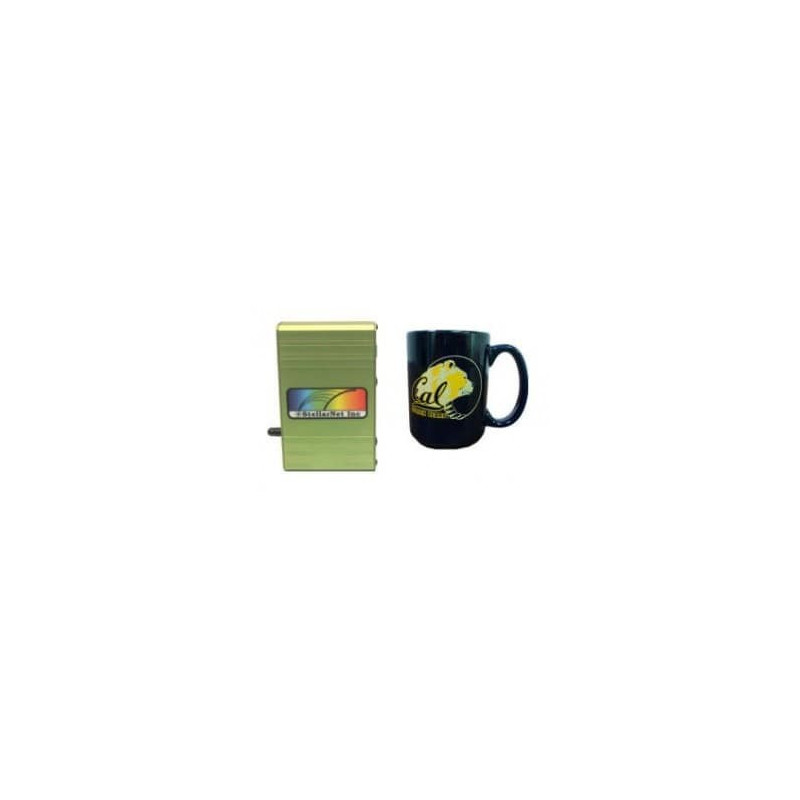

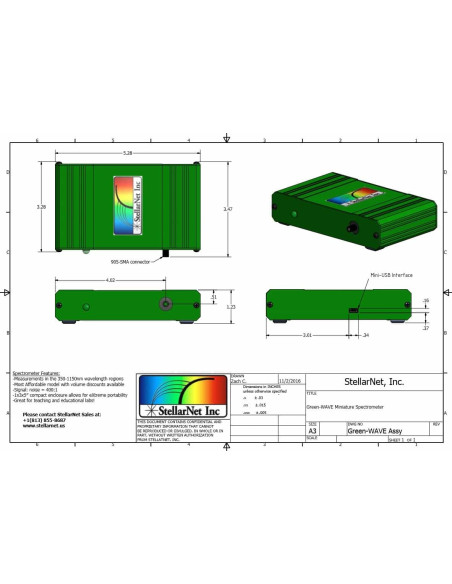

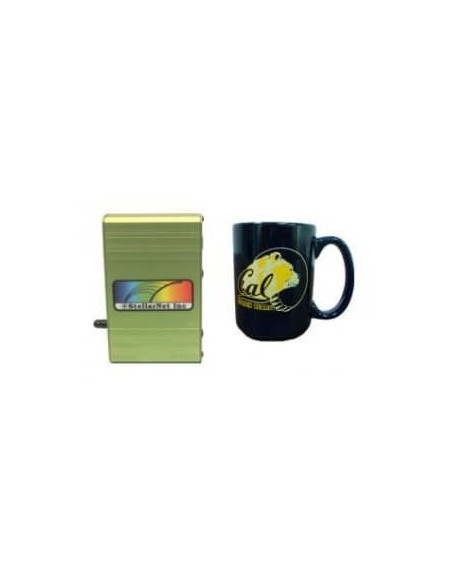

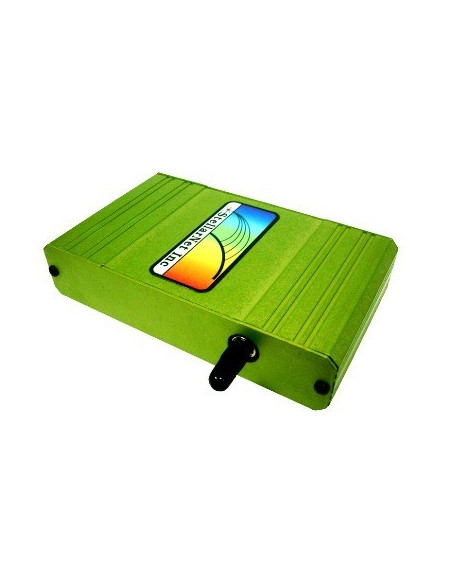

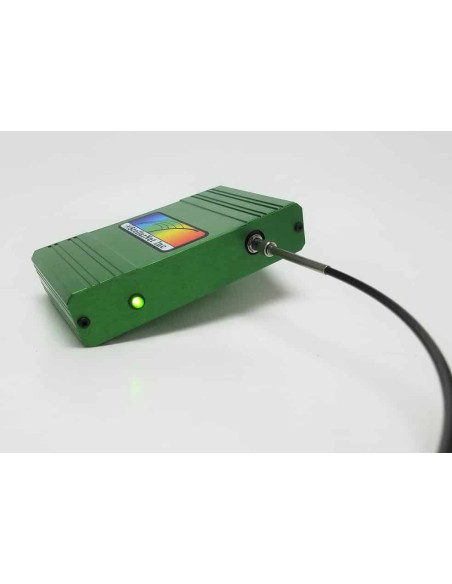

The compact 1 x 3 x 5 inch enclosure improves portability and low-power operation for laptops and tablets. The spectrometer is USB 2.0 powered and accepts signal input through a single-fiber cable or probe assembly using a standard SMA 905 connector.

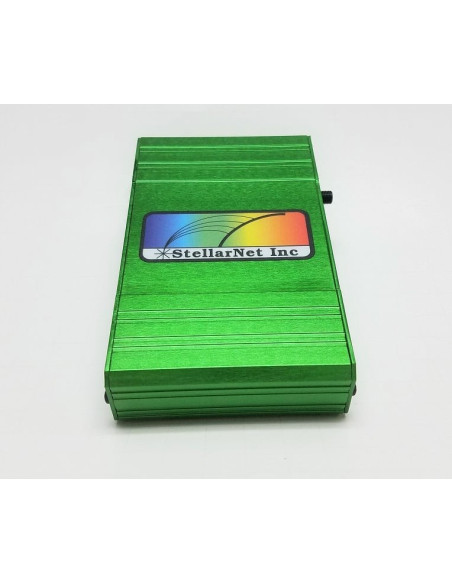

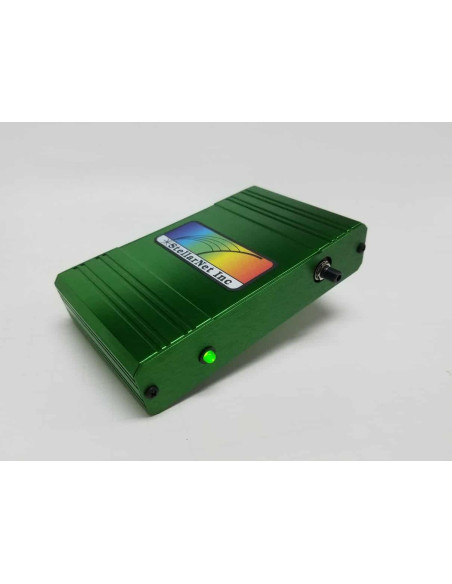

The modular optics have no moving parts and are protected in a rugged metal enclosure suitable for repeated use in undergraduate environments. Up to 8 units can also be daisy chained and operated simultaneously.

Onboard memory stores preset calibrations, spectrometer settings and a snapshot spectrum from the sensitive 2048-element CCD detector. Typical applications include emission monitoring, tunable laser or LED characterization, elemental plasma emissions or LIBS, colorimetry and optical metrology.

Free SpectraWiz software is included for real-time spectroscopy, spectroradiometry, spectrocolorimetry, concentration analysis and UV monitoring workflows.
