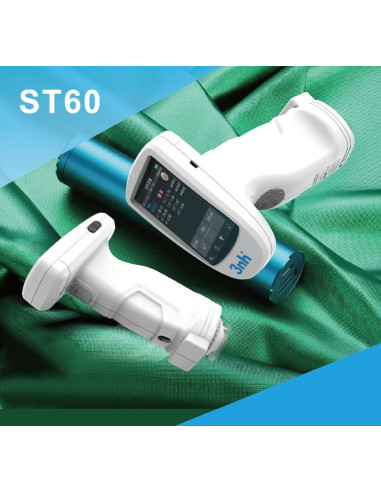

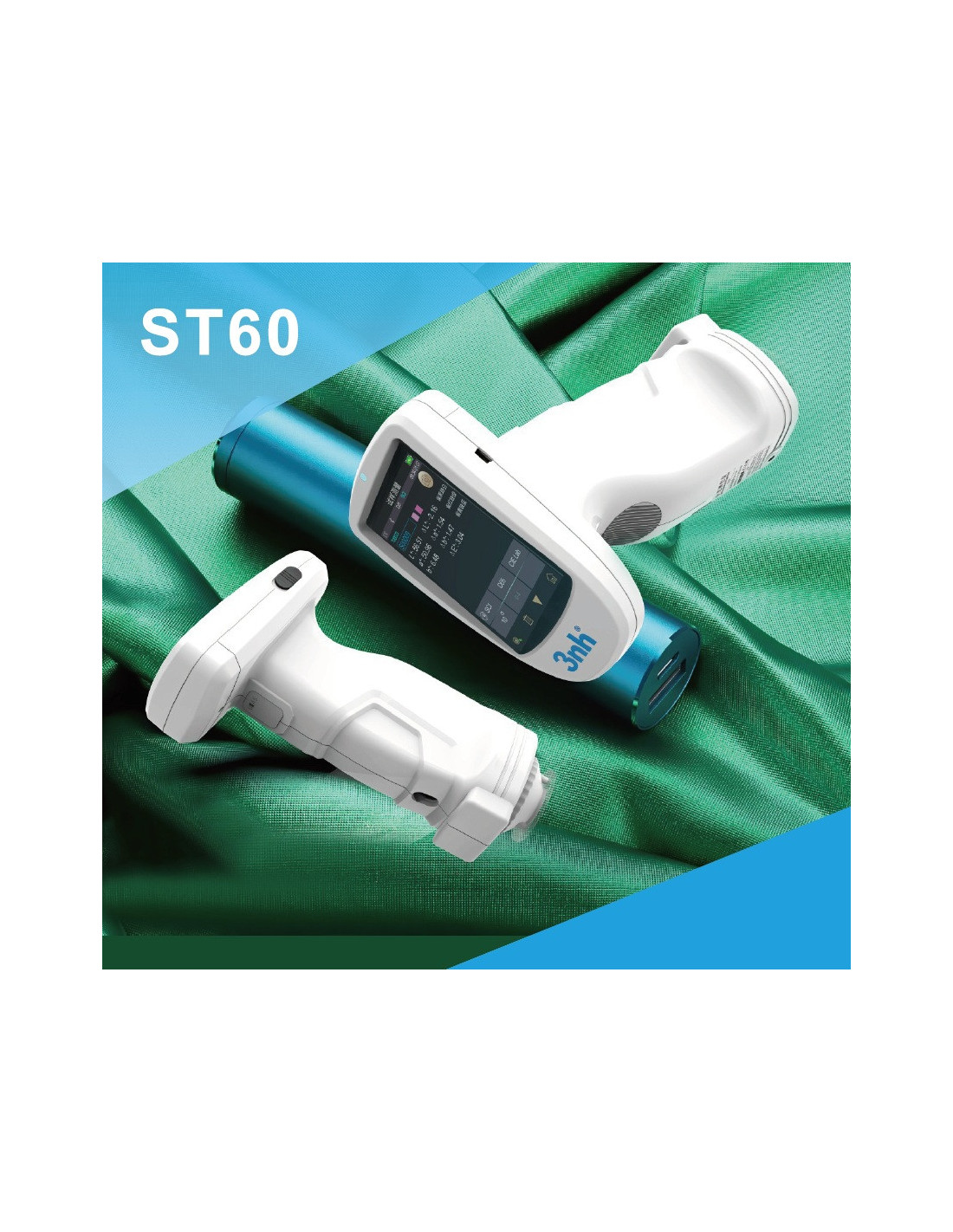

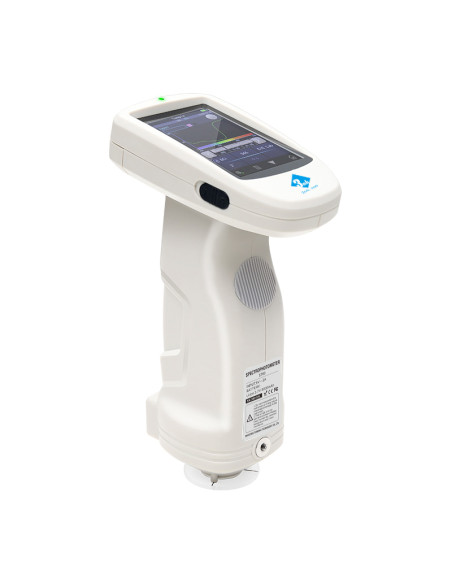

ST60 3nh portable spectrophotometer

Name: ST60 3nh portable spectrophotometer
Brand: 3nh
SKU: ST60

Reference: ST60 - Manufacturer: 3nh

3nh ST60 portable spectrophotometer with D/8 geometry, SCI/SCE, full-spectrum LED and UV light source, camera locating and 4 measuring apertures.

Ask for Quote

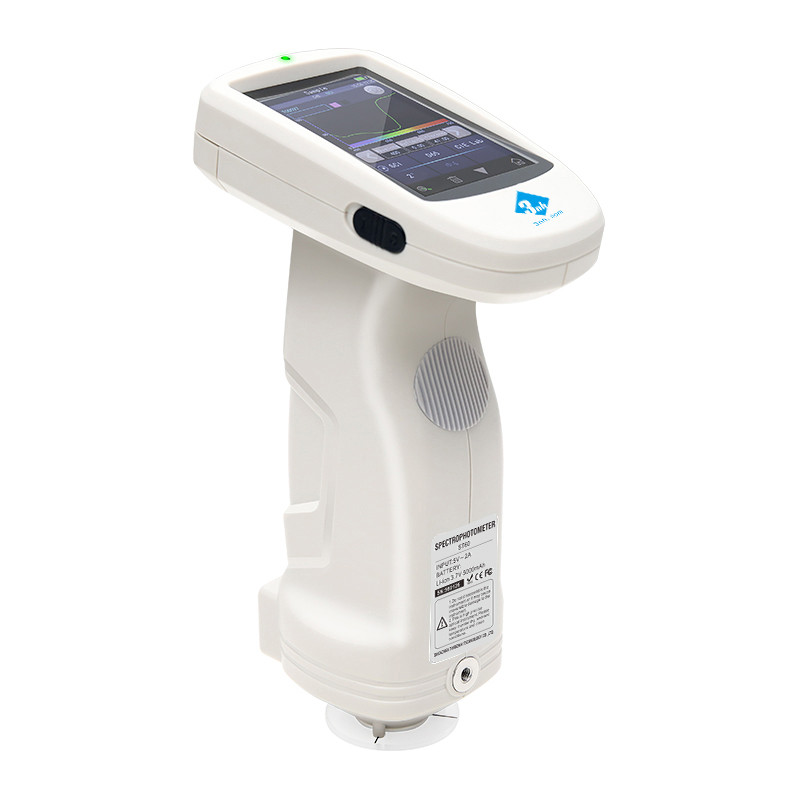

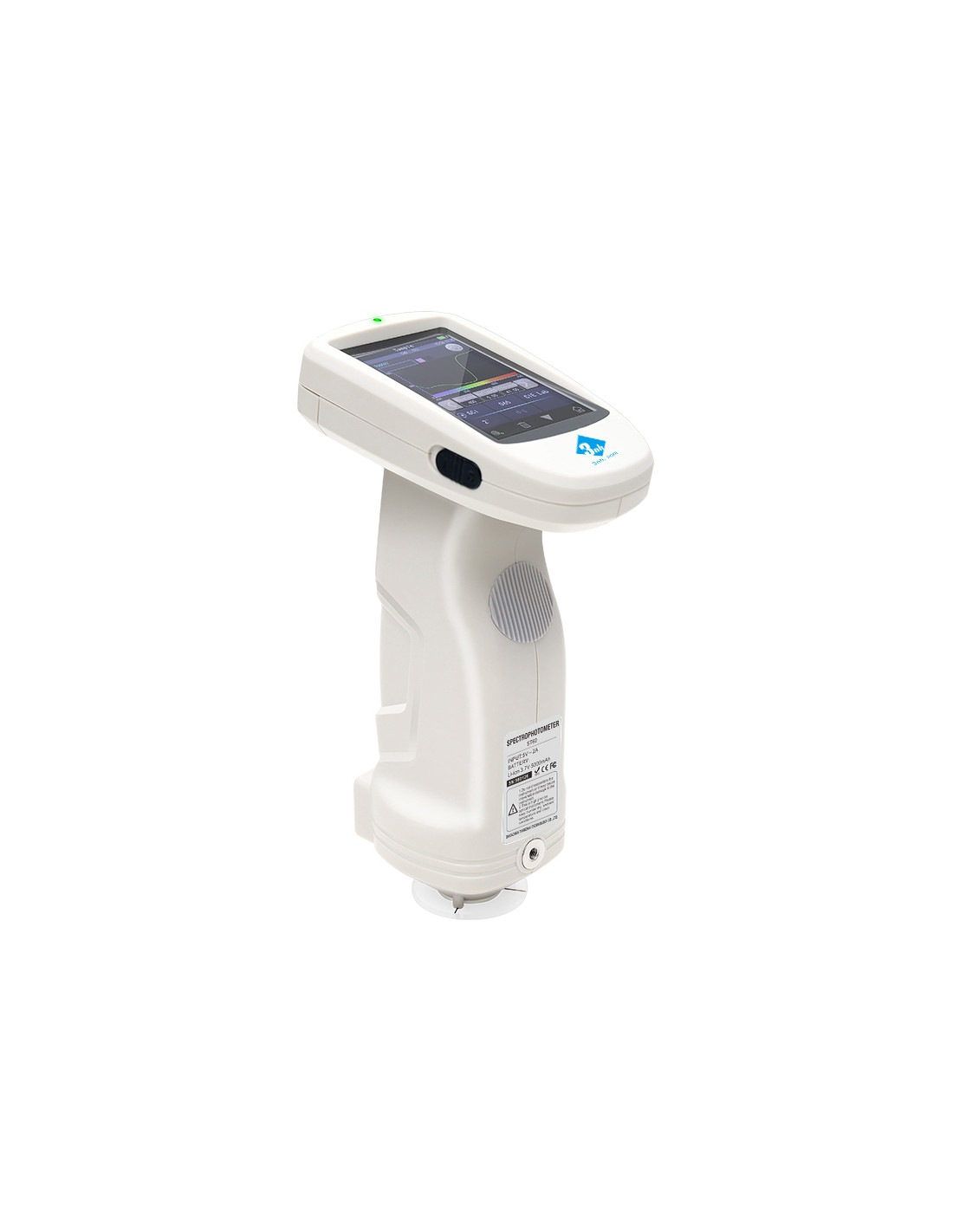

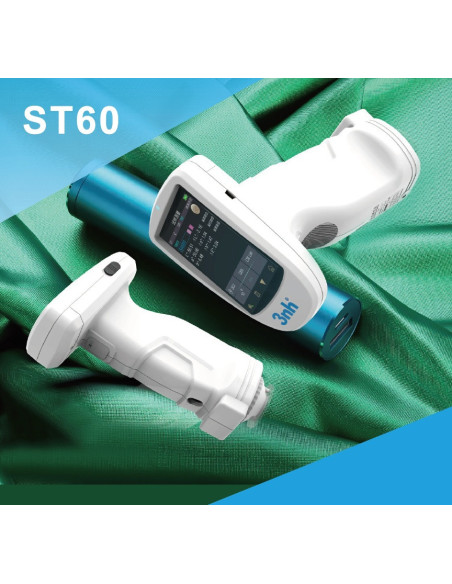

ST60 portable spectrophotometer

ST60 by 3nh is a portable spectrophotometer developed with 3nh TS series core technology. It integrates a double-row photodiode array, full-spectrum LED light source, UV source and D/8 optical architecture with SCI and SCE modes for accurate color measurement in laboratory and quality-control workflows.

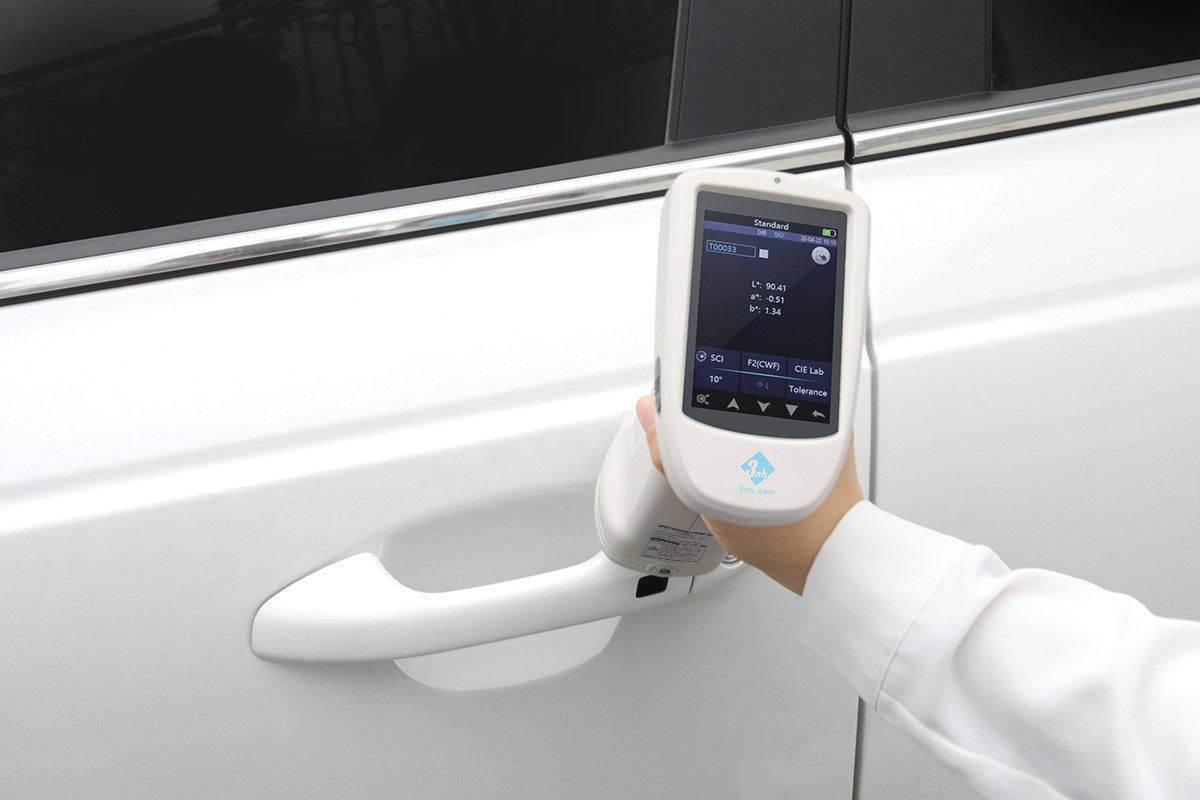

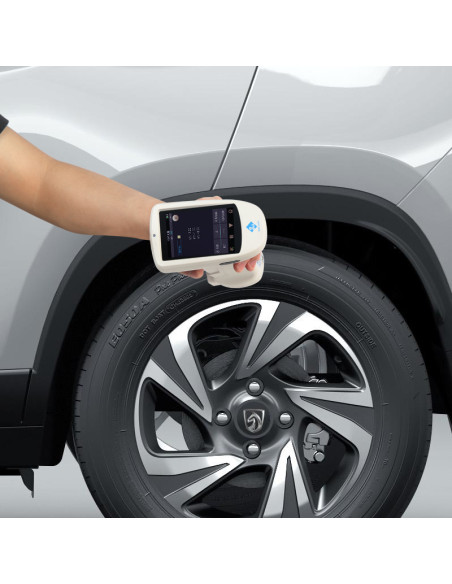

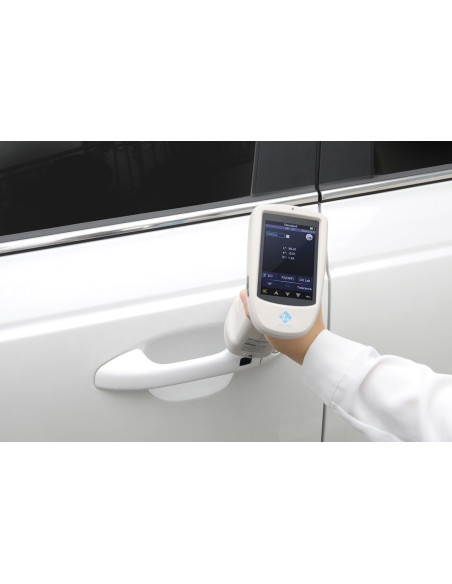

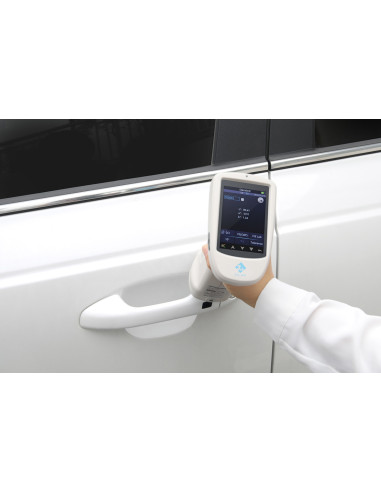

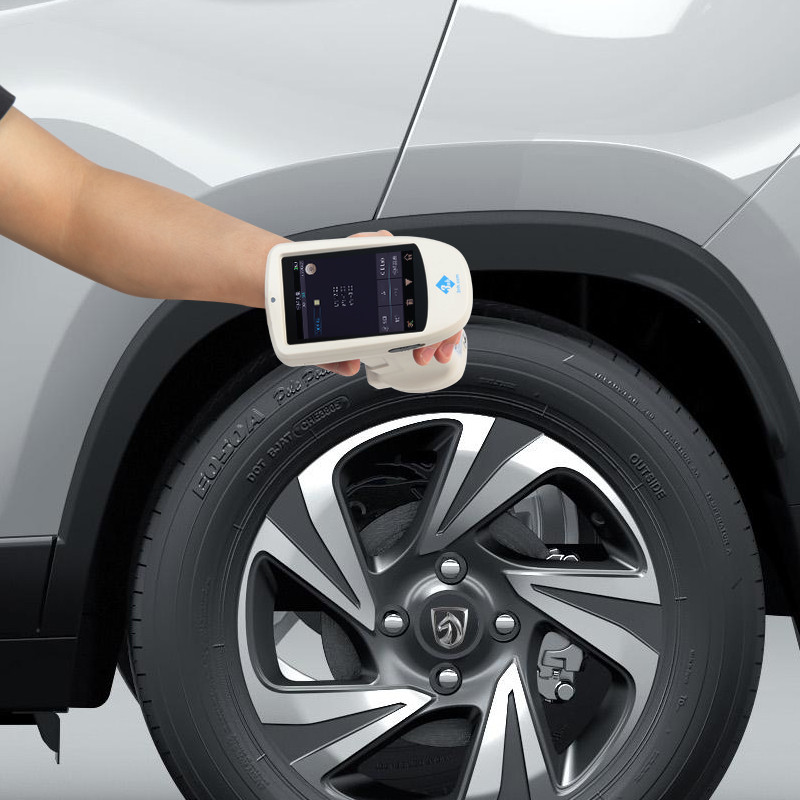

The instrument is designed for color measurement in plastics, electronics, paints, inks, textiles, garment printing and dyeing, printing, ceramics and fluorescent samples. The manufacturer specifies repeatability within Delta E*ab 0.025 and inter-instrument error within Delta E*ab 0.15, supporting precise color analysis and color data transfer.

The official page highlights four measuring apertures, built-in camera locating, non-contact automatic calibration, 10 color spaces, 41 illuminants and support for Android, iOS, Windows, Harmony OS and WeChat mini programs.

Model	ST60 spectrophotometer.
Type	Portable spectrophotometer based on 3nh TS series core technology.
Optical geometry	D/8, diffused illumination and 8-degree viewing angle; SCI and SCE modes.
UV	Included / excluded UV light source.
Standards	Conforms to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO 7724-1, ASTM E1164 and DIN 5033 Teil 7.
Sensor	Silicon photodiode array, double row 26 groups.
Integrating sphere	40 mm diameter.
Light source	Combined full-spectrum LED light source and UV source.
Spectrophotometric mode	Flat grating.
Wavelength range	360 to 700 nm.
Wavelength interval	10 nm.
Reflectance range	0 to 200 %.

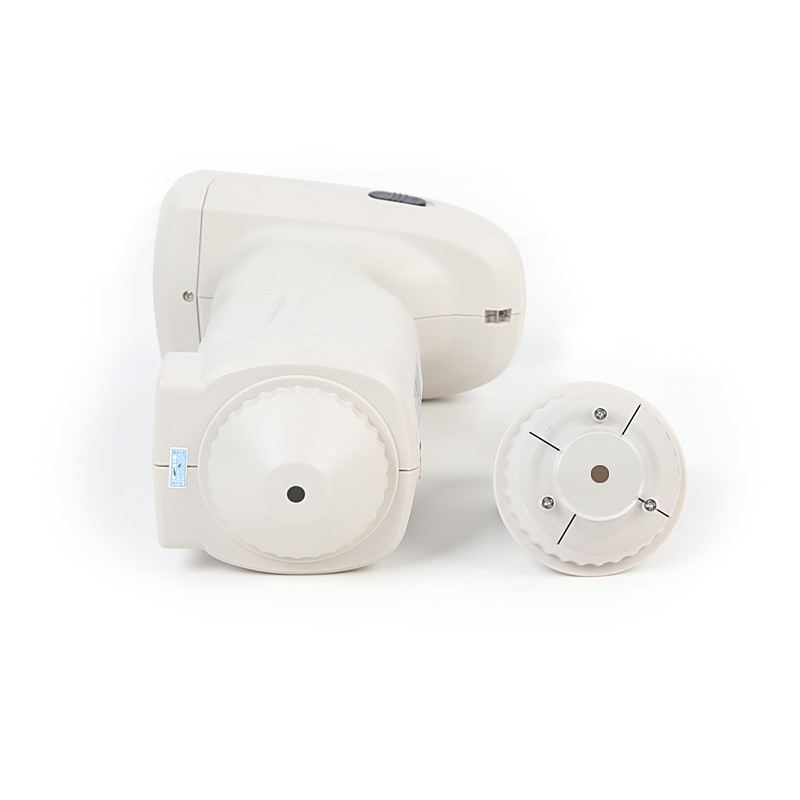

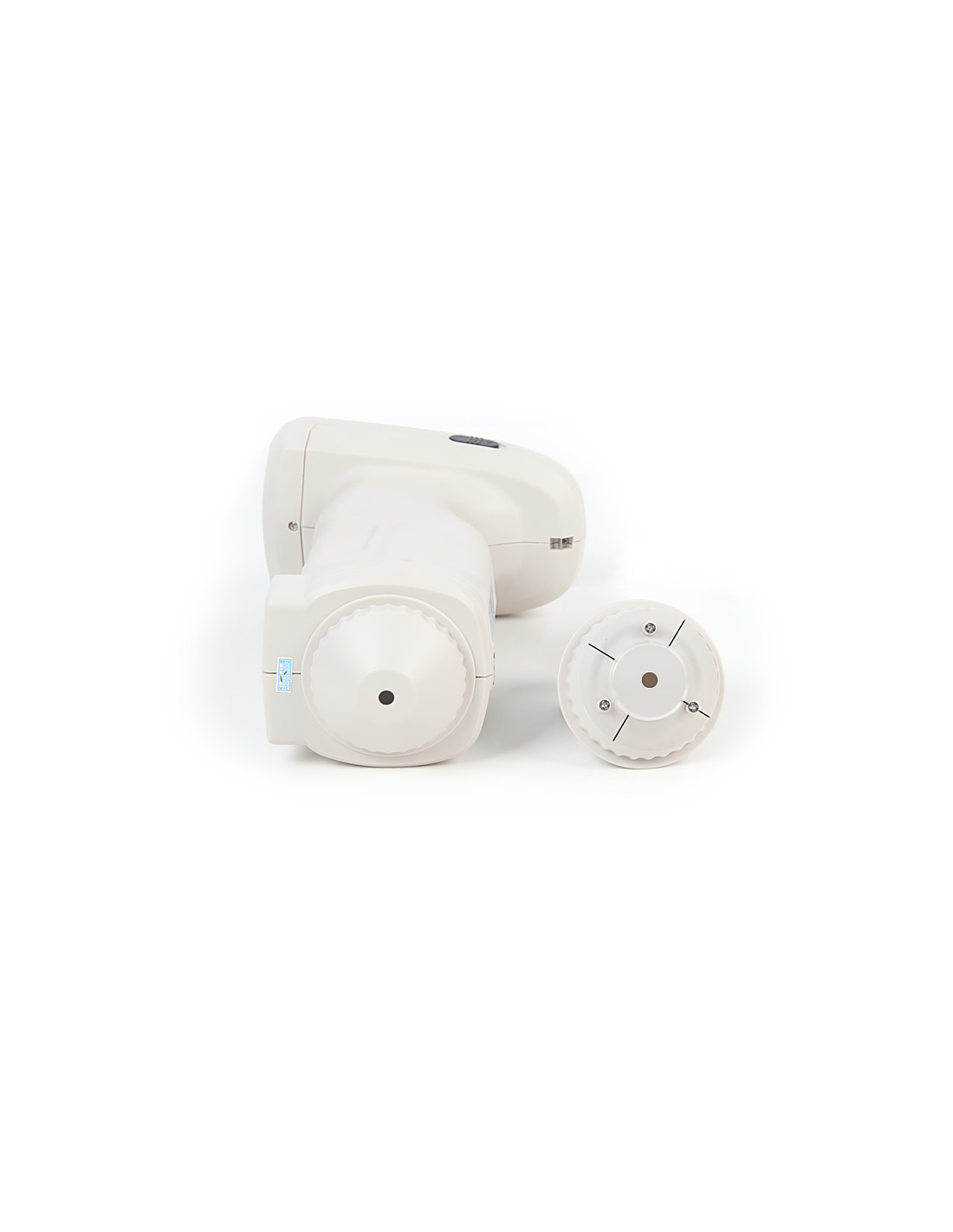

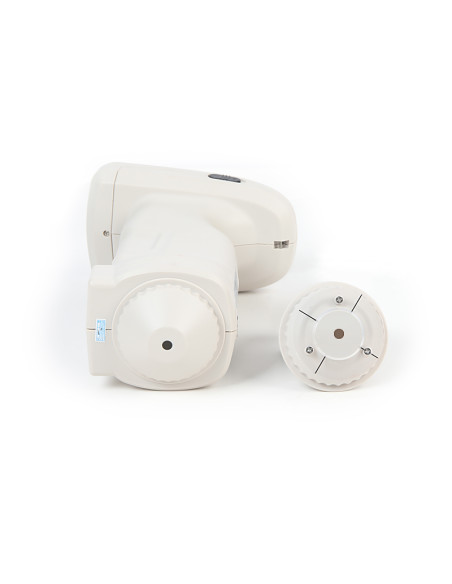

Measuring apertures	4 apertures: MAV 8/10 mm and SAV 4/5 mm.
Color spaces	CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, beta xy, DIN Lab99 and Munsell(C/2).
Color difference formulae	Delta Eab, Delta Euv, Delta E94, Delta Ecmc, Delta E*00, DIN Delta E99 and Delta E(Hunter).
Illuminants	D65, A, C, D50, D55, D75, F series, B, U35, NBF, ID50, ID65 and LED sources; up to 41 sources, some via software.
Observer angle	2 degrees / 10 degrees.
Displayed data	Spectrogram, chromaticity values, color difference, PASS/FAIL, color simulation and color offset.
Measurement time	Approx. 1.5 s.
Repeatability	MAV/SCI: within Delta E*ab 0.025 after white calibration; reflectance standard deviation within 0.08 %.
Inter-instrument error	MAV/SCI within Delta E*ab 0.15, average for 12 BCRA series II color tiles.
Display resolution	0.01.
Measurement mode	Single measurement and average measurement from 2 to 99 times.
Locating method	Built-in camera locating and stabilizer cross position.
Dimensions	129 x 76 x 217 mm.
Weight	Approx. 600 g.
Battery	Li-ion battery, 8800 measurements within 8 hours.
Light source life	10 years, more than 1.5 million measurements.
Display	3.5-inch TFT color LCD, capacitive touch screen.
Data ports	USB and Bluetooth 5.0.
Data storage	1000 standards and 30000 samples; APP/PC mass storage.
Software	Android, iOS, Windows, Harmony OS and WeChat mini programs.
Operating environment	0 to 40 C, 0 to 85 % RH without condensation, altitude below 2000 m.
Storage environment	-20 to 50 C, 0 to 85 % RH without condensation.
Standard accessories	Power adapter, USB cable, user guide, PC software, white and black calibration cavity, protective cover, wrist strap and four apertures.
Optional accessories	Micro printer and powder test box.
