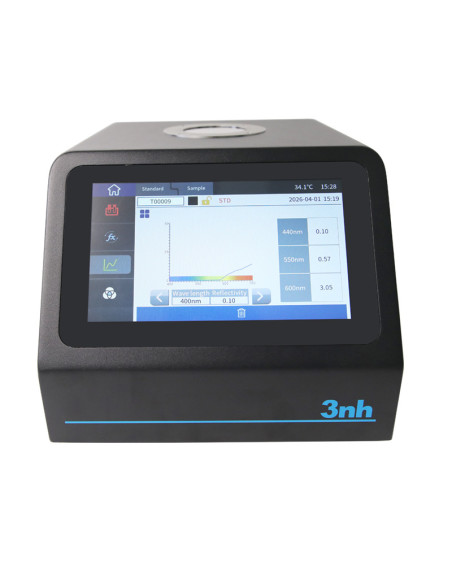

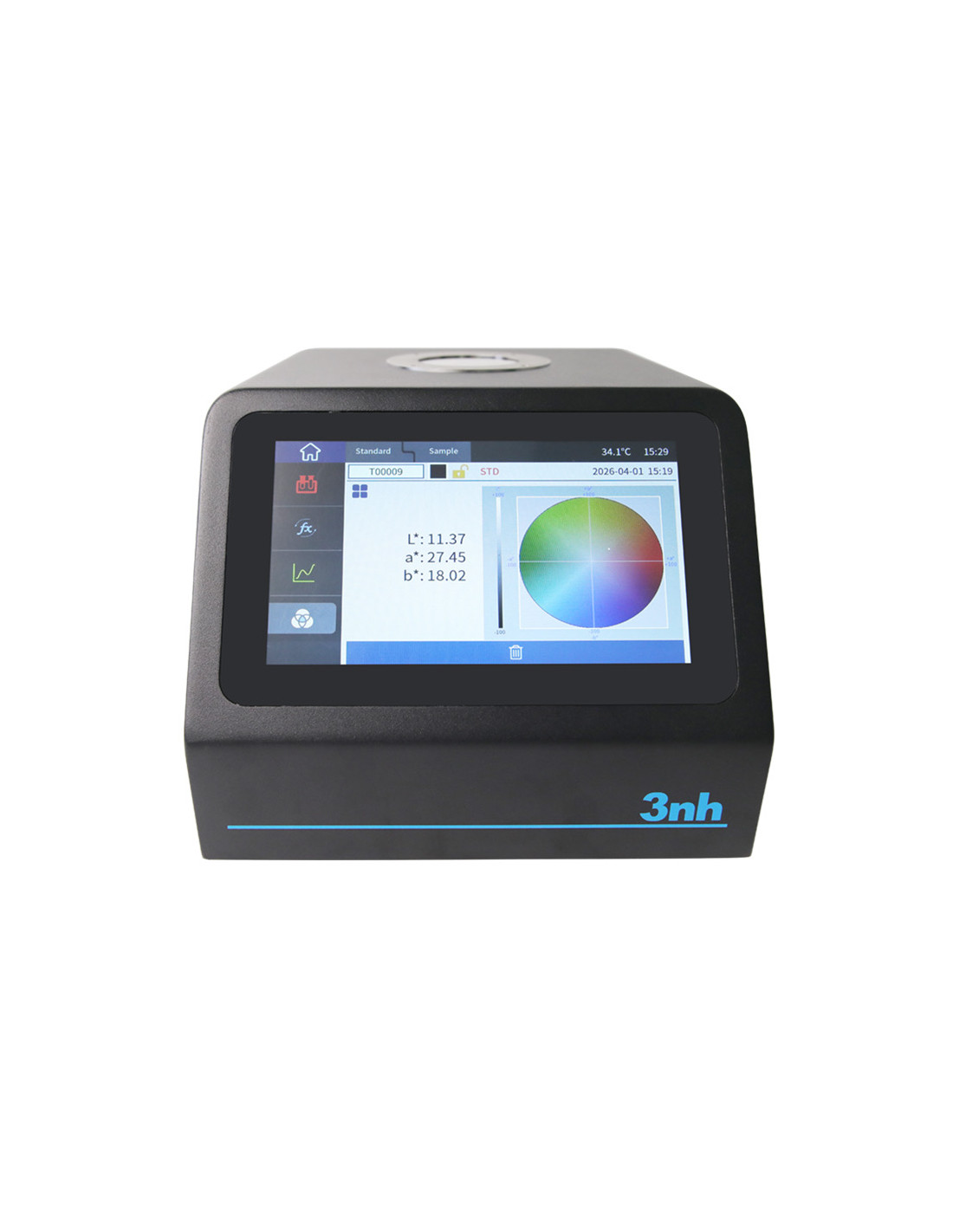

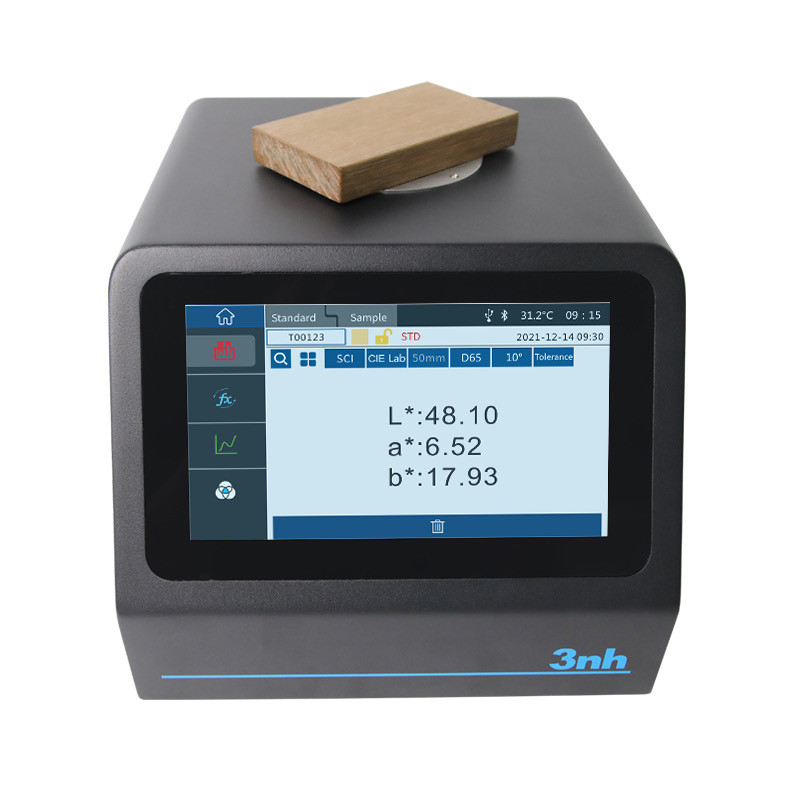

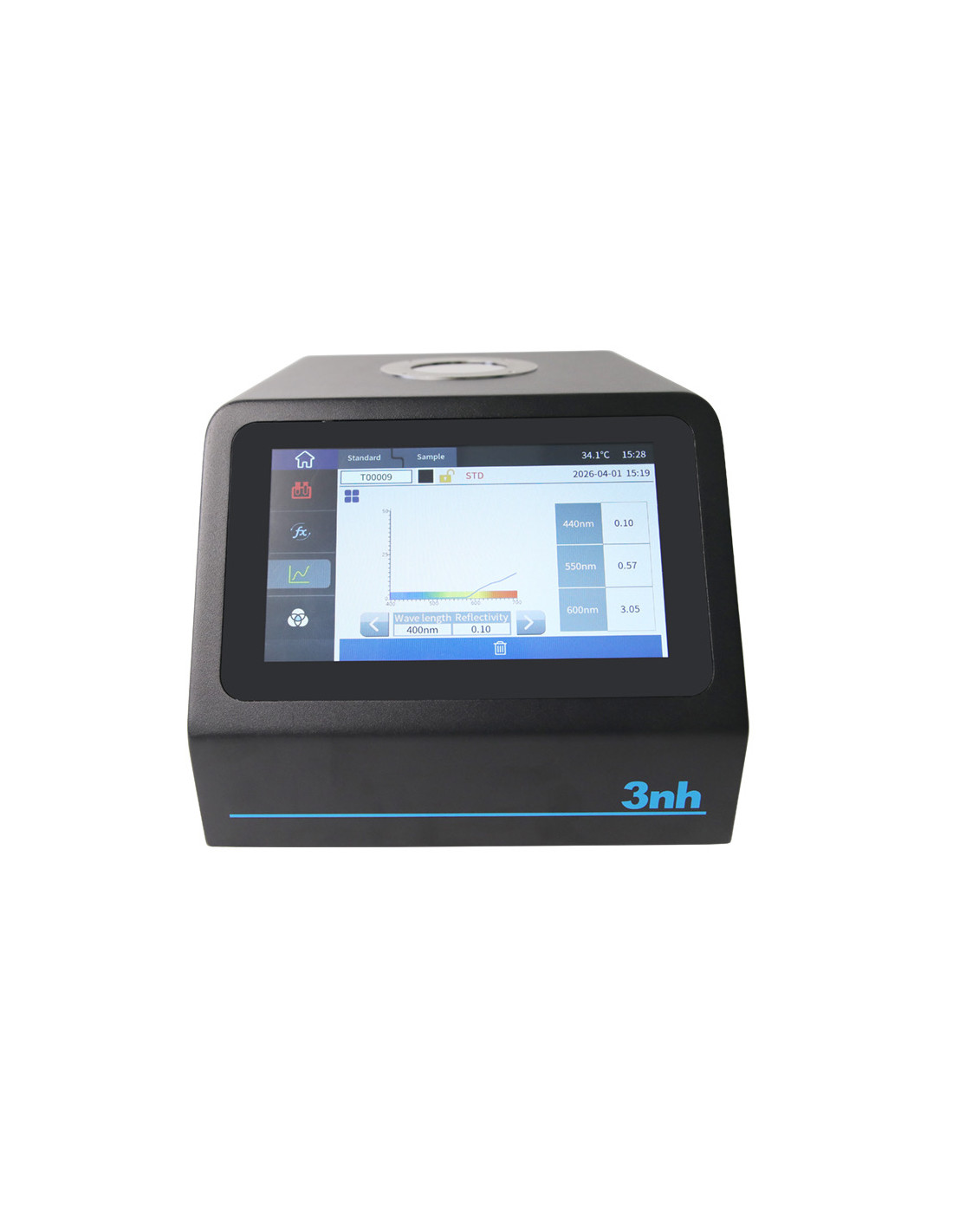

PS809 3nh large aperture spectrocolorimeter

PS809 3nh large aperture spectrocolorimeter

Name: PS809 3nh large aperture spectrocolorimeter
Brand: 3nh
SKU: PS809

Reference: PS809 - Manufacturer: 3nh

3nh PS809 large aperture spectrocolorimeter with D/8 geometry, 50 mm measurement aperture, 120 mm integrating sphere and simultaneous SCI/SCE measurement.

Ask for Quote

PS809 large aperture spectrocolorimeter

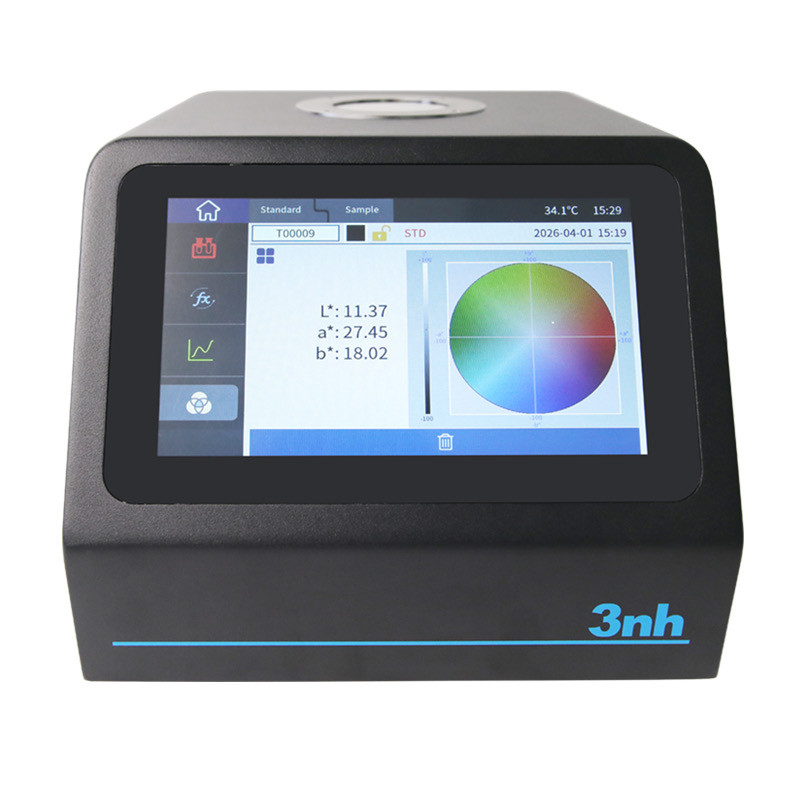

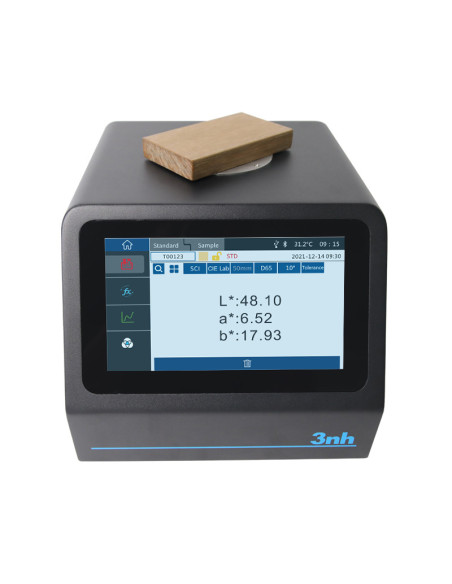

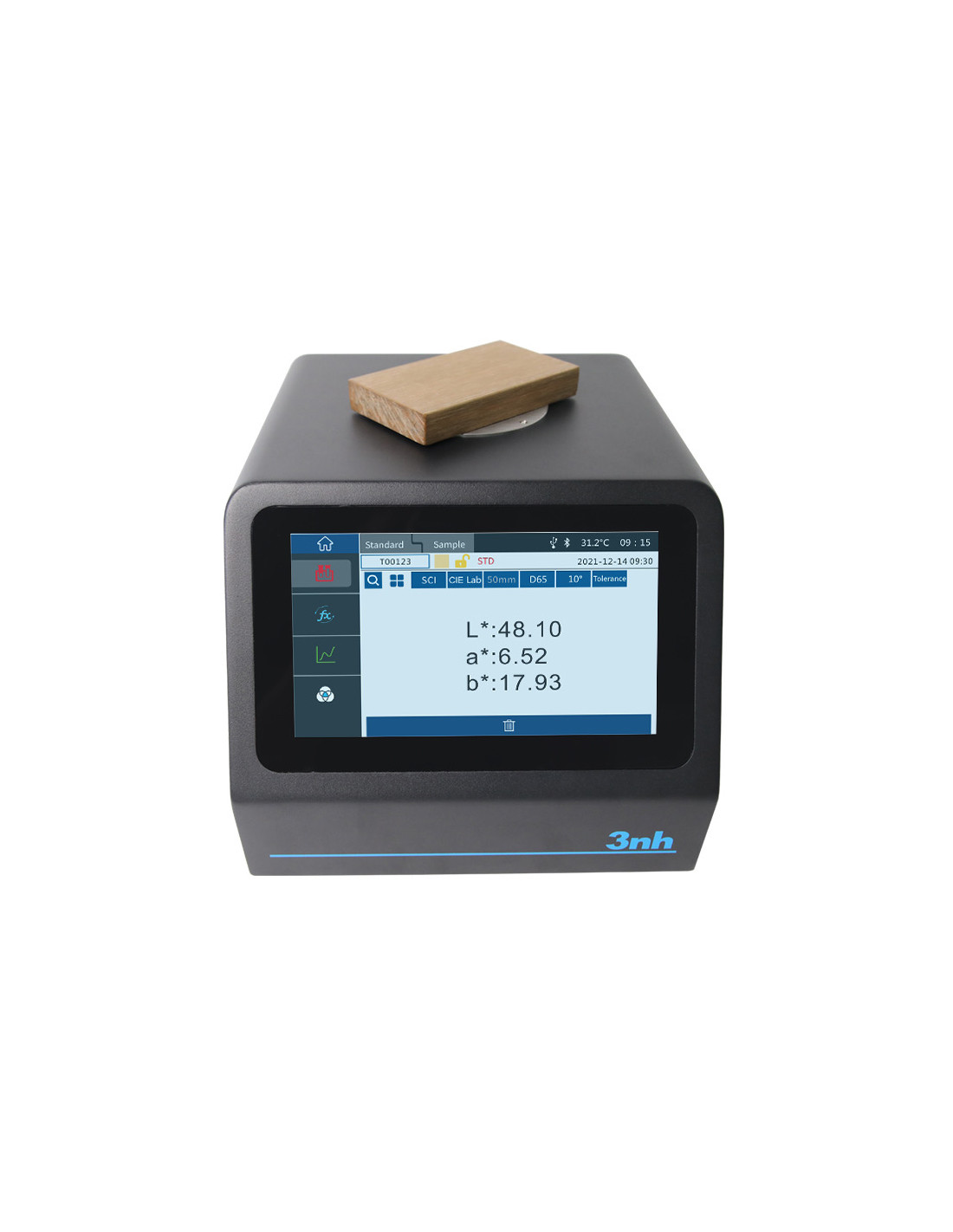

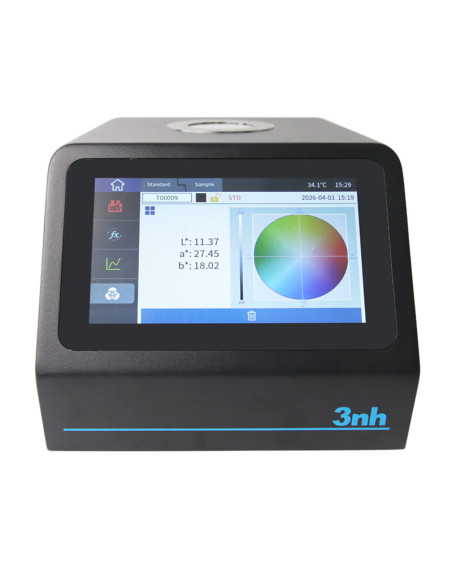

PS809 by 3nh is a large aperture spectrocolorimeter/spectrophotometer designed for complex samples and large-area surface color inspection. It uses D/8 optical geometry with diffuse illumination and 8-degree viewing, conforming to CIE, ISO, ASTM and the national standards listed by the manufacturer.

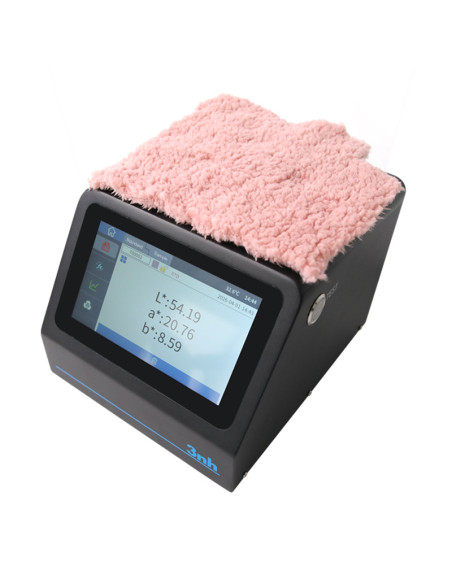

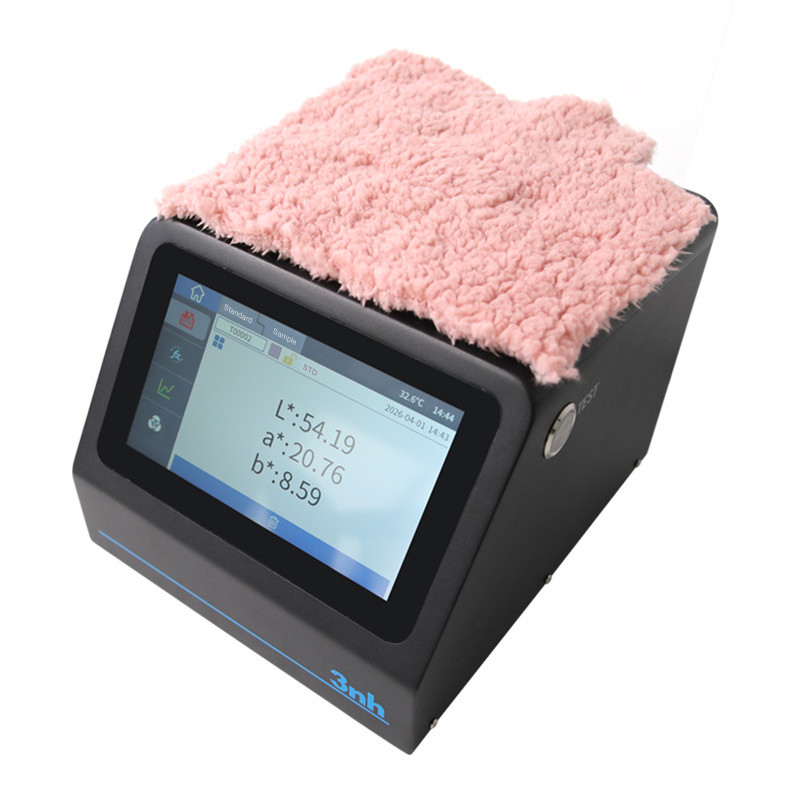

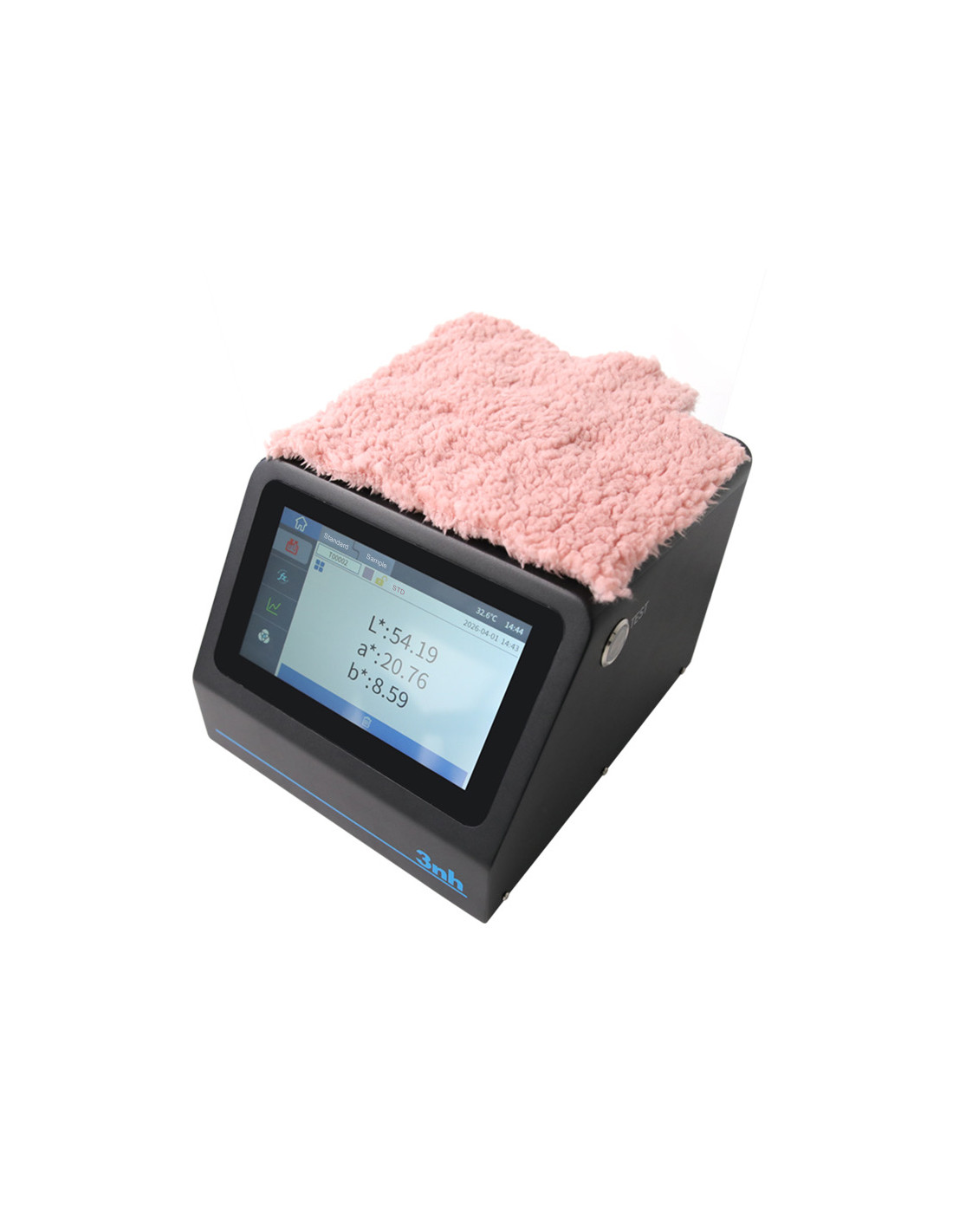

The 50 mm measurement aperture and 120 mm integrating sphere provide uniform large-area sampling, suitable for textured surfaces, granules, fabrics, food, powders and other non-uniform samples. The instrument incorporates a nano-integrated spectral device and silicon photodiode array with simultaneous SCI/SCE measurement.

It is aimed at laboratory analysis and industrial quality control in plastics, electronics, paints, inks, textiles, printing, ceramics and food, with a 7-inch touchscreen, internal storage and quality-management software support.

Model	PS809.
Product name	Large aperture spectrophotometer / spectrocolorimeter.
Optical geometry	D/8, diffuse illumination and 8-degree viewing; conforms to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO 7724-1, ASTM E1164 and DIN 5033 Teil 7.
Measurement aperture	Phi 50 mm large aperture with 120 mm integrating sphere.
Specular component	Simultaneous SCI/SCE measurement.
Spectrophotometric method	Nano-integrated spectral device.
Sensor	Dual-array silicon photodiode array, 20 groups.
Light source	Combined LED light source.
Wavelength range	400 to 700 nm.
Wavelength interval	10 nm; half-bandwidth 10 nm.
Reflectance range	0 to 200 %.
Observation light sources	D65, A, C, D50, D55, D75, F1-F12, CWF, DLF, TL83, TL84, TPL5, U30, B, U35, NBF, ID50, ID65 and LED series sources.
Observer angle	2 degrees / 10 degrees.
Color spaces	CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, beta xy, DIN Lab99 and Munsell(C/2).
Color difference formulae	Delta Eab, Delta Euv, Delta E94, Delta Ecmc, Delta E*00, DIN Delta E99 and Delta E(Hunter).
Other indices	Spectral reflectance, whiteness, yellowness, tint, metamerism index, staining fastness, color change fastness, strength, hiding power and CMYK color density.
Repeatability	Colorimetric values: Delta E*ab <= 0.03; spectral reflectance standard deviation <= 0.1 % after warm-up and calibration.
Inter-instrument agreement	Delta E*ab <= 0.35, average on 12 BCRA Series II color tiles.

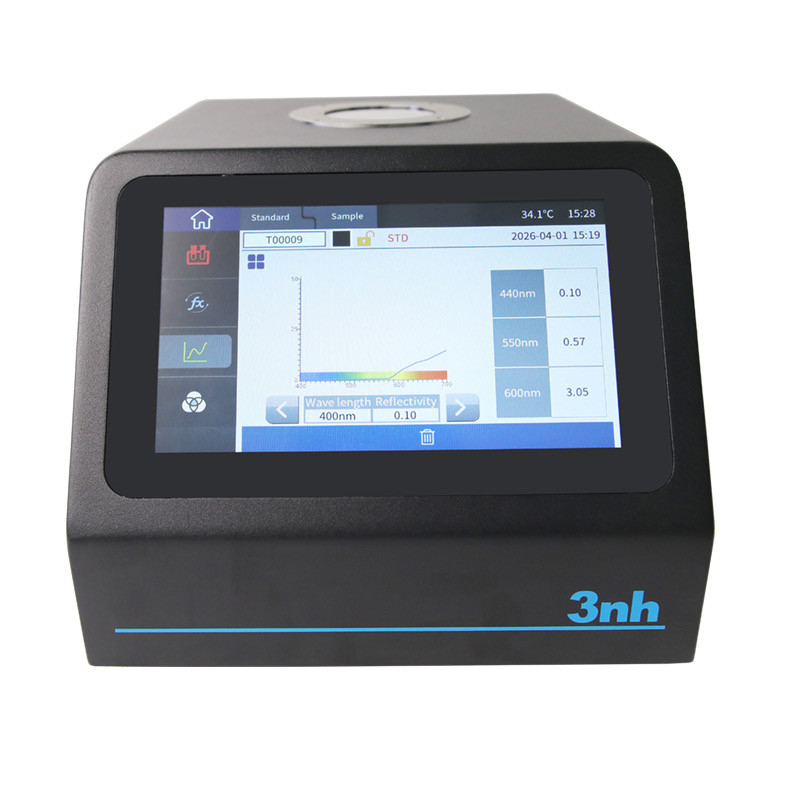

Display	Spectral graph/data, sample colorimetric values, color difference values/graph, pass/fail results and color bias.
Measurement time	Approx. 1 s.
Measurement mode	Single measurement and average measurement from 2 to 99 times.
Dimensions	210 x 245 x 188 mm.
Weight	3.1 kg.
Power supply	24 V DC, 3 A adapter.
Light source life	10 years or more than 2 million measurements.
Screen	7-inch TFT true-color capacitive touchscreen.
Interface	USB and Bluetooth.
Storage	1000 standard samples and 30000 test samples.
Languages	Simplified Chinese, English, Traditional Chinese, Russian.
Operating environment	0 to 40 C, 0 to 85 % RH without condensation, altitude below 2000 m.
Storage environment	-20 to 50 C, 0 to 85 % RH without condensation.
Accessories	Power adapter, data cable, user manual, quality management software, white plate and 2 Petri dishes.
Optional accessory	Micro printer.
