Low Cost Spectrometers Raman-HR-TEC-1064

StellarNet offers you a variety of high performance spectrometers configured for 1064nm Raman spectroscopy.
1064nm laser excitation is a common wavelength chosen for Raman spectroscopy.  The main benefit of 1064nm Raman spectroscopy is that it has the lowest fluorescence of any excitation wavelength.  Therefore it has the lowest Raman signal strength (i.e. about 15x smaller) and requires a longer collection time to see your signal.  This can damage certain sample types.
Therefore, 1064nm Raman is ideal for certain colored polymers, dyes, oils, or other materials that may have fluorescing components but won’t be damaged with long radiation exposures.

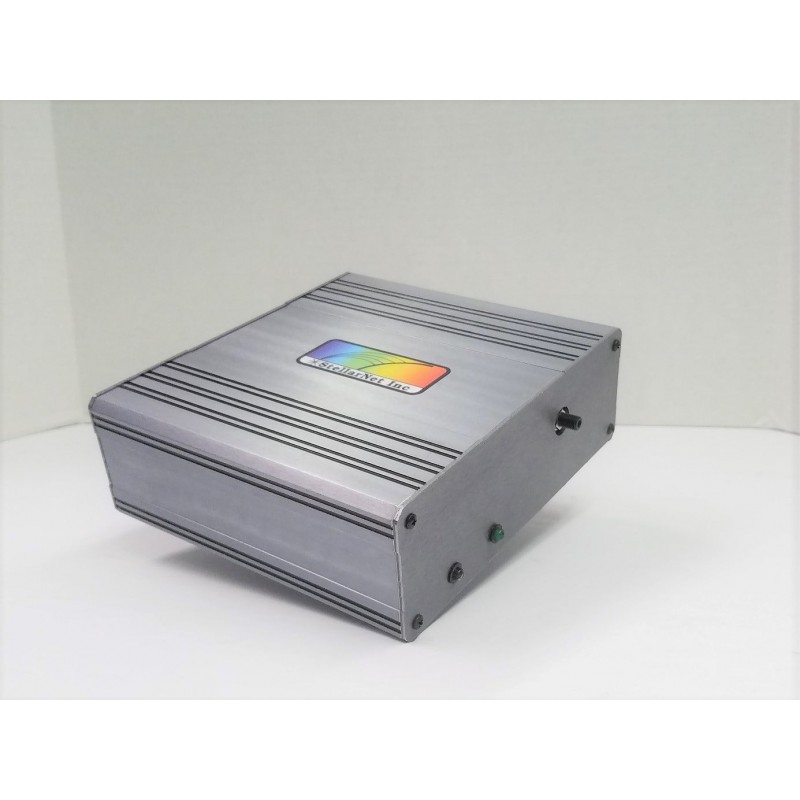

Raman-HR-TEC-1064 Spectrometers are our most popular 1064 Raman spectrometers and include an enhanced “low noise” InGaAs detector array with 1024 pixels tuned for 1064nm Raman with advanced detector lens assembly for ultra sensitivity at long exposure times.  The spectrometer also includes a 2-stage Thermoelectric cooler for best performance.

The Raman-SR-TEC-1064 Spectrometer is a slightly more affordable option with 512 pixels providing approximately half the resolution performance over the same range.

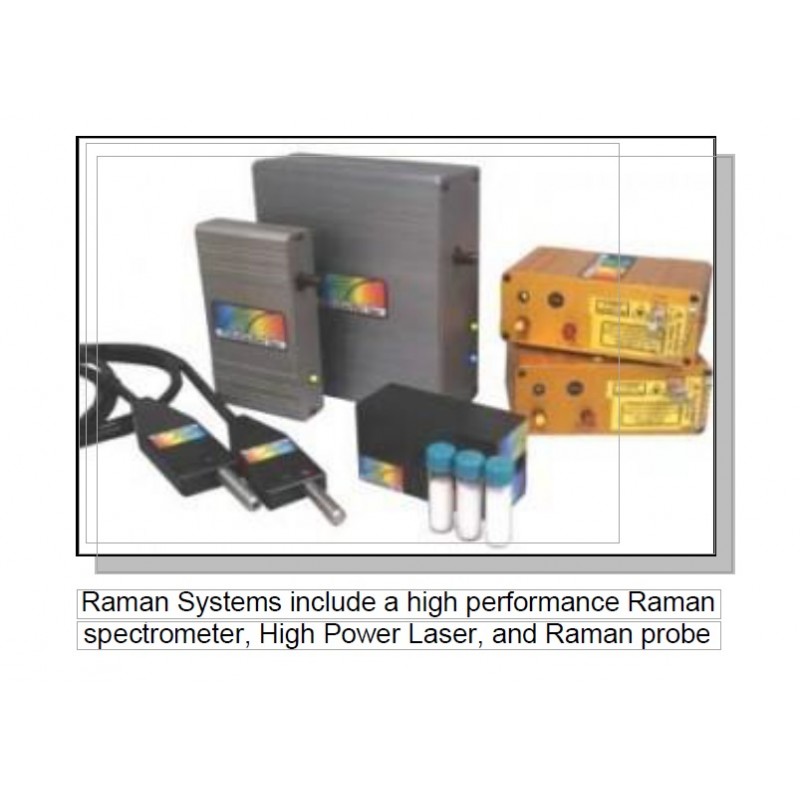

StellarCASE-Raman-1064 is a portable and rugged Raman System used for “Open & Measure” Application.  This complete system includes a high performance Raman spectrometer (Raman-HR-TEC-1064), a High power Laser, and vial holder.
