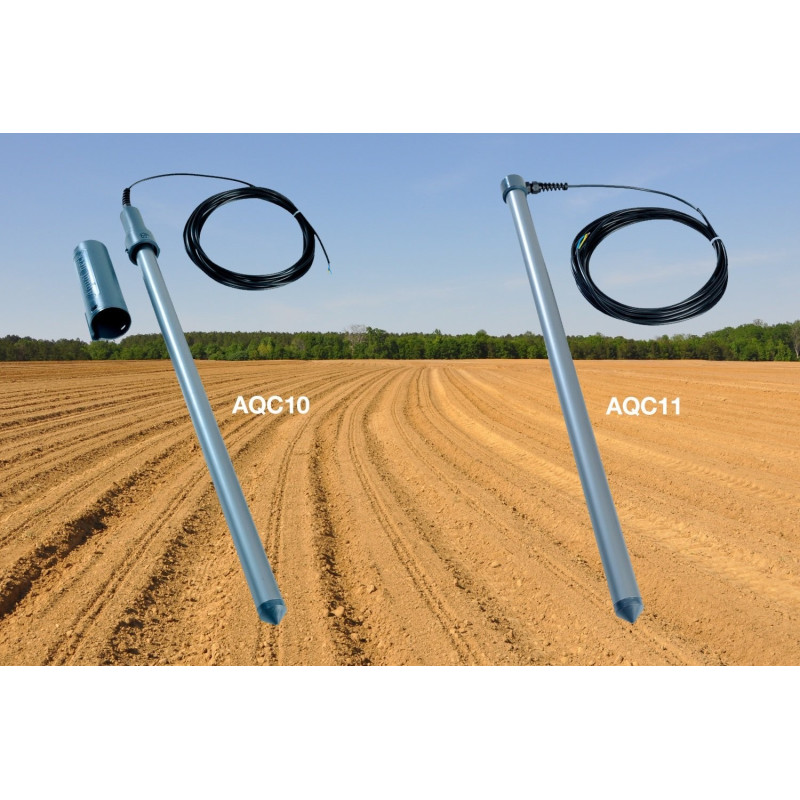

SDI-12 Portable Soil Humidity and Temperature Probe AquaCheck AQC11

AquaCheck

New

SDI-12 Sub-Surface Probe with cable.

The probes are available in sizes from 200 to 1600 mm and with from 2 to 15 sensors along the probe body.

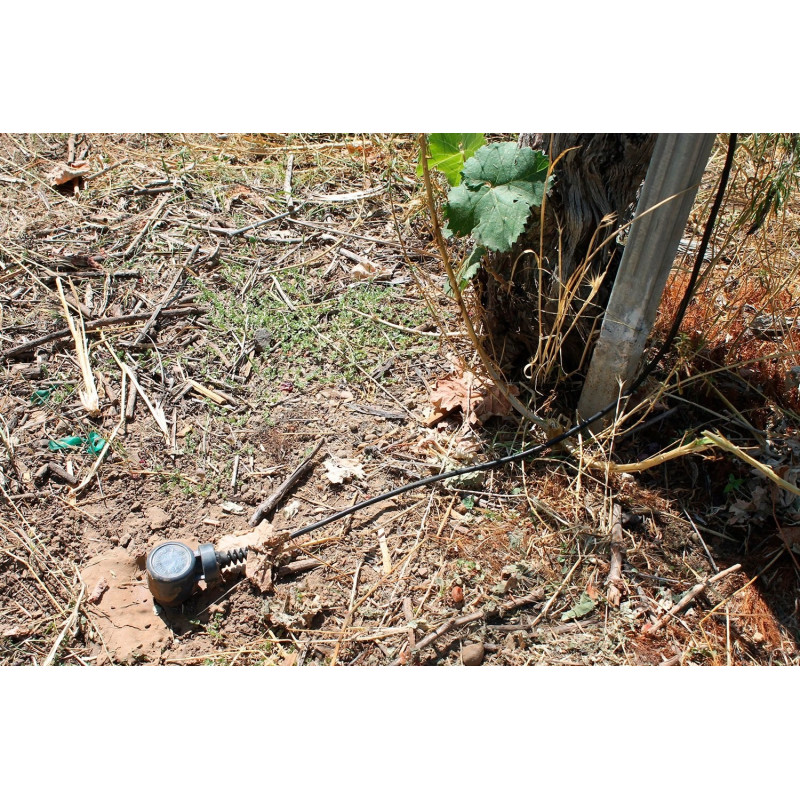

The AQC11 model is designed for permanent installation on the ground.

425,00 €

tax excl.

Add to wishlist

The Sensor measures: Temp. & Soil Humidity
Output Signal: RS-485 & SDI-12
Cable Length: 6 m

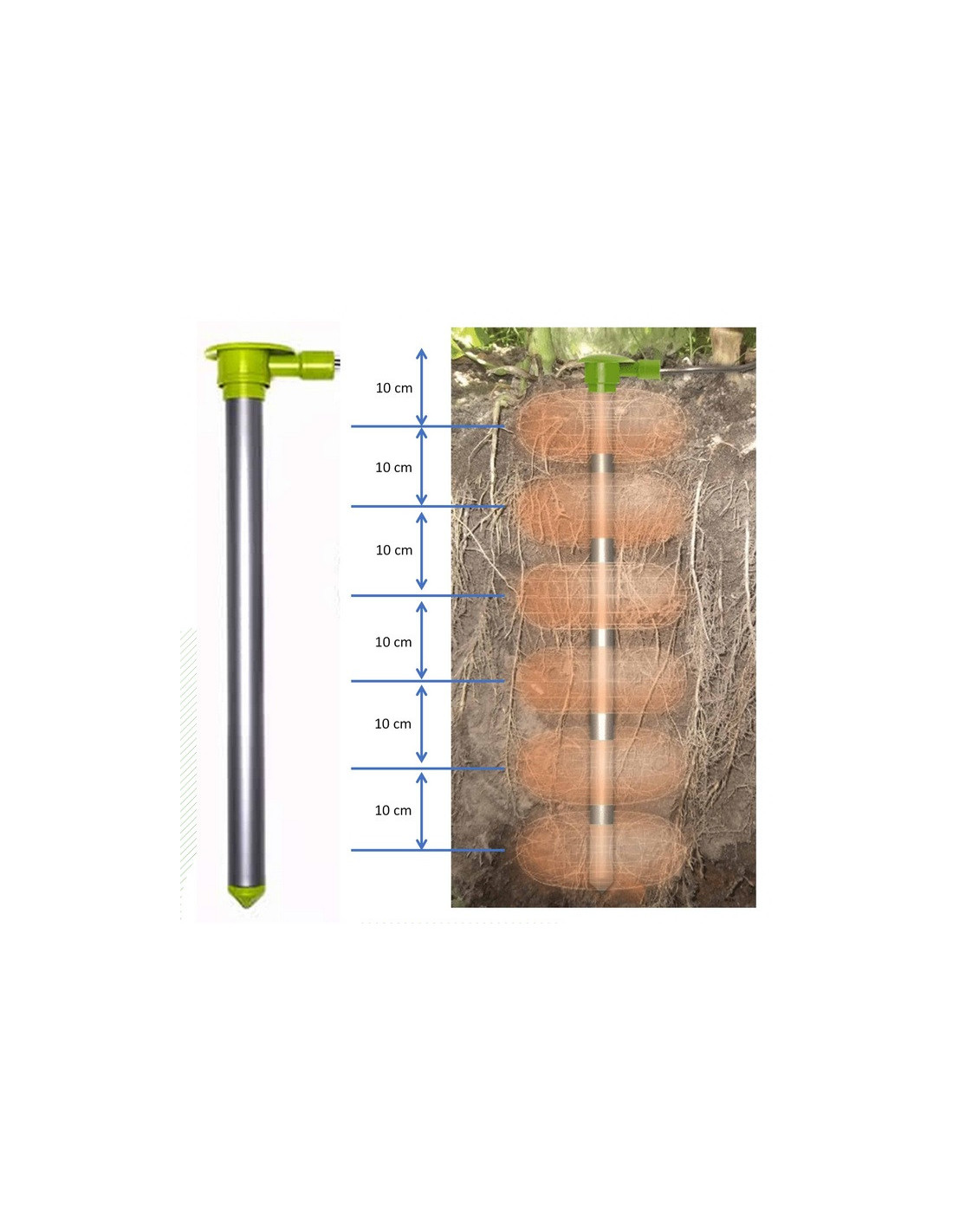

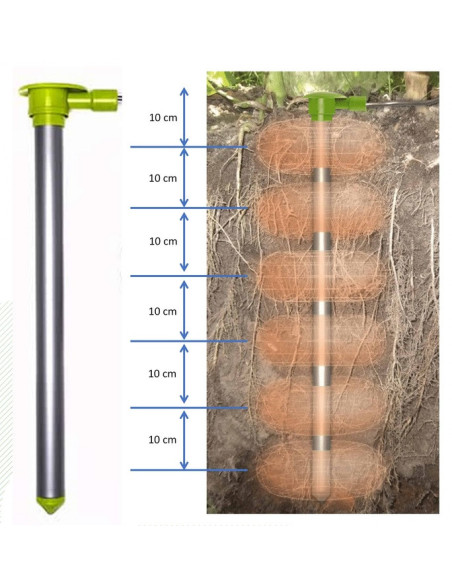

Measurements at Different Depths

The soil temperature and humidity probe is designed for permanent installations and has 2 to 15 sensors distributed along the probe body. It includes a 6 meter long cable.

The probes are connected via RS-485 or SDI-12 to any conventional datalogger for storage and reading of humidity and temperature data. They are also directly compatible with the Davis EnviroMonitor system.

AquaCheck: Las sondas se conectan través de RS-485 o SDI-12 a cualquier datalogger convencional para el almacenamiento y lectura de los datos de humedad y temperatura. Asimismo, son directamente compatibles con el sistema EnviroMonitor de Davis

Sensor specifications

Humidity of floor

     Range: 1,000 to 32,000

Soil temperature

     Range: 0ºC to 50ºC
     Resolution: 0.2ºC

Electric specifications

     Supply voltage: 4 to 12 VDC
     Consumption: 20 mA (max.)
     Output signal: RS-485 or SDI-12

Mechanical specifications

     Operating temperature: 0ºC to 50ºC
     Material: high strength plastic
     Dimensions: ∅ 32 x 200 to 1,600 mm
