SDI-12 Portable Soil Humidity and Temperature Probe AquaCheck AQC10

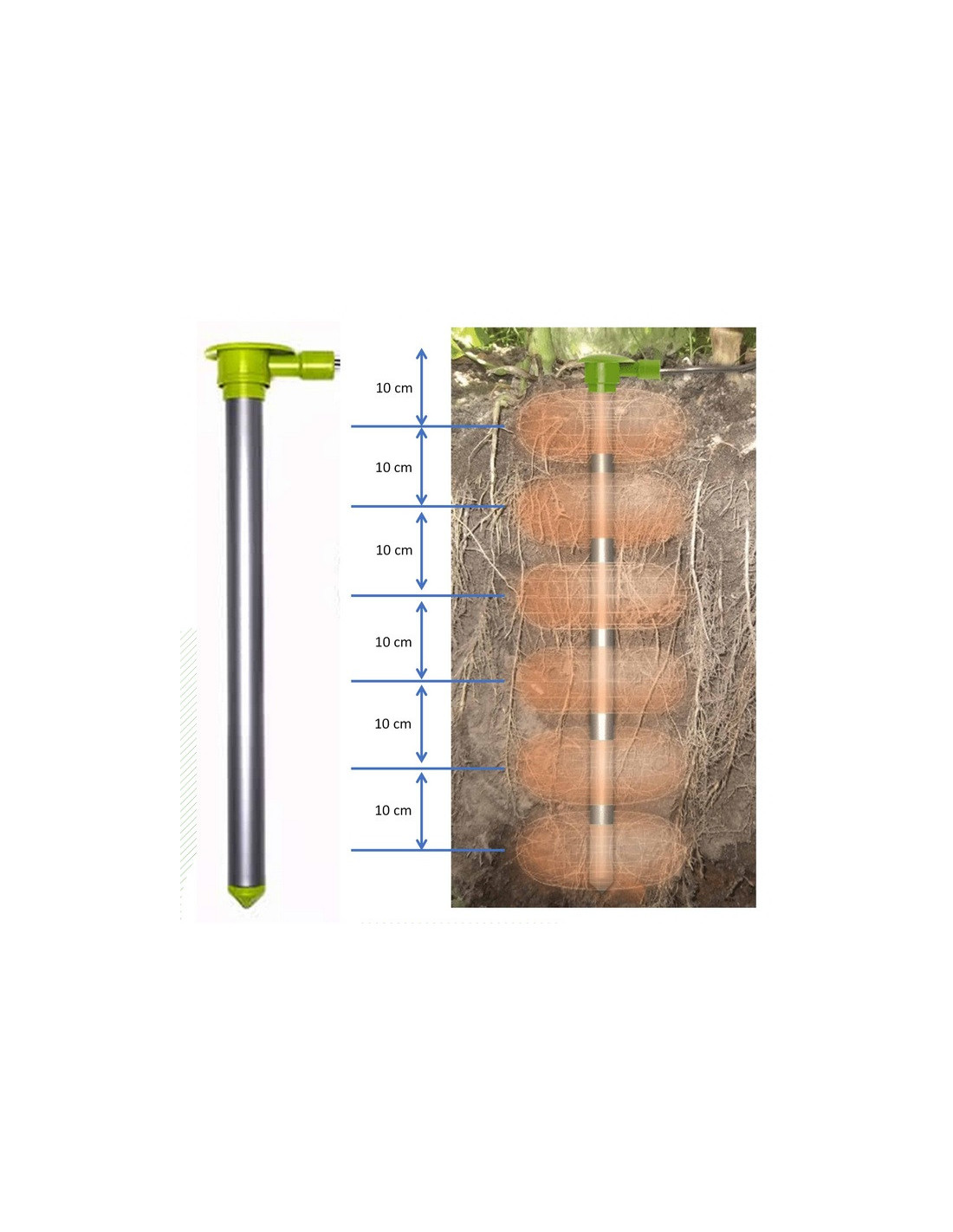

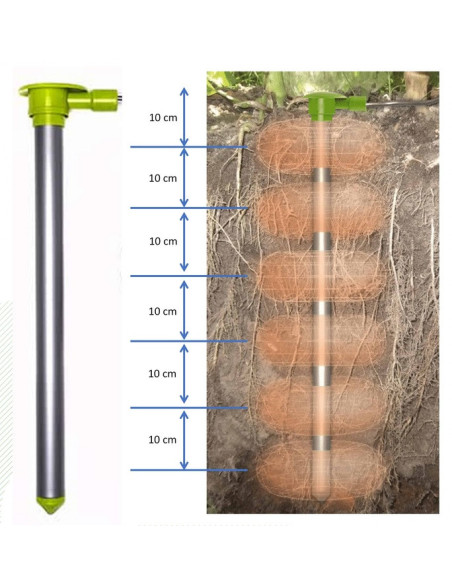

Measurements at Different Depths

The soil temperature and humidity probe is designed for permanent installations and has 2 to 15 sensors distributed along the probe body. It includes a 6 meter long cable.

The probes are connected via RS-485 or SDI-12 to any conventional datalogger for storage and reading of humidity and temperature data. They are also directly compatible with the Davis EnviroMonitor system.

AquaCheck probe
The AquaCheck soil moisture probe offers a capacitance-based soil moisture measurement that offers up to six depths or sensors per probe. It requires an external recorder or a remote transmission unit and an external power supply.

General specifications:

A continuous recording probe based on capacitance.
Probe lengths from 400 mm to 1200 mm.
Up to 6 soil moisture sensors and 6 soil temperature sensors, depending on the length of the probe.
Shaft Diameter: 32mm
Communication interface options: analog, SDI-12 (serial data interface, 1200bd), MODBUS, 2400bd
Compliance: CE certified.

Sensor Specifications

Humidity of floor

     Range: 1,000 to 32,000

Soil temperature

     Range: 0ºC to 50ºC
     Resolution: 0.2ºC

Electric specifications

     Supply voltage: 4 to 12 VDC
     Consumption: 20 mA (max.)
     Output signal: RS-485 or SDI-12

Mechanical specifications

     Operating temperature: 0ºC to 50ºC
     Material: high strength plastic
     Dimensions: ∅ 32 x 200 to 1,600 mm
