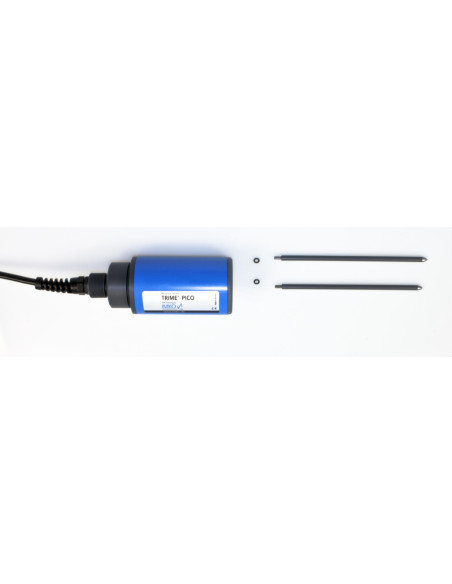

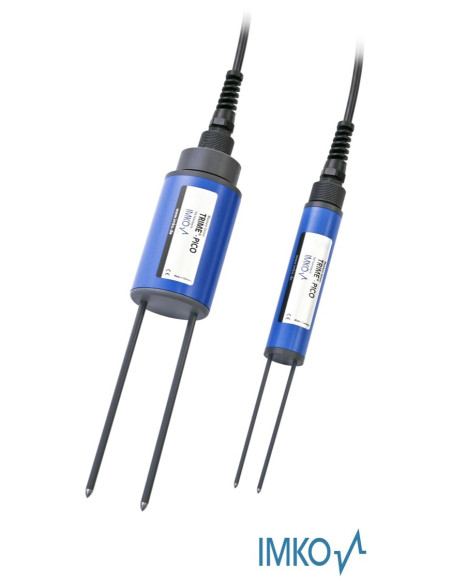

PICO64 Smart Humidity Sensor with TRIME Technology

The intelligent rod sensor PICO64 is ideal for monitoring systems that determine soil moisture, temperature, and electrical conductivity in soils and other porous materials. The integration of a probe and TDR evaluation electronics is unique so far.

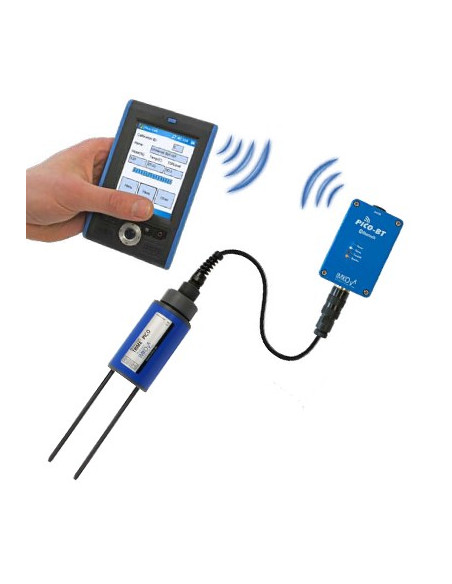

Our TRIME TDR probes measure soil conductivity, moisture, and temperature on a volumetric basis. It determines the salinity in mg salt per liter of water for different soils at varying levels of moisture without complicated laboratory measurements. Because of the mechanical robustness, TRIME-PICO64 is optimal for mobile usage with our Bluetooth module PICO-BT or the robust hand-held meter HD2.

Applications and benefits

• Moisture measurement in soils and many more materials.
• A solid solution for heterogeneous and stony soils.
• Measurement of water content, temperature, electrical conductivity, and salinity.
• A maximum of accuracy and network capability are reached.
• Sensor networks of up to 3 km length are possible.
• Precise measuring results are guaranteed even in heterogeneous and skeletal soils.
• TRIME-PICO64 is unaffected by high temperatures or conductivities.
• Includes an integrated temperature sensor.
• SDI-12 interface.
• Measuring range of 0..100 vol. %.
• Operational up to more than 12dS/m bulk soil conductivity.
• Measuring volume > 1250ml.
• Robust (IP68) and suitable for long-term installations.

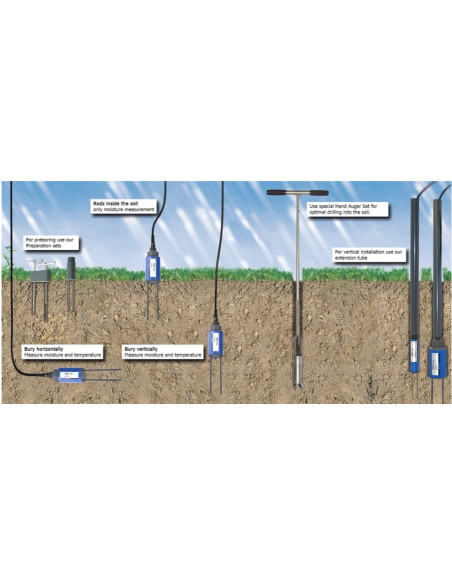

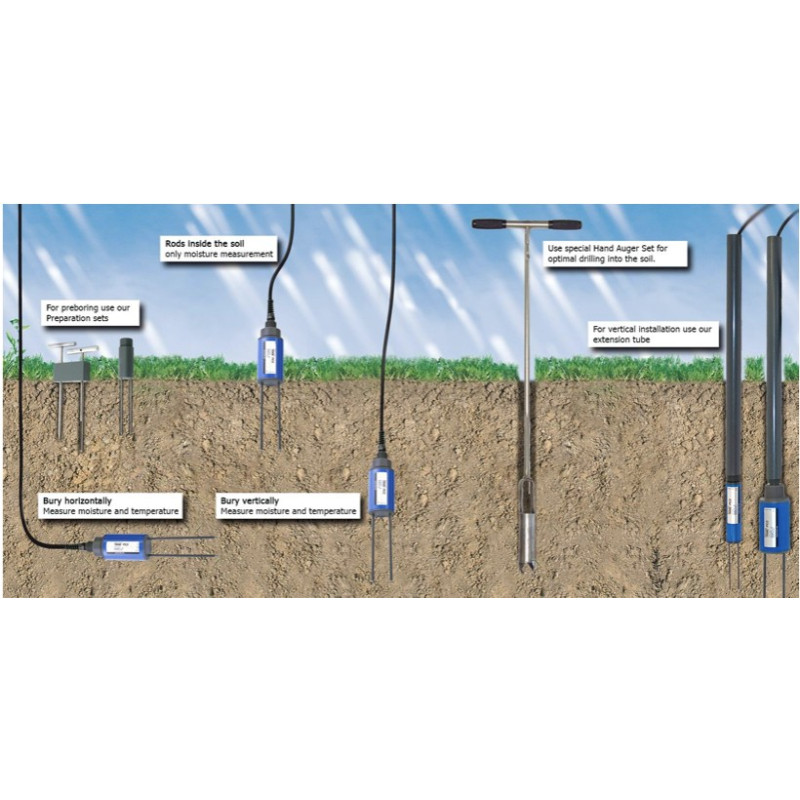

• Installation could be vertical or horizontal.
