PICO32 Smart Humidity Sensor with TRIME Technology

With the help of the intelligent TRIME rod sensor PICO32 you measure with a maximum of accuracy. Unique is the integration of probe and TDR evaluation electronics in one sensor.

Applications and Benefits of TRIME-PICO 32

• Moisture measurement in soil, sand, concrete and other porous materials
• The probe body with a diameter of 32 mm and the limited measuring field allow an installation in smaller lysimeters and other apparatus with limited space
• High tech sensor with integrated TDR electronics and SDI-12 interface
• Measuring range from 0..100 vol.%
• Fully operational up to more than 12dS/m bulk soil conductivity
• Measuring volume > 250ml
• Robust (IP68) and for long-term installations suited
• Measures water content, temperature, electrical conductivity and salinity
• Sensor networks of up to 3 km
• Precise measurement even under high temperatures and conductivities

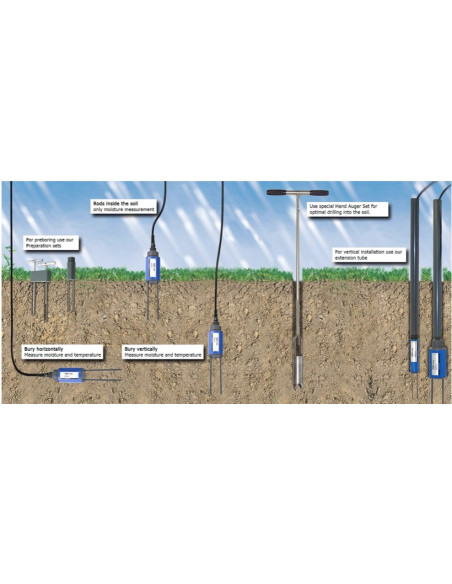

• Installation vertically or horizontally

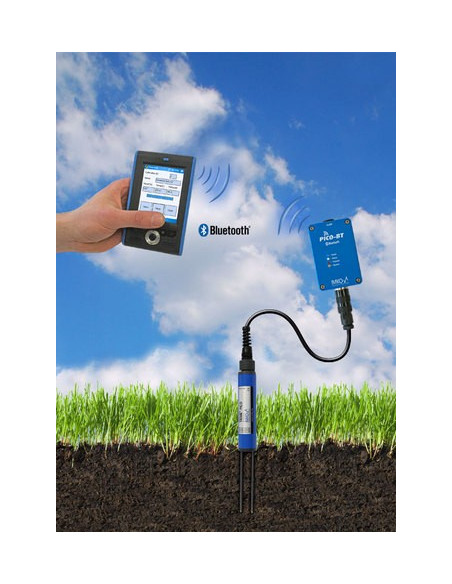

• Perfect for the mobile usage with PICO-BT or the hand-held meter HD2
