DS1923-F5 iButton Relative Humidity & Temp Hygrochron (-20ºC to +85ºC 0-100%RH)

Reference

Manufacturer: iButton

Condition: New

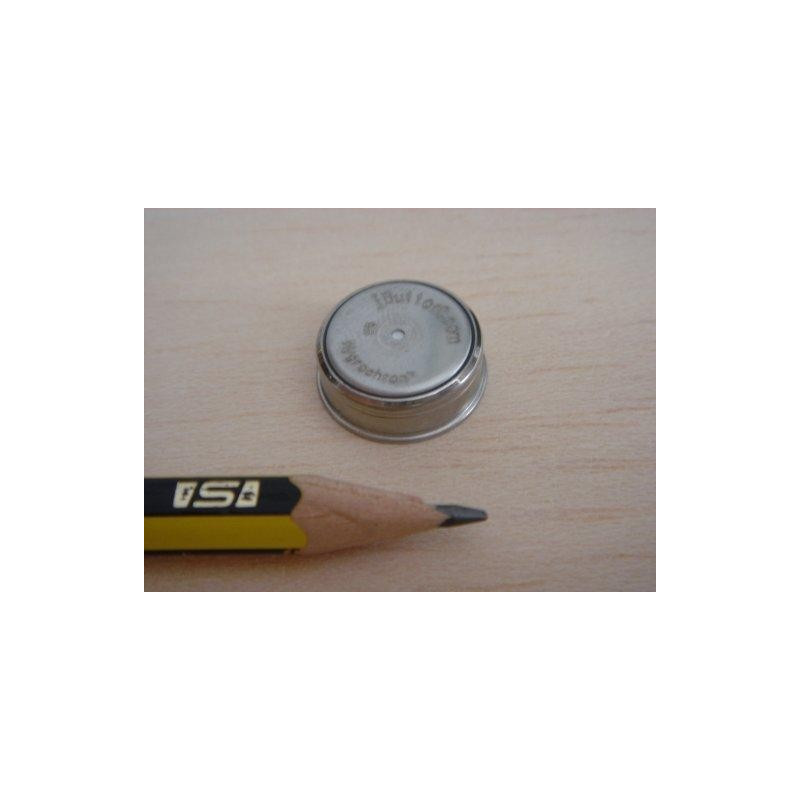

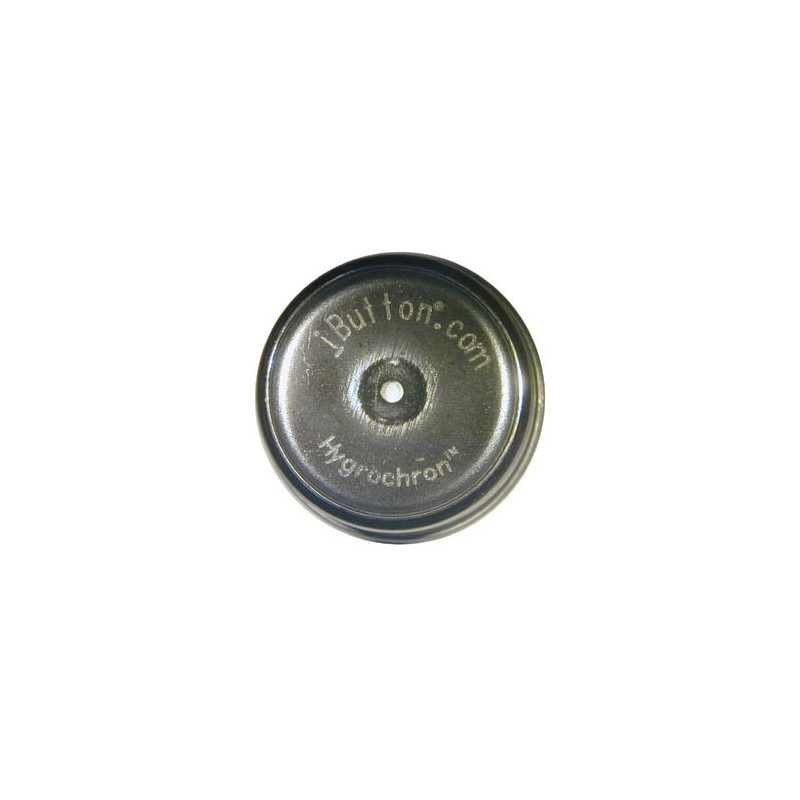

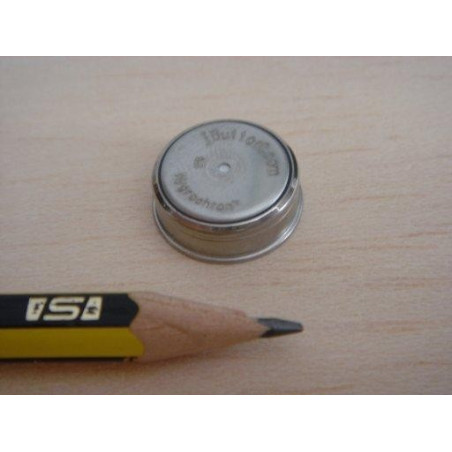

iButton Data Logger for Relative Humidity & Temperature model Hygrochron (-20ºC to +85ºC & 0-100% HR)

Volume discounts

Quantity	Price (tax excl.)	You Save %
1+	195,00 €	0%
10+	185,25 €	5%
20+	181,35 €	7%
30+	175,50 €	10%

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

195,00 €

tax excl.

Quantity

Calibration Certificate

Add to wishlist

Overview
Specifications
Download
Accessories

DS1923-F5 iButton Download (190.23k)

The Hygrochron DS1923 is a robust and self-sufficient data logger that measures temperature and humidity. The internal battery lasts up to 8 years. The stainless steel capsule is extremely resistant to harsh environments, mechanical shocks, humidity, dust and dirt. The memory stores up to 8192 samples, taken at configurable regular intervals from 1 second to 273 hours.

Cada Hygrochron tiene un número de identificación único gravado a laser durante la fabricación, para garantizar una trazabilidad única.

Existen varios acessorios de montaje disponibles para fijar el Hygrochron a casi cualquier objeto, incluyendo cajas, paletes, sacos, etc.

Para programar el Hygrochron es necessario el software ExpressThermo y un cable de comunication.

Temperature range	-20 to +85ºC
Humidity range	0 to 100%RH
Memory	Up to 8192 readings (512 bytes for user memory)
Reading Interval	From 1 second to 273 hours
Temperature Resolution	0,0625ºC or 0,5°C
Humidity Resolution	0,04%RH or 0,6%RH
Temperature error	Better than ±0.5°C (-10 to +65°C) with software correction
Humidity Error	Better than ±5%RH with software correction
Thermal Response Const.	130s for 60% full range
Response Const. Humidity	30s for 50% of full range
Delayed start	From 1 minute to 11650 days or after alarming the temperature
Battery	Lithium internal, non-replaceable
Battery life	Up to 10 years, depending on operating conditions

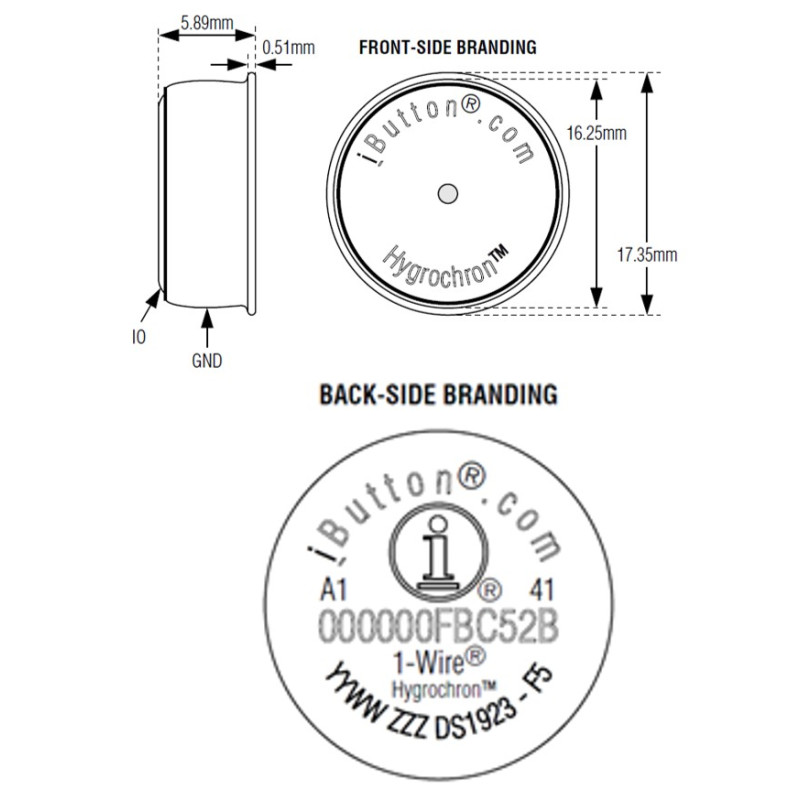

Dimensions [mm]	17,35x5,89 (Ø x h)
Weight [g]	5g
Clock Error	±3 min./mes @ +25ºC
