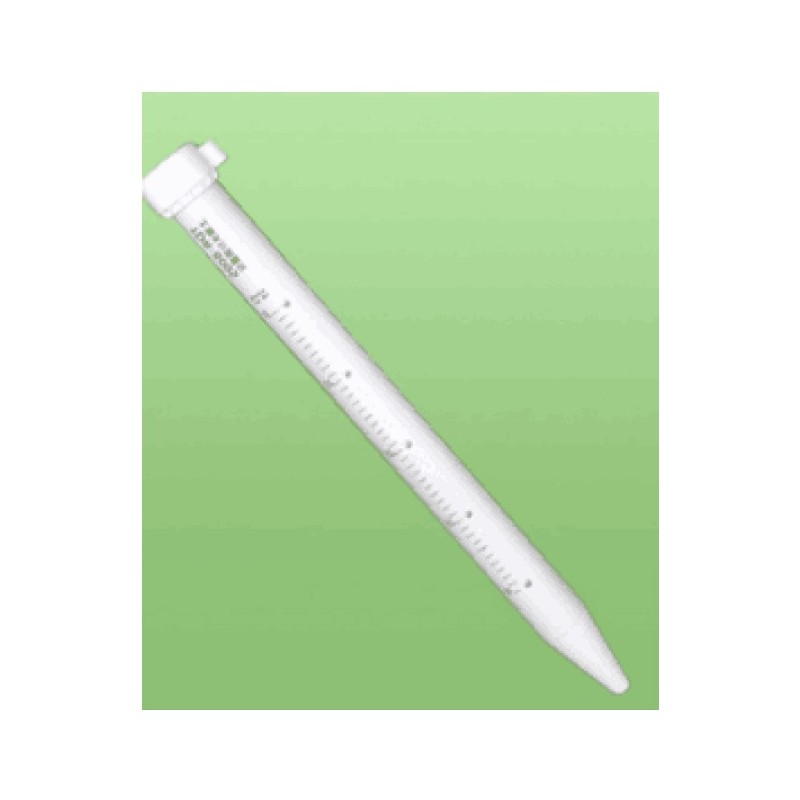

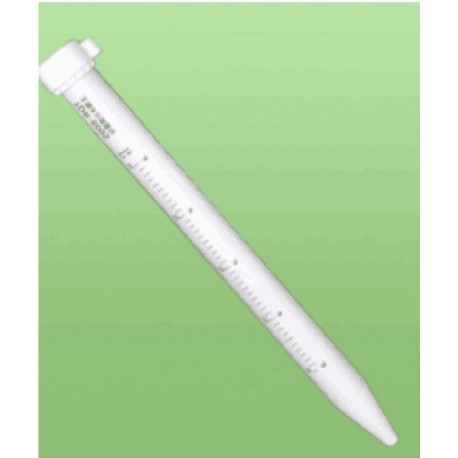

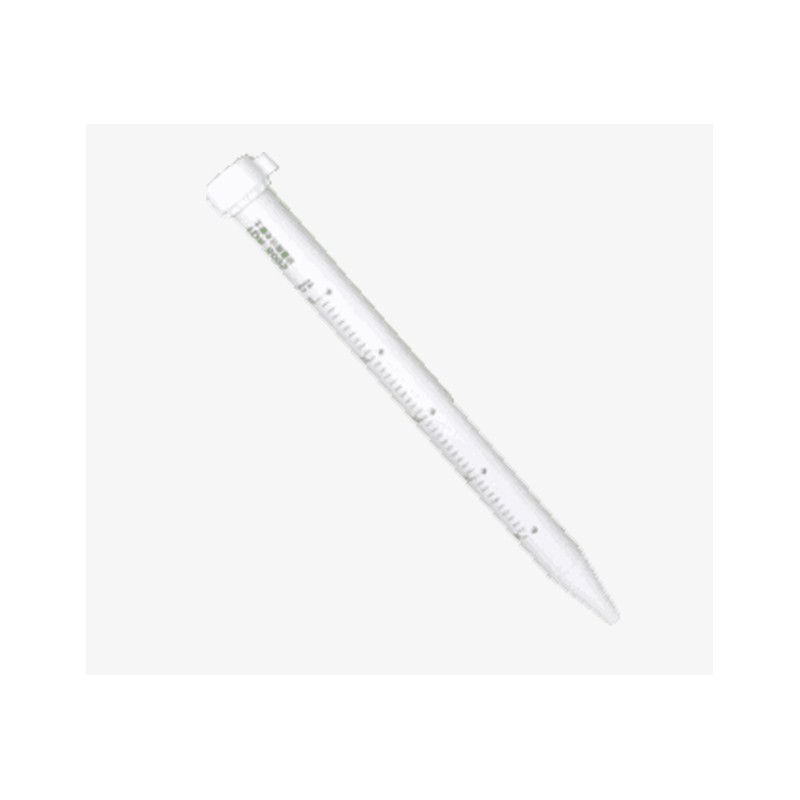

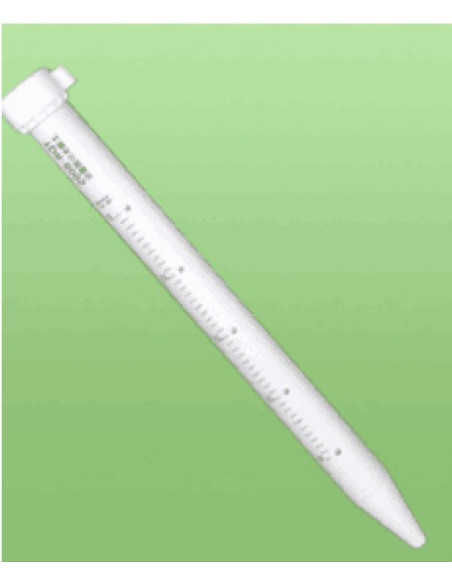

AO-520-04 Multilayer Duct Type Soil Temperature and Humidity Sensor (RS485 o/p)

Reference

Condition: New

CE Compliant

Volume discounts

Quantity	Price (tax excl.)	You Save %
1+	1 061,00 €	0%
2+	1 029,17 €	3%
3+	1 007,95 €	5%
5+	954,90 €	10%

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

1 061,00 €

tax excl.

Quantity

Select Model

Add to wishlist

OVERVIEW
SPECIFICATIONS
APPLICATIONS
MODELS
Data sheet
Download

The Sensor measures:	Temp. & Soil Humidity
Output Signal:	RS485
Cable Length:	2m
Power Supply:	12-24 Vdc
Sensor IP Rating	IP68

AO-520-04 Data Sheet Download (130.72k)

The AO-520-04l temperature and humidity sensor for soil is based on Frequancy Domain Reflection (FDR) principles, and uses FDR layered tube type soil moisture measuring methods according to the frequency change in the electromagnetic wave emitted by the detector in different dielectric coefficient materials that are calculated from the measured of soil moisture.
The unit is capable of simultaneous measurements of different depths of soil moistures and soil temperatures.
This series of products can be widely used in drought monitoring, intelligent irrigation, soil research, agricultural production prediction and in landslides.

* High precision
* Fast response
* Soil properties affect little
* Directly buried in soil
* Widely used
