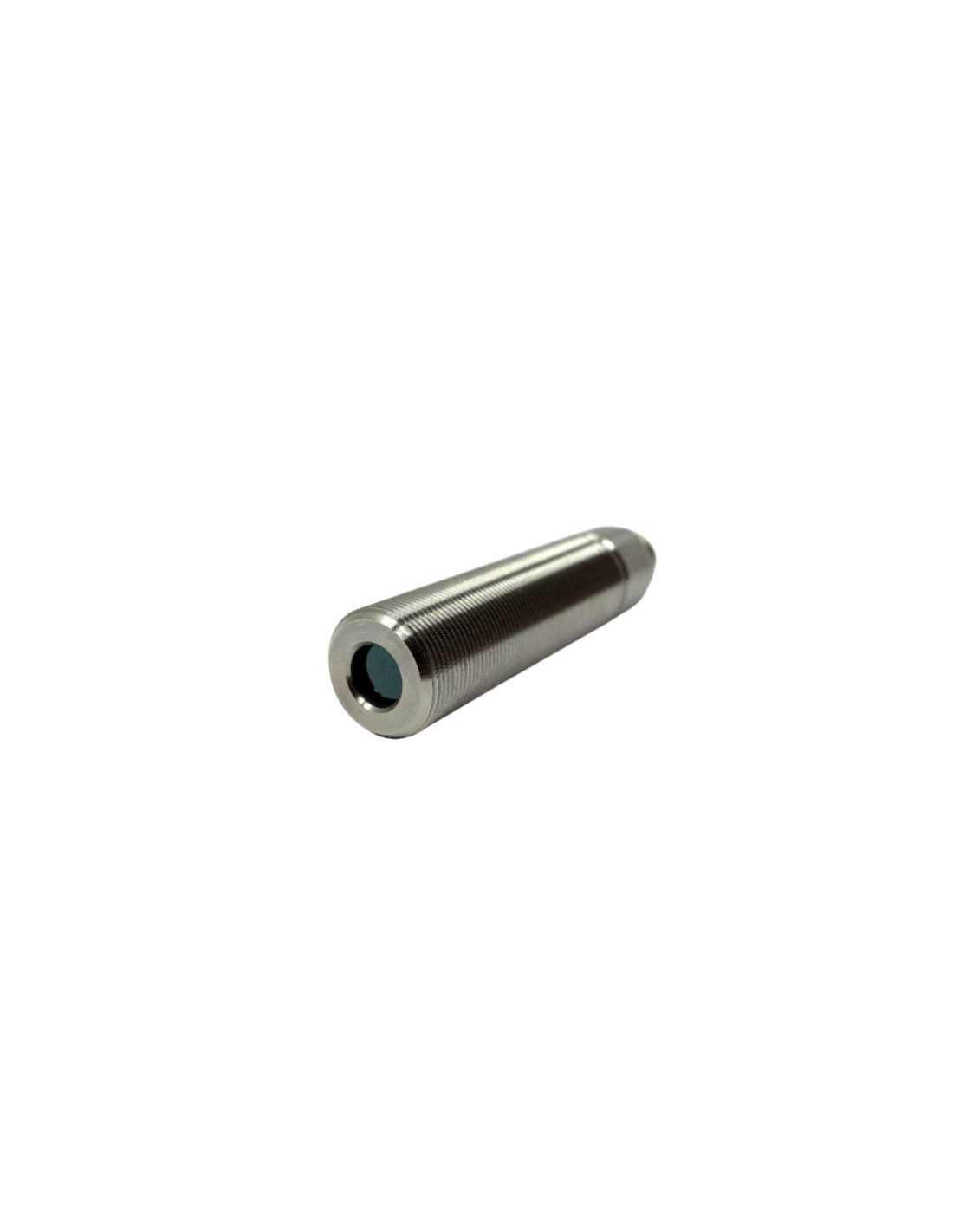

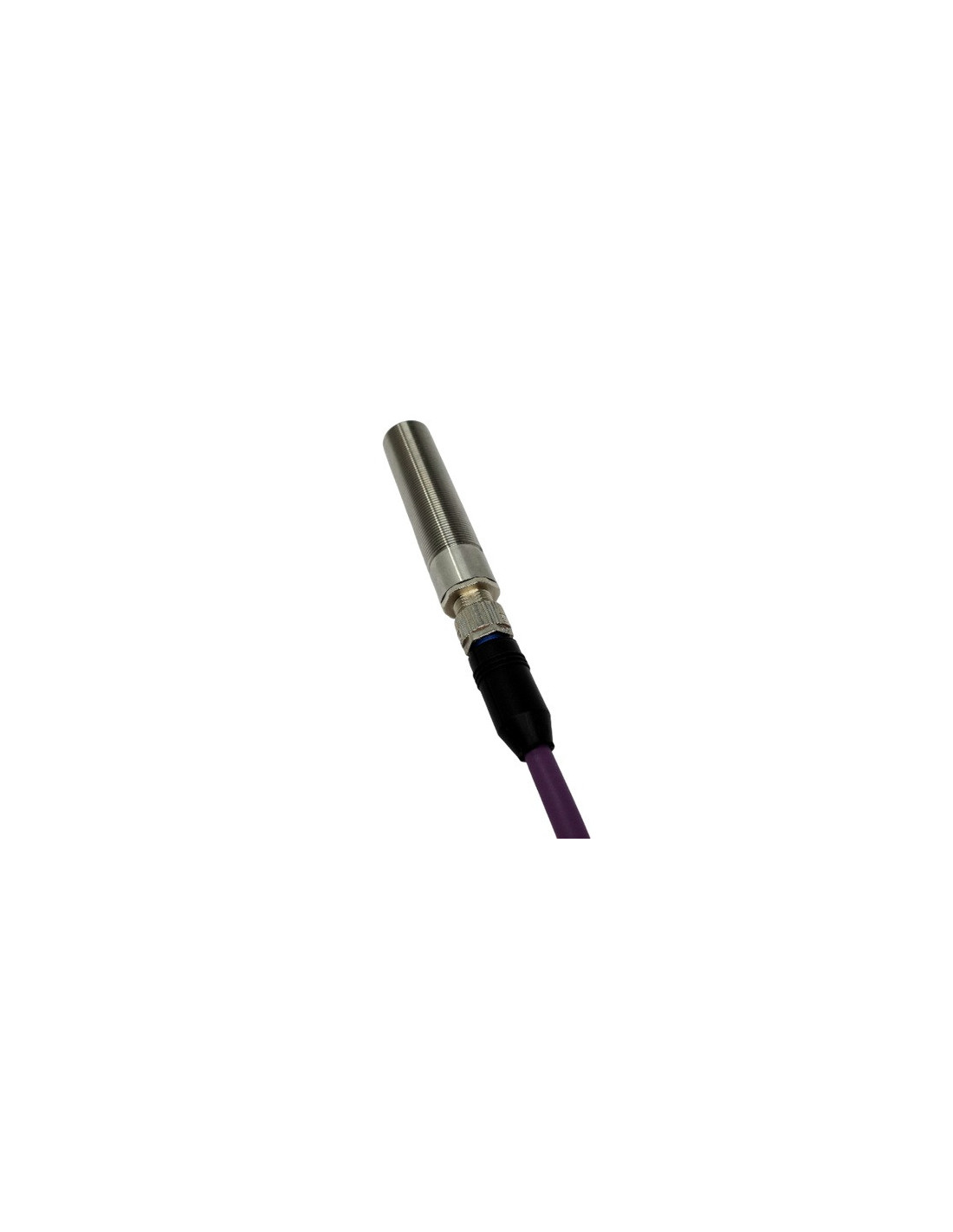

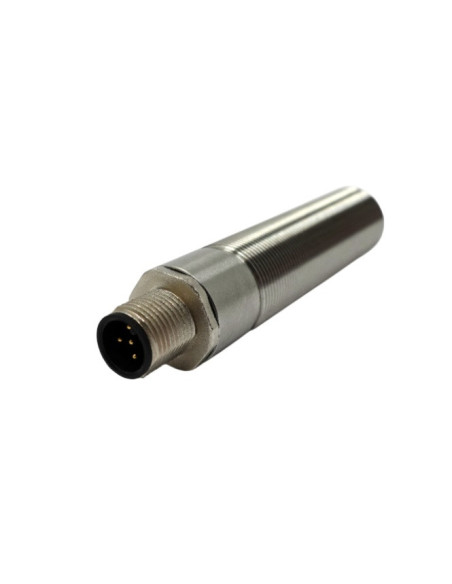

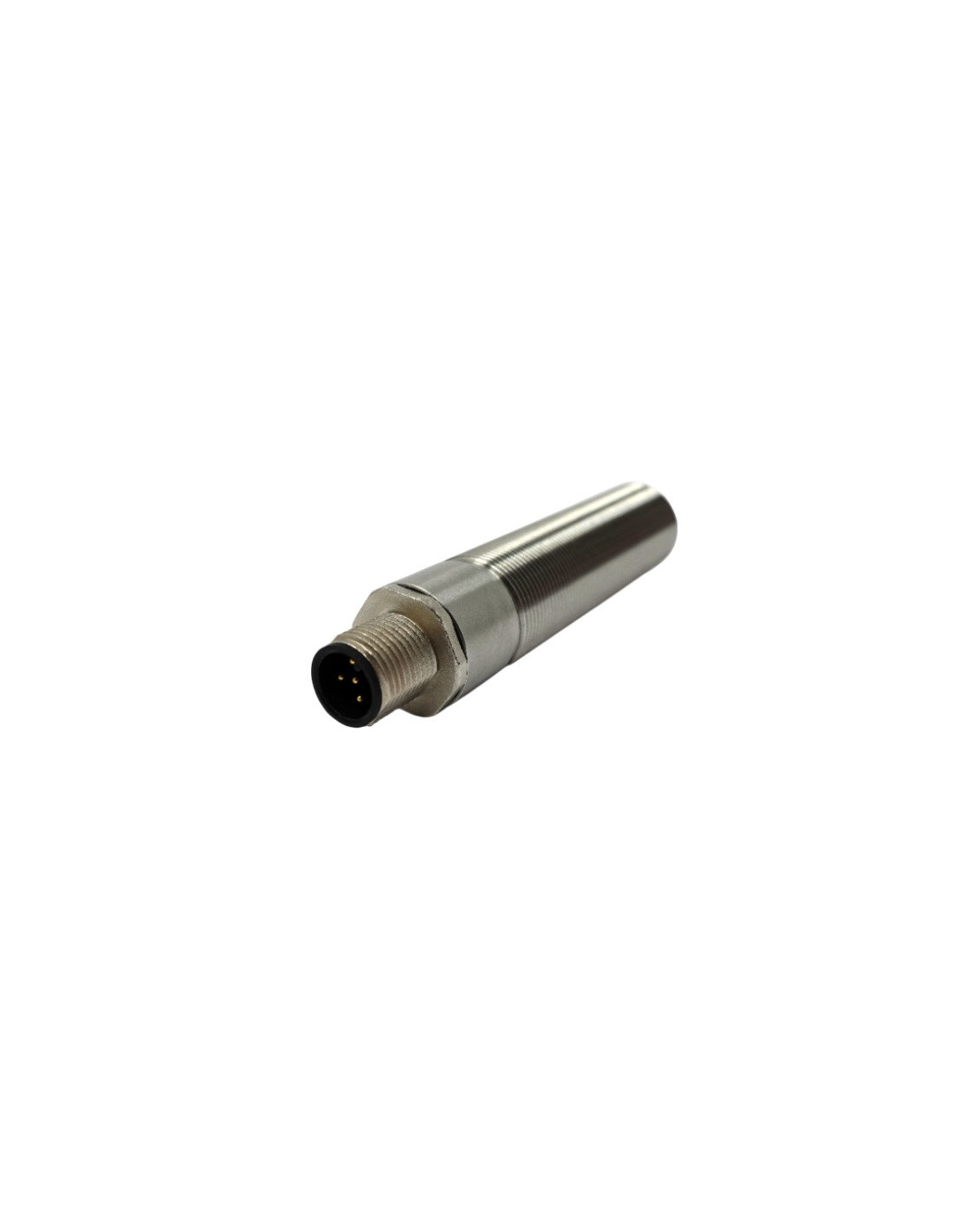

PyroCV Infrared Temperature Sensor

Sensor Features

• Conforms to EMC standards for construction machinery
• Measures the temperature of asphalt and non-reflective construction materials without contact
• Temperature ranges from -20°C to 500°C
• Durable stainless steel 316 housing, sealed to IP67 / IP65 when mated
• Quick and easy installation via M12 connector
• CAN communications or linear 0 to 5 V DC output
• Fast response with high stability

General Specifications

• Output: Raw CAN, and 0 to 5 V DC, linear with measured temperature
• Temperature range, CAN models: -20°C to 500°C
• Voltage output models: LT -20°C to +100°C, MT 0°C to 250°C, HT 0°C to 500°C, ST customer choice within -20°C to 500°C with minimum span 100°C
• Accuracy: ±1% of reading or ±1°C, whichever is greater
• Repeatability: ±0.5% of reading or ±0.5°C, whichever is greater
• Emissivity setting: CAN 0.2 to 1.0 configurable, Voltage 0.95 fixed
• Startup time: 250 ms
• Response time: 125 ms, 90% response
• Spectral range: 8 to 14 μm
• Supply voltage at sensor: 10 V DC to 28.8 V DC
• Max. current draw: 20 mA
• Minimum load resistance, voltage only: 50 kΩ
• Wiring protection: reverse polarity and shorts to other pins

CAN Protocol Specifications

• Baud rate: 250 kbps
• Data format: 8 bytes total, bytes 1 to 4 object temperature as floating point, bytes 5 to 8 ambient temperature as floating point
• Transmit interval: 200 ms
• CAN ID range: configurable between 0 and 255 as a 4-byte unsigned integer
• Emissivity: adjustable from 0.2 to 1.0 as a 4-byte floating point

Mechanical Specifications

• Construction: stainless steel
• Sensor body length: 86.5 mm
• Thread mounting: M18 x 1 mm pitch, length 60 mm
• Weight: 90 g

Environmental Specifications

• Environmental rating: IP67 / IP65 when mated
• Ambient operating temperature and humidity: -40°C to +85°C, no condensation
• Storage temperature: -40°C to +85°C
• Electromagnetic compatibility: ISO 13766-1
• Load dump testing: according to ISO16750-2, clamped load dump

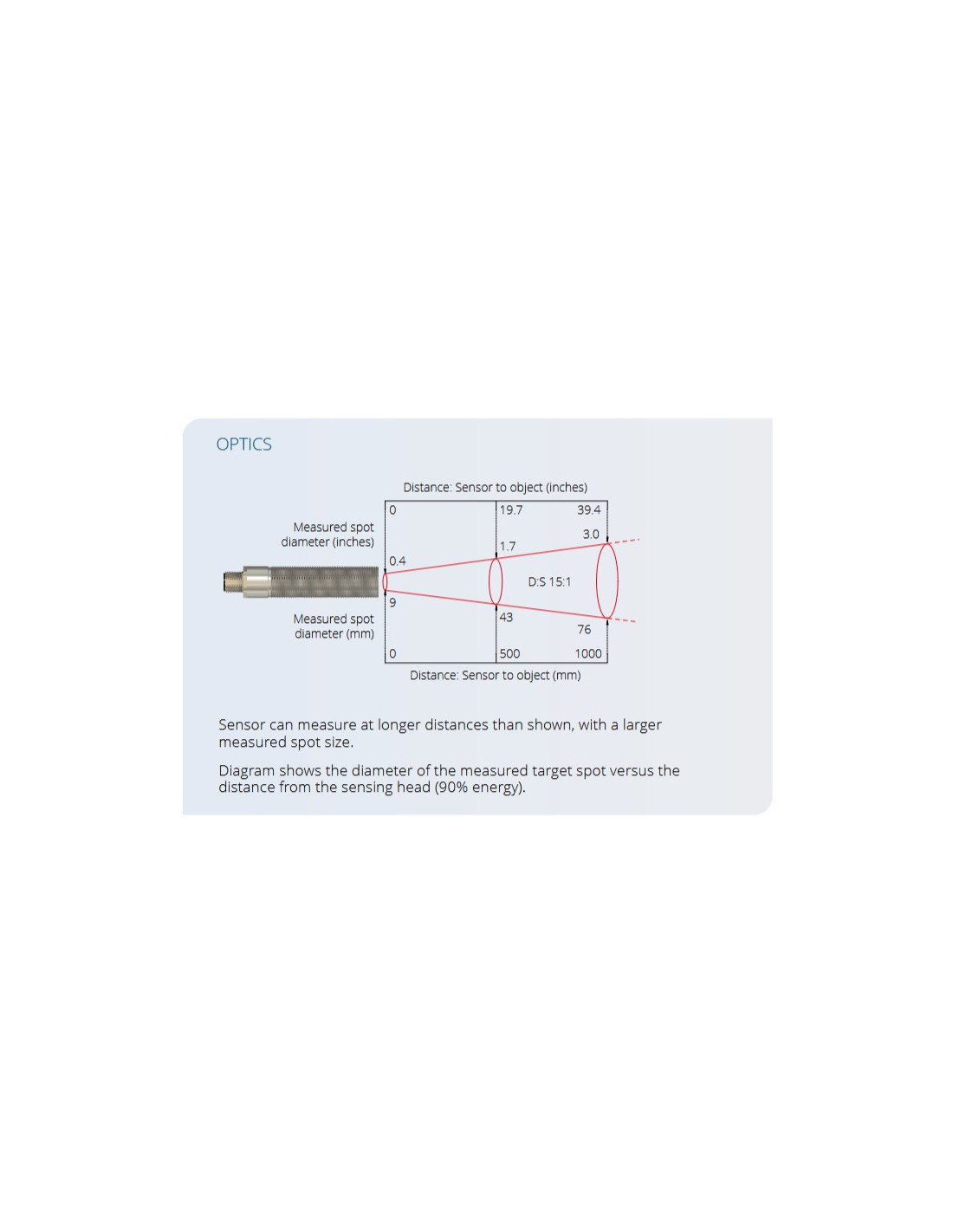

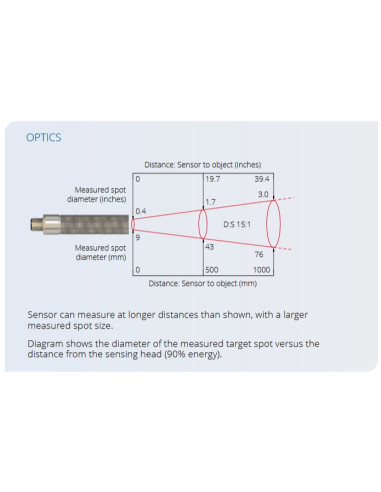

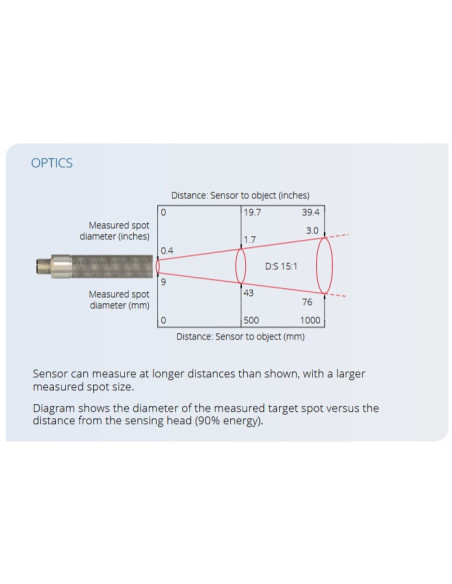

Field of View

The given measured spot size contains 90% of the energy detected by the sensor. The manufacturer recommends the target is at least twice as large as the given measured spot for maximum accuracy.

The PyroCV is designed for non-contact temperature measurement on a wide variety of non-metallic and non-reflective surfaces. It is particularly suitable for materials such as asphalt, concrete, bulk materials, thick plastics, rubber, painted surfaces, and organic materials.

It can also be used on metallic surfaces provided they are painted or coated, as these reduce reflectivity and allow for more reliable measurements. Thanks to its infrared operation, the PyroCV enables fast, safe, and accurate temperature monitoring without direct contact with the material, making it a practical solution for industrial processes, civil engineering projects, and quality control.

Typical applications:
Asphalt paving.
Temperature monitoring on road compactors and rollers.
Concrete processing and curing.
Measurement of bulk materials.
Monitoring of painted, coated, or non-reflective surfaces.
