HCT-0010 DC CURRENT SENSOR WITH 0-4V DC OUTPUT
HCT-0010 DC CURRENT SENSOR WITH 0-4V DC OUTPUT

HCT-0010 DC CURRENT SENSOR WITH 0-4V DC OUTPUT

Reference: HCT-0010 - Manufacturer: Magnelab

El transductor de corriente tiene una apertura de 10mm de diámetro.

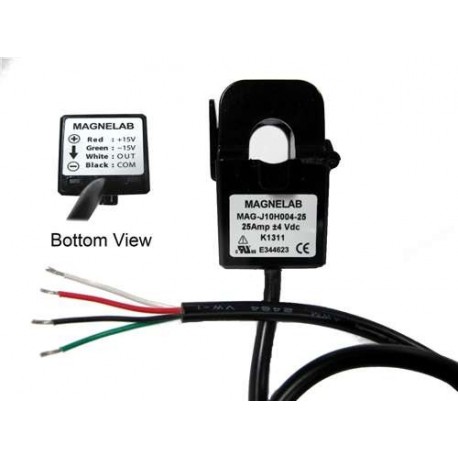

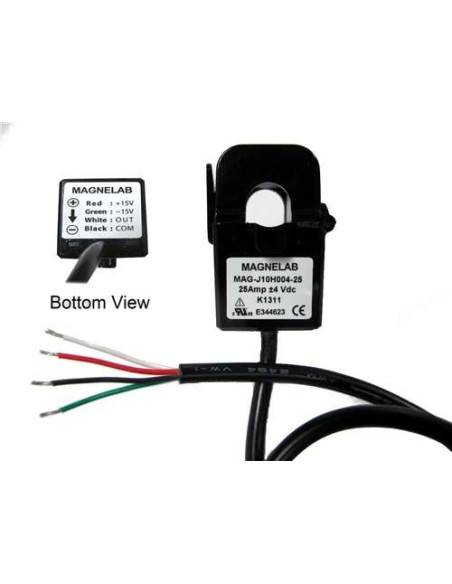

The HCT-0010 (previously MAG-J10H004) is a DC current transducer with 10 mm opening that uses the Hall Effect principle to sense 5 to 50A DC current and output 4 Vdc. The HCT-0010 uses accurate laminating core split technology and is designed for strong durability while providing accuracy in low current situations. The HCT-0010 is a compact one-touch split structure, allowing easy installation. It is 1% accurate and passes IEC61010-1, UL61010-1, and EN61010-1.
Features
  • Primary amperage range: 5 to 50 Adc
  • Outputs 0-4 Vdc
  • Accuracy +/- 1%
  • Powered by 15 Vdc
  • Response time: 3 microseconds
  • Temperature: -10 to 60 degrees C operating
  • Humidity: 85% operating
  • Insulation Withstand Voltage: 1500 Vac / 1 min
  • Insulation Resistance: 500 Vdc / 500M Ohms max

The Sensor measures:
DC Current
Output Signal:
0 - 4 VDC
