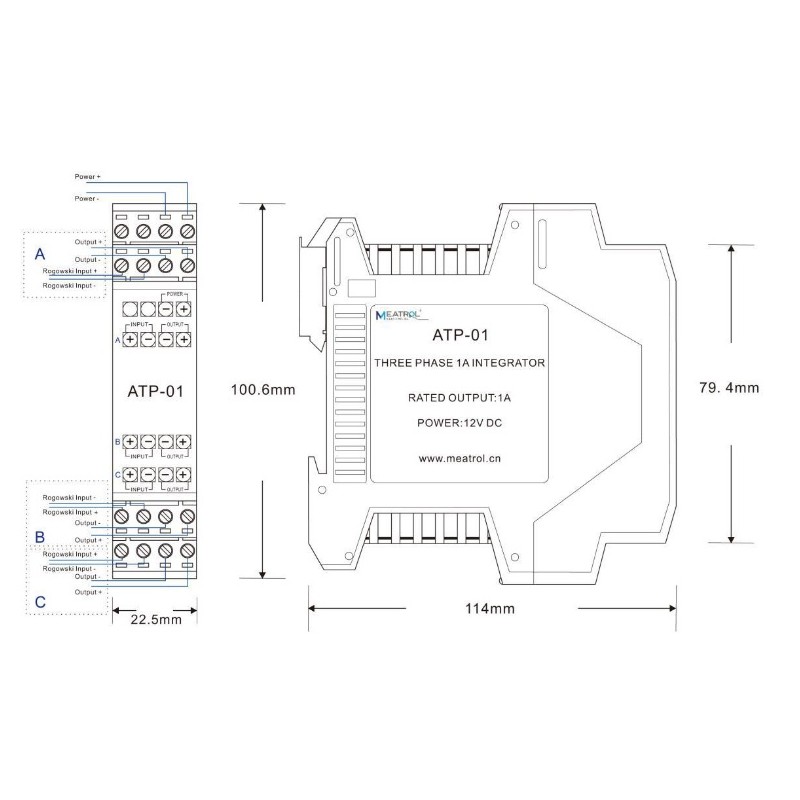

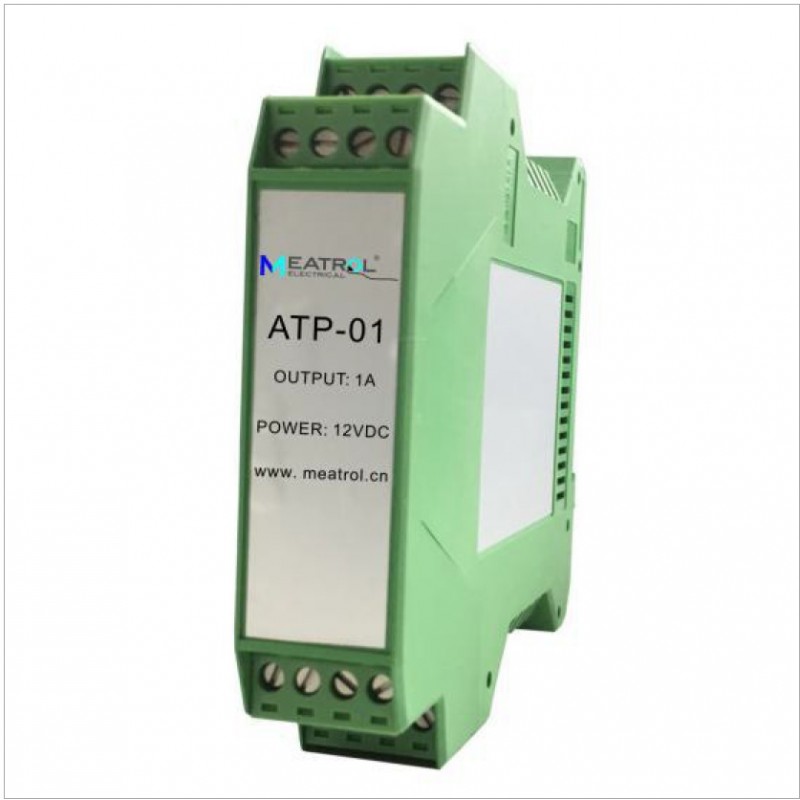

ATP-01 is a Three phase DIN-RAIL 1A Output Rogowski coil integrator (Rogowski coils not included).
The ATP-01 module comes in adistribution box, in a plastic module DIN-RAIL enclosure, powered directly from the mains.
Advantages:
• High reading accuracy 0.5%
• Compact DIN-RAIL construction
• High bandwidth for measurement from 30 to 5kHz
• Output 1Amp rms
ATP-01 can be combined with any model and size of Y-FCT or FCT Rogowski coils.
The available values are: 0 to 1Amp AC.
On request, the input value can be customized according to the application.
ATP-01 and Rogowski coil is a very flexible system, suitable for high power load analysis, impulsive current monitoring, DC ripple measurement, etc.
Due to its specific features, flexible Rogowski coil is an extremely comfortable solution for current measurement and can be used in a number of cases where traditional current transducer is not the adequate solution.
- Rated input:100A,600A,1kA,3kA,6kA(only choice one point,accept OEM)
- Rated output:1A rms
- Rated coil ratio:50mV/kA or 85mV/kA(need to be define)
- Accuracy:±0.5% (from 1% to 100% of rated )
- Bandwidth:30Hz to 5KHz
- Power supply:12VDC
- Maximum Burden 0.5Ohm
- Maximum power 8W
.jpg)
• Power monitoring & analysis
• Harmonics and transients monitoring
• Welding machine control
• High current measurement
.jpg)
Optional Rogowski coils:
.jpg)
