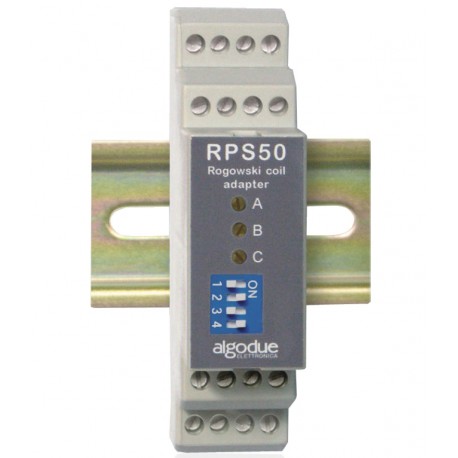

RPS50 Multiscale single Rogowski Coil Integrator (outputs 1 or 3V rms or 0-10Vdc)

Reference: RPS50 - Manufacturer: Algodue

Applications

Measuring devices, lab instrumentation
Power monitoring & control systems
Harmonics and transients monitoring
DC ripple measurement
Welding machine control
High current measurement

Three scales selectable by dip-switches
Equalization and 90° shifting of the Rogowski coil signal
1 or 3 VRMS full scale output for instantaneous value
DC output for rms value
Customizable input sensitivity
Compact DIN rail enclosure
80÷250 VAC power supply

Multiscale Rogowski coil integrator...

€199.00

MFC140 Rogowski coil has arrived and...

€92.00

MFC150 ∅8 mm Flexible Rogowski Coil

MFC190 ∅12 mm flexible Rogowski coil

The Sensor measures:: AC Current
Power Supply:: from the AC network
Sensor IP Rating: IP20

RPS50 Data Sheet

Download (449.29KB)
