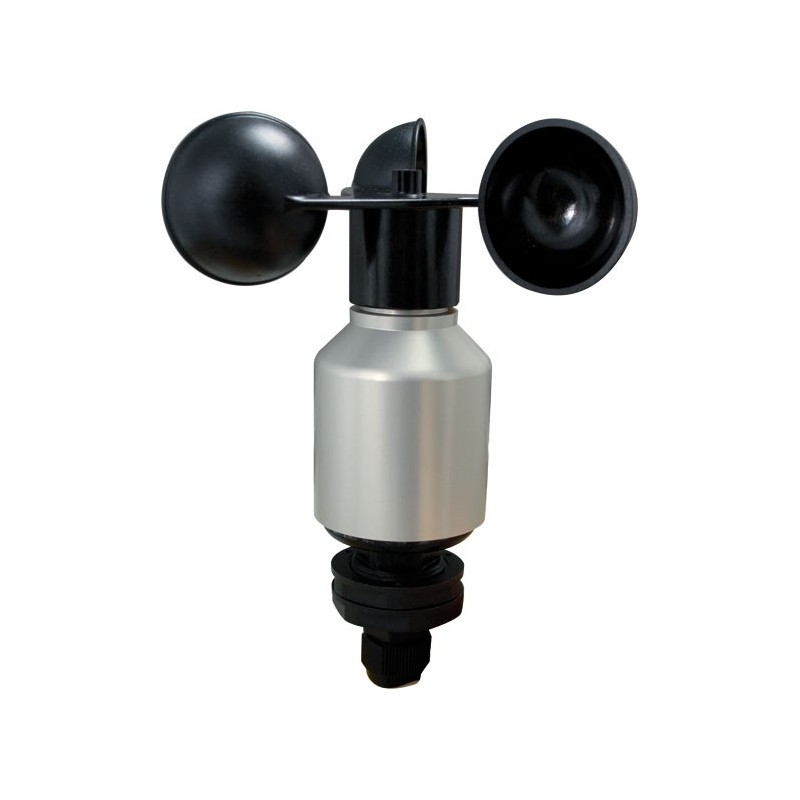

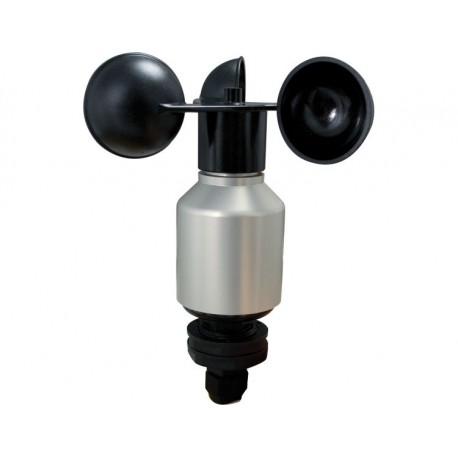

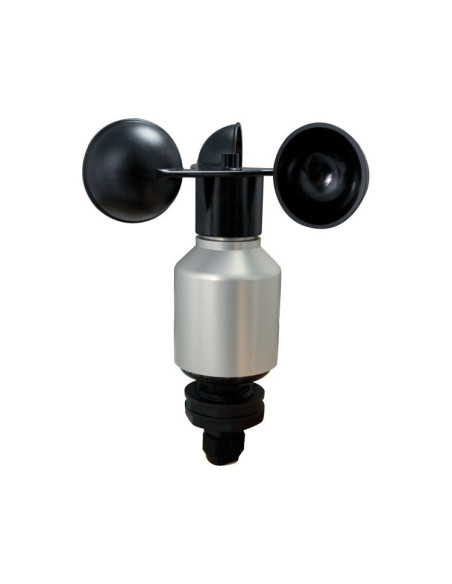

WG2/O Wind speed transmitter - compact

Reference WG2/O

Manufacturer: Fuehler Systeme

Condition: New

Choose Output:

0-10V, 4-20mA
0.5-50m/s

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
Data sheet
Download
Accessories

The Sensor measures:	Air Speed m/sec

WG2/O Manual Download (152.13k)

- Wind speed -...

FS6003 Weather Station Compact, Digital Output (Modbus RTU)
1 295,00 €

Add to cart

The wind transmitter WG2/O detects the horizontal wind speed.
The measured values are available at the output as analogue voltage or current signal to control for instance wind power plants.
An electronically-regulated heating system has been installed for winter time use, in order to prevent the ball-bearing and the external rotation parts from freezing.
Power for the heating system could be provided for instance by our Power Supply Unit.

Measuring principle	opto-electronic
Measurement range wind speed	0-50 m/s
Accuracy	±0,5 m/s or ±3% f. mv
Anlaufwert	0,5 m/s
Survival speed	max. 80 m/s, 30 minutes
Supply voltage analog 0-10 V	13...30 V DC or 24 V AC/DC, max. 50 mA
Supply voltage analog 4-20 mA	9...30 V DC or 24 V AC/DC, max. 50 mA
Supply voltage heating	24 V DC/AC, max. 20 W
Analogue output	0-10 V, 4-20 mA
Working resistance for voltage output (V)	min. 1 KOhm
Working resistance for current output (mA)	max. 500 Ohm (for operating voltage > 15 V DC)
Electrical connection	PG cable clamb and 12 m cable LiYCY 6 x 0,25 mm² (included)
Housing	aluminium (AlMgSi1), anodised
Material	Cup Star: Plastic with Carbon Fiber (PC-GF10), Base: Plastic (POM H2320)
Weight	400 – 750 g je nach Ausführung
Protection type	IP55
Working temperature	-40...+70°C

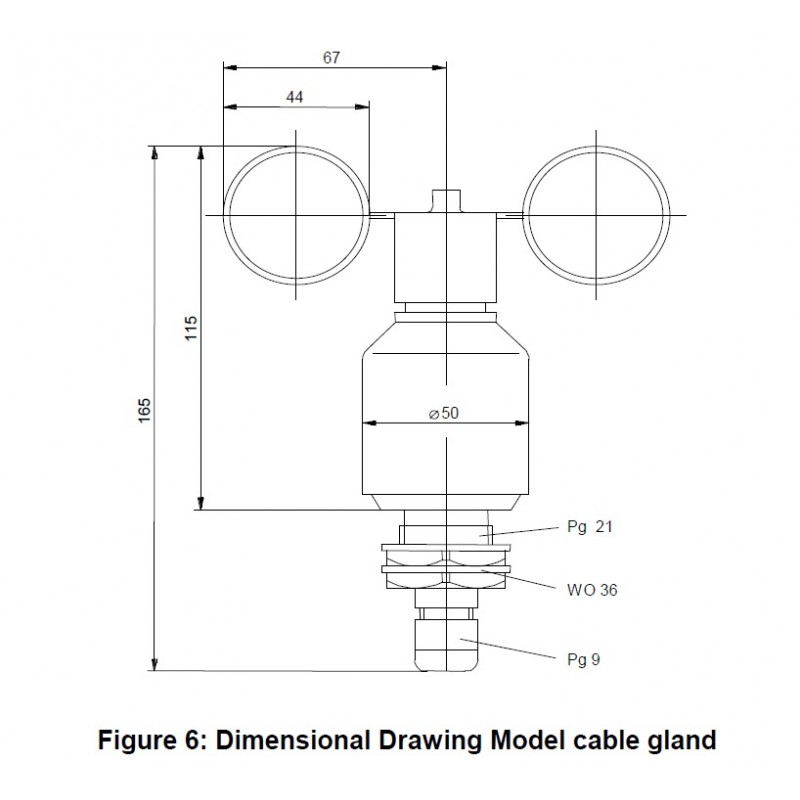

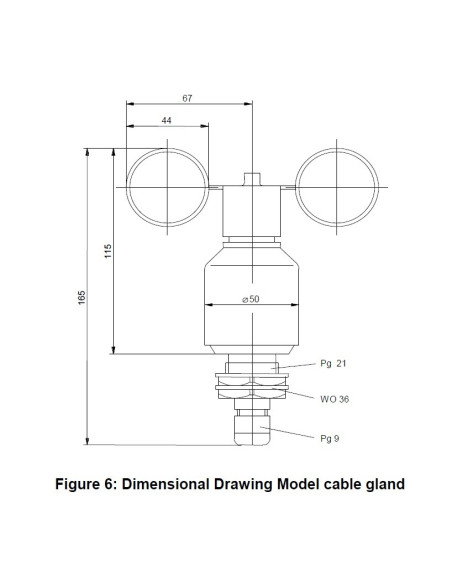

Installation	for ex. onto mast tube with receptacle thread Pg 21 or boring Ø 29 mm
Approvals	CE, EAC, RoHS
