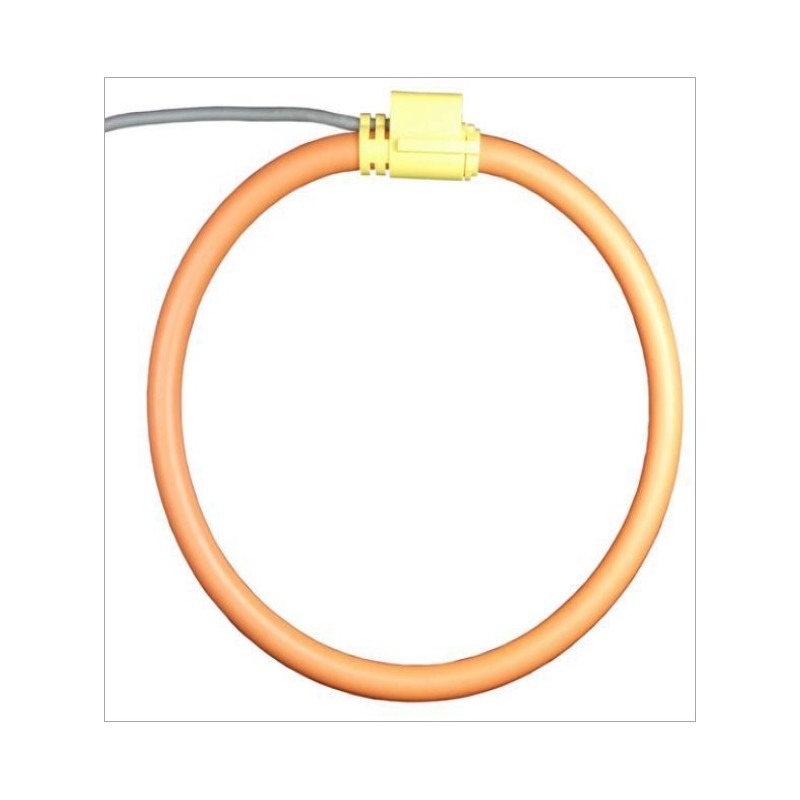

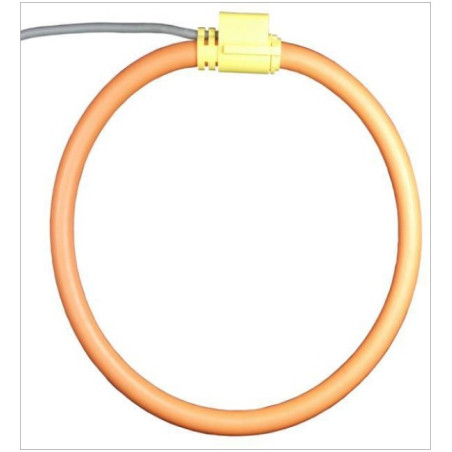

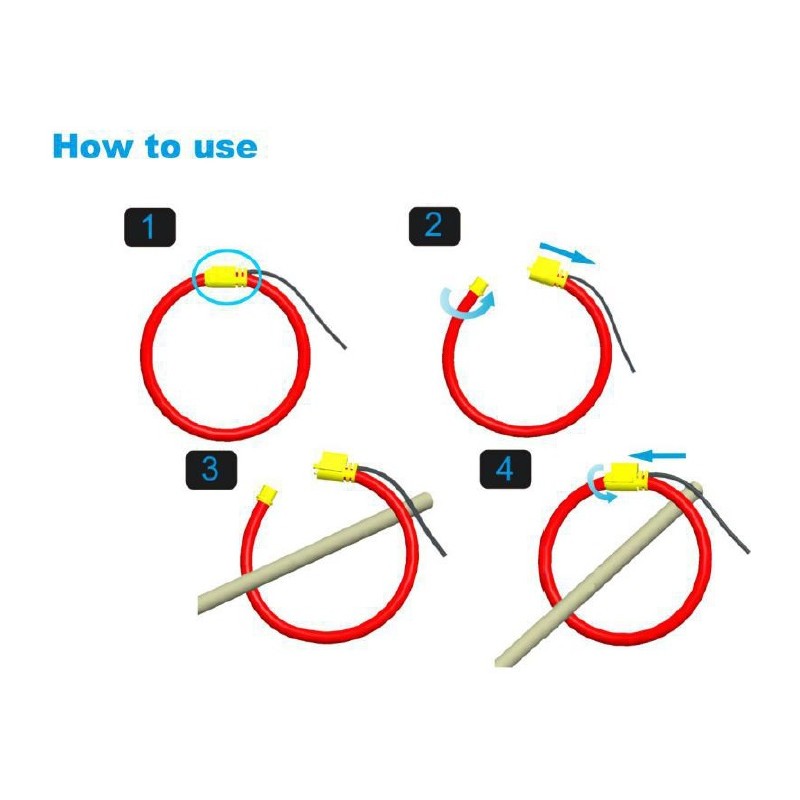

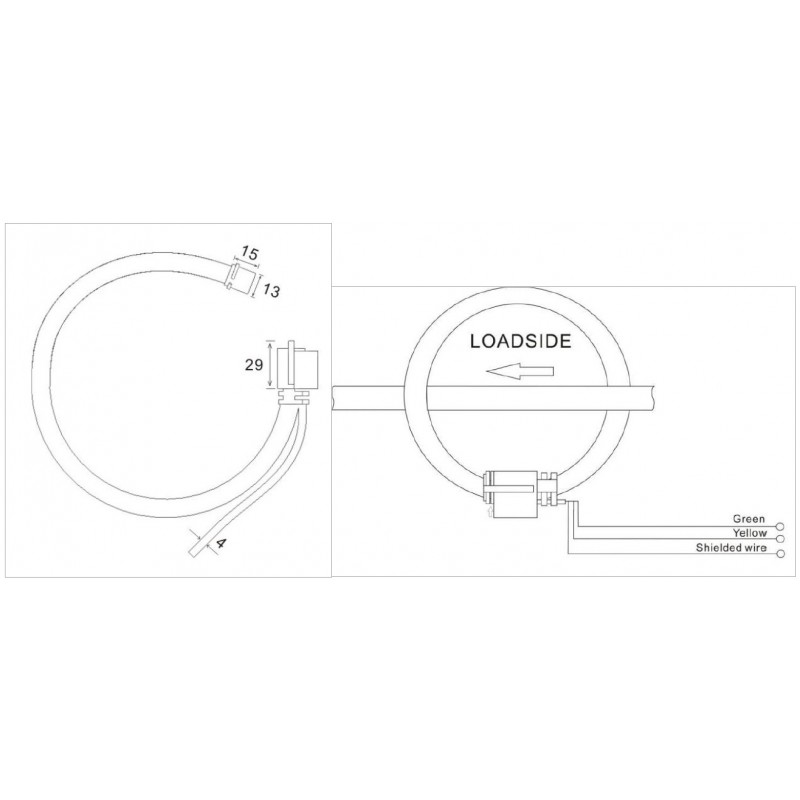

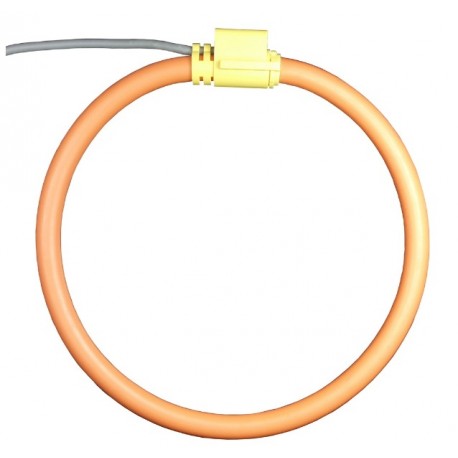

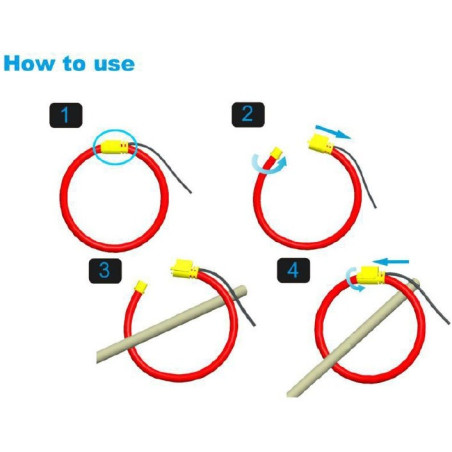

Thick Flexible Rogowski coil AO-FCT

-  High linearity from 1A to 100kA

-  Wide dynamic range

-  Very useful with large size or awkward shaped conductors or in places with limited access

-  No danger from open-circuited secondary

-  Not damaged by large overloads

-  Non-intrusive, no power drawn from the main

-  Measurement uniformity at any position of the conductor inside the coil

-  Excellent degree of rejection to the external current conductor

Features:
FCT is a flexible current transducer based on Rogowski principle, particularly suitable for measurement in combination with portable devices.
FCT coils are available in different sizes and can be supplied according to customer’s design, therefore they can be used in all those applications in which traditional transducers do not fit due to their size and/or weight.

Due to its specific features, flexible Rogowski coil is an extremely confortable solution for current measurement and can be used in a number of cases where traditional current transducers are not the adequate solution.

FCT coils are provided with a shield against the influence of external magnetic fields, therefore it grants a stable measurement from low currents to hundreds of kA.
The Rogowski coils must be connected to an electronic integrator for 90° phase shift compensation and frequency equalization.
Our DIN-RAIL and panel meters can interface Rogowski coils directly without the need of the external integrators. This is an advantage because there is no external boxes or any power supply with consequent ease of use.
The particular features of our Rogowski coils combined with the extremely flexible input programming of our portable meters, allow you to carry out measurements in all types of applications.

Related Products
AO-S1  AO-D1  AO-S9

- Warranty: Any problem in 1 year, we will send new device for replacement.
- Certificate: All of Model complies CE standard. CAT III 1000V, CAT IV 600V
- Capacity: 100kpcs rogowski coil per month
- Calibration system: NI 6221 sampling card + Labview auto compare system ,certified 0.1% accruacy by third laboratory
- Calibration report: Each model may come with unique Series Number corresponding calibration report. (THIS NEEDS TO BE REQUESTED ADDITIONALLY)
- OEM: 8 R&D Engineers satisfy all of OME requirment.
- Frequency All of Coils, integrators, meters may be used in 50Hz and 60Hz. Due to Rogowski coil output is 1.2 times more in 60Hz, we don't indicate coil ratio in 60Hz.

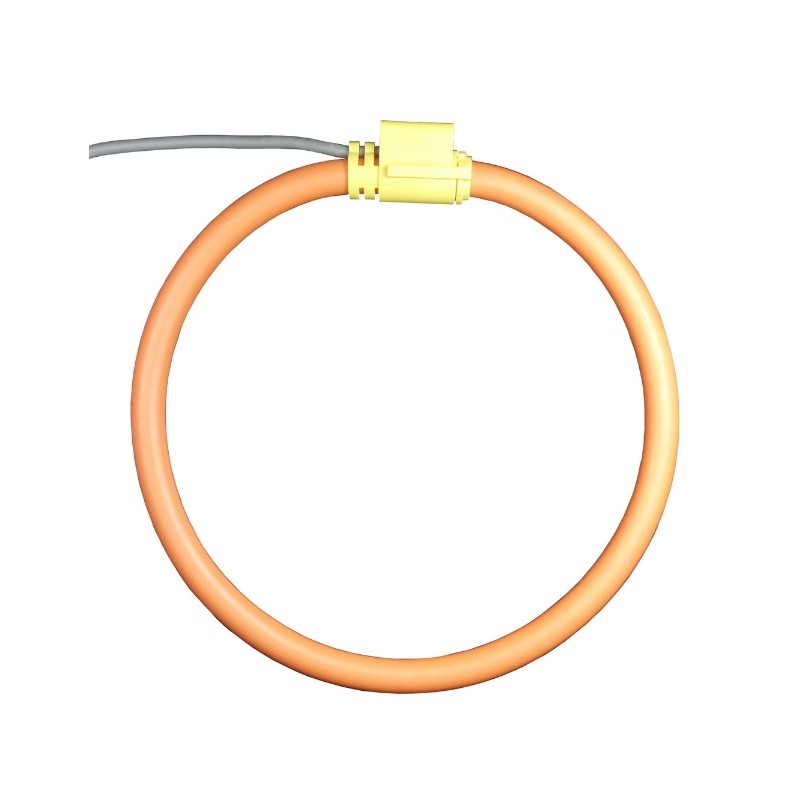

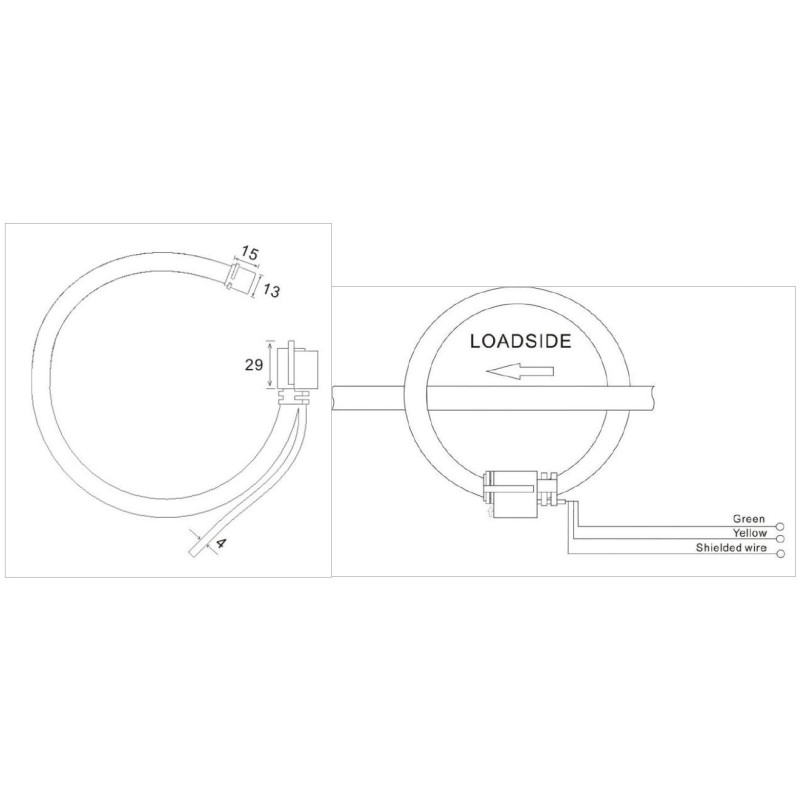

MODEL AO-FCT-420:

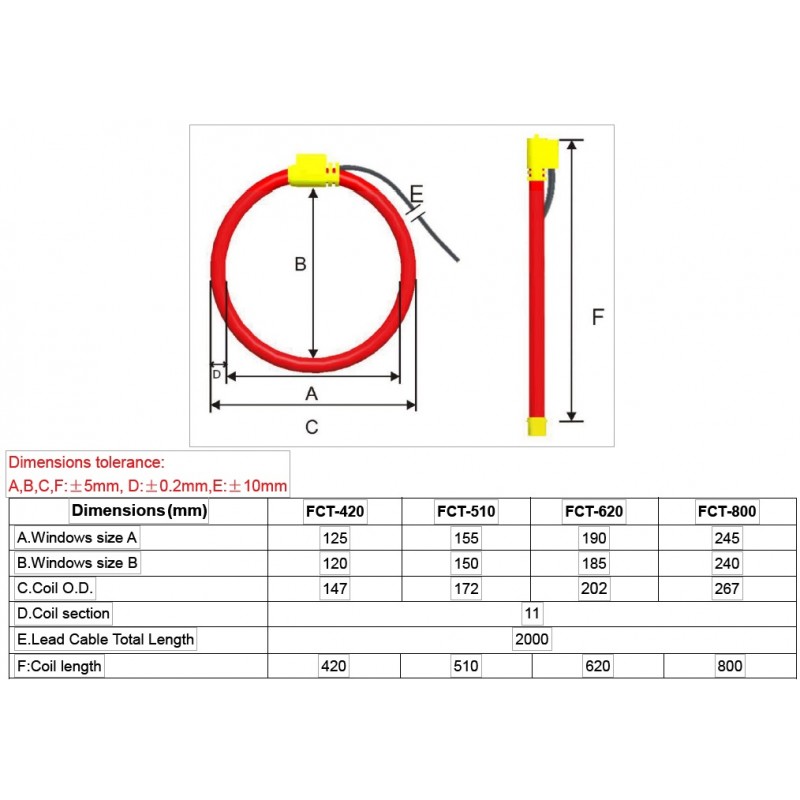

- Coil length: 420
- Window size: 120mm
- Section: 11mm
- Rated input: 3000A
- Cable length: 2 meter
- Calibrated Accuracy: ±0.5%(temperature drift:400ppm/C)（Ratio: 85mV/kA@50Hz)
- Uncalibrated Accuracy: ±5%(temperature drift:200ppm/C)（Ratio: 120mV/kA@50Hz)
- Linearity: 0.2%(from 1% to 100% of rated )
- Position error: ±1%

MODEL AO-FCT-510:
- Coil length: 510
- Window size: 150mm
- Section: 11mm
- Rated input: 3000A
- Cable length: 2 meter
- Calibrated Accuracy: ±0.5%(temperature drift:400ppm/C)
（Ratio: 85mV/kA@50Hz)
- Uncalibrated Accuracy: ±5%(temperature drift:200ppm/C)
（Ratio: 120mV/kA@50Hz)
- Linearity: 0.2%(from 1% to 100% of rated )
- Position error: ±1%

MODEL AO-FCT-620:
- Coil length: 620
- Window size: 185mm
- Section: 11mm
- Rated input: 6000A
- Cable length: 2 meter
- Calibrated Accuracy: ±0.5%(temperature drift:400ppm/C)
（Ratio: 50mV/kA@50Hz)
- Uncalibrated Accuracy: ±5%(temperature drift:200ppm/C)
（Ratio: 120mV/kA@50Hz)
- Position error: ±1% (from 1% to 100% of rated)

MODEL AO-FCT-800:
- Coil length: 800mm
- Window size: 240mm
- Section: 8mm
- Rated input: 8kA
- Cable length: 2 meter
- Calibrated Accuracy: ±0.5%(temperature drift:300ppm/C)
- Ratio: 50mV/kA@50Hz
- Linearity: 0.2%(from 1% to 100% of rated )
- Position error: ±1%
