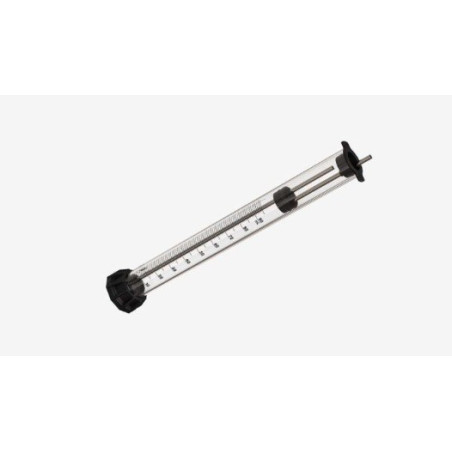

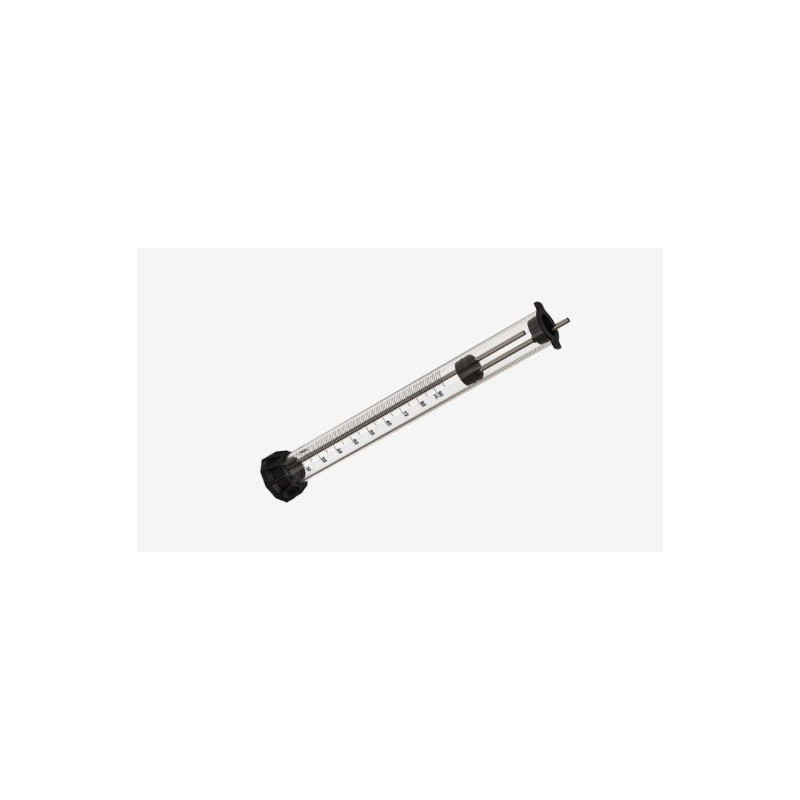

Model S, Mini-disc infiltrometer for measuring soil hydraulic conductivity
Model S, Mini-disc infiltrometer for measuring soil hydraulic conductivity

Model S, Mini-disc infiltrometer for measuring soil hydraulic conductivity

Reference: Modelo S - Manufacturer: Meter Environment

Infiltration and Hydraulic Conductivity of the Soil

Variable suction range 0.5 to 6 cm

Mini-disc infiltrometer:
◆ Compact and simple field equipment
◆ Measurement of unsaturated hydraulic conductivity of soil
◆ For survey-type field measurements

€489.00
Tax excluded Envío: 3 a 6 semanas



Soil Water Infiltration Rate:

► Soil water infiltration is the amount of water entering the soil per unit area. When measured, infiltration defines a curve called the infiltration curve. This can be divided into two parts:

► The first is where water potential dominates the infiltration process (when infiltration rates are highest).
► The second is where Saturated Hydraulic Conductivity (Ks) defines the infiltration rate. Ks expresses the rate at which water can be measured when the porous medium is saturated.

► METER Group offers the mini-disc infiltrometer and the SATURO device to measure infiltration and Ks.

- Infiltrometer body material: PVC
- Porous disc material: Stainless steel
- Total length: 32.7 cm
- Tube diameter: 3.1 cm
- Porous disc dimensions: 4.5 cm d, 3 mm g
- Suction regulating tube length: 10.2 cm
- Water reservoir length: 21.2 cm
- Mariotte tube length: 28 cm
- Water volume required for operation: 135 ml

The Sensor measures:
Conductivity
