SN274 CO2 external probe, range 0-10.000ppm, M12 connector, without cable

Reference

Condition: New

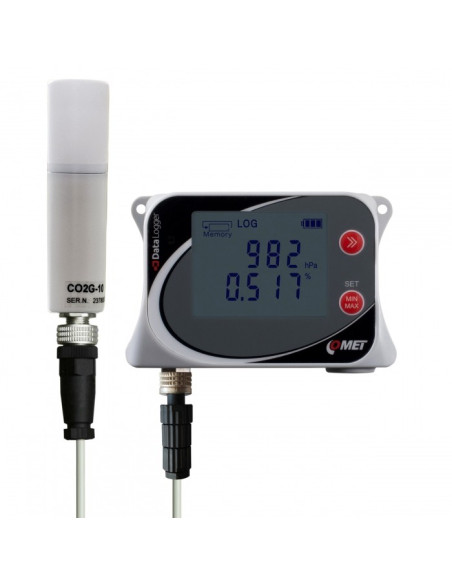

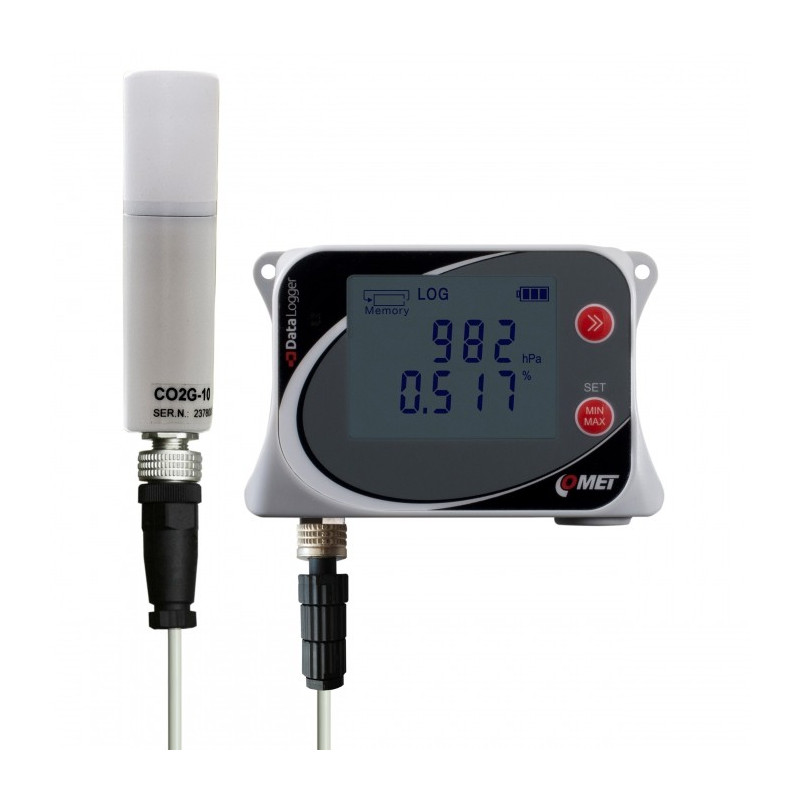

CO2 concentration sensor for Datalogger U2422

PROBE IS COMPATIBLE ONLY WITH DEVICES MANUFACTURED FROM 04/2023.
FOR PREVIOUSLY PURCHASED DEVICES, PLEASE CONTACT US.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

675,00 €

tax excl.

Quantity

Extension Cable

Add to wishlist

OVERVIEW
Optional Accessories
Data sheet
Download
Accessories

The Sensor measures:	CO2
Sensor IP Rating	IP65

SN274 CO2 Data Sheet Download (465.8k)

SN274 CO2 Dec. Conformity Download (95.14k)

This is a Battery...

U2422 Datalogger for external CO2 probe up to 10.000 ppm, with built-in atmospheric pre...
265,00 €

Add to cart

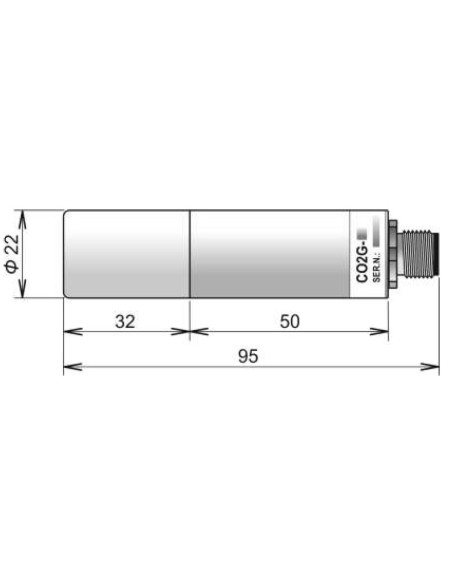

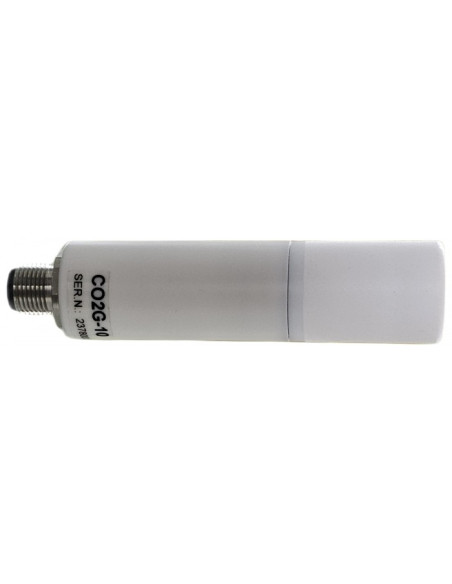

CO2G-xx probe with the I2C output is designed to measure carbon dioxide concentration in the air in chemically non-aggressive environments. The CO2 measurement is based on the dual wavelength NDIR principle, which automatically compensates for ageing effects. The probe is IP65 rated and the replaceable filter offer protection in harsh environment. It is designed for connection to COMET devices equipped with input for external CO2 probes. The probe is interchangeable, the calibration constants are saved in the internal memory of the probe.

A multiple point CO2 and temperature adjustment procedure leads to excellent CO2 measurement accuracy over the entire temperature working range; this is a must for process control and outdoor applications.

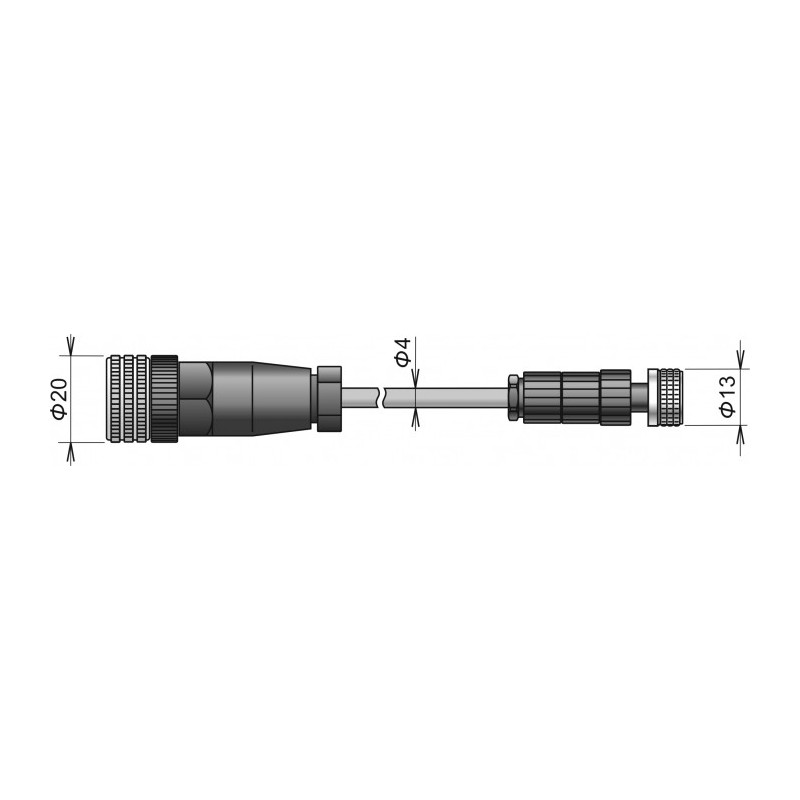

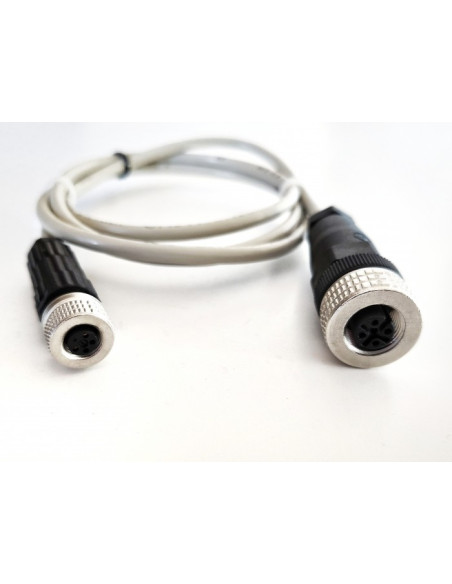

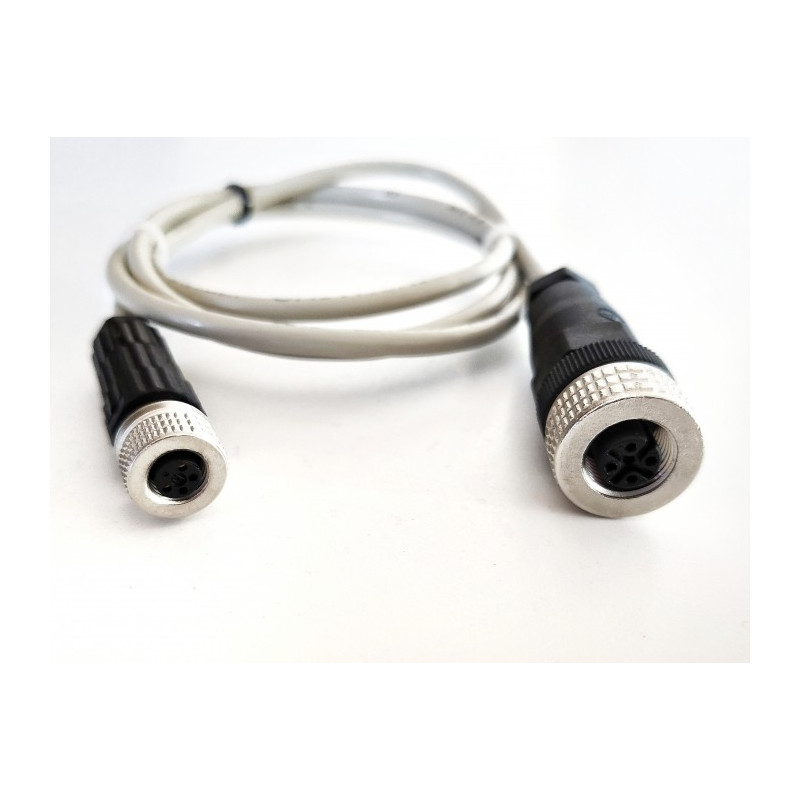

Probe for connection to 1, 2 or 4 meter extension cable - must be ordered.
The CO2 probes use M12 circular connector and cannot be directly connected -U2422 uses a M8 circular connector

Choose "Extension Cable"
