SONO-MIX MINI moisture and conductivity sensor for industrial use

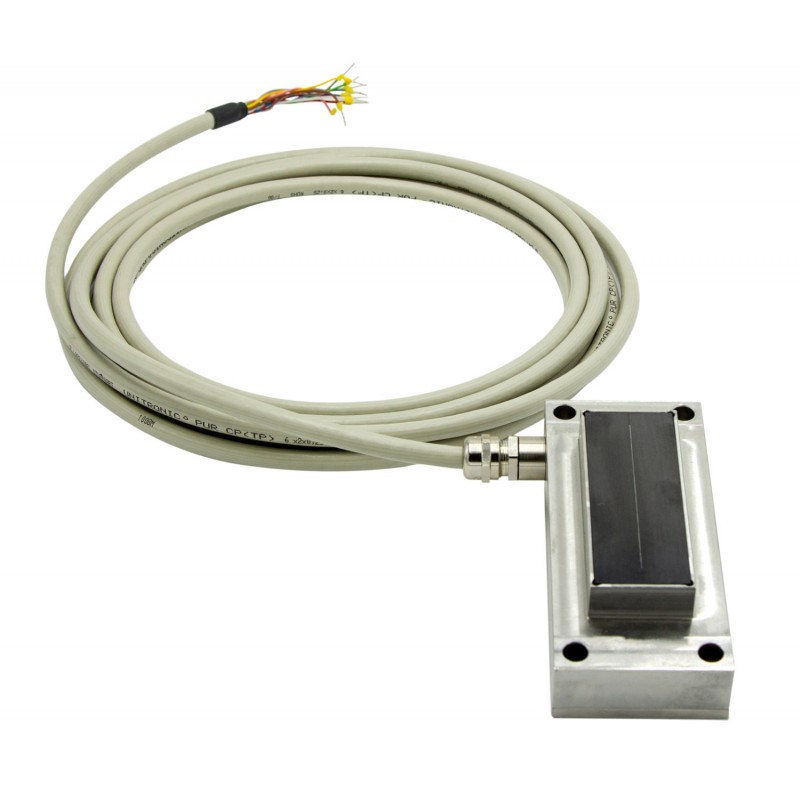

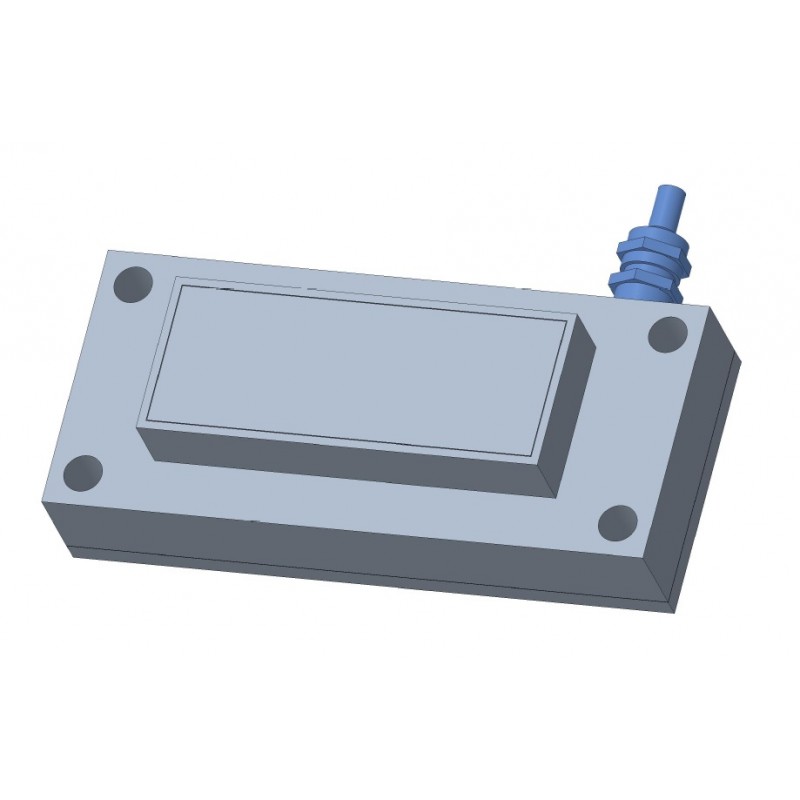

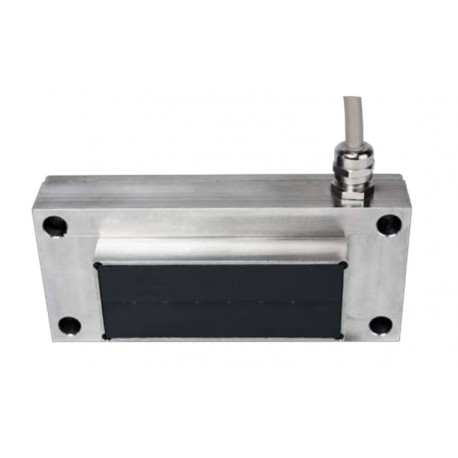

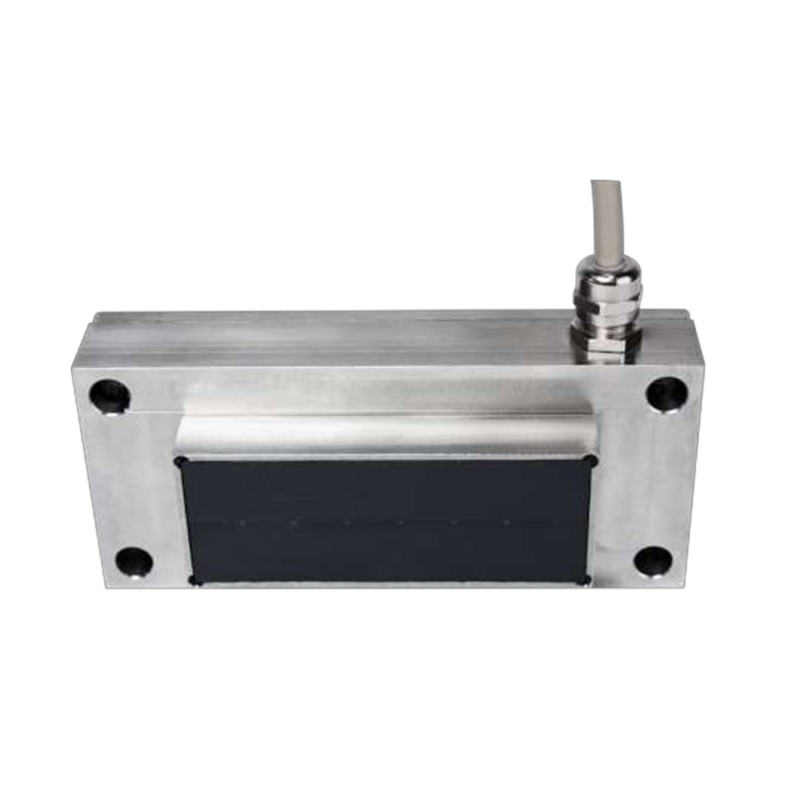

The SONO-MIX Mini is a mixing probe designed to accurately measure moisture and conductivity in industrial environments. The stainless steel housing and ceramic window of the SONO-MIX Mini ensure its durability and wear resistance, making it ideal for daily use in production plants. Integrated in the housing is a TRIME TDR transducer that creates a high-frequency TDR impulse with 1 GHz, running along waveguides and building an electromagnetic field around the waveguides and the probe within the material. The impulse duration is measured with a solution of one picosecond to determine moisture and conductivity.

Benefits

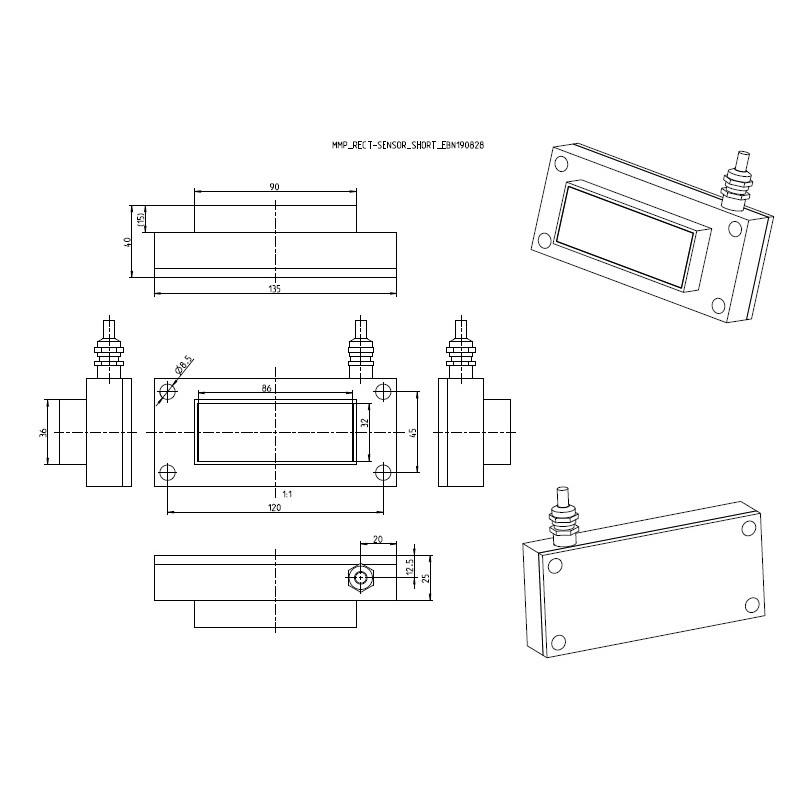

• The compact measuring window (90 x 36 mm) is perfect for use in limited areas of the plant.
• Avoids disturbing support arms in intensive mixers.
• The probe recalibrates automatically in case of abrasion.
• Easy to install even in screw conveyors and mobile mixers.
• Thanks to the special ceramics, the probe is extremely robust and long-lasting.
• Direct use in wipers is possible, avoiding problematic radio connections and battery changes.
• Precise measurement values due to the representative measuring field and disc-shaped radar scan.
• Measuring behavior is optimized for color and fine material proportions in the mix.

Applications

The SONO-MIX Mini mixer probe is perfect for installation in:

• Intensive mixers
• Special mixing units
• Containers
• Screw conveyors
• Material funnels
• Conveyor belts

As a special version LD or Xtrem, it is also suitable for general applications in process technology.
