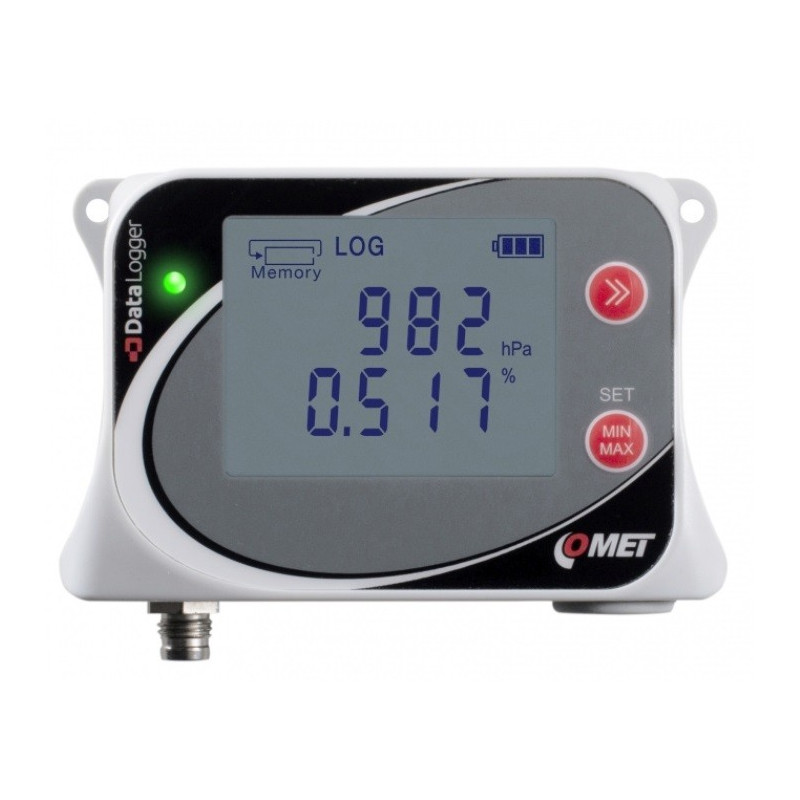

U2422 Datalogger for external CO2 probe up to 10.000 ppm, with built-in atmospheric pressure sensor

Reference

Condition: New

This is a Battery powered Data Logger with an internal atmospheric pressure sensor and allows for an external CO2 probe up to 10 000ppm.

Included in delivery:
- U2422
- Instruction Manual
- Traceable Calibration Certificate
- Rechargeable Battery
- Power Supply
- USB-C Cable
- FREE Analytical Software COMET Vision

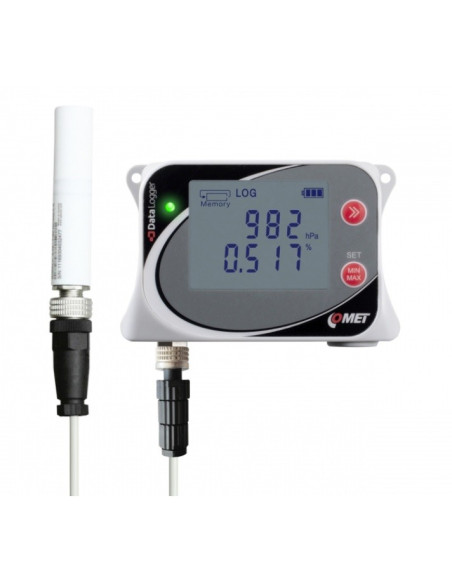

New CO2 probe for data logger: SN274 External CO2 probe, range 0-10,000ppm, with 1m, 2m or 4m UWP00 extension cable.

EXTERNAL CO2 SENSOR WITH 1, 2 OR 4 METERS CABLE ARE NOT INCLUDED IN DELIVERY.
THEY MUST BE ORDERED SEPARATELY. - see Accessories tab.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

265,00 €

tax excl.

Quantity

Sensor Options

Add to wishlist

OVERVIEW
SPECIFICATIONS
Data sheet
Download
Accessories

Environment of Use	Indoor
Type of Logger	Multicanal
Application	Air quality
With Display	LCD
IP Classification	IP54

U2422 Data Sheet Download (126k)

CO2 concentration...

SN274 CO2 external probe, range 0-10.000ppm, M12 connector, without cable
675,00 €

Add to cart

Set limits alarms are indicated by LED, LCD and acoustically by a built-in beeper.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via USB-C.

This Logger includes a Traceable Calibration Certificate with declared metrological traceability of etalons based on requirements of EN ISO/IEC 17025 standard.

Measured value
- Counted values (dew point…)
- CO2
- Atmospheric pressure

CO2 SENSOR
- Measuring range 0 to 10 000 ppm
- Accuracy 100 ppm + 5% of the measured value at 23 °C a 1 013 hPa
- Measuring range 0 to 50 000 ppm
- Accuracy ±(1,5 % from full scale +2% from the measured value)
- Resolution 1 ppm
- External probe cable length CO2 1, 2 or 4 meters

ATMOSPHERIC PRESSURE SENSOR SENSOR
- Measuring range 600 to 1100 hPa
- Accuracy ±1.3 hPa at 23 °C from 800 to 1100 hPa
- Resolution 0.1 hPa

GENERAL TECHNICAL DATA
- Operating temperature -20 to +60 °C
- Channels internal sensor for atmospheric pressure and CO2 sensor with the cable
- Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
- Recording interval adjustable from 10 s to 24 h
- Display and alarm refresh adjustable 1 s, 10 s, 1 min
Recording modes:
- noncyclic - data logging stops after filling the memory
- cyclic - after filling memory oldest data is overwritten by new
- Real time clock year, leap year, month, day, hour, minute, second
- Power battery SONY LiIon 5200mAh
- Protection class IP54
- Dimensions 61 x 93 x 53 mm
- Weight (including batteries) approx. 260 g
- Warranty 3 years
