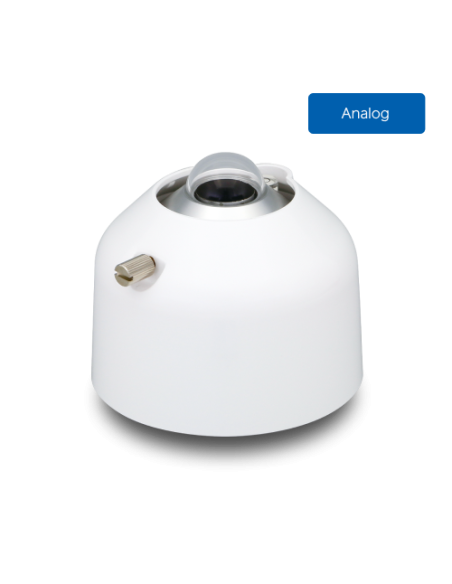

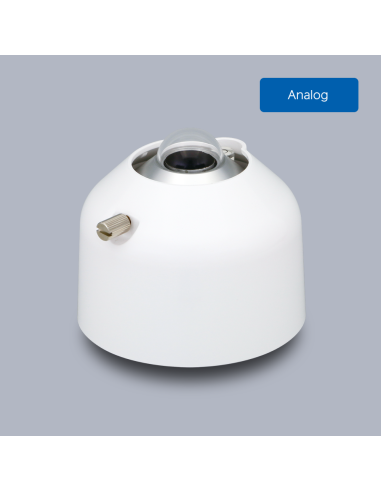

MS-40 Class C Pyranometer

Reference: MS-40 - Manufacturer: Eko Instruments

ISO 9060:2018 Class C pyranometer for agro-meteorological networks and small PV sites, with analog output and certified calibration.

Key Features:
■  Spectrally flat
■  Analog output
■  ISO 17025 certified calibration
■  5 year warranty

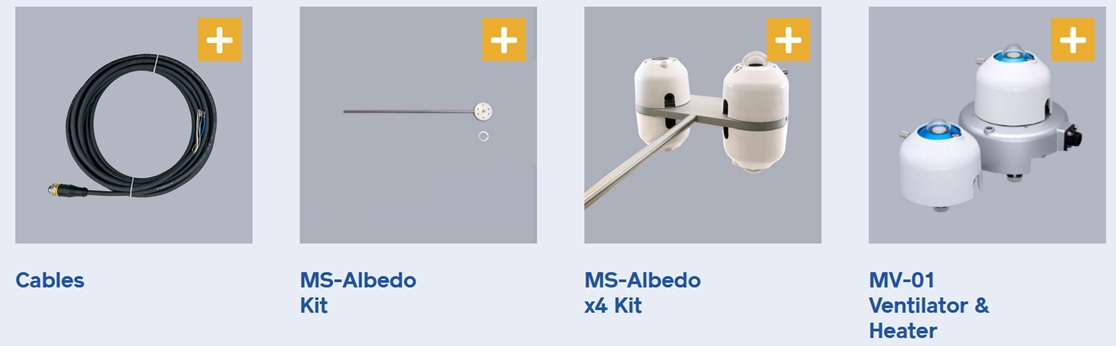

■  Optional MV-01 Ventilator & Heater

help_outlineAsk for Quote

MS-40 Class C Pyranometer

I accept privacy policy rules



Description

The MS-40 is an ISO 9060:2018 Class C pyranometer based on EKO's universal sensor platform. It is the most cost-effective option for measuring solar irradiance across the entire solar spectrum and is designed for agro-meteorological networks and professional small-scale PV sites.

It features an analog mV output and is compatible with the optional MV-01 ventilator and heater as well as the albedo mounting kit. EKO manufactures this sensor under strict quality controls and provides a unique calibration compliant with ISO 17025 and IEC 9847 international standards.

The instrument includes a 5-year warranty, a recommended recalibration interval of two years, and no requirement to change the desiccant, simplifying field maintenance.

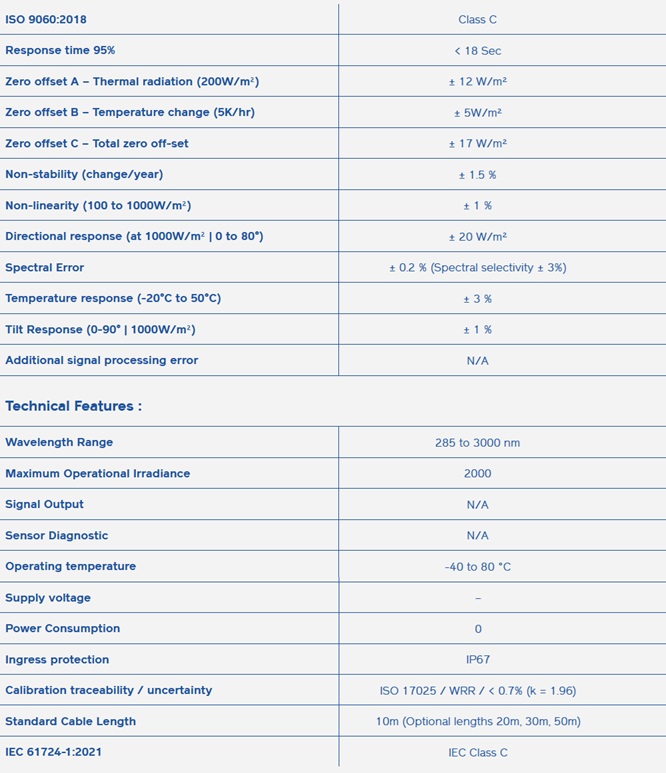

Specifications

  • ISO 9060:2018 classification: Class C.
  • 95% response time: < 18 s.
  • Zero offset A due to thermal radiation (200 W/m2): ± 12 W/m2.
  • Zero offset B due to temperature change (5 K/hr): ± 5 W/m2.
  • Total zero offset C: ± 17 W/m2.
  • Non-stability (change per year): ± 1.5 %.
  • Non-linearity (100 to 1000 W/m2): ± 1 %.
  • Directional response at 1000 W/m2 from 0 to 80 degrees: ± 20 W/m2.
  • Spectral error: ± 0.2 % (spectral selectivity ± 3%).
  • Temperature response (-20 to 50 C): ± 3 %.
  • Tilt response (0 to 90 degrees, 1000 W/m2): ± 1 %.
  • Additional signal processing error: N/A.
  • Wavelength range: 285 to 3000 nm.
  • Maximum operational irradiance: 2000.
  • Signal output: N/A.
  • Sensor diagnostic: N/A.
  • Operating temperature: -40 to 80 C.
  • Supply voltage: not required.
  • Power consumption: 0.
  • Ingress protection: IP67.
  • Calibration traceability / uncertainty: ISO 17025 / WRR / < 0.7% (k = 1.96).
  • Standard cable length: 10 m, optional 20 m, 30 m and 50 m.
  • IEC 61724-1:2021: IEC Class C.
