Surface Temperature probe Pt1000TG7/0, without connector, -50°C to +200°C

View larger

Pt1000TG7/0 Surface Temperature probe without connector, -50°C to +200°C

Reference

Manufacturer: Comet System

Condition: New

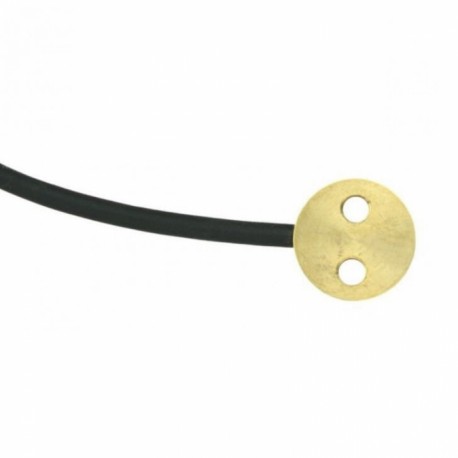

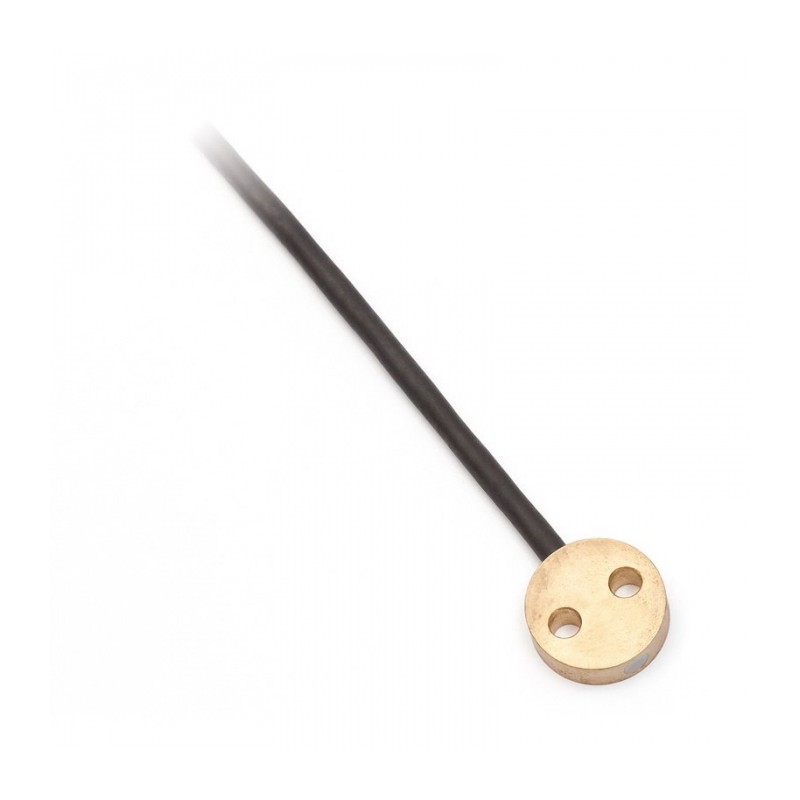

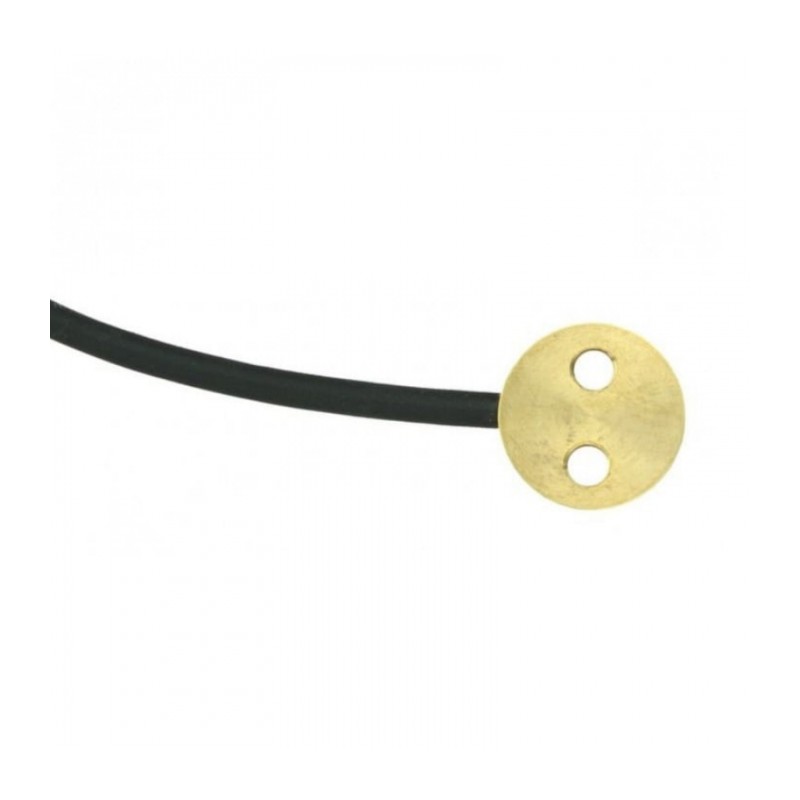

Comet Temperature probes Pt1000TG7 are designed to measure the surface temperature of solid substances.

Code: SN164

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

49,00 €

tax excl.

Quantity

Sensor Length

Add to wishlist

OVERVIEW
Data sheet
Download

The Sensor measures:	Temperature of a surface
Sensor IP Rating	IP65

Pt1000TG7/0 Data Sheet Download (1.53M)

Pt1000TG7/0 Manual Download (302.18k)

The maximum temperature range of use of the sensors is -50°C to +200°C and these limits must not be exceeded even for a brief period.
Used type of lead-in cable has silicone insulation and shielding.
The structure of the sensors enables fast response to changes in temperature.

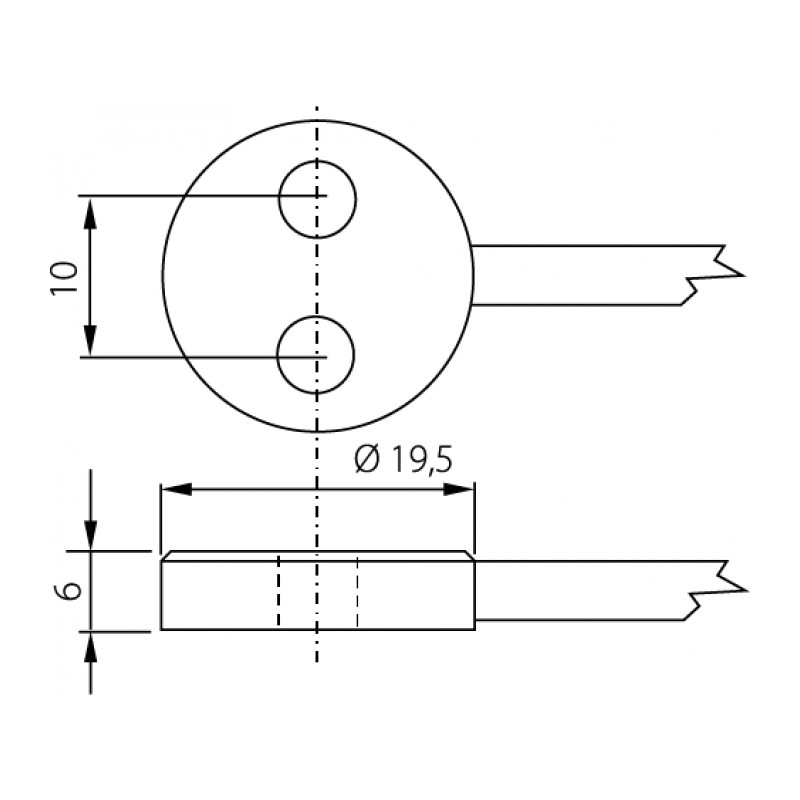

These sensors are mounted to the surface using one or two M4 screws.

They are designed for use in a chemically non-aggressive environment. The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.
