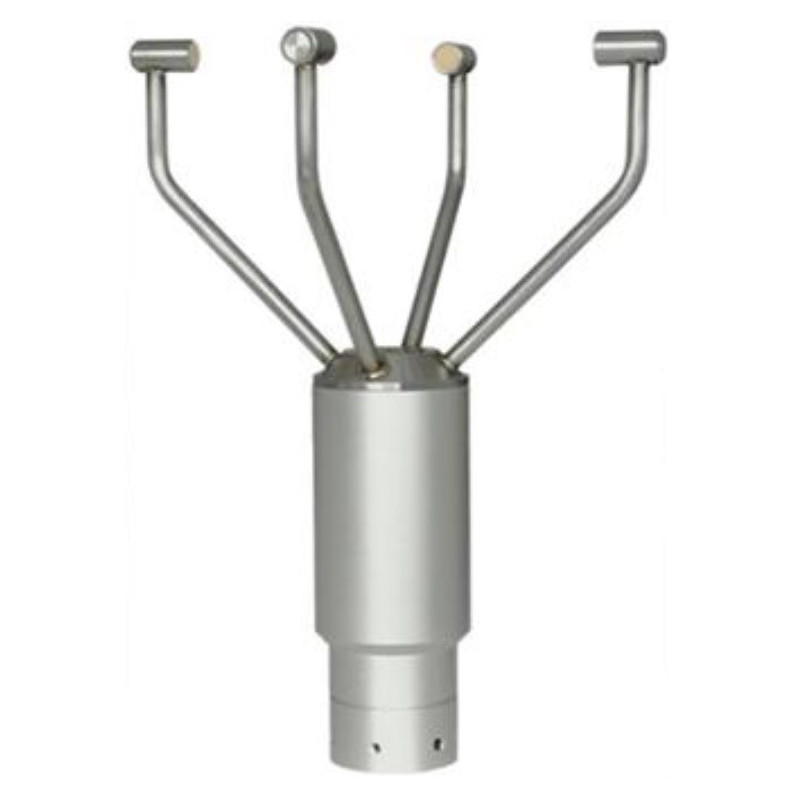

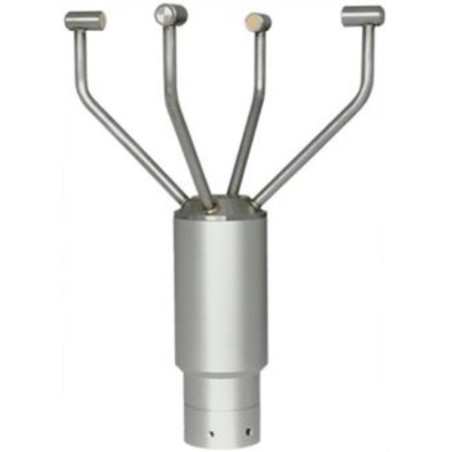

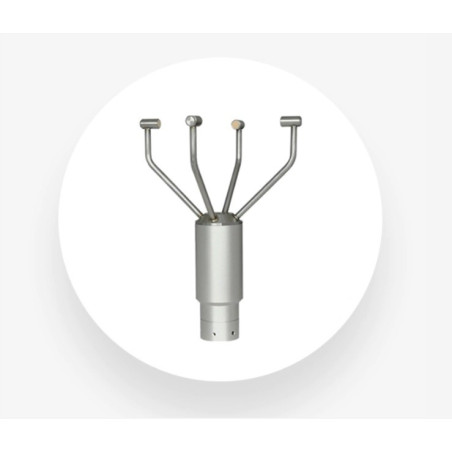

AO-120-08 Ultrasonic Wind Speed and Speed Sensor

Reference AO-120-08

Manufacturer: AO-Electronics

Condition: New

Certification: CE-EMC, CE-LVD, RoHS, ISO9001

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
Data sheet
Download

The Sensor measures:	Wind Speed/Direction
Output Signal:	RS485 (Modbus / NMEA-0183), 4-20mA, SDI-12, RS232
Power Supply:	12-24VDC (heating must be 24VDC)
Sensor IP Rating	IP66
Sensor for use in:	Outdoor

AO120-08 Data sheet Download (190.79k)

► AO-120-08 is an Ultrasonic Wind Speed and Direction Sensor whose working principle is ultrasonic transit time to measure wind speed and direction.
► The anemometer is lightweight with no moving parts for maximum durability. It does not require maintenance or calibration in the field.
► User can select wind speed unit, output frequency and output format and select heating device (recommended in cold environment) or analog output. It can be connected with computers, data acquisition systems, or other compatible ► RS485 or analog outputs for data collection.
► If necessary, you can also form a network of multiple units.
► The anemometer is an advanced wind speed and direction detection equipment. Because it can overcome the inherent flaws of a mechanical anemometer, it can work for much longer.
