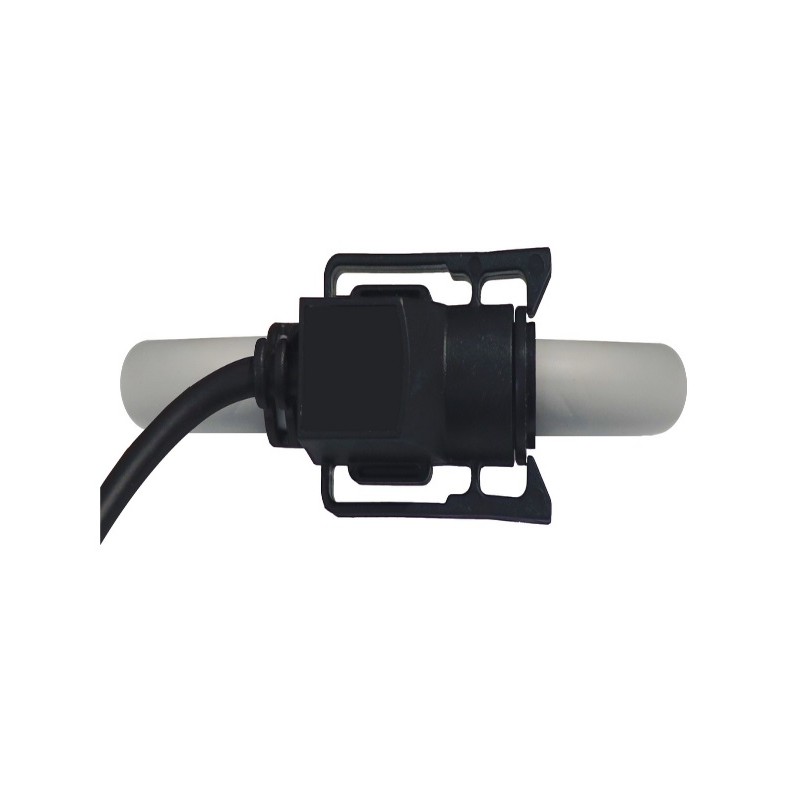

Meatrol AO-SRC Series Rogowski coil with high sensitivity and 333 mV output

► High linearity from 1A to 100kA
► Wide dynamic range
► Very useful with large size or awkward shaped conductors or in places with limited access
► No danger from open-circuited secondary
► Does not saturate with overcurrent and short circuits
► Non-intrusive, no power drawn from the main

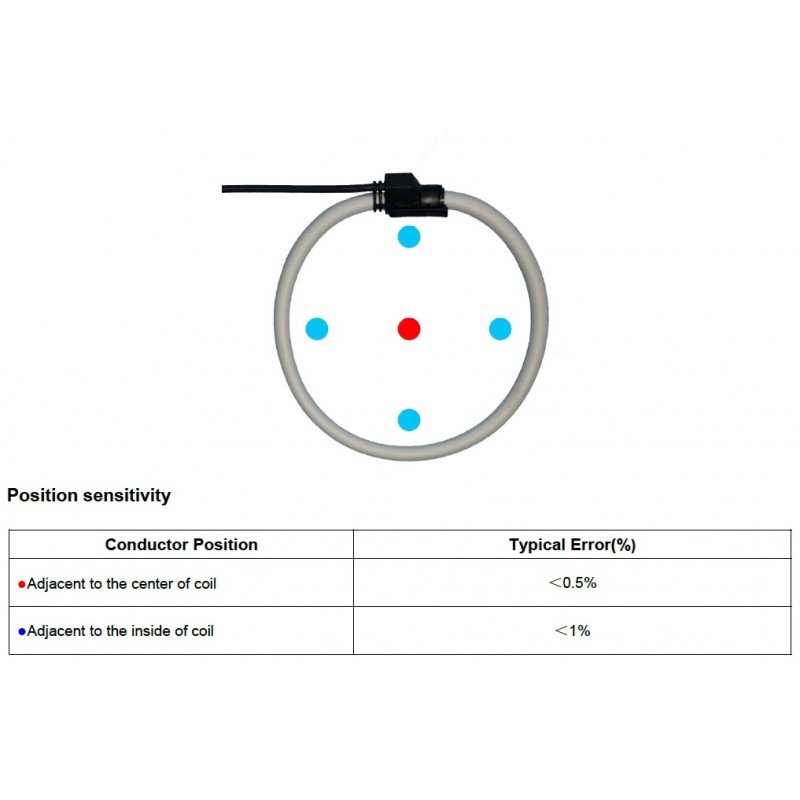

► Very low positioning error
► Excellent degree of rejection to the external current conductor
► Designed for outdoor use (UV, water, dust and ice standards)
► Rated insulation CAT III 1000 V PD2, CAT IV 600 V PD3
► Protection degree IP65(Option) ,indoor use
► Internal shield for enhanced measurement accuracy at low primary currents.

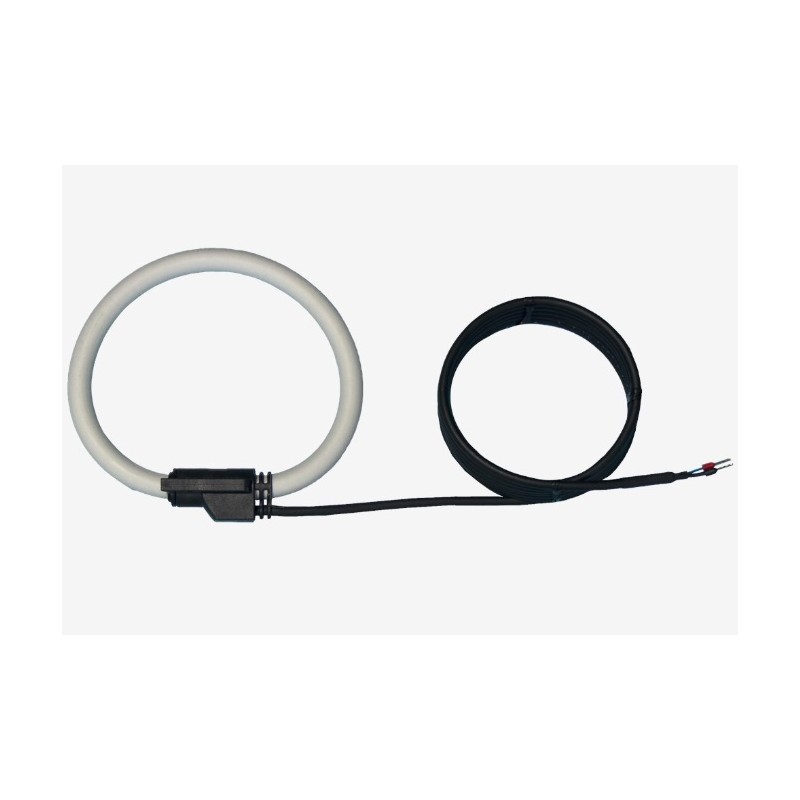

AO-SRC-100 models are flexible current transducers based on Rogowski principles, particularly suitable for measurements in combination with portable devices.

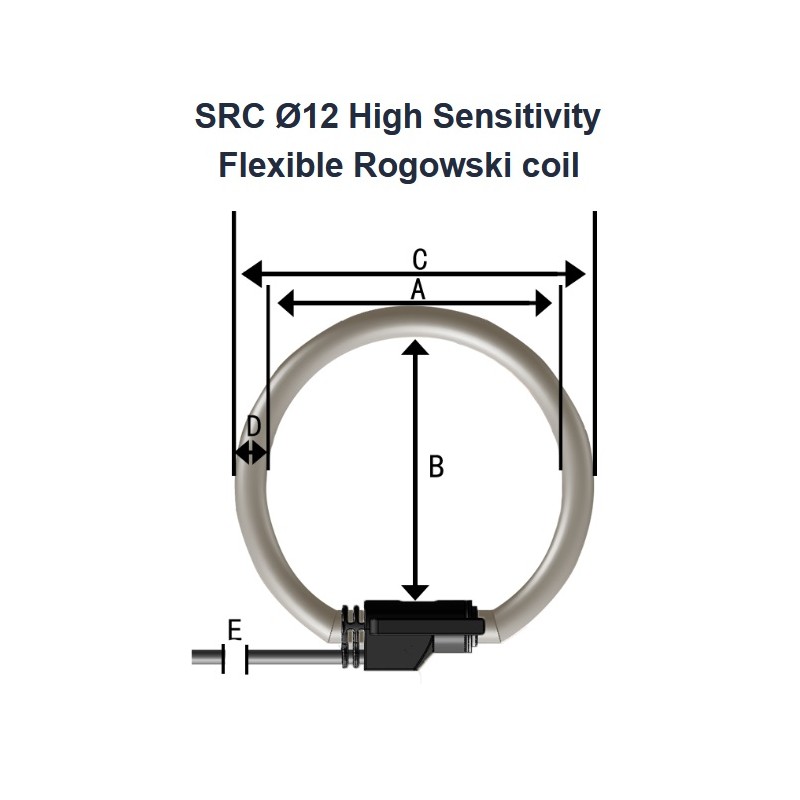

AO-SRC coils are available in different sizes and can be supplied according to customer’s design, therefore they can be used in all those applications, in which traditional transducers are not fitting due to its size and/or weight.
Due to its specific features, flexible Rogowski coil is an extremely confortable solution for current measurement and can be used in a number of cases where traditional current transducer is not the adequate solution.
SRC coils are provided with a shield against the influence of external magnetic fields, therefore it grants a stable measurements from low currents to hundreds of kA.
The Rogowski coils must be connected to an electronic integrator for 90° phase shift compensation and frequency equalization.
Our DIN-RAIL and panel meters can interface Rogowski coils directly without the need of the external integrators.
This is an advantage because there is no external boxes or any power supply with consequent ease of use.
The particular features of the Rogowski coils combined with the extremely flexible input programming of our portable meters, allow to perform measurements in all types of applications.

• Power meters, Power analyzer sensors
• Measuring devices, lab instrumentation
• Power monitoring & control systems
• DC ripple measurements
• Harmonics and transients monitoring
