PC110K (3999960174)
New

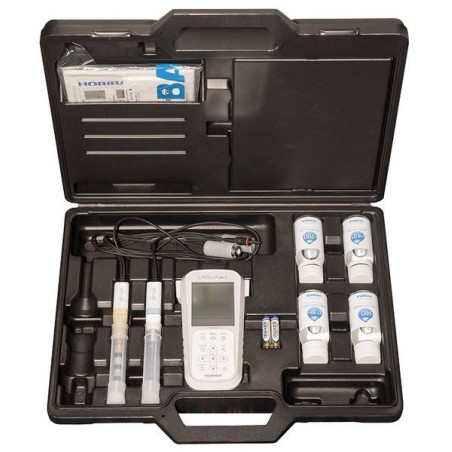

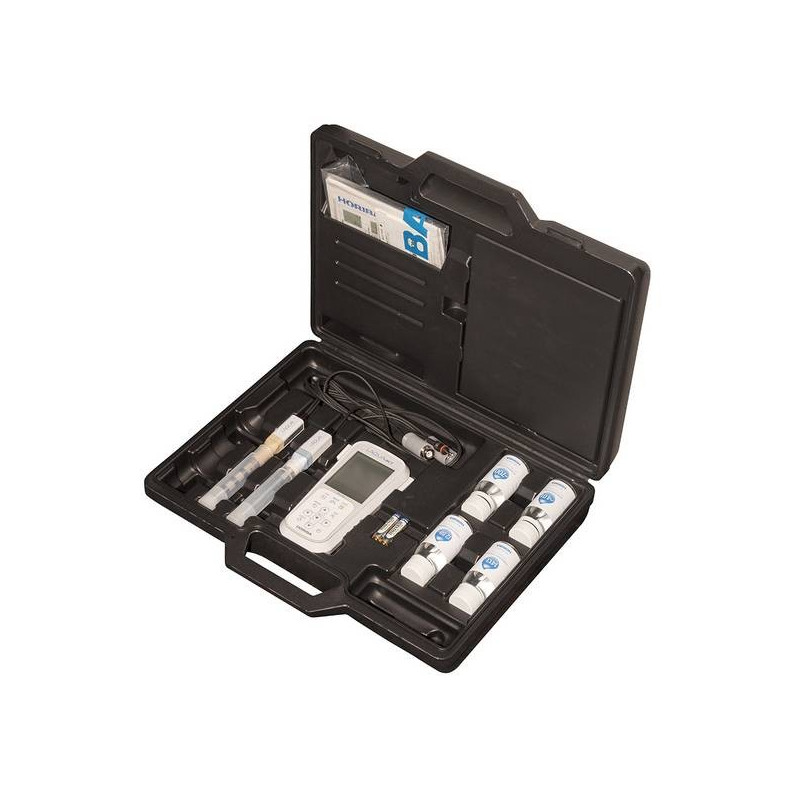

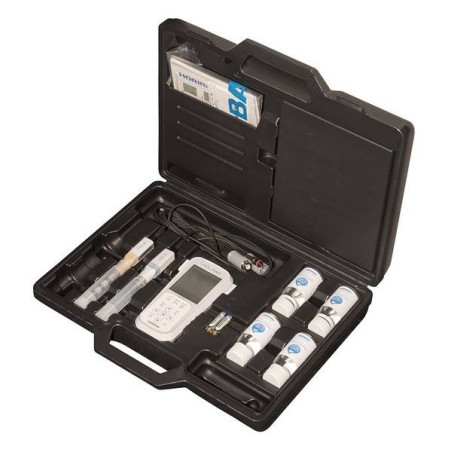

Handheld Water Quality Meters Kit (PC110K) (PC110 pH/ORP/EC/TDS/RES/SAL) in carrying case, 9651-10D pH electrode plastic-body gel-filled; 9382-10D plastic-body
Availability date:
Number of Channels | 2 channels |
With Display | LCD |
Communications | RS232C |
Memory Capacity | 1000 |
The Sensor measures: | pH/ORP/EC/R/TDS/Sal./Temp |
Power Supply: | 2xAAA/Ni-MH/power adaptor |
Sensor for use in: | Water Quality |

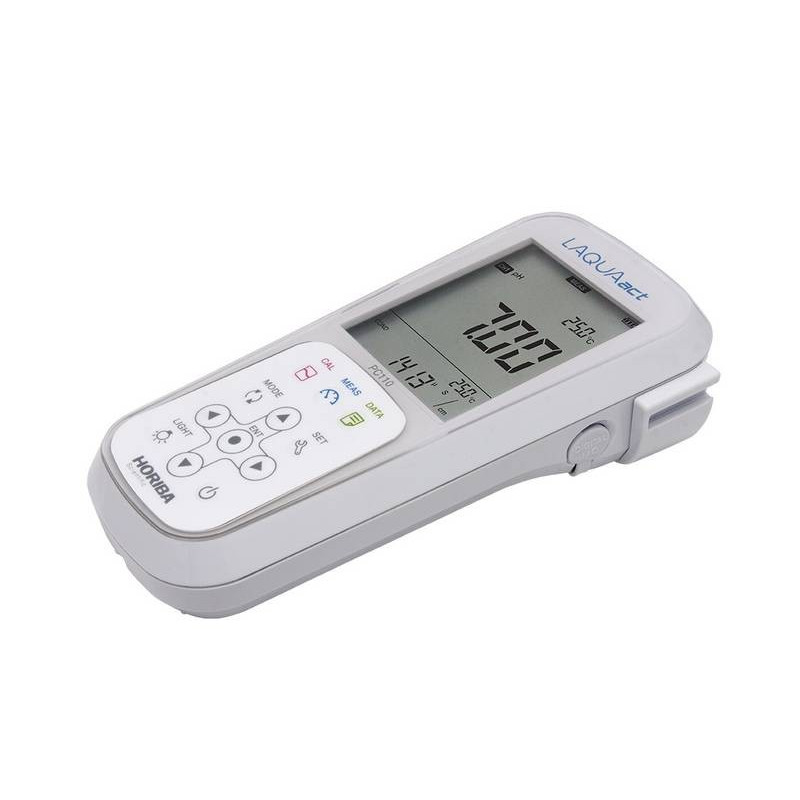

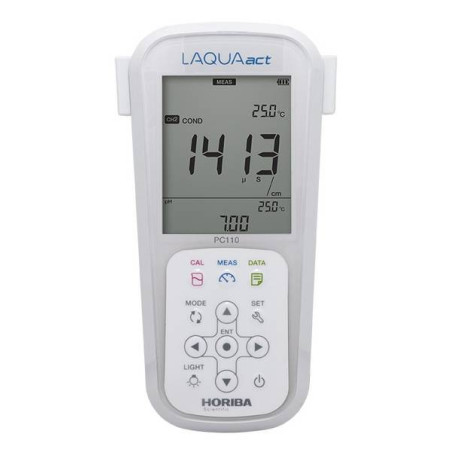

- LAQUAact PC110 Dual channel pH/ORP/EC/Res/TDS/Sal/Temp handheld meter with built-in electrode holder and 2 x AAA batteries
- 9651-10D plastic-body, gel-filled pH electrode with integrated temperature sensor
- 9382-10D plastic-body, titanium/platinum black, conductivity probe (k=1.0) with integrated temperature sensor
- 4.01 & 7.00 pH buffers, 1413 µS/cm, 12.88 mS/cm conductivity solutions (60ml each)
- Instruction manual
- Carrying case
- Dual channel, switchable display
- Automatic pH calibration up to 5 points using NIST, USA or Custom pH buffers
- 0.01 pH resolution
- Offset and slope display
- Automatic / manual temperature compensation
- Temperature calibration function
- Automatic / manual conductivity calibration up to 4 points
- Adjustable reference temperature and temperature coefficient
- Selectable cell constant and measurement unit
- Resistivity, salinity, and total dissolved solids (TDS) conversions from conductivity
- Four TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl
- Two salinity calibration curves: NaCl, Seawater
- Auto log data
- Built-in memory can store up to 1000 data
- Auto shut-off (programmable: 1 to 30 minutes)
- Auto-Hold / Auto-Stable measurement
- Calibration alarm (programmable: 1 to 400 days)
- Built-in electrode holder allows 2 electrodes to be attached on both sides of the meter
- Large backlit LCD: 52mm x 64mm
- RS232C output for connecting the meter to a compatible printer or computer
- IP67-rated case: waterproof (withstand 30 mins. immersion in 1m depth of water) and dustproof
- Powered by 2 x AAA (LR03) or Ni-MH rechargeable batteries or power adaptor
- Packaged in new molded carrying case
- 2 years meter warranty
Model |
LAQUAact PC110 Dual Channel pH/ORP/EC/Res/TDS/Sal/Temp(°C) |
---|---|
pH Range |
-2.00 to 16.00 pH |
Resolution |
0.01 pH |
Accuracy |
± 0.01 pH |
Calibration Points |
Up to 5 |
Buffer Options |
USA / NIST / Custom |
ORP Range |
± 2000 mV |
Resolution |
1 mV |
Accuracy |
± 1mV or 0.2% of reading (Whichever is greater) |
Conductivity (EC) Range |
0.000 µS/cm to 20.00 mS/cm (k=0.1) 0.00 µS/cm to 200.0 mS/cm (k=1) 0.0 µS/cm to 2.000 S/cm (k=10) |
Resolution |
0.05% of full scale |
Accuracy |
± 0.6% of full scale; ± 1.5% of full scale > 18.0 mS/cm |
Reference Temperature |
15 to 30 °C (Adjustable) |
Temperature Coefficient |
0.00 to 10.00 % (Adjustable) |
Cell Constant |
0.1 / 1.0 / 10.0 (Selectable) |
Calibration Points |
Up to 4 (Auto / Manual) |
Unit Setting |
µS/cm, mS/cm, S/m (Auto-ranging / Manual) |
TDS Range |
0.00 mg/L to 100 g/L (TDS factor=0.40 to 1.00) |
Resolution |
0.01 mg/L |
Accuracy |
± 0.1% of full scale |
Calibration Curves |
EN27888 / 442 / Linear / NaCl |
Resistivity Range |
0.0 Ω•cm to 2.000 MΩ•cm (k=10) 0.000 kΩ•cm to 20.00 MΩ•cm (k=1) 0.00 kΩ•cm to 200.0 MΩ•cm (k=0.1) |
Resolution |
0.05% of full scale |
Accuracy |
± 0.6% of full scale; ± 1.5% of full scale > 1.80 MΩ•cm |
Salinity Range |
0.0 to 100.0 ppt / 0.00 to 10.00 % |
Resolution |
0.1 ppt / 0.01 % |
Accuracy |
± 0.2% of full scale |
Calibration Curves |
NaCl / Seawater |
Temperature Range |
-30.0 to 130.0 °C |
Resolution |
0.1 °C |
Accuracy |
± 0.4 °C |
Calibration Option |
Yes |
Memory Data |
1000 |
Auto Log Data |
Yes |
Real-time Clock |
Yes |
Date / Time Stamp |
Yes |
Auto-Shut Off |
Yes (Programmable: 1 to 30 minutes) |
Auto-Hold / Auto-Stable |
Yes |
Offset / Slope Display |
Yes (Independent acid and alkaline slopes depending on calibration) |
Calibration Alarm |
Yes (Programmable: 1 to 400 days) |
Electrode Status |
On screen display |
Diagnostic Messages |
Yes |
Display |
Custom Backlit LCD / Dual Channel / Switchable Display |
Inputs |
2 x BNC, 2 x phono, DC sockets |
Output |
RS232C |
IP Rating |
IP67, shock-resistant |
Power Requirements |
2 x AAA (LR03) or Ni-MH rechargeable batteries, or power adaptor |
Battery Life |
> 200 hours |
