SMR49 Chlorine Dioxide Analyzer for Water Quality

The Chlorine Dioxide Meter housing in a robust IP68 proof enclosure, 1000 N tensile strength cable, up to 1.2 km digital data transmission, ClO2 Analyzer is ideally used in water/wastewater industry.

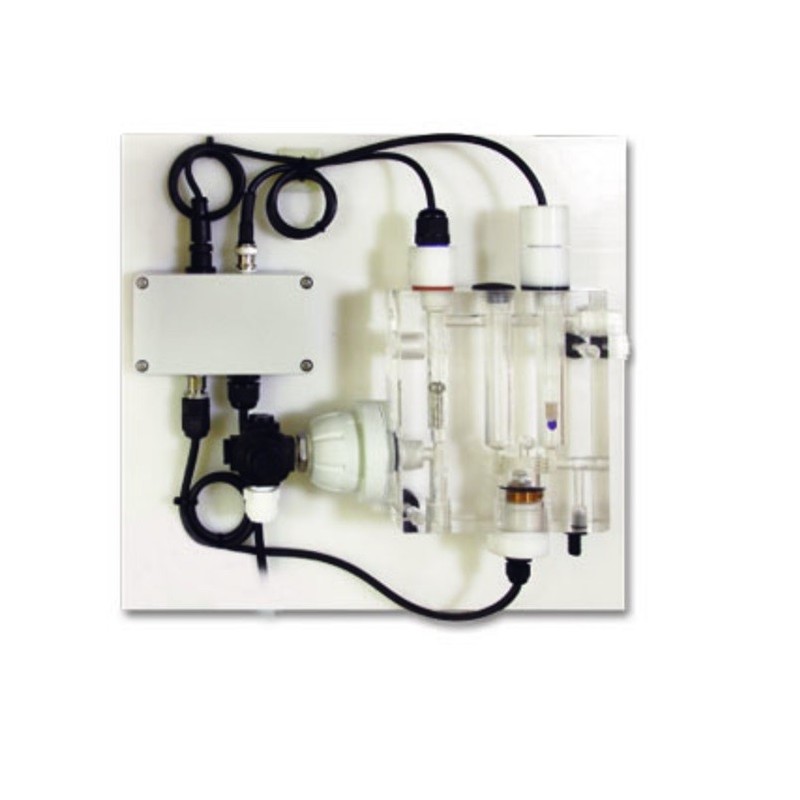

The amperometric electrode measurement cell consists of two combination probes that uses a platinum cathode and a copper anode electrode to amperometrically measure dissolved ozone, There is no need for chemical reagents, and the glass balls inside rotates continuously to remove the hydrogen gas from the electrodes. An electrochemical reaction occurs within these electrodes, based on the available chlorine concentration, generating a propotional current. The whole unit includes ow indicator, dissolved ozone electrode and mounting plate. Optional pH and temperature sensors for compensation are available.

■ Robust IP68 Water Submersible Enclosure, Solution Without Cabinet

■ 1 sec On-line Realtime Measurement

■ 0.05 W Ultra Low Power Consumption, Ideal for Outdoor Applications

■ Temperature Compensation

■ High Reliability, Drift Free

■ Lightening and Surge Protection for Power and RS485 Communication

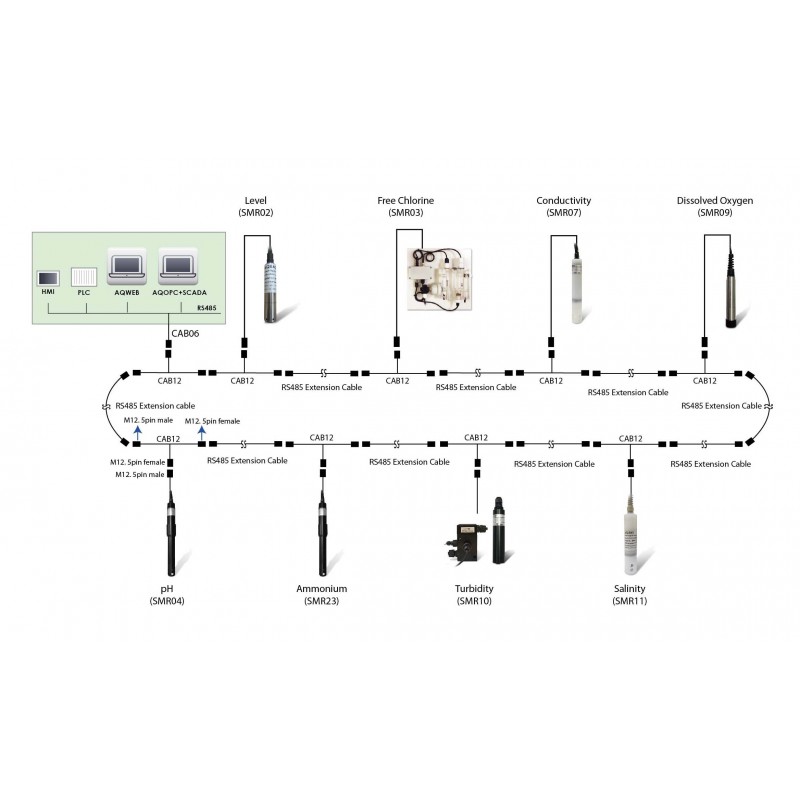

■ 1.2 Km RS485 Digital Communication, Minimize Cabling and Engineering Cost

■ Software Configuration Calibration and Data Monitoring

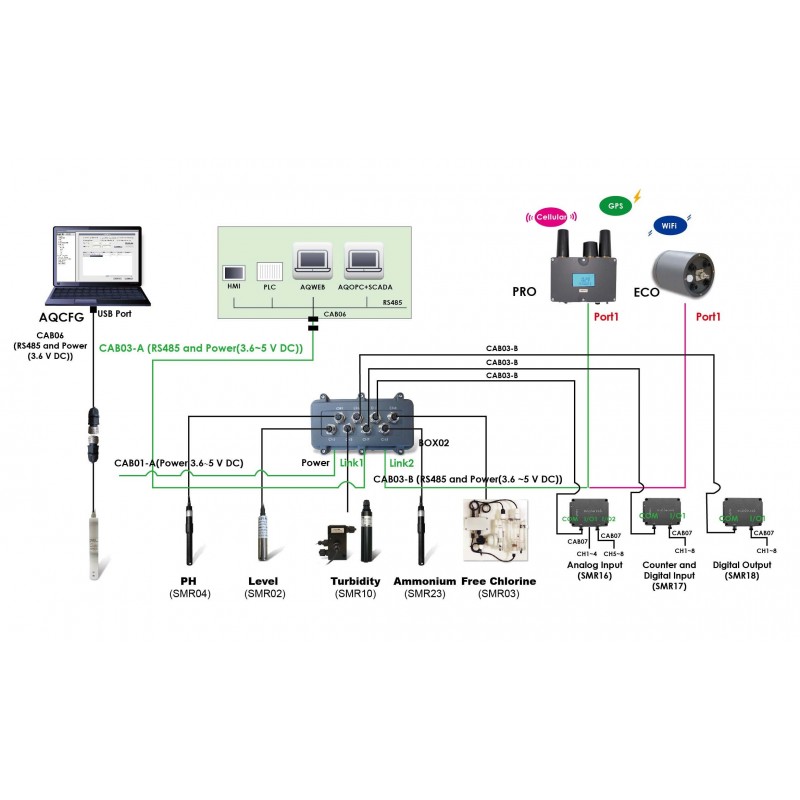

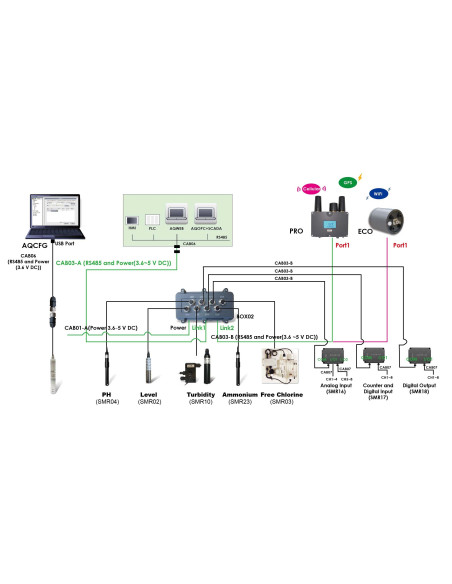

■ Standard Modbus RTU Protocol, Direct Connected with PLC, HMI, Eliminate I/O Module Cost

■ Auto Cleaning, Almost No Maintenance

■ No Reagent and Membrane, Almost No Consumable

■ Not Affected by Pressure Fluctuation(1~15kg f/cm2)

■ pH Compensation (pH 6-8)

■ Integration Additional Sensors such as Conductivity, TDS or ORP

■ Onboard memory allowing users to easily calibrate and configure sensor at lab and distribute to various fields sites

■ No Inlet Water Alarm Output

Type	SMR49-1: Chlorine Dioxide Analyzer (without pH sensor compensation) SMR49-2: Chlorine Dioxide and pH Analyzer (with pH sensor compensation)
Measurement range	0 ~ 5 ppm; 0~20 ppm (optional)
Accuracy	0.01 ppm (0~0.5 ppm); 0.02 ppm (0.5~2 ppm); 0.1 ppm (2~5 ppm); 0.2 ppm (5~20 ppm)
Resolution	0.01 mg/L
Repeatability	±1% FS
Temperature compensation	0~85 °C
Automatic pH compensation	6-9 pH (SMR49-2)
First setup time	4 hours
Process flow rate	Min. 0.8 l/min
Auto cleaning	rotating glass ball
Electrode material	platinum (cathode), copper (anode)
Operating pressure	0~20 Kgf/cm2
Operating temperature	0~85 °C
Response time	3 secs
Protection	IP68
Temperature Sensor	Pt100
Temperature measurement range	0~65 °C
Temperature accuracy	±0.5 °C
Housing	Acrylic
pH Sensor
Measurement range	0~14 pH
Accuracy	0.01 pH
Resolution	0.01 pH
Repeatability	±1% FS
Operating pressure	Max. 10 Kgf/cm2 (optional)
Operating temperature	0~85 °C
Process flow rate	0.1l /min
Response time	1 sec
Dimension	SMR49-1: 152(W)x168(H)x118(D) mm SMR49-2: 215(W)x300(H)x155(D) mm
Weight	SMR49-1 analyzer: approx. 300 g; SMR49-2 analyzer: approx. 500 g; cable: 80 g/m

Typical Application

Type	Applications	Measurements	Order Selections
A	Source Water (River, Reservoir)	Pressure Level pH Temperature Conductivity Dissolved Oxygen Turbidity     Nitrate (NO3- ) Ammonium (NH4+) Chloride (CL-) Nitrite (NO2-)	SMR01 SMR02 SMR04 SMR06 SMR07 SMR09 SMR10 SMR21 SMR23 SMR27 SMR28
B	Ground Water	Pressure Level pH Temperature Conductivity	SMR01 SMR02 SMR04 SMR06 SMR07
C	Water Treatment	Pressure Level Free Chlorine pH Conductivity TDS Turbidity Salinity Differential Pressure	SMR01 SMR02 SMR03 SMR04 SMR07 SMR08 SMR10 SMR11 SMR14
D	Water Distribution	Pressure Level Free Chlorine pH Temperature Conductivity TDS Turbidity	SMR01 SMR02 SMR03 SMR04 SMR06 SMR07 SMR08 SMR10
E	Wastewater Effulence	Level pH Temperature Conductivity Dissolved Oxygen Suspended Solid Nitrate (NO3-) Chloride (CL-)	SMR02 SMR04 SMR06 SMR07 SMR09 SMR12 SMR21 SMR27
F	Fisheries, Aquarium and Aquaculture	Level pH Temperature Dissolved Oxygen Turbidity Salinity Level Free Chlorine ORP Temperature Nitrate (NO3-) Ammonium (NH4	SMR02 SMR04 SMR06 SMR09 SMR10 SMR11 SMR02 SMR03 SMR05 SMR06 SMR21 SMR23
G	Factory, Commercial Building	Conductivity TDS Humidity and Temperature Differential Pressure	SMR07 SMR08 SMR13 SMR14
H	Weather	Humidity Barometer Wind Speed and direction	SMR13 SMR15 SMR24
I	Environment I     (Strain, Landslide, Level)	Rain Gauge Pyranometer Level (water pressure) Vibration Wire Input Noise	SMR29 SMR30 SMR02 SMR19 SMR26
