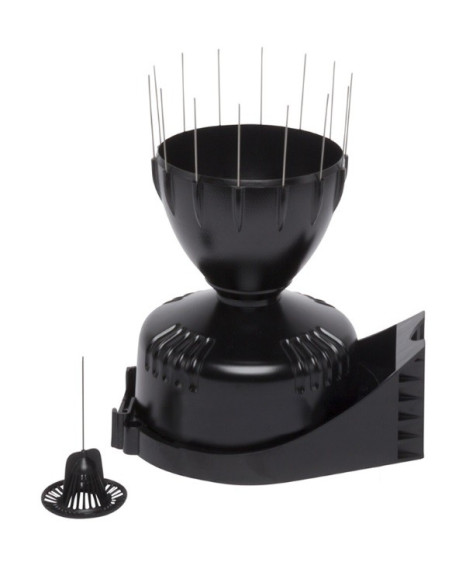

6466M Davis Rain Gauge with AeroCone™ & support for mast mounting

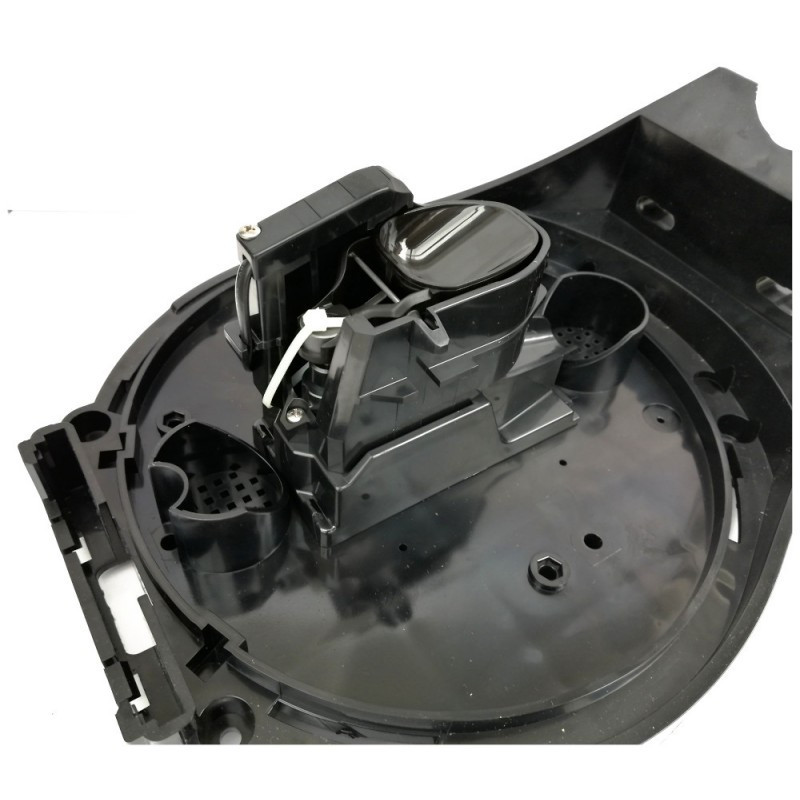

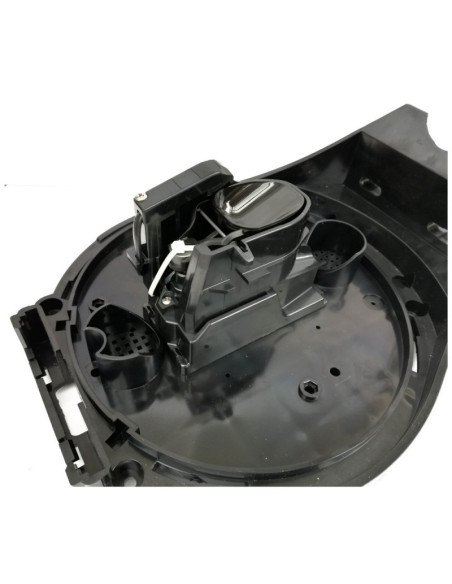

The AeroCone ™ rain gauge accurately measures the amount of rainfall dropped by an automatic drain rocker. It has a reed switch that closes each time the weight of the accumulated water makes swing the rocker, which produces a pulse that can be recorded by a datalogger or pulse counter.

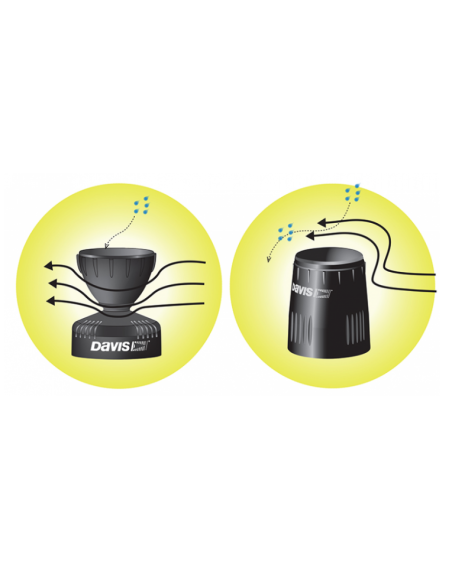

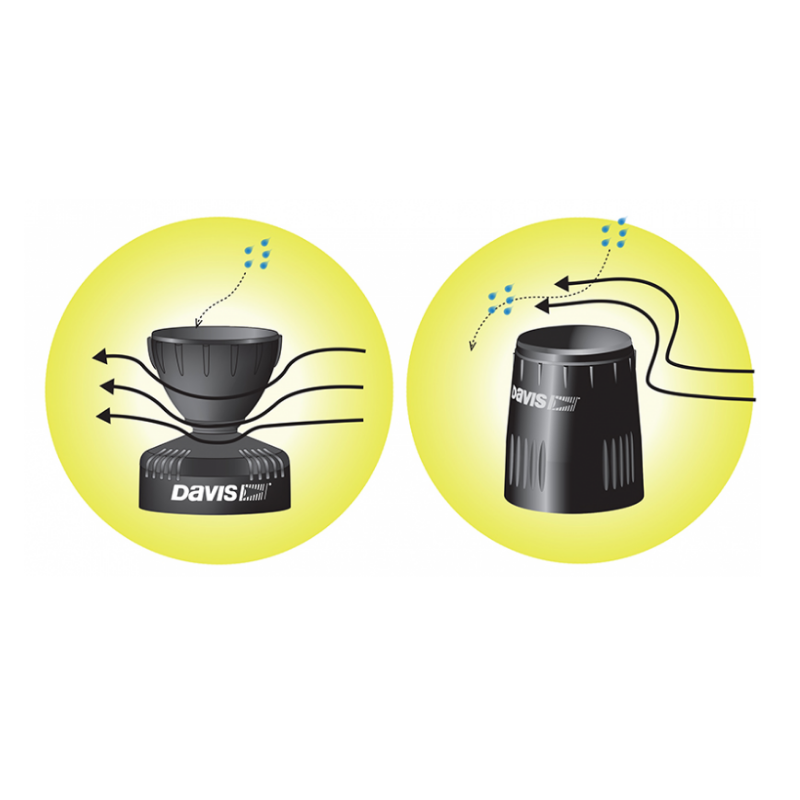

The instrument features an aerodynamic cone that increases accuracy in strong wind conditions, and is specially designed to comply with the guidelines established by the World Meteorological Organization (WMO).

The rain gauge accurately measures the amount of rainfall dropped by means of an automatic drain rocker.
It has a reed switch that closes every time the weight of the accumulated water makes swing the rocker, which produces a pulse that can be registered by a datalogger type HOBO UA-003-64 or pulse counter.

It includes a cable of 12 meters in length, a filter with system of fixation to avoid that can be dropped or to be displaced by the wind and a base with mast mount support and set of anti-bird skewers.

Sensor Specifications:

• Collection Area: 200 cm2
• Resolution: 0,2 mm
• Precision: ±4%

Electrical Specifications:

• Output Signal: reed relay

Mechanical Specifications:

• Material: ABS plastic resistent to UV radiation
• Dimensions: ∅ 165 x 240 mm
• Weight: 1 Kg
