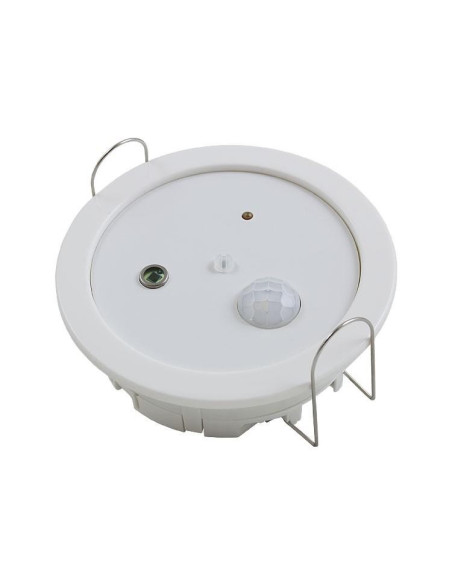

AO-BHT-D/A Motion/Brightness and Temperature Probe for Ceiling Mounting
- motion yes/no
- 0-1 kLux
- 0...50°C
- 0-10 V, change-over contact
- holding time 5 sec. up to 15 min.
The motion brightness and temperature sensor AO-BHT-D/A measures movements in the area of 360° with a range of about 10 m by an infrared sensor, brightness from 0-1 kLux by a photo diode and the temperature from 0...+50°C.
The holding time of the motion detector can be defined by a 270° potentiometer from 5 seconds to 15 minutes.
The unobtrusive housing with snap fastening and torque/pole-protected plug is suitable for quick mounting in suspended ceilings.
The motion sensor is ideal for control processes, such as temperature and lighting control systems in offices.
| Measuring principle | alteration of position from persons and subjects with an temperature difference of > 3 K to the sensor |
|---|---|
| Measurement range motion | motion yes/no, apex angle 90°/110° on 360° range, reach 10 m |
| Measurement range brightness | 0-1 kLux (0-0,5 kLux, 0-20 kLux, 0-50 kLux on request) |
| Measurement range temp. | 0...+50°C |
| Accuracy | Lux: ±10% FS, Temp.: ±1 K |
| Response time (t90) | Brightness/Motion: < 1 s, Temperature: < 60 s |
| Sensor | infrared motion sensor MTS 10/360, photodiode, NTC10k |
| Sensor protection | mounted inside housing |
| Alarm output | potential-free change-over contact max. 48 V (1 A), threshold can be defined by 270° potentiometer |
| Holding time | adjustable from 5 sec. up to 15 min. by 270° potentiometer |
| Supply voltage | 24 V AC/DC (±5%) |
| Current consumption | max. 40 mA at 24 V DC |
| Electrical connection | screw/plug terminals max. 1,5 mm² |
| Housing | ABS polyman, colour signal white like RAL 9003 |
| Dimensions | Housing: Ø 80 mm, Cover: Ø 95 mm, Mounting depth: 50 mm |
| Protection type | IP20 |
| Protection class | III |
| Working range r.H. | 0...98% r.H. in contaminant-free, non-condensing air |
| Working temperature | 0...+50°C |
| Storage temperature | -20...+50°C |
| Installation | in the false ceiling by 2 tension springs |
| Approvals | CE-conformity, EAC, RoHS |
