> >>TMC6-HE Surface/Pipe Temperature Sensor (-40ºC to +100ºC)
TMC6-HE Surface/Pipe Temperature Sensor (-40ºC to +100ºC) View larger

TMC6-HE Surface/Pipe Temperature Sensor (-40ºC to +100ºC)

Onset

New

69,00 €

tax excl.

Add to wishlist

The Sensor measures: Temperature of a surface
Cable Length: 1.8 m
Sensor for use in: Outdoor

Surface temperature sensor TMC6-HE for pipes or flat surfaces. A faster response version of our TMC6-HD complete with a plated copper sensor probe.
It can be mounted on a pipe or flat surface. The sensor includes accessories for either strapping to a pipe or attaching to a flat surface.

Features:

  • Faster response time
  • Suitable for pipe mounting
  • Accessories included

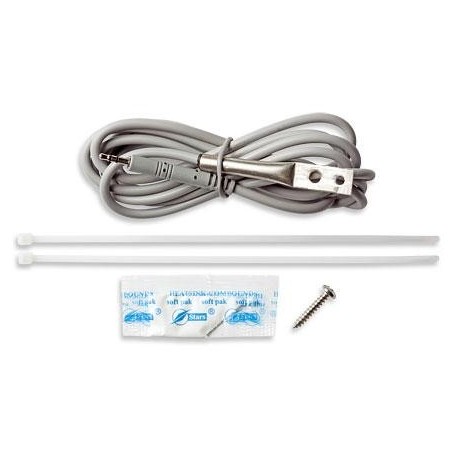

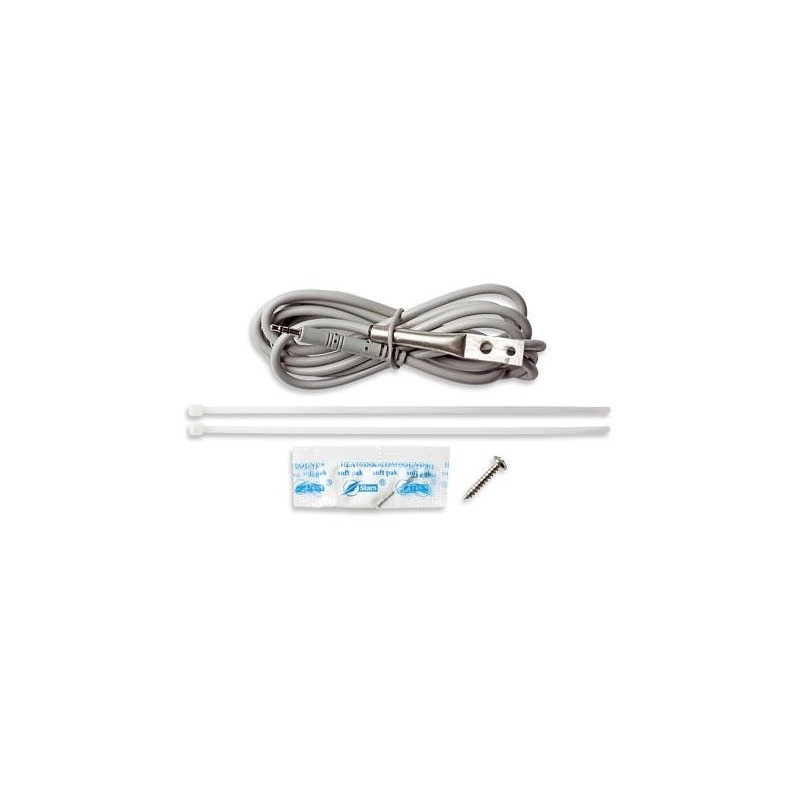

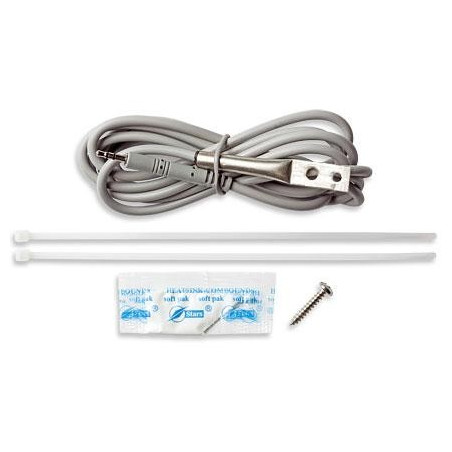

Parts Included:

  • Thermal grease is included for improved thermal conductivity.
  • two tie wraps
  • a screw

Specs:

Dimensions: Probe: L 2.3”, W .38”, diam. of tube .25” (5.8 x 0.9 x 0.63 cm)

Range: -40 to +100 C (-40 to 212 F) in air

Accuracy: +/- 0.21°C from 0° to 50°C (0.38°F from 32° to 122°F)

Response time in air: 2 min. typical to 90% in air moving 1 m/sec (2.2 mph)

Response time on a pipe: Typically 2 times faster than the TMCX-HD. Typically less than 1 minute to
90%.

Housing: plated-copper sensor tip

Weight: 34 g (1.1 oz)

Probe dimensions: 0.9 cm x 5.8 cm (.38' x 2.30')

Resolution: 0.03 @ 20 degree C (0.05 degree @ 68 degrees F)
