> >>SD-TEMP Temperature sensor for pipes & walls

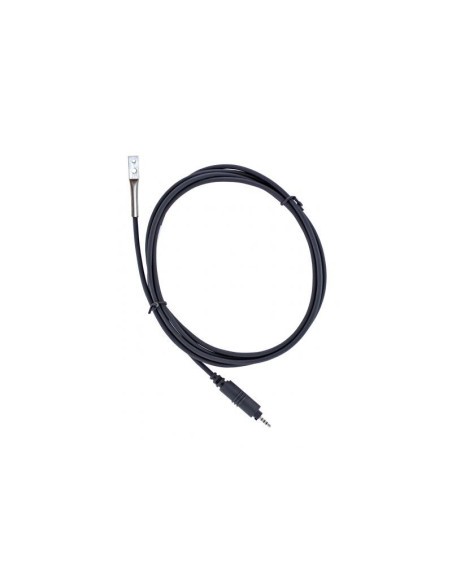

SD-TEMP-P-06 Temperature sensor for pipes View larger

SD-TEMP Temperature sensor for pipes & walls

SD-TEMP

Onset

New

  • Self-Describing technology for a quick & easy set up.

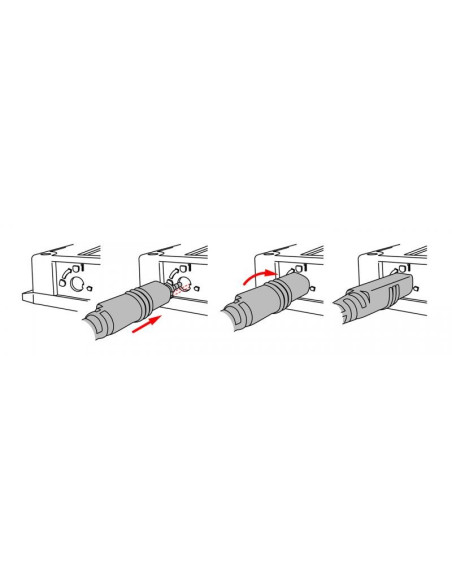

  • A Locking jack ensures sensor is connected and stays connected
  • Measurement range of -40° and 100°C (-40° to 212°F)
  • Accuracy of ±0.15°C from 0° to 70°C (±0.27°F from 32° to 158°F)
  • Available in 1.8 m (6 ft)
  • Faster response time
  • Suitable for use on tubes, pipes and floors or walls

88,00 €

tax excl.

Add to wishlist

The Sensor measures: Temperature in Pipes
Cable Length: 1.8 m

SD-TEMP Data Sheet Download (63.92k)

SD-TEMP Specs Download (371.85k)

This temperature sensor, for use with HOBO MX1104 and MX1105 multi-channel data loggers, is suitable for pipe mounting and offers integrated strain relief, so the probe is secured to the data logger.

It features Self-Describing technology to automatically communicate configuration information to the logger, without any programming or extensive user setup.

In what environment does this sensor operate?
This sensor operates in indoor and outdoor environments.

What measurements does this sensor support?
The SD-TEMP-P-06 sensor supports the following measurements: Soil Temperature and Temperature

Measurement Range -40° to 100°C (-40° to 212°F)
Accuracy ±0.15°C from 0° to 50°C (±0.27°F from 32° to 122°F), insert probe 2.3 cm (0.9 inches) minimum; see Plot A
Resolution 0.002° at 25°C (0.003° at 77°F)
Drift <0.1°C (<0.2°F) per year
Response Time in Air 2 minutes typical to 90% in air moving 1 m/s (2.2 mph)
Response Time on a Pipe Typically 2 times faster than the SD-TEMP-xx air/water/soil temperature probe; typically less than 1 minute to 90%
Probe Housing Copper-plated sensor tip
Probe Dimensions 0.9 x 5.8 cm (0.38 x 2.3 inches)
Cable Length 1.8 m (6 ft)
