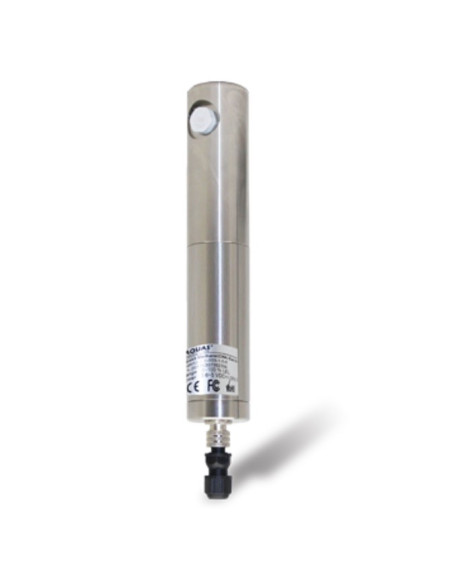

SMR56 Nitric Oxide Gas Analyzer

Reference SMR56

Manufacturer: Aquas Inc.

Condition: New

The Nitrogen Oxide Gas Analyzer connects directly through the RS485 communication interface, providing simple, reliable and economical process data with remote monitoring, calibration, configuration and diagnostics capabilities.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
APPLICATIONS

The Nitric Oxide Gas Meter housing in a robust IP68 proof enclosure, 1000 N tensile strength cable, up to 1.2 km digital data transmission, the NO Gas Analyzer or NO Gas Meter is ideally used in gas utilities, industrial manufacturing, water and waste water facilities.

■ Robust IP68 Water Submersible Enclosure, Solution Without Cabinet
■ 1 sec On-line Realtime Measurement
■ 0.05W Ultra Low Power Consumption, Ideal for Outdoor Applications
■ Temperature Compensation
■ High Reliability, Drift Free
■ Lightening and Surge Protection for Power and RS485 Communication

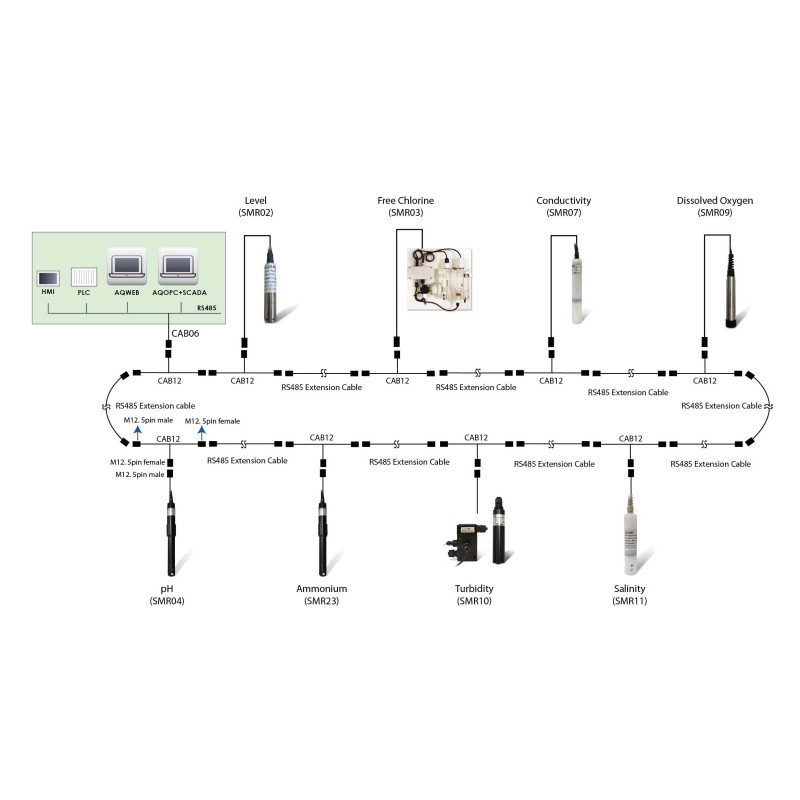

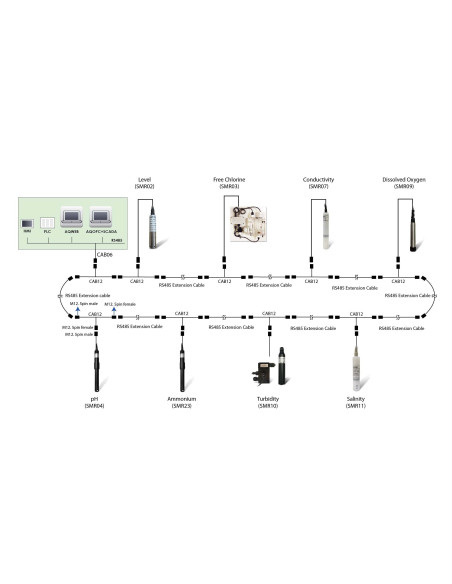

■ 1.2 Km RS485 Digital Communication, Minimize Cabling and Engineering Cost
■ Software Configuration Calibration and Data Monitoring
■ Onboard memory allowing users to easily calibrate and configure sensor at lab and distribute to various fields sites ■ Standard Modbus RTU Protocol, Direct Connected with PLC, HMI, Eliminate I/O Module Cost

Type	Catalytic bead sensor
Measurement range	0~100 ppm
Accuracy	±2% FS
Resolution1	1 ppm
Repeatability	±1% FS
Operating temperature	-40 ~ 85 °C
Response time	15 secs
Protection	IP68
Temperature sensor	pt100
Temperature measurement range	0 ~ 85 °C
Temperature accuracy	±0.5°C
Sensor HousingPOM	POM; SS316L; Titanium
Dimension	Φ 40Χ 120 mm
Weight	analyzer: approx.500 g (POM); 900 g (SS316L); 800 g (Titanium) cable: 80 g/m

Type	Applications	Measurements	Order Selections
A	Source Water (River, Reservoir)	Pressure Level pH Temperature Conductivity Dissolved Oxygen Turbidity Nitrate (NO3- ) Ammonium (NH4+) Chloride (CL-) Nitrite (NO2-)	SMR01 SMR02 SMR04 SMR06 SMR07 SMR09 SMR10 SMR21 SMR23 SMR27 SMR28
B	Ground Water	Pressure Level pH Temperature Conductivity	SMR01 SMR02 SMR04 SMR06 SMR07
C	Water Treatment	Pressure Level Free Chlorine pH Conductivity TDS Turbidity Salinity Differential Pressure	SMR01 SMR02 SMR03 SMR04 SMR07 SMR08 SMR10 SMR11 SMR14
D	Water Distribution	Pressure Level Free Chlorine pH Temperature Conductivity TDS Turbidity	SMR01 SMR02 SMR03 SMR04 SMR06 SMR07 SMR08 SMR10
E	Wastewater Effulence	Level pH Temperature Conductivity Dissolved Oxygen Suspended Solid Nitrate (NO3-) Chloride (CL-)	SMR02 SMR04 SMR06 SMR07 SMR09 SMR12 SMR21 SMR27
F	Fisheries, Aquarium and Aquaculture	Level pH Temperature Dissolved Oxygen Turbidity Salinity Level Free Chlorine ORP Temperature Nitrate (NO3-) Ammonium (NH4	SMR02 SMR04 SMR06 SMR09 SMR10 SMR11 SMR02 SMR03 SMR05 SMR06 SMR21 SMR23
G	Factory, Commercial Building	Conductivity TDS Humidity and Temperature Differential Pressure	SMR07 SMR08 SMR13 SMR14
H	Weather	Humidity Barometer Wind Speed and direction	SMR13 SMR15 SMR24
I	Environment I (Strain, Landslide, Level)	Rain Gauge Pyranometer Level (water pressure) Vibration Wire Input Noise	SMR29 SMR30 SMR02 SMR19 SMR26
