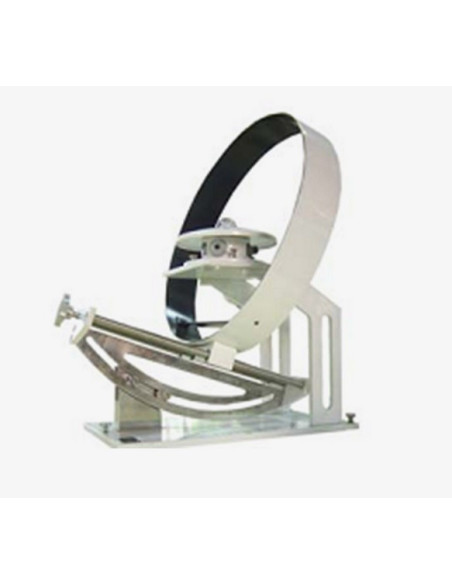

AO-200-09 Scattering Radiometer

Reference AO-200-09

Condition: New

► Scattering Radiometer
► Spectral range: 280-3000nm
► Power Supply: 12-24VDC
► Range: 0-2000W/m2
► Output: 0-5V,4-20mA,RS485
► Sensitivity: 7-14μV*W-1*m2
► Latitude scale range: 0～50°N or S
► Red latitude: ±25°
► Ring diameter: Φ400mm
► Accuracy: <±2%

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
APPLICATIONS
Data sheet
Download

The Sensor measures:	Scattering Radiometer
Output Signal:	4-20mA, 0-5V, RS485
Power Supply:	12-24 Vdc
Sensor IP Rating	IP65

AO200-09 Data Sheet Download (191.14k)

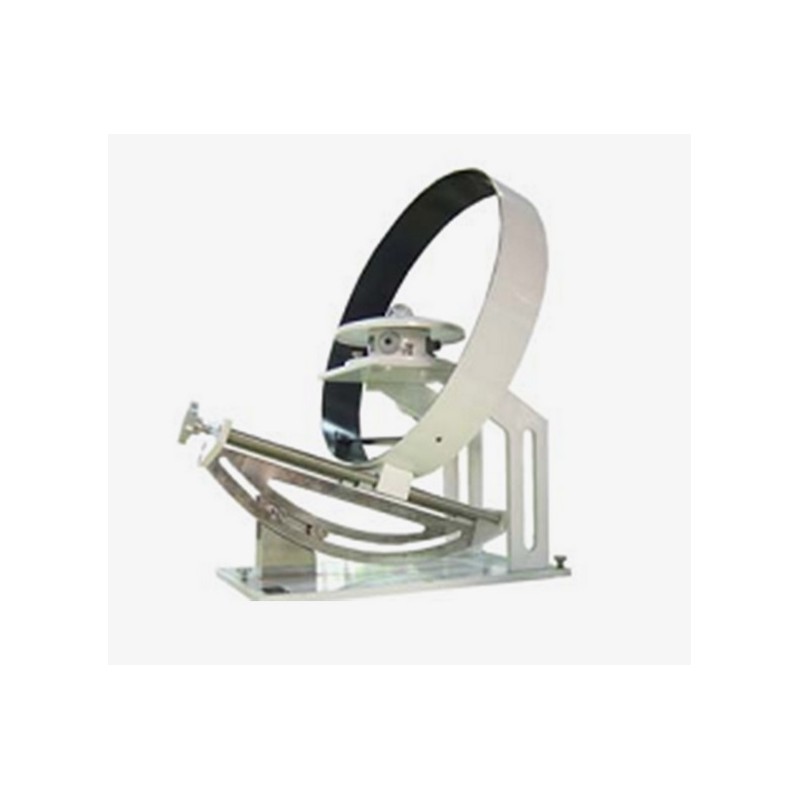

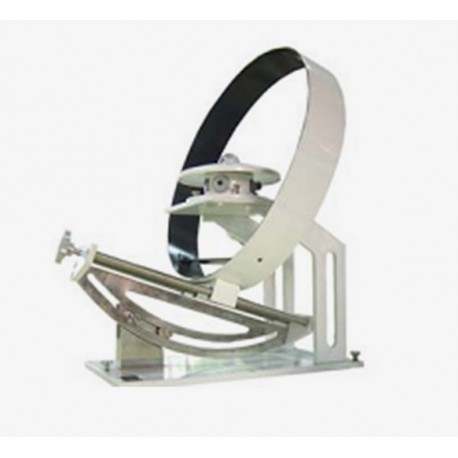

The AO-200-09 Scattering radiometer is composed of a Pyranometer and a shielding ring.
The purpose of the shielding ring is to keep the sun's direct radiation out from sunrise to sunset.

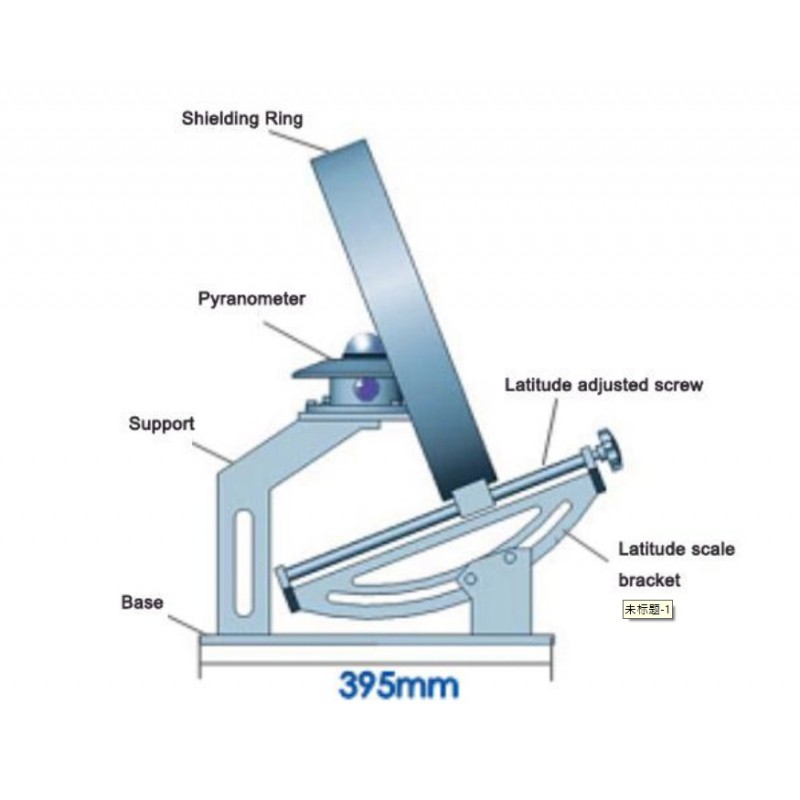

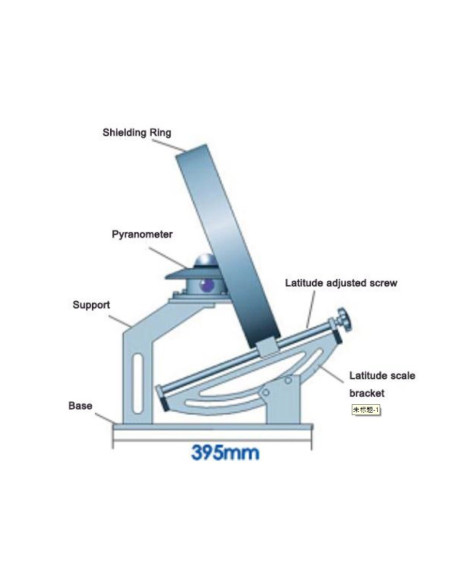

The shielding ring is composed of the shielding ring, a ruler, an adjusting screw, a bracket and a chassis.

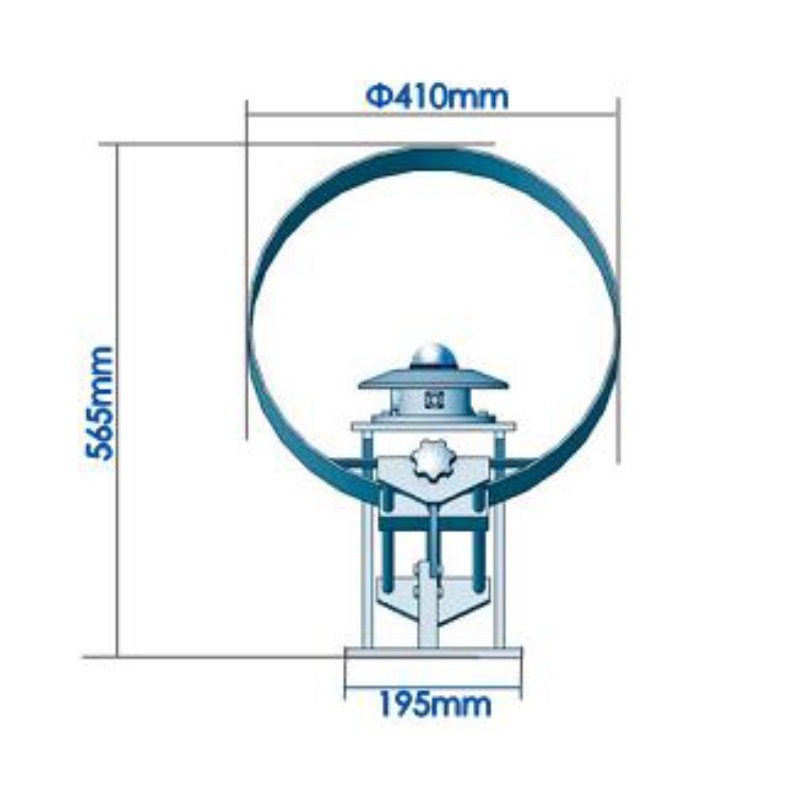

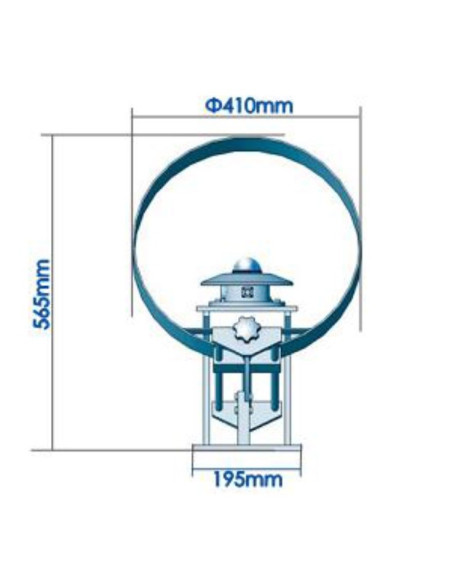

The width of the shielding ring is 65mm and the diameter is 400mm. The shielding ring is fixed on the screw rod adjustment spiral of the ruler, on which the latitude scale and declination scale are engraved.
The ruler and bracket are fixed on the chassis according to the geographical latitude of the location.

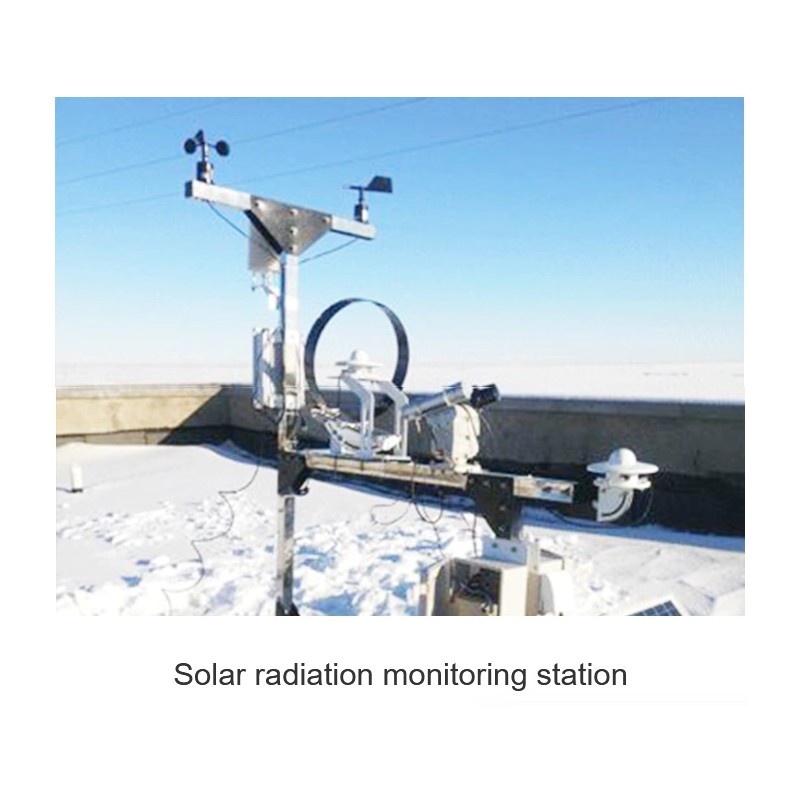

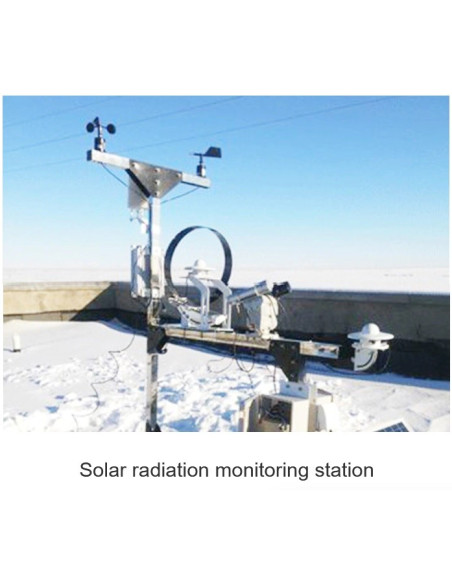

It can be widely used to continuously measure the scattered radiation intensity of the sky with meteorological stations and in scientific research departments.
